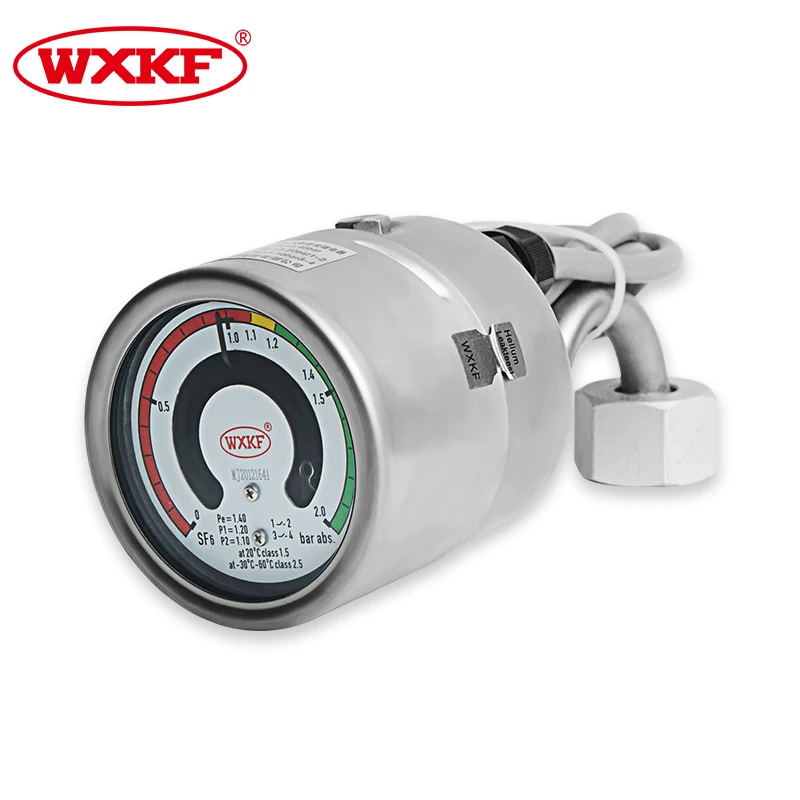

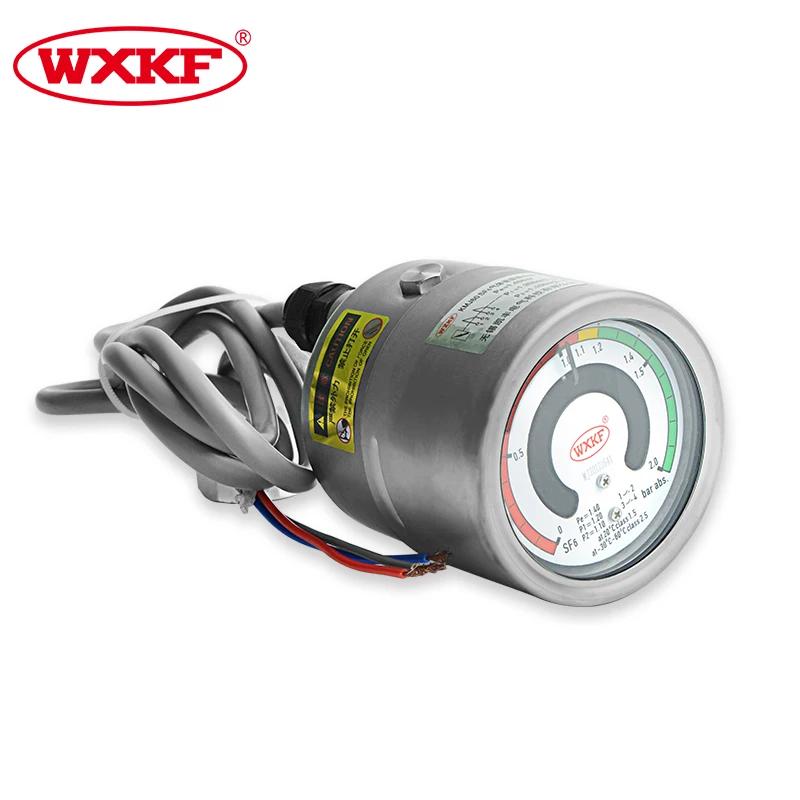

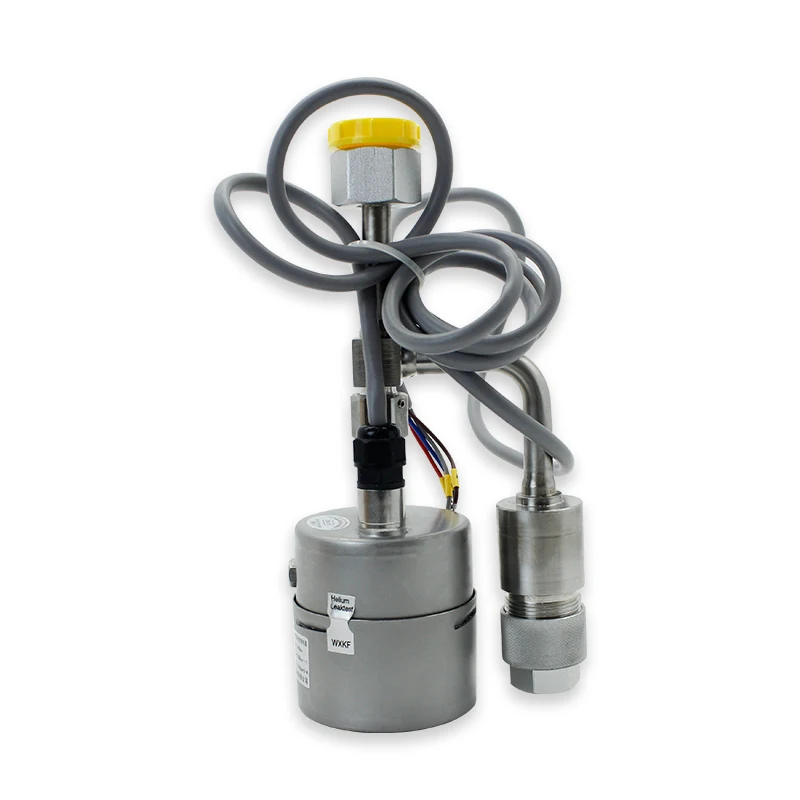

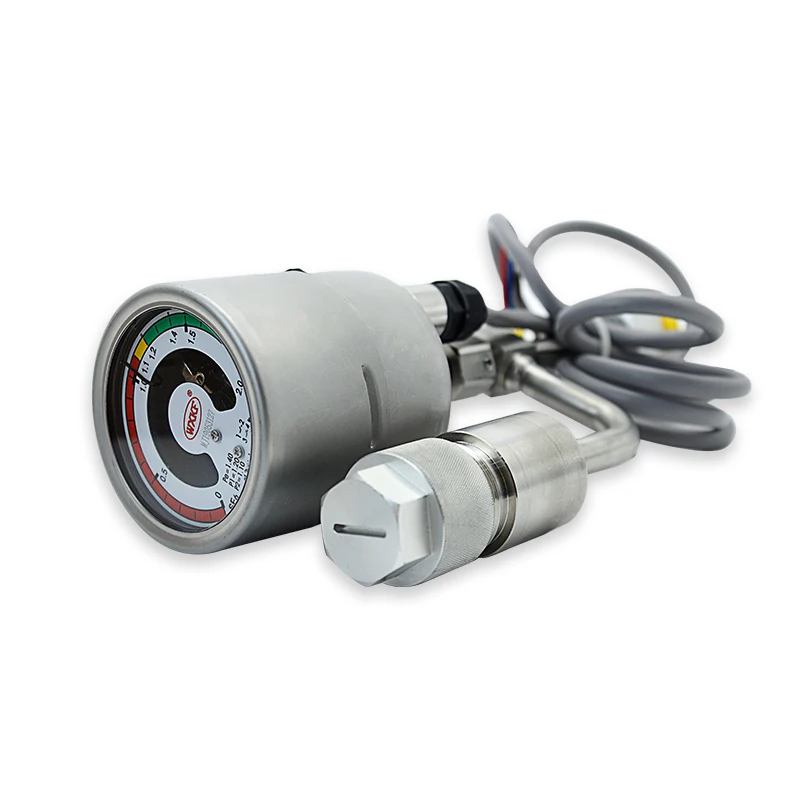

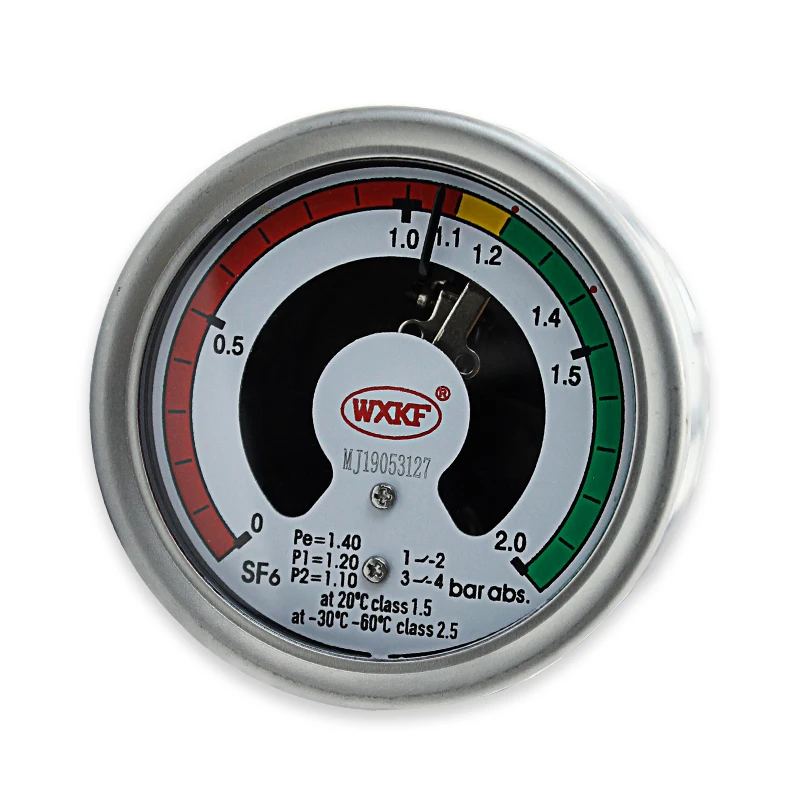

Professional manufacture high precision reliable gas density monitor density relay gas analyzers
- Category: >>>
- Supplier: Wuxi Kaifeng Electric Technology Co. Ltd.
Share on (1600181824247):
Product Overview
Description
Main Technical Data
Working environment: | Temperature-30℃ ~60℃, relative humidity≤95% PH |
lngress Protection | IP 65 |
Vibration resistance in working environment | class 1 |
lmpact class | 30g |
Leakage ratio | ≤1x10-9 Pa.m3/s (helium leak detection) |
Contact type | magnetic aid electric contact switch 80%silver, 20%nickel, 10µm gold plated |
Electric parameters of the contact | AC: 30VA 380V 1.0A DC: 30W 220V 1.0A |
lnsulation performance insulating resistance | 100MΩ (500VDC) |
Power-frequency withstand voltage | 2000V 45/60HZ.1 min |
Product Description
Product Features
1. Electric contact switch design realizes accurate and reliable SF6 gas monitoring functions.
2. With temperature compensation, the compensation performance is stable and the detection precision is high.
3. On-site display values and output contact signals are not affected by external conditions including the altitude and ambient temperature change.
4. Core elements are made of imported materials with high precision.
5. Good shockproof performance.
6. There are three contact groups at most, which can realize several options including overpressure alarm, double alarm or double lock and make the monitoring safer and more reliable.
7.Gas fill, micro-water test and calibration can be implemented without removal of the SF6 gas density relay, making it easy for on-site staff to conduct micro-water test and gas supplementand avoiding the seal face and seal ring damage arising from removal.
8.304 stainless steel is adopted for the sealed case, which prevents both moisture and corrosion.
2. With temperature compensation, the compensation performance is stable and the detection precision is high.
3. On-site display values and output contact signals are not affected by external conditions including the altitude and ambient temperature change.
4. Core elements are made of imported materials with high precision.
5. Good shockproof performance.
6. There are three contact groups at most, which can realize several options including overpressure alarm, double alarm or double lock and make the monitoring safer and more reliable.
7.Gas fill, micro-water test and calibration can be implemented without removal of the SF6 gas density relay, making it easy for on-site staff to conduct micro-water test and gas supplementand avoiding the seal face and seal ring damage arising from removal.
8.304 stainless steel is adopted for the sealed case, which prevents both moisture and corrosion.
