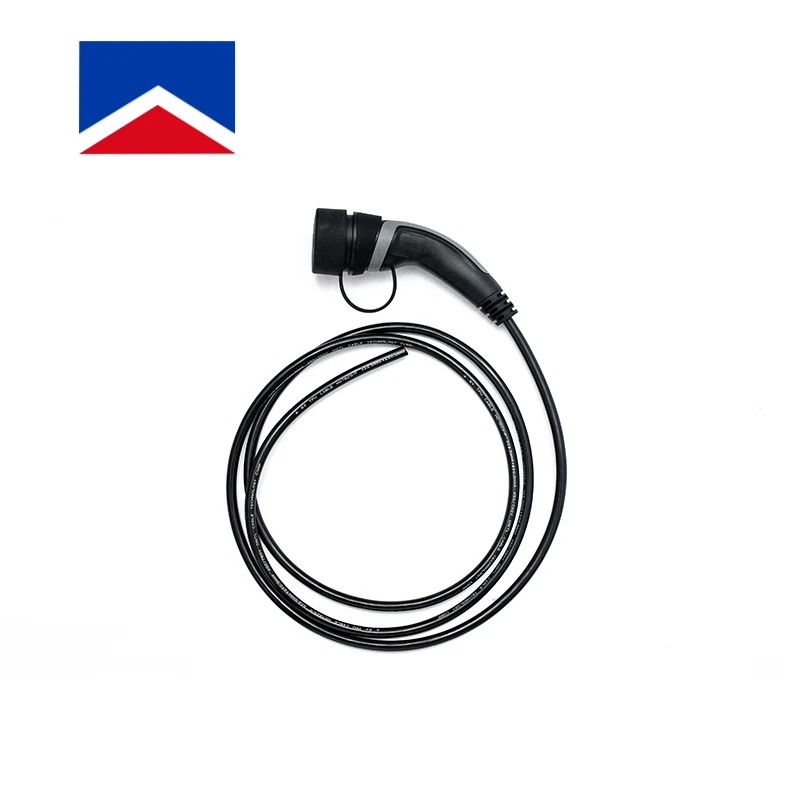

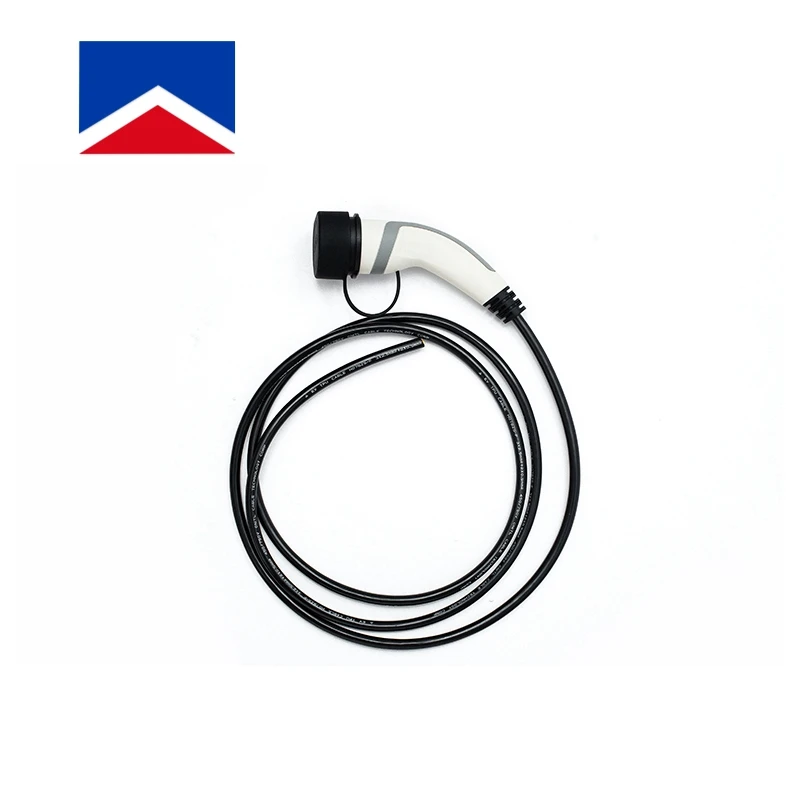

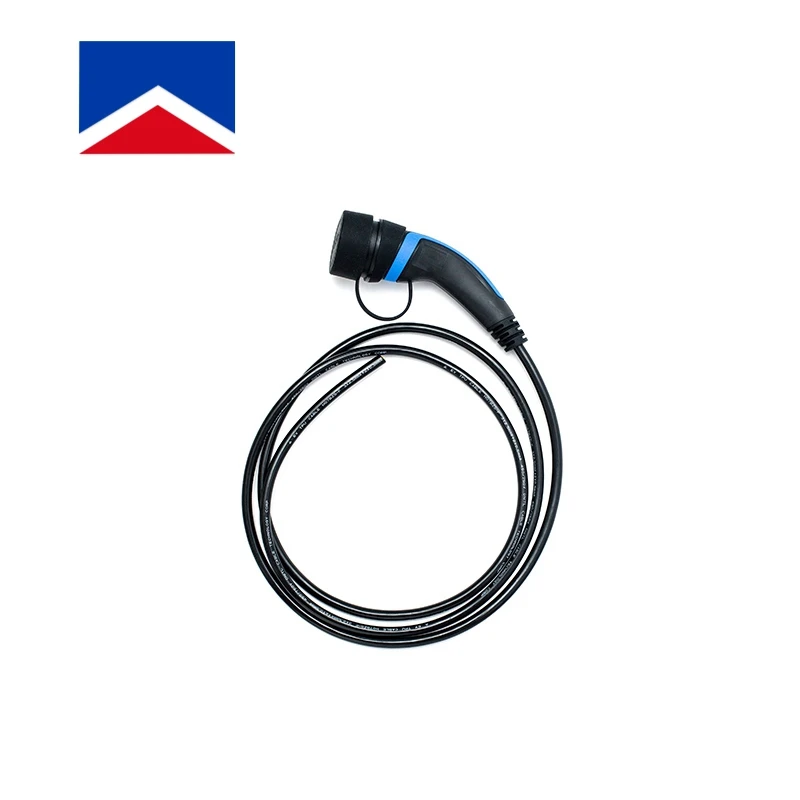

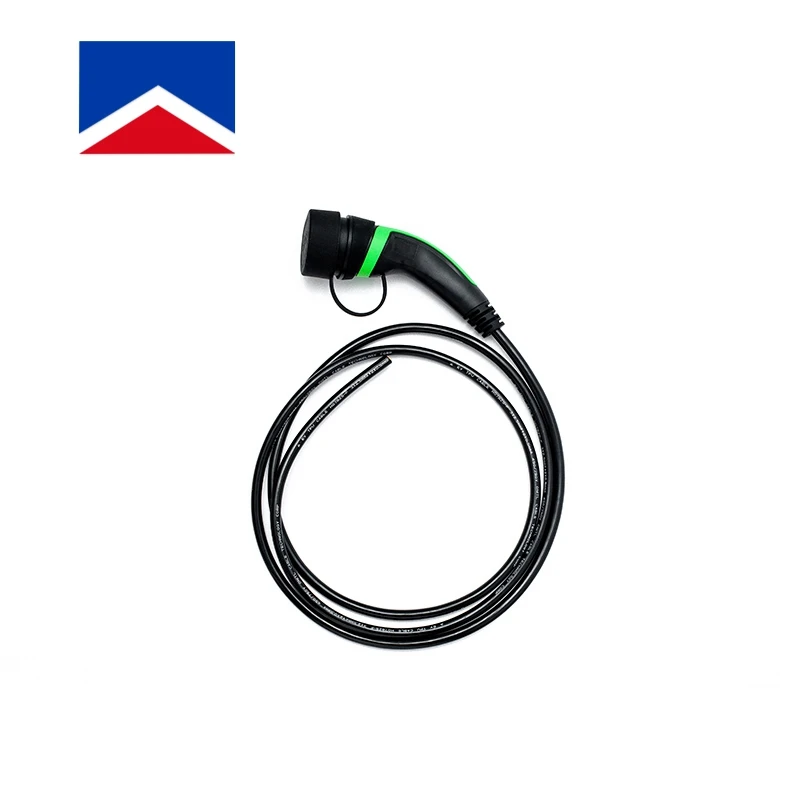

EV charger Type2 IEC 16A 250V ev cable car charging station 7kw 11kw 22kw home Fast outdoor highpower ev Charging controller
- Category: >>>
- Supplier: Nanjing Langchi Group M&E Co. Ltd.
Share on (1600181830991):
Product Overview
Description
EV FAST CHARGER
Type 2
Product Description
Product application | Electric vehicle | ||||||
Mechanical life | no-load plug > 10000 times | ||||||
The rated current | 16A, 20A, 32A | ||||||
The rated voltage | 250V, 480V | ||||||
Insulation resistance | >1000MΩ (DC500V) | ||||||
Pins temperature rise | <50K | ||||||
Withstand voltage | 2500V | ||||||
Contact impedance | 0.5mΩ Max | ||||||
Operating temperature | -30 ºC ~ +50 ºC | ||||||
Cable | H07BZ5-F3x2.5mm² +2x0.5m² | ||||||

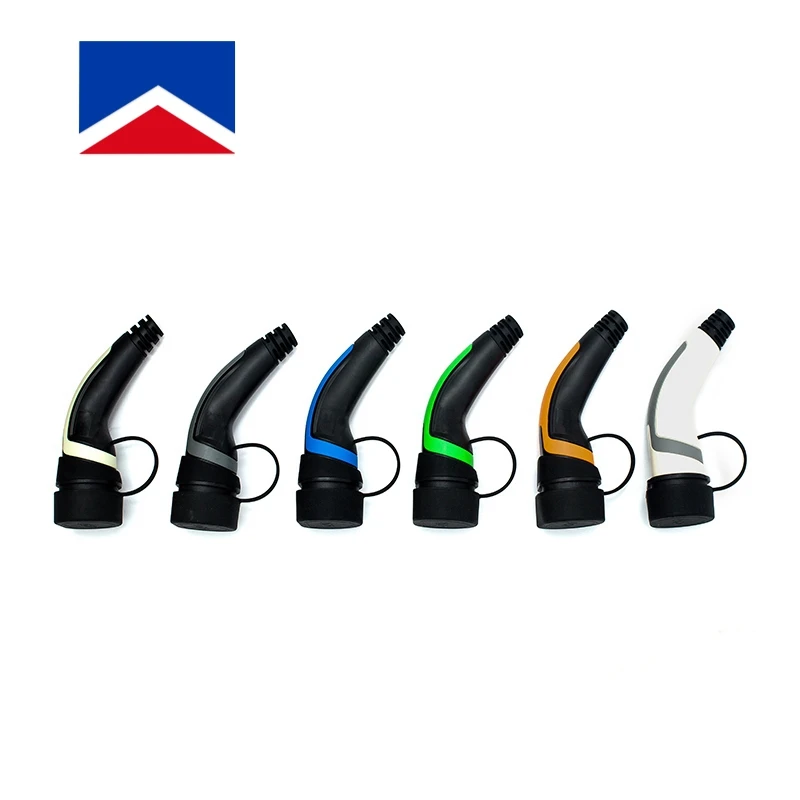

Features | 1. Conform to the provisions and requirements of IEC 62196-2 2016 2-IIe 2. Using riveting pressure process with none screw, have a beautiful appearance. Hand-held design conform to the ergonomic principle, plug conveniently 3. XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable. 4. Excellent protection performance, protection grade achieved IP55 (working condition) 5. Adopted double color coating technology, personalized custom a variety of colors (Orange, blue, green, grey) | ||||||

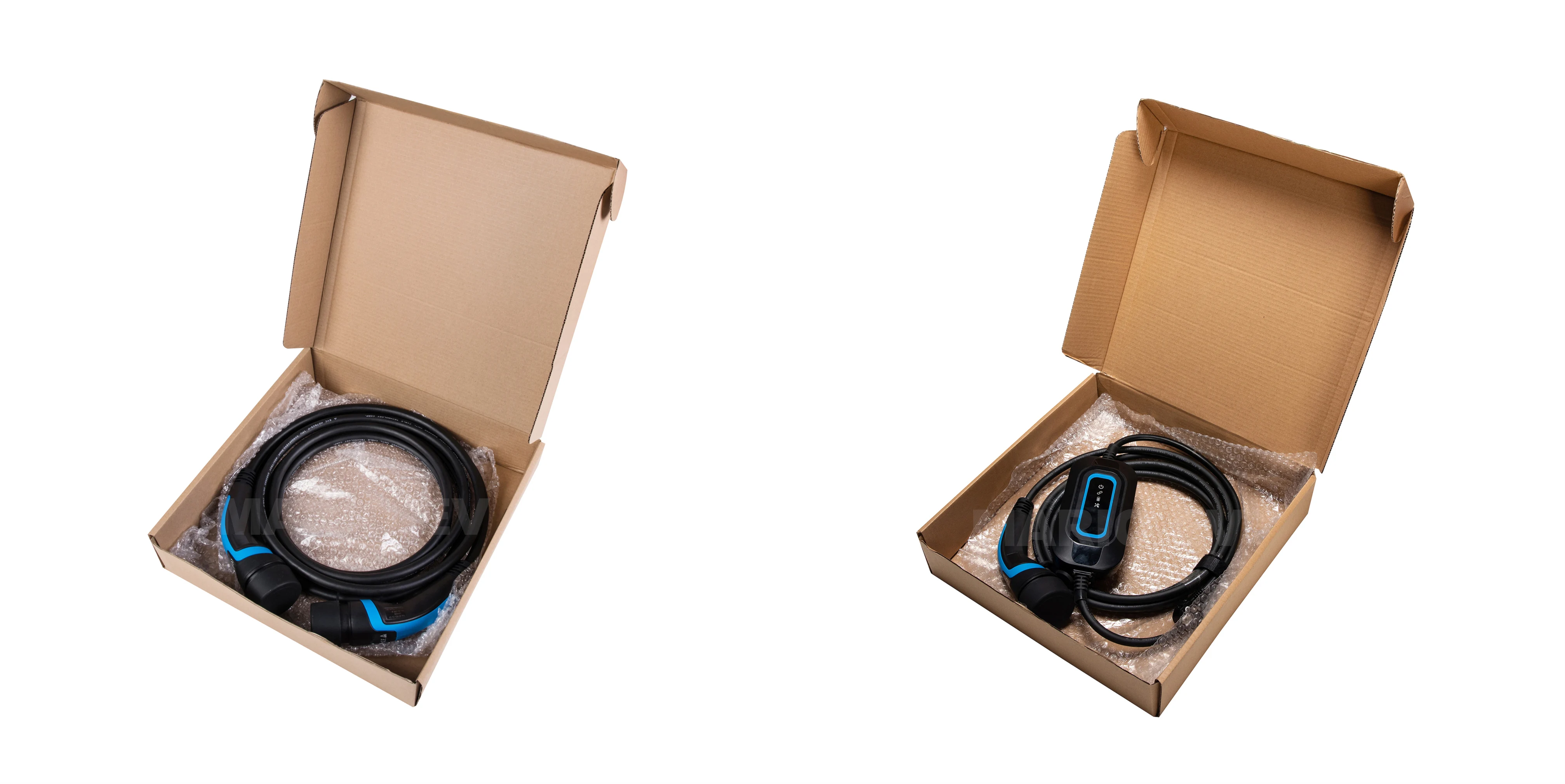

Packing & Delivery
Details Images
Company Profile
Nanjing Langchi electric vehicle charger adopts the latest cable technology of the factory and always strictly implements IATF
16949 and ISO 9001 international quality management system. We have obtained TUV, CE, ROHS, CCC and ISO certification. There are
various charging interfaces and charging solutions in accordance with SAE j1772, GB / t20234, IEC 62196 and other standards, which
are suitable for multi brand electric vehicles and charging stations. We have many years of cable manufacturing experience and
independently develop and produce cables.
From raw materials to industrial products, customization is our most recognized competitive advantage. The products are exported
to Europe, Southeast Asia and other countries and regions, and have been recognized by users all over the world.
Application
Our Advantages
1. We offer customization services such as logos, brand name, packaging, and cable colors.
2. Introduced advanced technology, imported advanced equipment.
3. Our products are exported to Europe, Southeast Asia, the Middle East, India, Africa and South America and other countries and regions.
4. Our company promises: reasonable prices, short production time and satisfactory after-sales service.
Certifications
FAQ
1. Do different EVs require different chargers?
There are two standard connectors which different models of EV use (Type 1 and Type 2), the market is moving to using Type 2 as standard but charge points are available in either and there are also Type 1 to Type 2 adaptor cables.
2. How long does it take to charge an electric car using an EV charger?
The time it takes to charge an electric car depends on two factors. The capacity of the electric cars battery and the power output of your domestic EV charger. Typical charge times are around 6-8 hours using a 3kw charger, 3-4 hours using a 7kw, 1 hour at 22kw and around 30 minutes using a 43-50kw EV charge point.
3. Does my electric car need a special charging station?
Not necessarily. There are three types of charging stations for electric cars, and the most basic plugs into a standard wall outlet. However, if you want to charge your car more quickly, you can also have an electrician install a charging station at your home.
