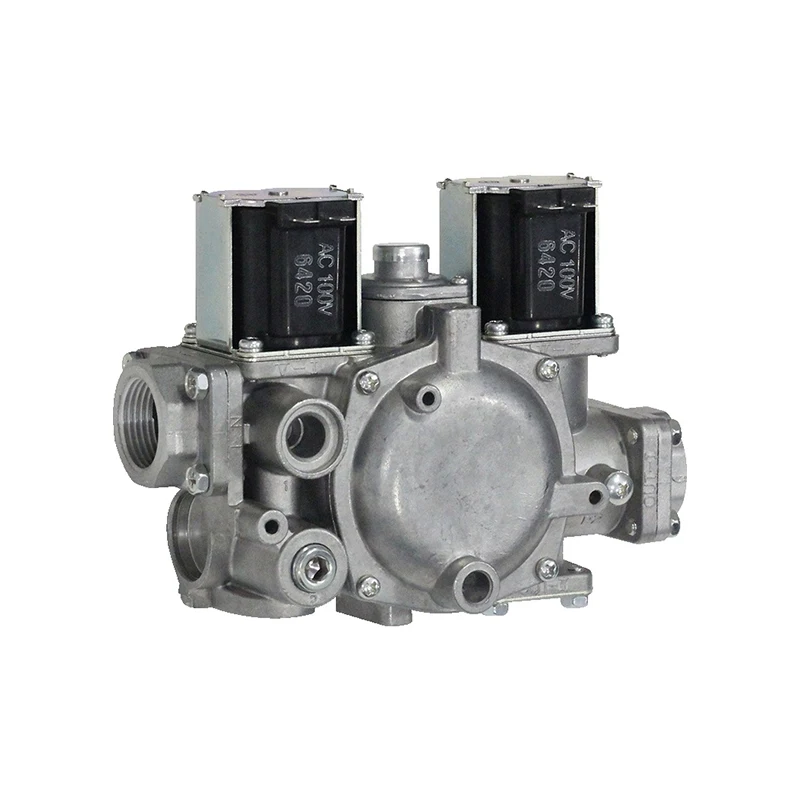

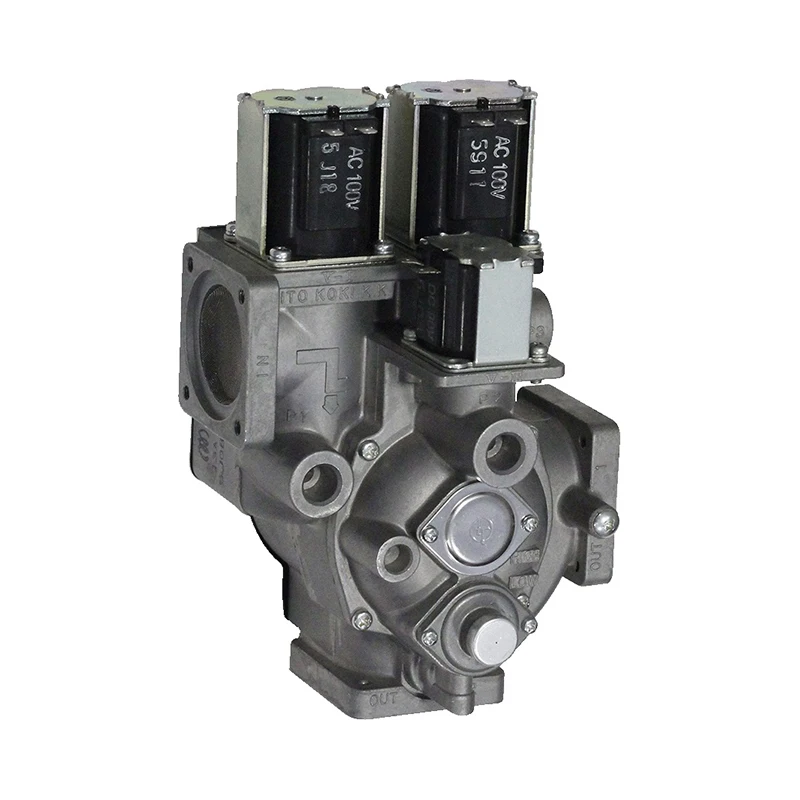

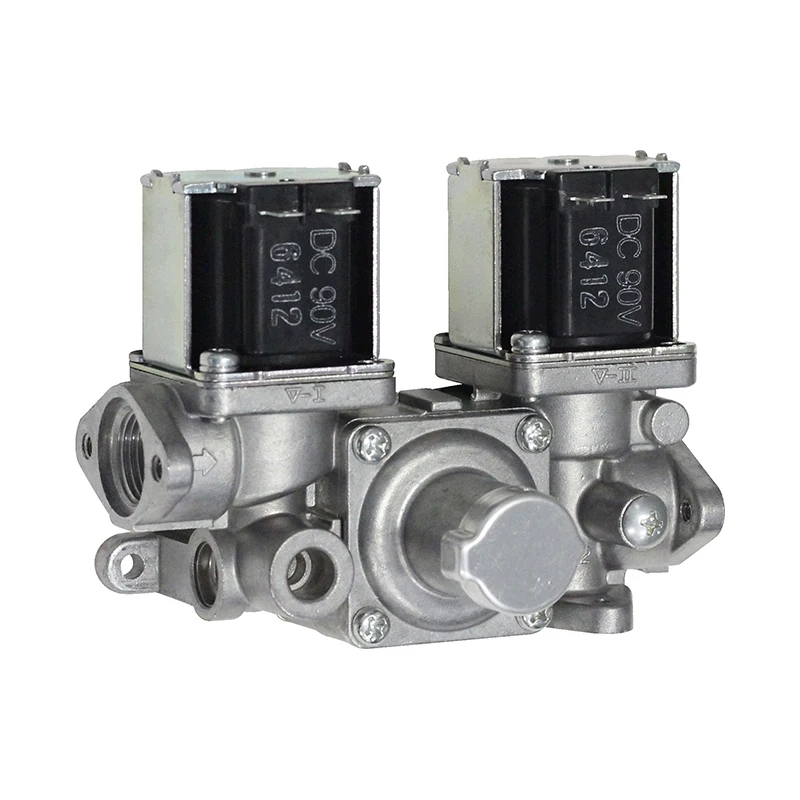

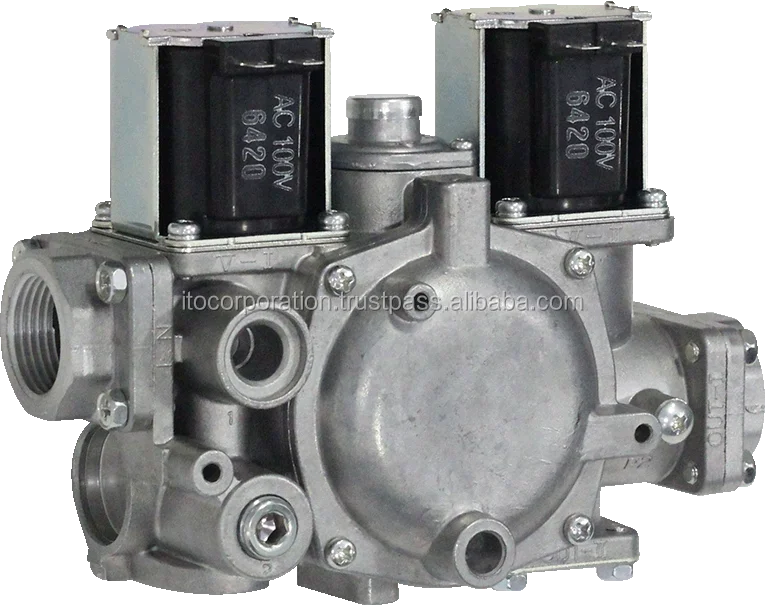

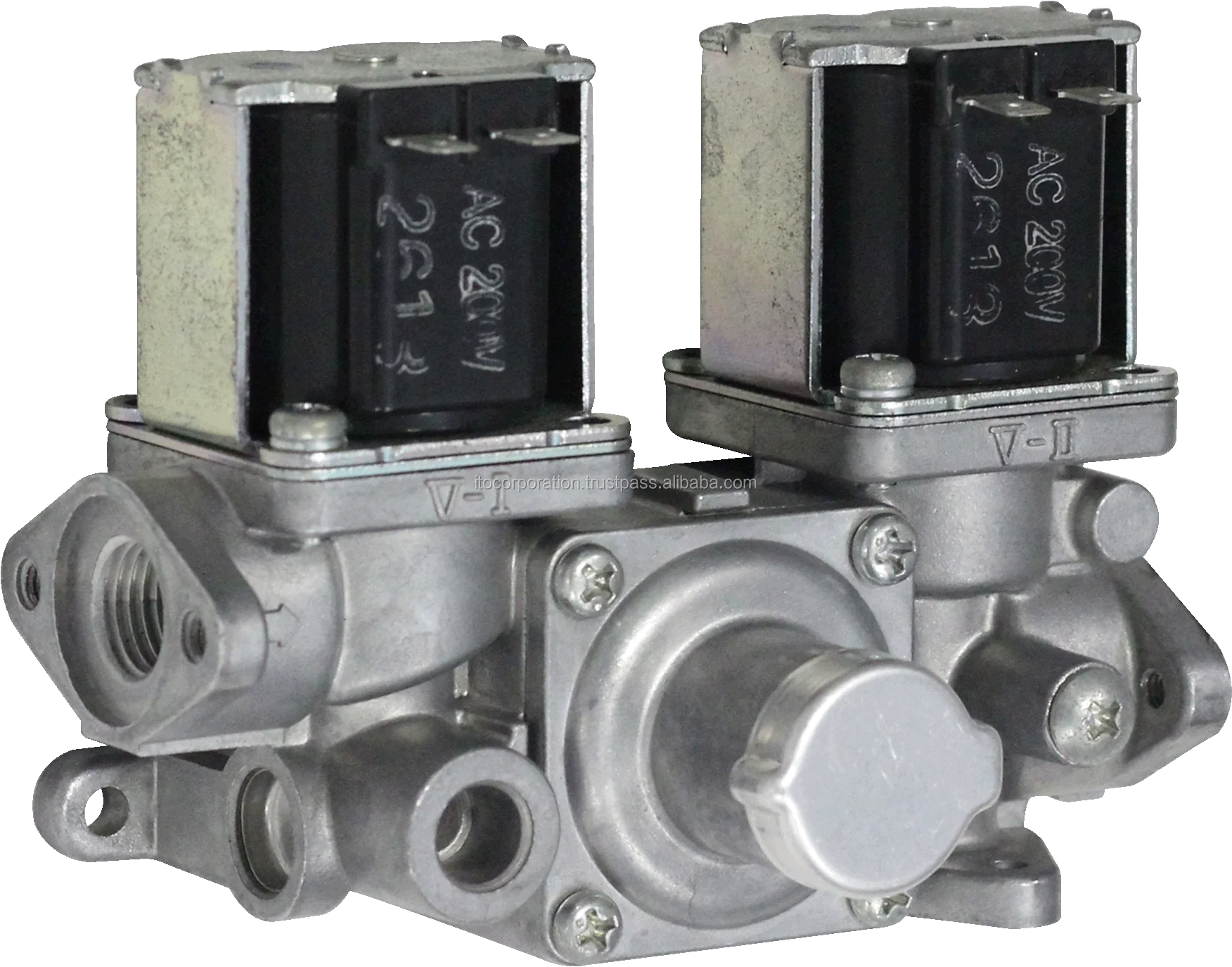

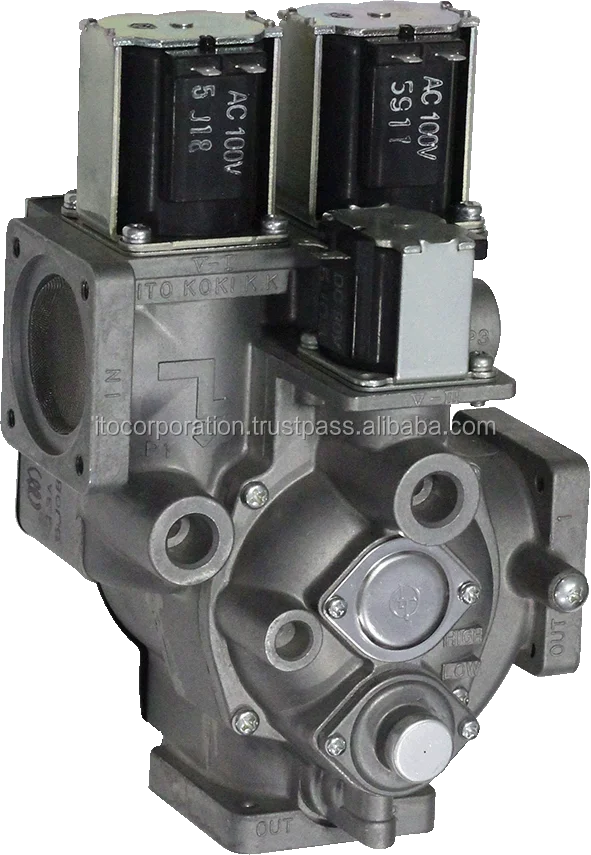

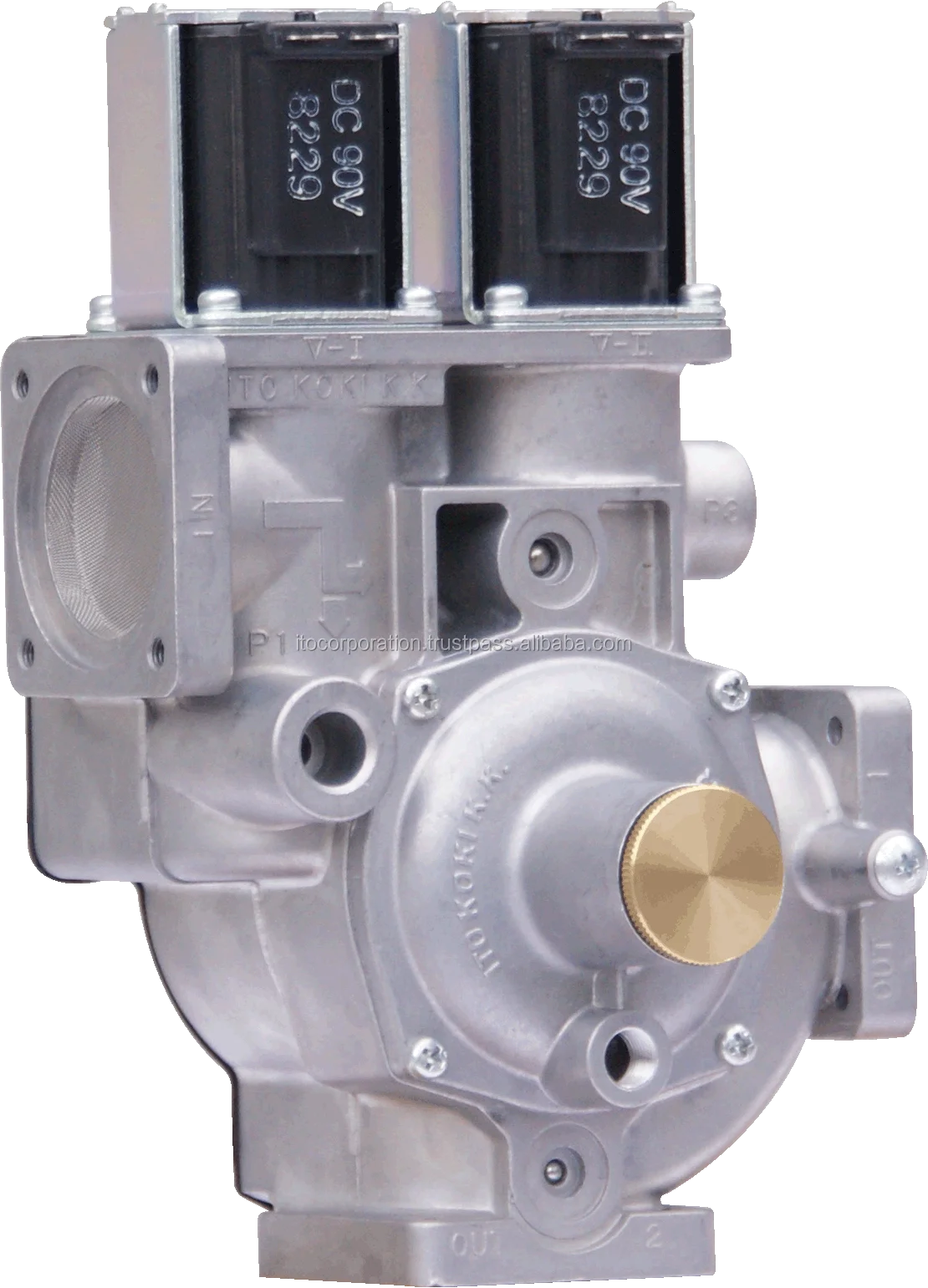

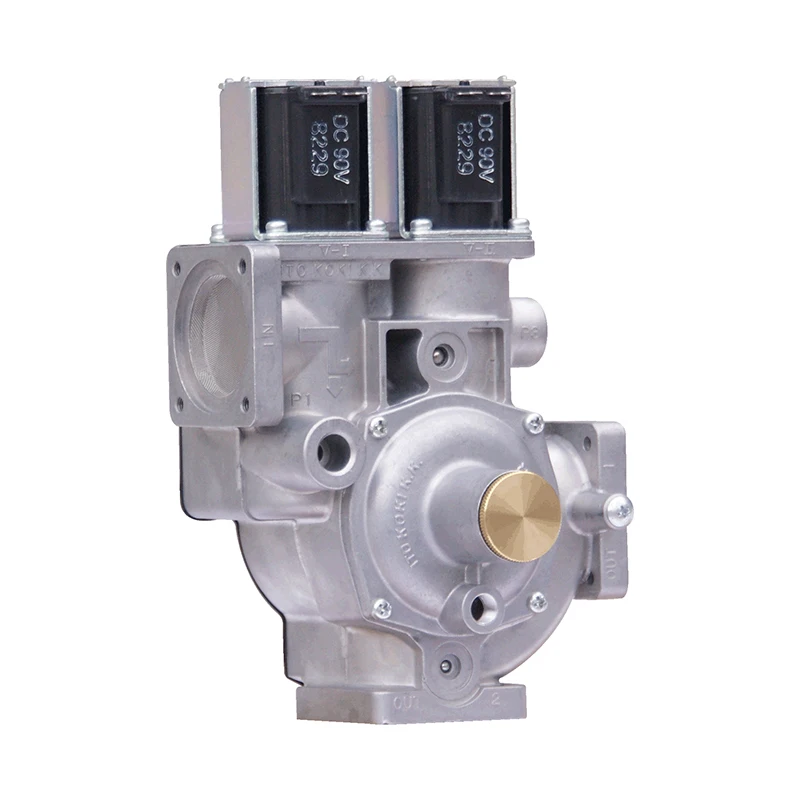

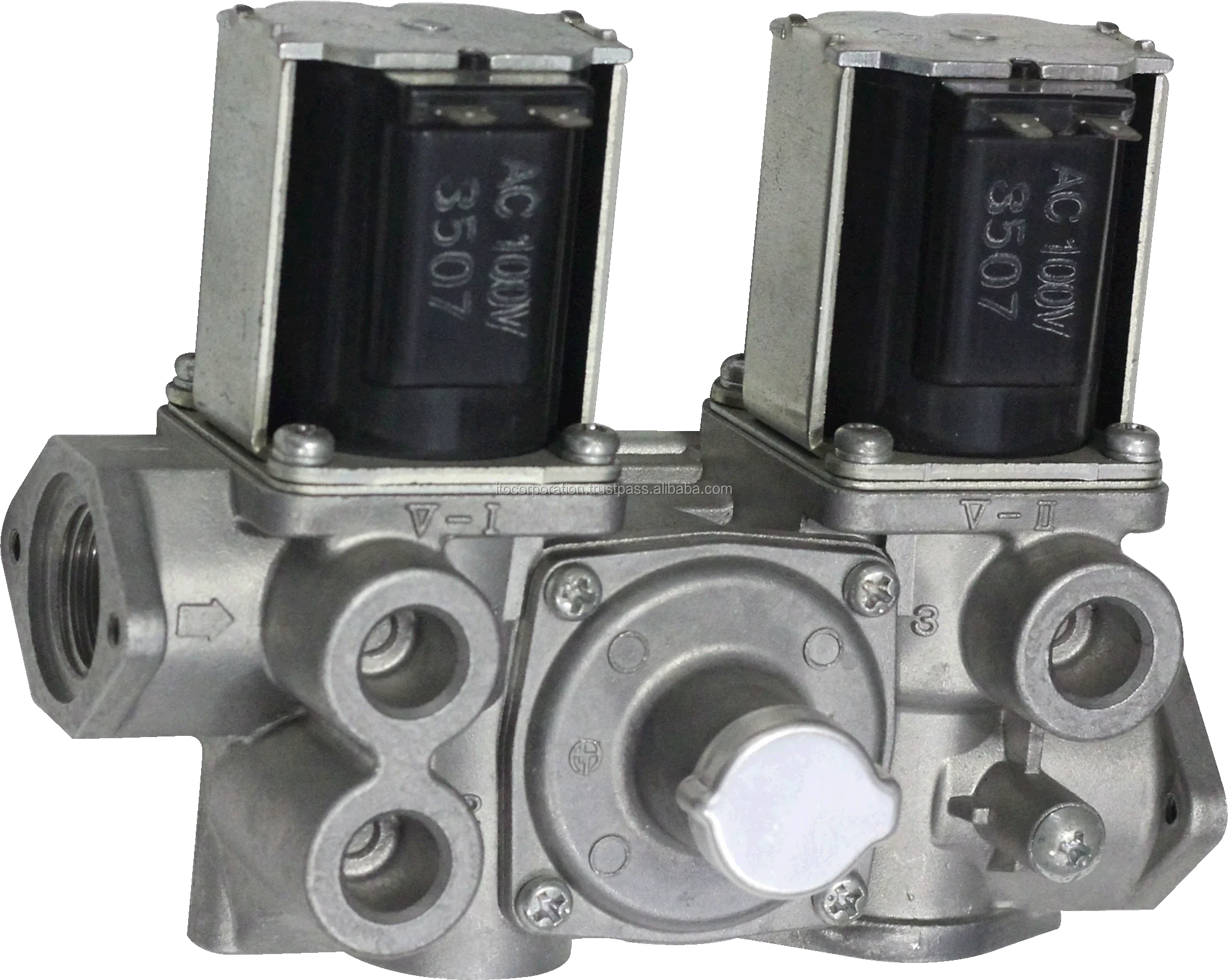

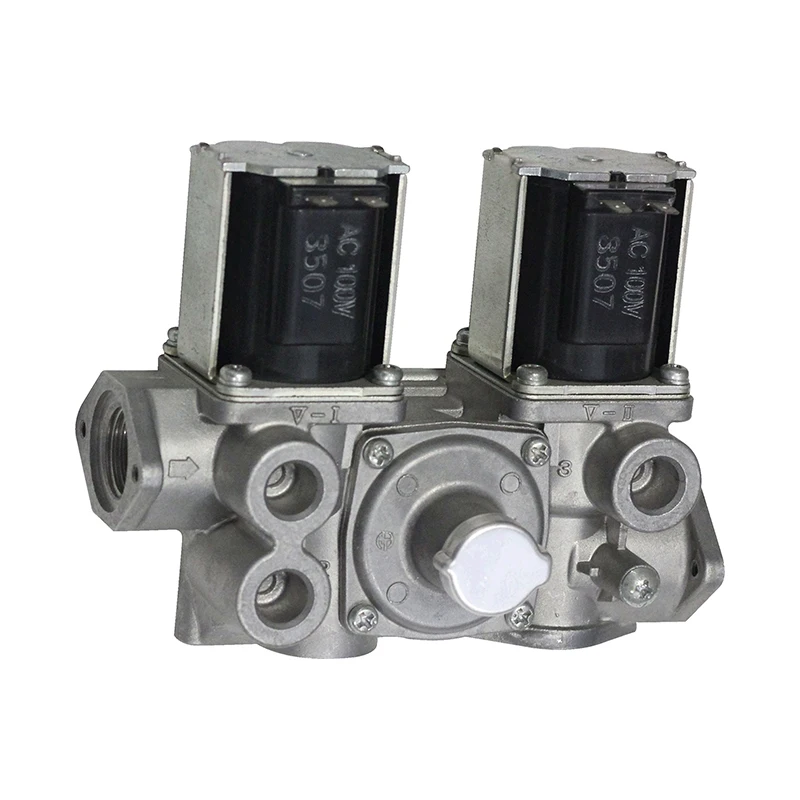

Solenoid technology is an electro-mechanical device that controls the gas flow by opening or closing the valve orifices. The WS Range is a unit of double solenoid valves and a pressure regulator for gas appliance in one compact body to reduce installation space, cost and decrease assembly process and possible gas leakage points.

Combustion appliances must be equipped with solenoid valves that are set to open on energizing in the event of an abnormality and automatically close within one second on de-energizing. In addition, since the solenoid valve is an important safety device, two solenoid valves must be installed in series, as a general rule, considering that one valve alone cannot completely shut off the gas, such as in the case of dust adhesion to the valve.

Select suitable connection, pilot solenoid valve and control method to meet your requirement. Also DC90V, AC100V, AC200V are available. Please see the pictures for more detailed specifications and optional functions.






*Strainer Mech Gauge: 60 Mesh*1 Any position except one with te adjusting screw facing downward. If the adjusting screw is required to face upward, please inform us when placing an order.


*Features*
Cost and Space Saving - 2 solenoid valves and 2 appliance governors in one compact body
Selectable Specifications - Select the connection size, pilot solenoid valve and control method to meet your requirement.


*An adapter set for inlet and outlet are provided with the kit of WS-100, 101, 102 and 104 range if requested.
*Outlet direction of WS-103 range is selectable right or downward. Please specify when you place an order.


                          Model
                   Connection
Power Consumption Per One Solenoid Valve
                               Pilot Solenoid Valve
                      Mounting Position
WS-100-100
Rc 1/4
                         5W±1W
N/A
                                                                                                                                            Any Position
WS-101-100
Rc 3/8

N/A

WS-102-100
                         Rc 1/2
9.5W±2W
N/A

WS-102P-100

5W±1W
Included

WS-103-100
                            Rc 3/4
9.5W±2W
N/A

WS-103P-100

5W±1W
Included

WS-103-400

9.5W±2W
N/A

WS-104-100
                           Rc 1
                          5W±2W
Included
                                                        *1
WS-104-300


N/A

WS-104-400

10W±2W
N/A



*Strainer Mech Gauge: 60 Mesh
*1 Any position except one with te adjusting screw facing downward. If the adjusting screw is required to face upward, please inform us when placing an order.

Range Specifications


Inlet Pressure(kPa)
≦3.50


Selectable Specifications



Voltage
DC90V

AC100V

AC200V

Coil Connection
FASTON Terminal (187 Series)

Lead Wire
