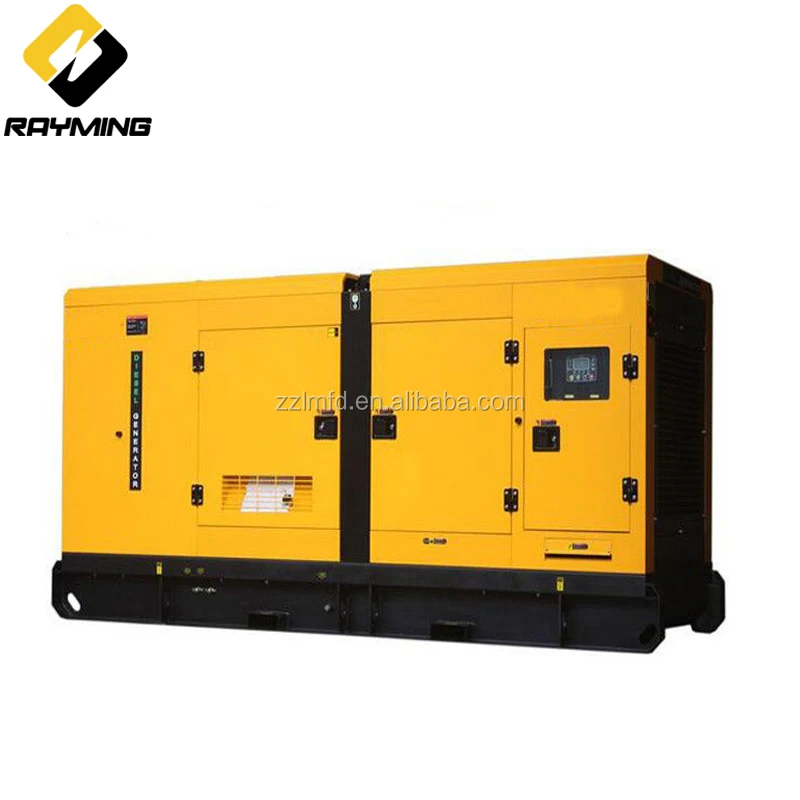

Silent Diesel Generator Volvo Penta Engine Diesel Generator 150KW ISO/CE Approved Prowered By VOLVO TAD732GE
- Category: >>>
- Supplier: Zhengzhou Leiming Power Equipment Manufacturing Co. Ltd.
Share on (1600182348270):
Product Overview
Description
Product Description
Silent Type 150KW/187KVA Volvo Engine Diesel Generator
Our factory has CCEC, DCEC, , VOLVO, Deutz, Daewoo, Shangchai, Weichai Deutz,Jichai etc World and Chinese famous engine for genenrators set. We have specialized in synchronous 100% copper wire alterantor for more than 20 years. LM brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.
Standard configuration
Overall description:
● Engine
● Meet the environmental temperature 40 ℃
water tank radiator,Driving belt cooling
fans, with fan safety shield
● 24 V charging generators
● Generator:Single bearing generator,IP23
Grading Protection, H Insulation degree
● Shock absorber
● Dry air filter,Fuel filter,Oil filter
● Power output circuit breaker
● Standard control panel
● 12 V battery and battery connection cables
● Exhaust pipe,Bellows,Flange,Muffler set
● Documents and Manuals
Optional Accessories | ||||||
♦Auto startup control panel | ||||||
♦Automatic control panel(ATS) | ||||||
♦Split type daily fuel tank;Integrated base fuel tank | ||||||
♦Rainproof enclosure;Soundproof enclosure | ||||||
♦Mobile power station | ||||||
♦Mute power station | ||||||
Unit parameters | ||||||
Power: | 150KW/187KVA | |||||
Rated voltage: | 400V/230V | |||||
Rated current: | 262.8A | |||||
Rated frequency: | 50Hz | |||||
The factor of rated power: | 0.8 | |||||
The regulating rate of instantaneous voltage: | ≤±15% | |||||
The regulating rate of steady voltage: | ≤±0.5% | |||||
The waving rate of voltage: | ≤0.5% | |||||
Voltage waveform distortion degree: | ≤5% | |||||
The time of steady voltage: | ≤1.5sec | |||||
The regulating rate of steady frequency: | ≤±2% | |||||
The regulating rate of instantaneous frequency: | ≤±5% | |||||
The time of steady frequency: | ≤3sec | |||||
The waving rate of frequency: | ≤±0.5% | |||||
The waste of fuel with full load: | ≤210g/kw.h | |||||
Size(mm): | 2500*1000*1600mm | |||||
Weight(kg): | 1550KG | |||||
The main parameters of the engine | ||||||
Brand: | Volvo | |||||
Model: | TAD732GE | |||||
Standby power: | 179KW | |||||
Type: | four strokes, waste gas turbine boost,direct spurting type | |||||
Cooling way: | water cooling | |||||
With type: | Inline type | |||||
Bore*Trip: | 108*130mm | |||||
Cylinder: | 6 | |||||
Displacement: | 7.15L | |||||
Lubricating Capacity： | 29L | |||||
Speed adjustment way: | Electronic speed governor | |||||
Rotating speed: | 1500r/min | |||||
Starting way: | starting with electricity | |||||
The main parameters of the generator | ||||||
Brand: | RAYMING | |||||
Model: | RM-150 | |||||
Type: | brushless (AVR automatic voltage regulating) | |||||
The connecting way of the phase: | three phases four lines | |||||
Insulation degree: | H degree | |||||
TIF: | <50 | |||||
THF: | <2% | |||||
The factor of rated power: | ≤±1% | |||||
Grading Protection: | IP23 | |||||
Standard control panel can satisfy the Genset for normal
operation,it have the advantages of simple operation,multiple functiuns,reliable protection.The panel can receive remote open/stop control signal for Genset. (ATS control) Functional characteristics: Liquid crystal display (LCD); can display a variety of electricity and oil machine parameters in Chinese/English; With automatic and manual, shutdown (Emergency stop) etc control functions,it can protect against low oil pressure,high temperature, low or high voltage, high orlow frequency, over current etc, can meet the needs of various Gensets.
Automatic control panel is the basic configuration of
Automatic Gensets of unattended operation. The panel can receive remote open/stop unit control signal. (ATS control) Functional characteristics: LCD display; All Chinese or English operation language on the menu; Genset have Automatic,Manual,Shutdown (Emergency stop) etc control functions,and the Panel have rich programmable output and input connector,humanized interface, multiple functions LCD, which show the inspection parameters via data,symbol and straight at the same time; It have the standard communication interface; RS-485 (Modbus communication protocol), the user can get the "remote control","remote test" and "remote report" etc monitor functions via Communication(Internet) or Central monitoring system(Upper Computer),it can meet the needs of all kinds of automatic generating set.
