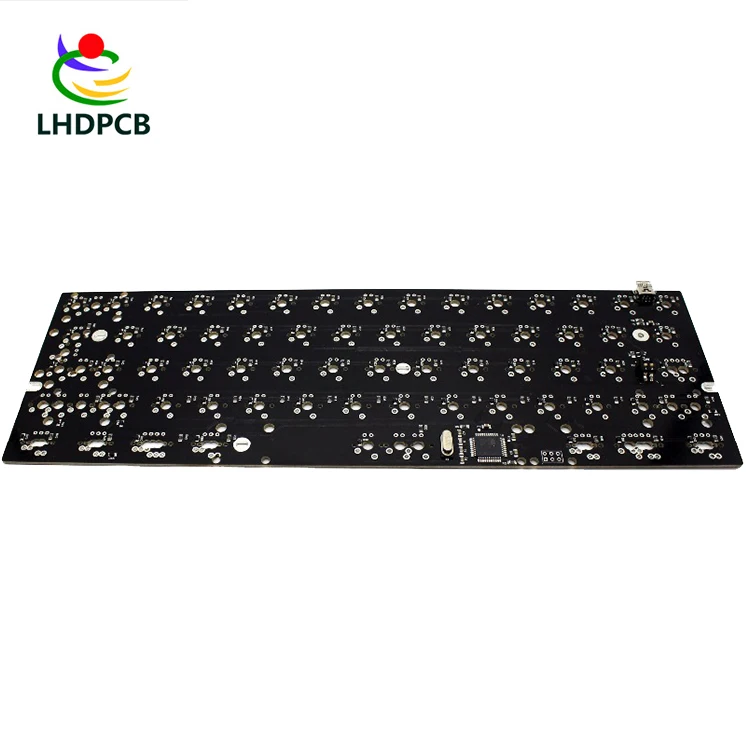

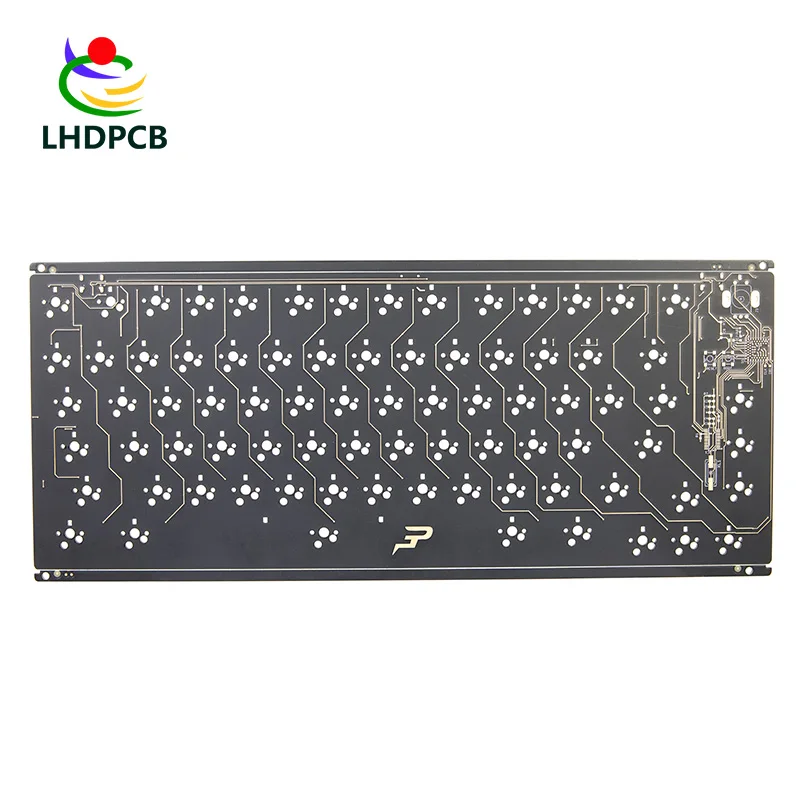

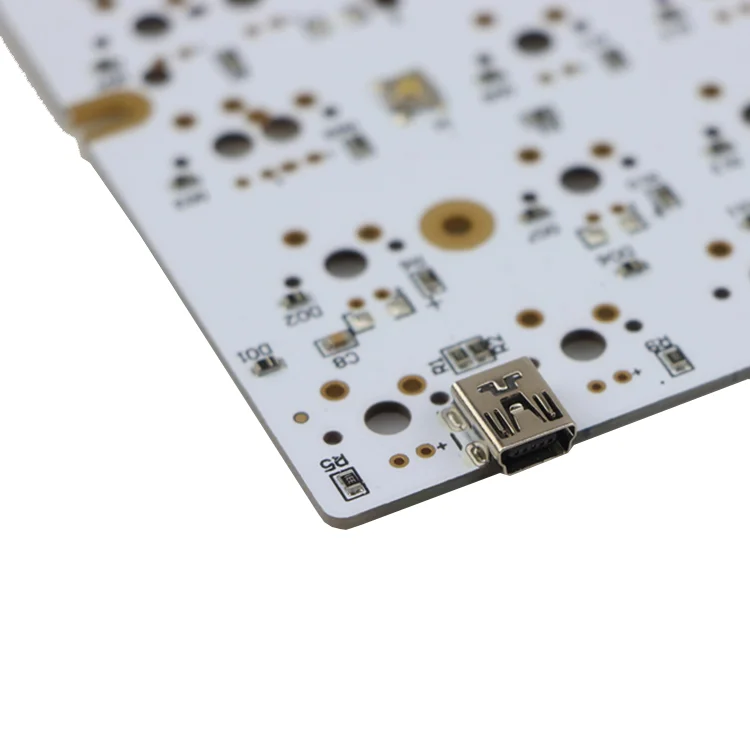

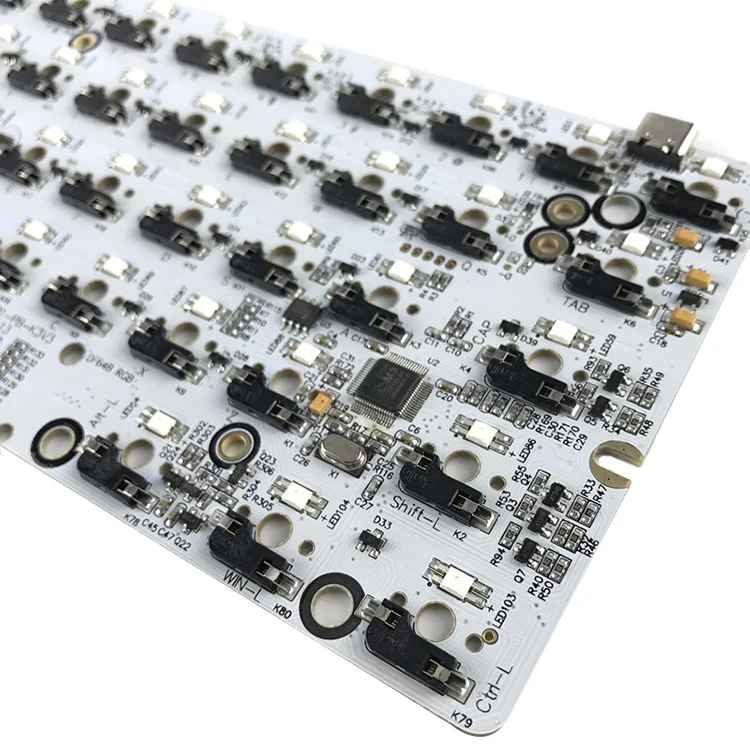

Porfessional Custom Keyboard Pcb Manufacturer Mechanical Keyboard Pcb
- Category: >>>
- Supplier: Huizhou,Linghangda,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Porfessional Custom Keyboard Pcb Manufacturer Mechanical Keyboard Pcb
Banner
Specification
PCBA Capability
| SMT Lines | 7 Lines |
| Capacity | 8 Million Placements Per Day |
| Max Board Size | 680*550mm Smallest:0.25"*0.25" |
| Min Components size | 0201-54 sq.mm (0.084 sq.inch),Long Connector,CSP,BGA,QFP |
| Speed | 0.15sec/chip, 0.7sec/QFP |
| Wave-Solder | Max.PCB Width:450mm |
| Min.PCB Width:unlimited | |
| Components Height:Top 120mm/Bot 15mm | |
| Sweat-Solder | Metal Types:Part,Whole,Inlay,Side-step |
| Metal Material:Copper,Aluminum | |
| Surface Finish:Plating Au,Plating Silver,Plating Sn | |
| Air Bladder Rate:less than 20% | |
| Press-fit | Press Range:0-50KN |
| Max.PCB Size:800*600mm | |
| Assembly Types | SMT and Thru-hole |
| Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
| File Formats | Bill of Materials ,Gerber Files,Pick-N-Place Files(XYRS) |
| Type of Service | Turn-Key,Partial Turn-Kye or Consignment |
| Component Packaging | Cut Tape,Tube Reels Loose,Parts |
| Turn Time | 1-15days |
| Testing | XRAY Inspection,AOI Testing ICT,Flying Probe,Burn-in,Function Test |
Company
Advantage

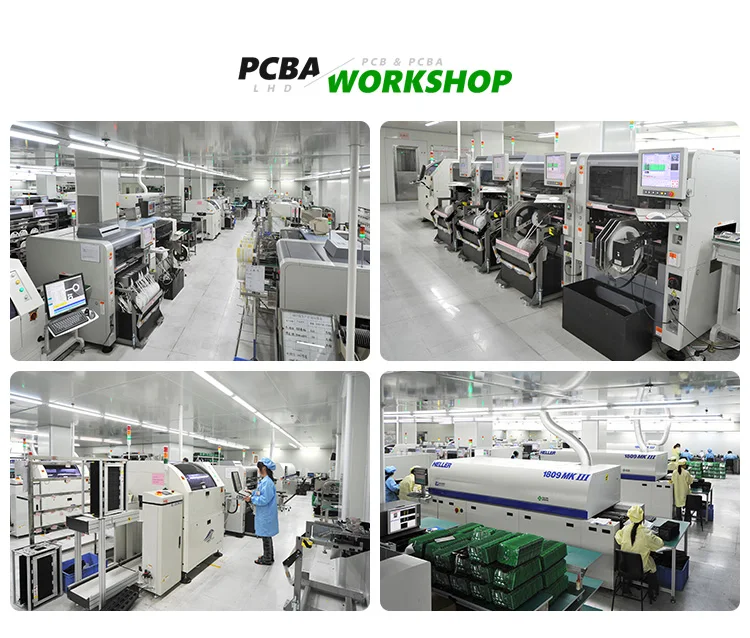

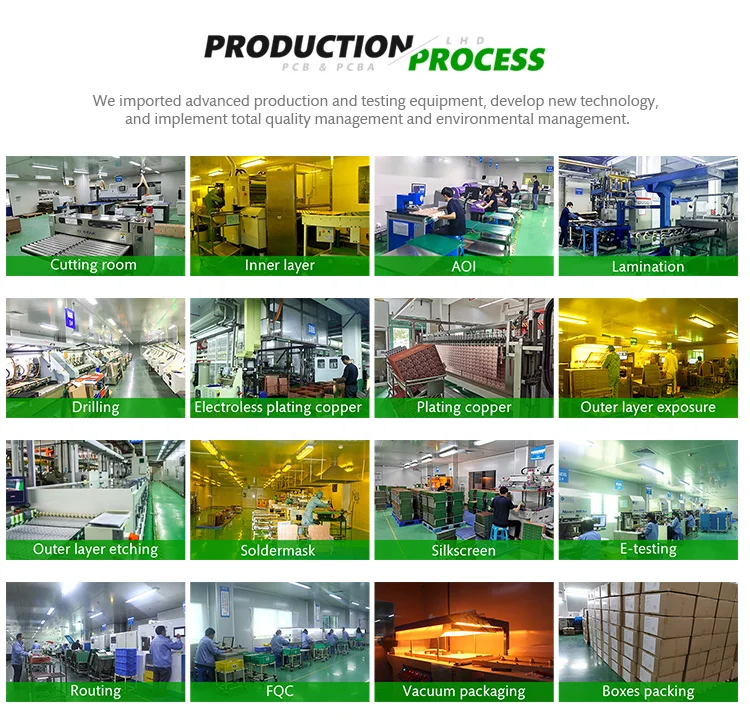

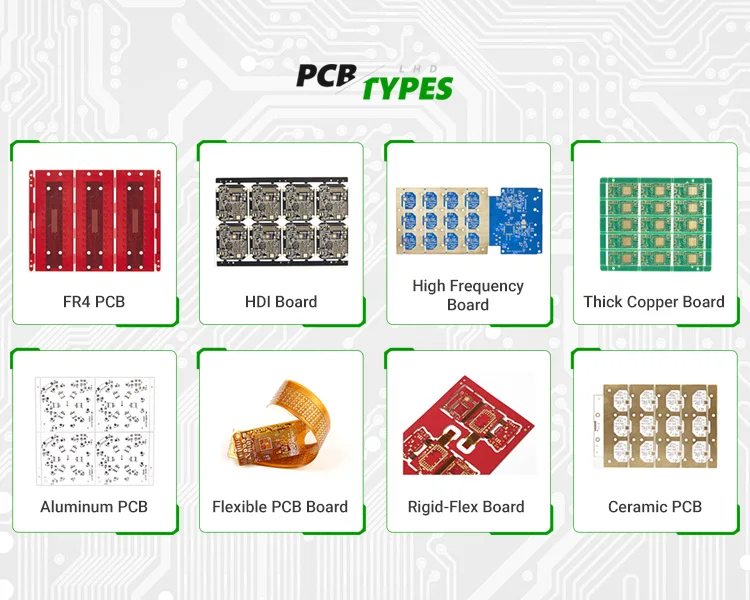

PCB/PCBA/Design
QC and Partner
Packing and Delivery
FAQ
1, What service could you provide?
We could provide PCB design,PCBA design,PCB printing,PCB assembly,Components procurement,Reverse-Engineer.
2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technical requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
3, How to keep our product information and design file secret ?
We could sign NDA associate by customers side local law for protecting customers confidential business
4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, security equipment,Military, Aerospace.
5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.
6, Are you factory?
Our factory is located in No.26,Meiyuan 3rd Road,Intercontinental Industrial Park,Luoyang Town,Boluo County,Huizhou, Guangdong, China.
7.How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
8.What payment terms do we accept?
For sample order or small batch, we suggest you to use Paypal and Western Union.For mass production batch, we suggest you to use T/T.
