Thinuna VTA Series Audio Power Mixer Amplifier 100v Public Address System 6 Zone Professional Mixer High Power Power Amplifier
- Category: >>>
- Supplier: Guangzhou Deken LongJoin Smart System Equipment Co. Limited
Share on (1600183049669):
Product Overview
Description

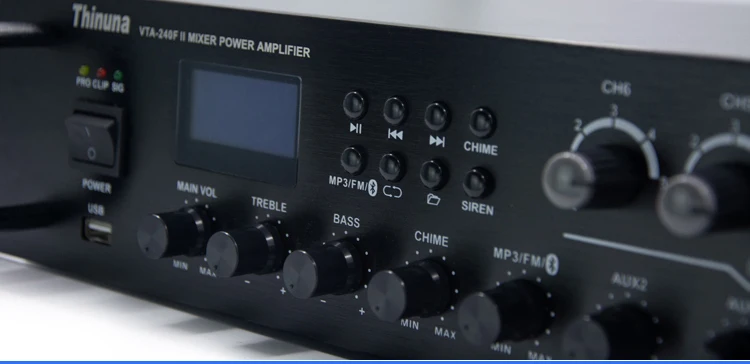

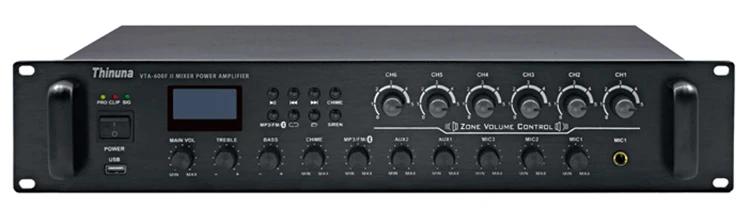

Thinuna VTA Series Audio Power Mixer Amplifier 100v Public Address System 6 Zone Professional Mixer High Power Power Amplifier
Products Description
FEATURES
* 6 zones speaker output with individual volume control;
* Built-in MP3 player, support MP3 and WMA format, USB flash disk input port;
* Built-in FM tuner；
* Built-in Chime and Siren；

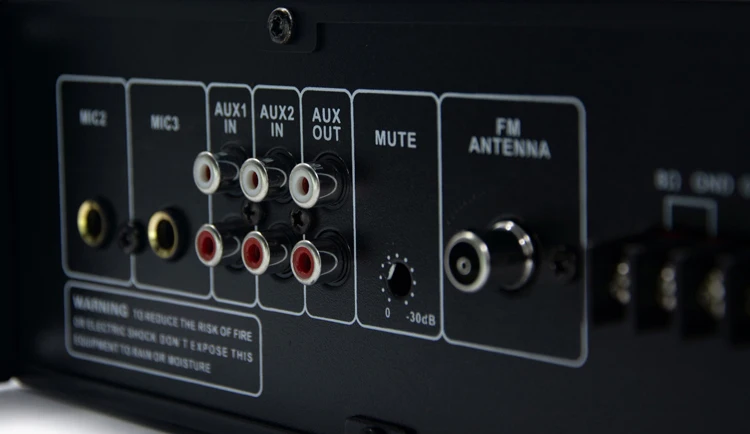

* 2 Aux, 3 Mic input and 1 Aux output;
* Mic 1 input has priority (Mute other audio input)；
* Power, Signal and Clip LED indicator;
* Volume control for each input and master output volume control;
* Treble and bass EQ control;
* 100V constant voltage output, 8 ohm fixed resistance output;
* 128*64 LCD display for MP3 and FM tuner operation;
* MP3 player can choose playback cycle mode: random, single loop, folder loop, all cycle.
* 5 EQ sound effector for MP3 player and FM tuner audio output;
* Built-in reverb effector for microphone input (echo, repeat and delay) ;
* LCD screen can display Chinese and English song names, length and play time;
* LCD contrast can be adjusted;
* Built-in MP3 player, support MP3 and WMA format, USB flash disk input port;
* Built-in FM tuner；
* Built-in Chime and Siren；
* 2 Aux, 3 Mic input and 1 Aux output;
* Mic 1 input has priority (Mute other audio input)；
* Power, Signal and Clip LED indicator;
* Volume control for each input and master output volume control;
* Treble and bass EQ control;
* 100V constant voltage output, 8 ohm fixed resistance output;
* 128*64 LCD display for MP3 and FM tuner operation;
* MP3 player can choose playback cycle mode: random, single loop, folder loop, all cycle.
* 5 EQ sound effector for MP3 player and FM tuner audio output;
* Built-in reverb effector for microphone input (echo, repeat and delay) ;
* LCD screen can display Chinese and English song names, length and play time;
* LCD contrast can be adjusted;
Specification
Model No. | VTA-120F II | VTA-240F II | VTA-360F II | VTA-480F II | VTA-600F II | ||||
Rated Power | 120W | 240W | 360W | 480W | 600W | ||||
Mic Input | -60dB, 600Ω, unbalanced, 6.3mm TS port | ||||||||
Aux Input | -20dB, 310kΩ, unbalanced, Stereo RCA port | ||||||||
Aux Output | 0dB, 600Ω, unbalanced, Stereo RCA port | ||||||||

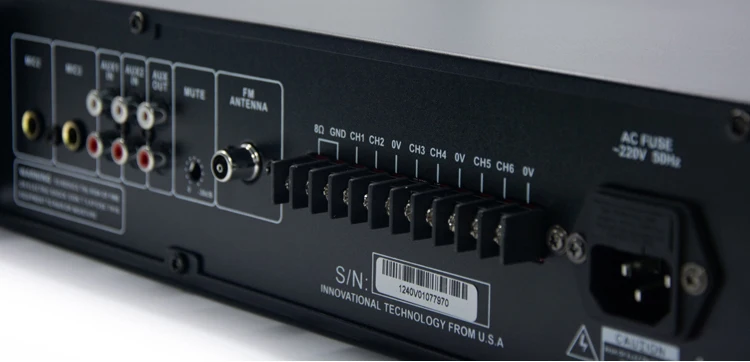

Speaker Output | High Impedance: 100V, 70V; Low Impedance: 8Ω; | ||||||||
Volume Control for Each Zone | 6 zones speaker output with individual volume control; Note: the power capacity for each zone can reach the rated power of amplifier. But make sure that the total power of zone 1~6 can not exceed the rated power. | ||||||||
Protection | AC fuse, overheating, overvoltage, overcurrent, short, DC, and muting during power on protections | ||||||||
Effectors | 5 EQ sound effector for MP3 player and FM tuner audio output; | ||||||||
EQ for Master Output | Treble: ± 12dB at 10kHz; Bass：± 12dB at 100Hz | ||||||||
Frequency Response | 20~20kHz (±3dB) | ||||||||
S/N | Microphone input >66dB; AUX input>75dB | ||||||||
T.H.D | <0.5% at 1kHz，at 1/3 rated power. | ||||||||
Power Source | 220~240VAC, 50/60Hz | ||||||||
Power Consumption | 170W at rated power | 350W at rated power | 500W at rated power | 700W at rated power | 850W at rated power | ||||
Temperature / Humidity | -10°C ~ +40°C,<95% | ||||||||
Weight | 10kg | 12kg | 14kg | 16kg | 18kg | ||||
Dimensions | 482(W) × 88(H) × 350(D) mm | ||||||||
Shipping Weight | 12kg | 14kg | 16kg | 18kg | 20kg | ||||
Shipping Dimensions | 0.0382CBM, 58(W) x 47(H) x 14(D) cm | ||||||||

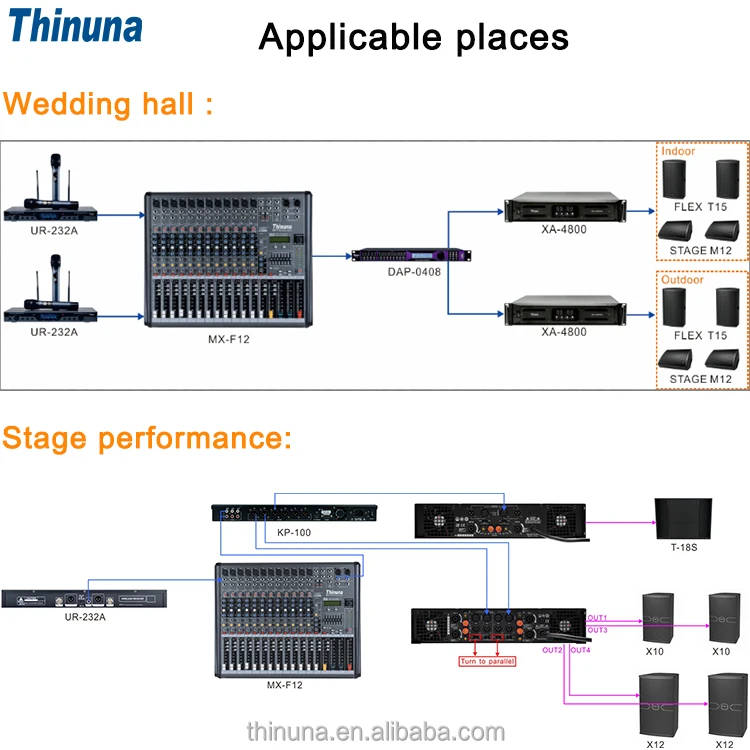

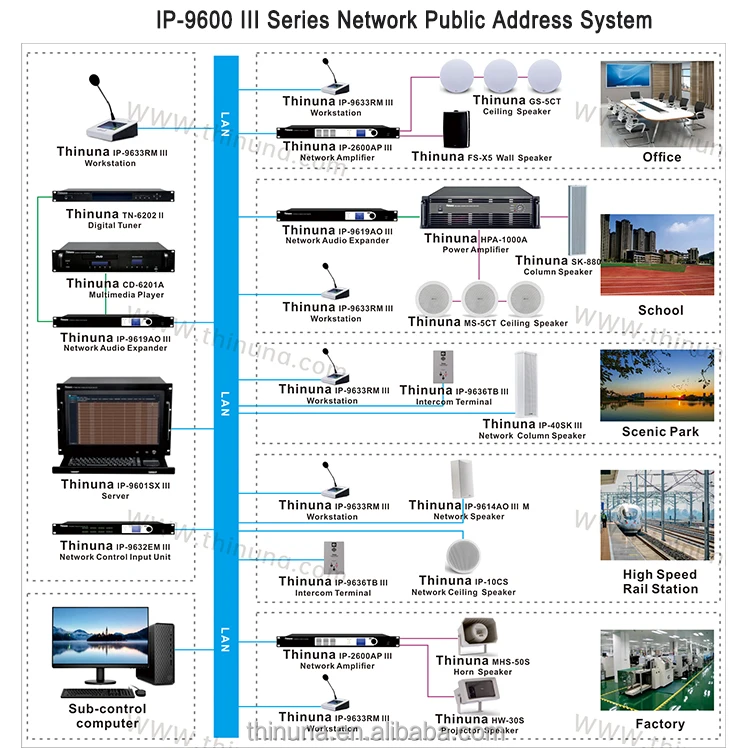

Project Solutions
