mid range 1 2 5 8 meter c# SDK ISO IEC18000 6B 6C 860 960mhz uhf parking management system Wiegand RSSI tcp ip uhf rfid rain
- Category: >>>
- Supplier: Shenzhen Hopeland Technologies Co. Ltd.
Share on (1600183053278):
Product Overview
Description

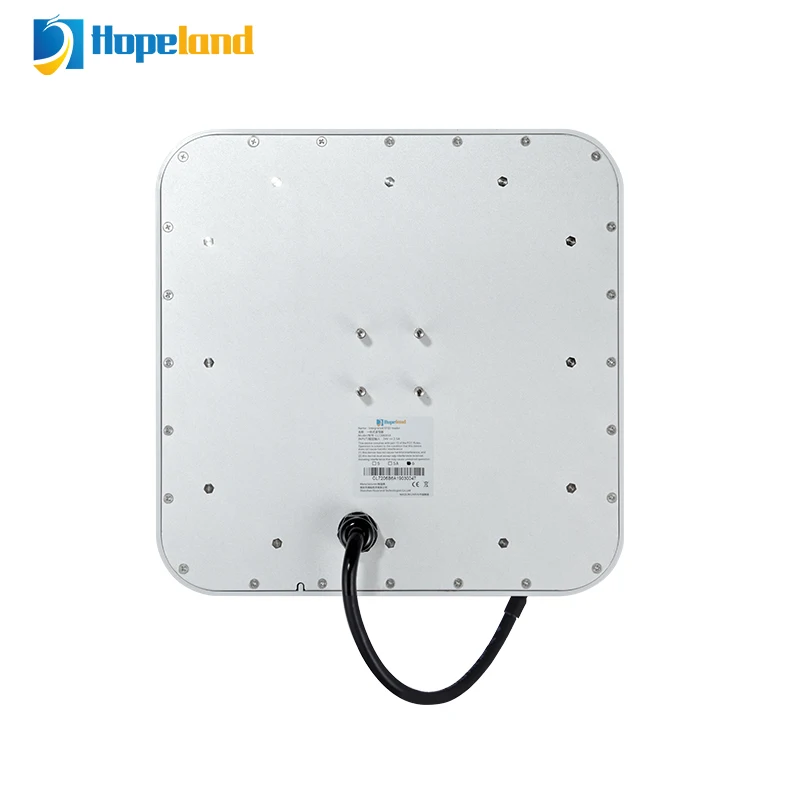

CL7206B5
* Supporting ISO18000-6C protocol
* Excellent multi-tag reading
* Strong Anti-collision
* Reading rang: 0-15m
* Strong Aluminum plate / ABS cover
* IP65, dustproof and waterproof
Product Description
Product Name | Long Range Reading Integrated RFID Reader - CL7206B5A |
Material | Aluminum plate / ABS cover |
HARDWARE, OS AND FIRMWARE MANAGEMENT | Processor: ARM9, 400MHz Memory: Flash 128MB; DRAM 32 MB Operating System: Linux 2.6 Firmware Upgrade: Demo software / Telnet API Support: Windows – .NET, C++ and Java SDK Android - Java Linux platform – C and Java SDK |
RFID CHARACTERISTICS | Air Protocols: ISO/IEC18000-6B,6C / EPC C1Gen2 Chipset: Impinj Indy R2000 Frequency: USA: 902 MHz-928MHz (FCC part 15) EU:865-868MHz (ETSI EN 302208) CN: 920-925MHz (CMIIT) Programing Functions: Automatic reading/ White list Breakpoint Resume / Match reading / Data filter Data format customizable (PLC / Modbus compatible) RF Micron / EM Temperature sensor custom Services Built-in antenna: Circular 9dBi Output Power: 0dBm-30dBm (±1dBm) adjustable Reading Distance: 0-15m (According to Tag & Environment) Work Mode: Fixed/hop frequency optional |
CONNECTIVITY | Communications: RJ45, RS-232, RS-485, Wiegand General Purpose I/O: 1 optcoupler input, 1 pair 5V output or Wiegand output (Wiegand output is shared with 5V output) Power supply: DC 24V/2.5A (DC 9V ~ 30V,30W) |
Details Images
* Impinj Indy R2000 chipset offer high performance
* Alumnum casting / waterproof housing applys to all weather industrial scenarios
* Various communication / software Interfaces helps faster application system
* Different developing languages SDK meet different developer needs
* Excellent communication protocol architecture support faster data processing algorithm
* Integrated design supports better deploy /installation / engineering / wiring
* Special application projects customrized interfaces / data transfering prolongable
* Seamlessly compatible with RFID middleware for rapid implementation of large projects
* Widely used in E-parking, garbage truck, feeding vehicle, access control and so on
* Alumnum casting / waterproof housing applys to all weather industrial scenarios
* Various communication / software Interfaces helps faster application system
* Different developing languages SDK meet different developer needs
* Excellent communication protocol architecture support faster data processing algorithm
* Integrated design supports better deploy /installation / engineering / wiring
* Special application projects customrized interfaces / data transfering prolongable
* Seamlessly compatible with RFID middleware for rapid implementation of large projects
* Widely used in E-parking, garbage truck, feeding vehicle, access control and so on
Products Applications
Production line management
* Intelligent sorting products
In order to strengthen the effective monitoring of the production quantity and quality of the products, and make the unqualified products can be sorted out accurately;To reduce manual operations and improve work efficiency, you can consider connecting to the intelligent production line management system.It can correct errors in time, greatly increase the pass rate of products, and greatly improve the company's operating efficiency.
Asset management
* Asset and inventory checking
The RFID asset management platform enables each asset of the enterprise to be recorded, tracked in place, fully utilized, and reasonably allocated. All assets can be deployed in a unified manner, distributed management, and centralized monitoring to achieve visual and transparent asset management and real-time and accurate financial statistics. The assets are waste of resource allocation.
Vehicle management:
* ETC / automatic vehicle weighing
Electronic toll collection, ETC, through ETC can provide pass rates, prevent traffic congestion caused by tolls, and effectively curb toll evasion, toll collectors cheating for personal gains, etc., and reduce management costs.
RFID intelligent vehicle weighing management, automatically records vehicle license plate number, weight information, time information, eliminates human error, prevents vehicle jams, weighing cheating, etc., and reduces economic losses.
Related Products
CL7206B2 | CL7206B6 | CL7206B7A |
* Antenna: Circular 9dBi | * Antenna: Circular 9dBi | * Antenna: Circular 6dBi |
* Output Power: 0dBm-33dBm (±1dBm) adjustable | * Output Power: 18dBm-28dBm (±1dBm) | * Output Power: 0dBm-30dBm (±1dBm) |
* Reading Distance: 0-15m | * Reading Distance: 0-8m | * Reading Distance: 0-8m |
Company Introduction
Since 2009, Hopeland are specialized in developing, researching and manufacturing series of UHF RFID readers, handheld terminals, Antennas , special type Tags, Middleware, system software, etc. Experienced R&D team and strong production center help to output quality products based on Indy R2000/PR9200 chipset, which passed CE, FCC, CCC, SRRC and series of certificates. With core advantages of long reading distance, excellent multi-tag reading, advanced anti-collision algorithm, various communication interfaces, different operation systems &SDK choices, industrial level, our devices are widely used in areas of ETC, Intelligent Parking, Airport, Smart New Retail, Smart Grid, Assets Tracking, Warehousing& Logistic, Supply Chain, Industry 4.0 and so on.
Hopeland Office
Hopeland Production Department
Strategic Partnership--Impinj
The Exhibition We Participated in
2019
RFID & Wireless IoT Tomorrow in Germany.
2019
GITEX Technology Week in Dubai.
2019
ID Forum in Russia.
2019
RFID JOURNAL LIVE in USA.
2019
IOT Exhibition in Shenzhen China.
2018
Cebit in Germany.
2018
RFID JOURNAL LIVE in USA.
2018
GITEX Technology Week in Dubai.2018
IOT Exhibition in Shenzhen China.
Annual Partner Conference
2019
The 2nd Partner Conference.
2018
The first partner conference.
Customers Come to Visit Hopeland
Hopeland's Technicians Come to Visit Customers
Packing&Shipping
Package size: about 32*32*16cm（single package）
Package weight:about 3.3kg（single package）
Package weight:about 3.3kg（single package）
