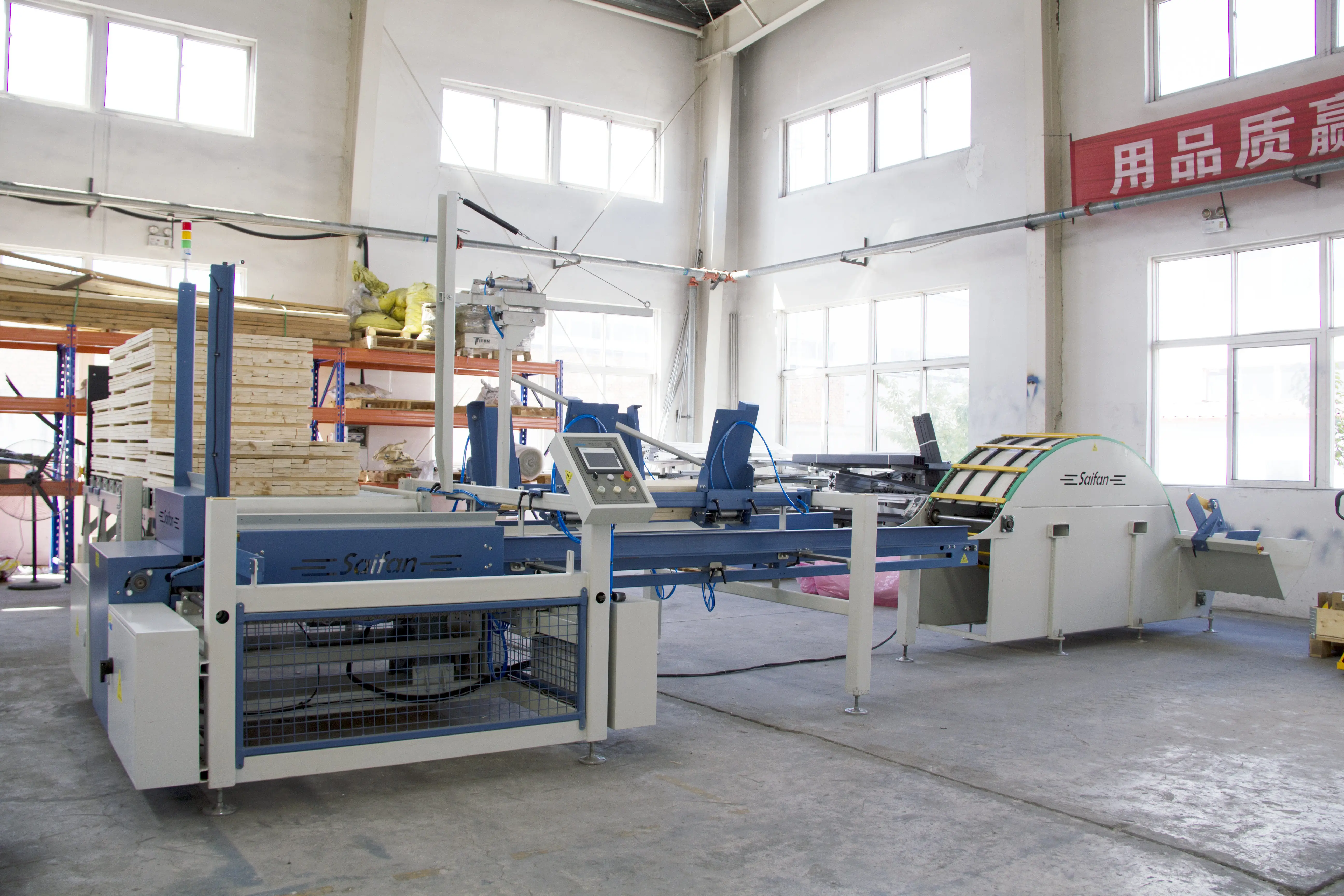

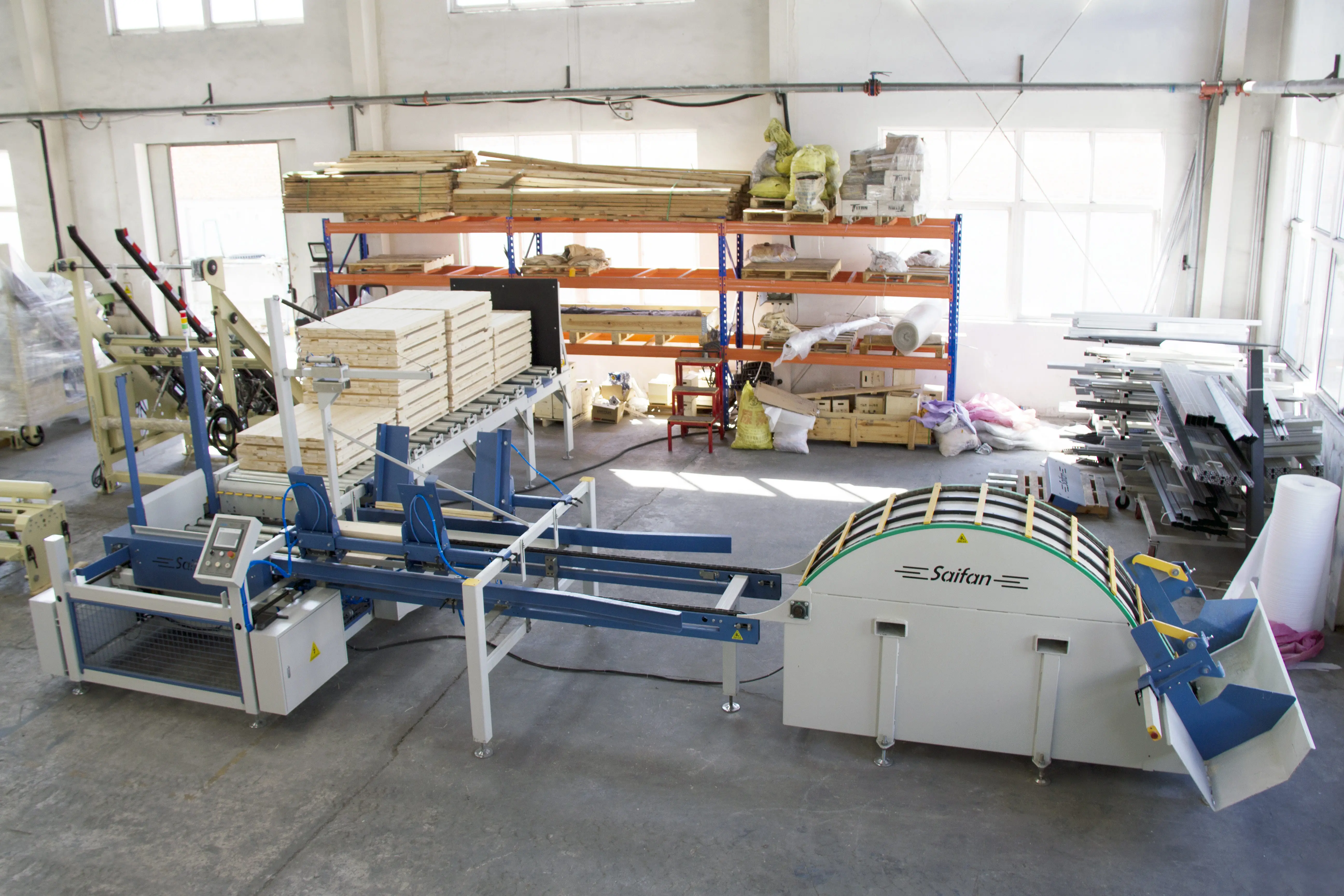

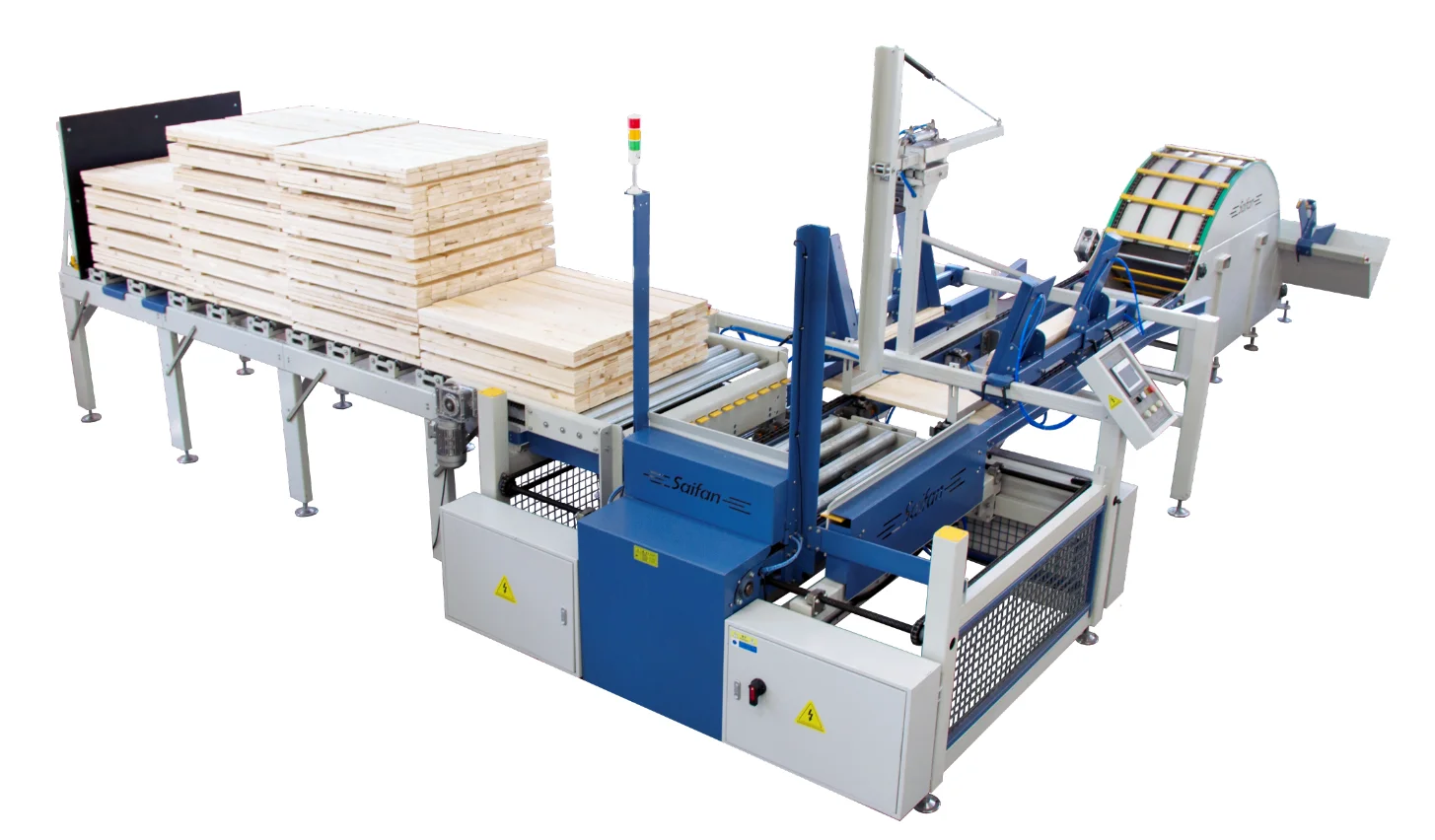

Saifan SF8010 Automatic Wood Timber Stacker Machine
- Category: >>>
- Supplier: Qingdao Fengkai Machinery And Equipment Co. Ltd.
Share on (1600183239103):
Product Overview
Description
Product Description
YouTube Working Video: https://youtu.be/DB1WAeF_o6o
DESCRIPTION
1.Drop Type Tie Strip Feeder 3pcs (Included)
Max. Can have 4 pcs with extra cost.
Tie strip length 800-1200mm.
Tie strip width 25-150mm.
Tie strip thickness 10-38mm.
Capacity: Up to 600 mm tall stack of tie strips.
Programmable: the tie strip release time can be set according to different stacking requirements.
The tie strip feeder has been designed to accommodate reasonable variations in the tie strips. However, in order for the feeding mechanism to run trouble free, it is advisable that the tie strips be consistent in shape and size. Good square ends on the tie strips help them to feed better and also keep a tighter stack.
2.Sensors (Included)
1)Board-arrange-chain full sensor, when the board-arrange-chain is full then unscrambler will pause automatically, thus to prevent board overlap error.
2)Tie trip feeder no wood sensor, if no wood, machine will pause and alarm.
3)Tie strip feeder stuck wood sensor, if stuck wood, machine will pause and alarm
4)Stacking max. Height sensor, to prevent overhigh stacking.

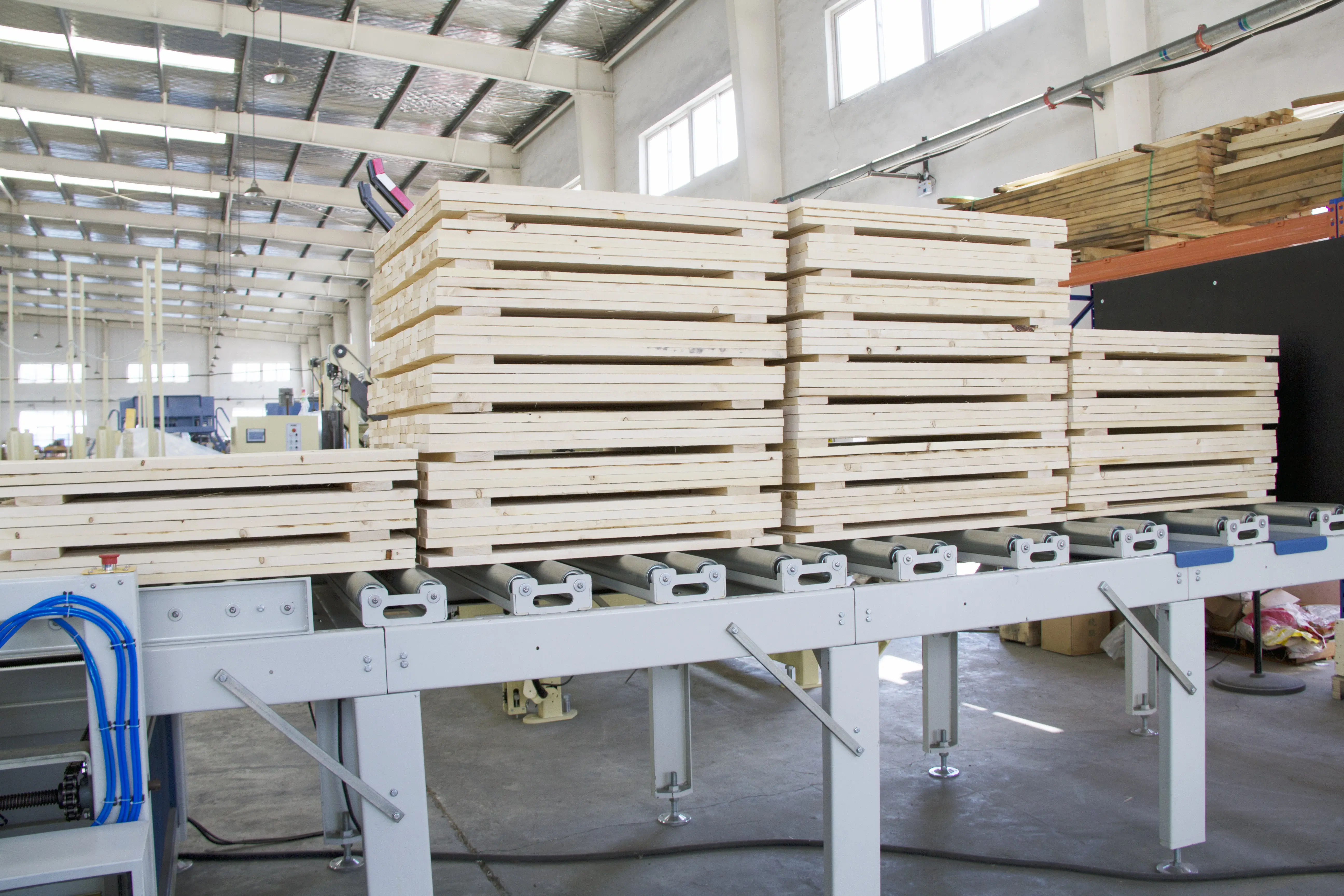

5)Stack out-feeding sensor, ensure finished stack will move to outfeed conveyor, thus other wood can keep feeding and stacking.
6)Out-feeding conveyor full sensor, if out-feeding conveyor is full, then will alarm and pause, thus remind you take away the stack
3.Layer Confirmation (Included)
This option is used to confirm the proper numbers of boards are in each layer prior to being stacked.

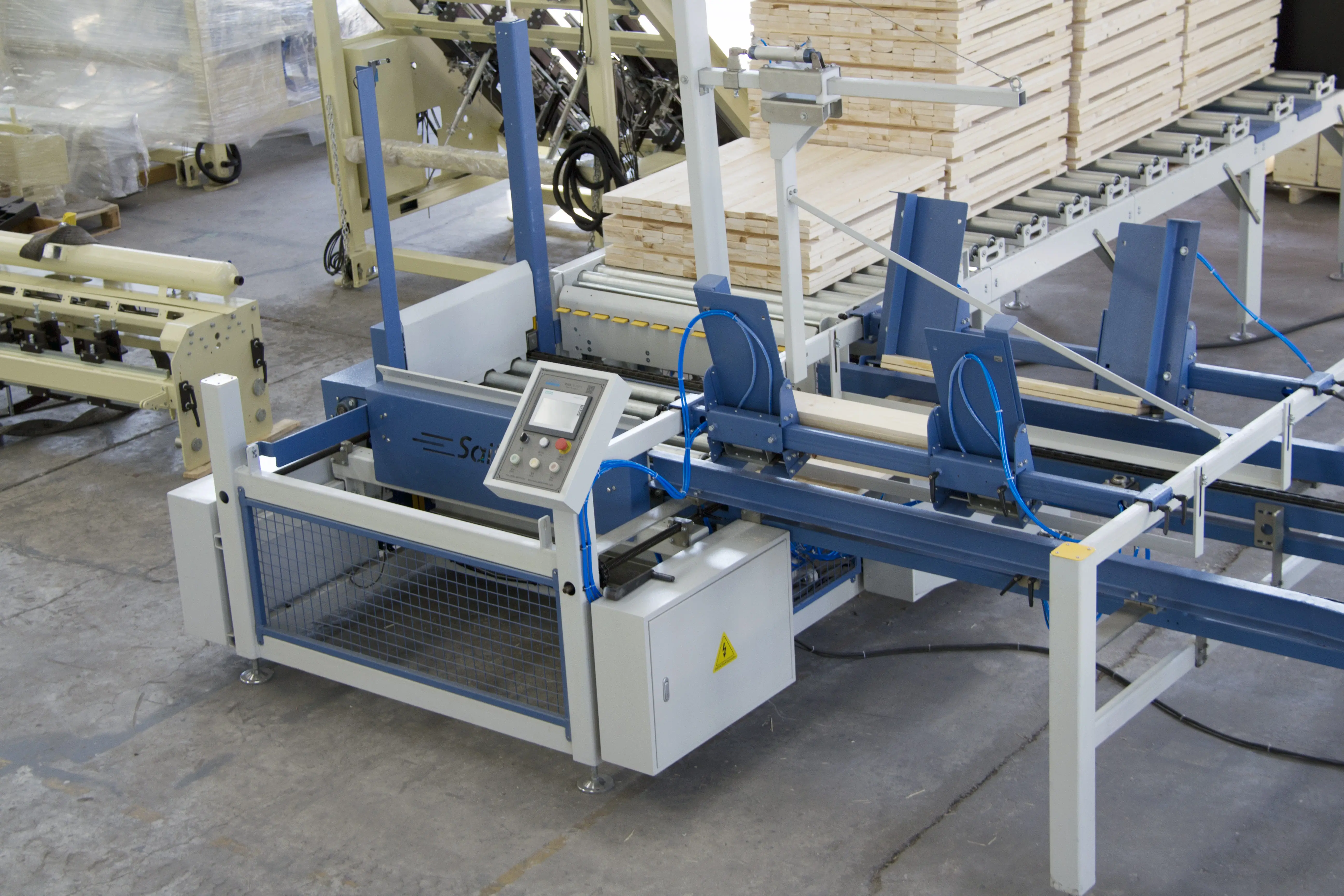

Touch screen control page can freely set the number of layers and tie strips, and automatically calculate the stacking heightmax. height 1200mm
4.Stack Tightener (Included)
This helps maintain the integrity of the stack when the Stacker is in operation. As the Stacker stacks, dry and/or slick boards have a tendency to become unstable. The Stack Tightener prevents this by mechanically holding the boards in place.
5.Knock Off Hooks (Included)
Mounted onto the Unscrambler and are adjusted to remove any double boards that may come over the Unscrambler.
6.Powered feeding conveyors (optional and customize with extra cost)
Upstream material control
Max. Can have 4 pcs with extra cost.
Tie strip length 800-1200mm.
Tie strip width 25-150mm.
Tie strip thickness 10-38mm.
Capacity: Up to 600 mm tall stack of tie strips.
Programmable: the tie strip release time can be set according to different stacking requirements.
The tie strip feeder has been designed to accommodate reasonable variations in the tie strips. However, in order for the feeding mechanism to run trouble free, it is advisable that the tie strips be consistent in shape and size. Good square ends on the tie strips help them to feed better and also keep a tighter stack.
2.Sensors (Included)
1)Board-arrange-chain full sensor, when the board-arrange-chain is full then unscrambler will pause automatically, thus to prevent board overlap error.
2)Tie trip feeder no wood sensor, if no wood, machine will pause and alarm.
3)Tie strip feeder stuck wood sensor, if stuck wood, machine will pause and alarm
4)Stacking max. Height sensor, to prevent overhigh stacking.
5)Stack out-feeding sensor, ensure finished stack will move to outfeed conveyor, thus other wood can keep feeding and stacking.
6)Out-feeding conveyor full sensor, if out-feeding conveyor is full, then will alarm and pause, thus remind you take away the stack
3.Layer Confirmation (Included)
This option is used to confirm the proper numbers of boards are in each layer prior to being stacked.
Touch screen control page can freely set the number of layers and tie strips, and automatically calculate the stacking heightmax. height 1200mm
4.Stack Tightener (Included)
This helps maintain the integrity of the stack when the Stacker is in operation. As the Stacker stacks, dry and/or slick boards have a tendency to become unstable. The Stack Tightener prevents this by mechanically holding the boards in place.
5.Knock Off Hooks (Included)
Mounted onto the Unscrambler and are adjusted to remove any double boards that may come over the Unscrambler.
6.Powered feeding conveyors (optional and customize with extra cost)
Upstream material control
Specification
Model | SF8010 |
Pack length | 900-1500mm |
Pack width | 800-1200mm |
Pack height | 0-1100mm |
Raw material length | 900-1500mm |
Raw material width | 50-200mm |
Raw material thickness | 15-150mm |
Productivity | 2.5-4min/m3 8-12 layer/min up to raw material width |
Power | 9.5kw |
Voltage | 380v 50hz 3phase |
Space | 8.7*6.7*2.8m |
Weight | 2250kg |

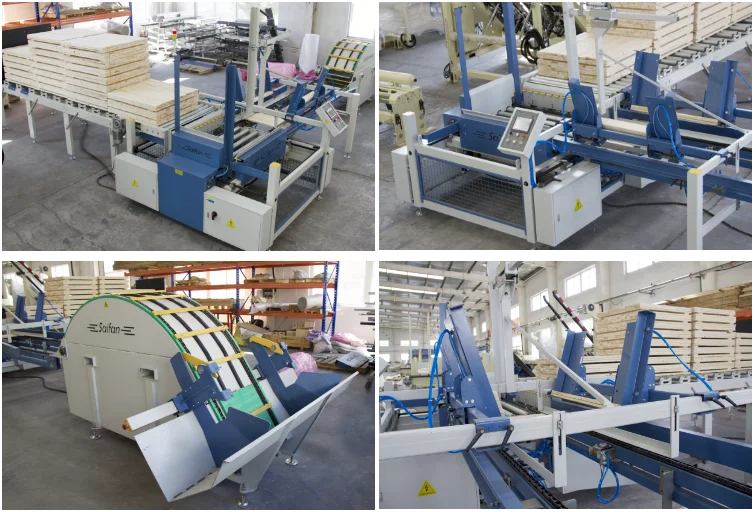

Detailed Images
Related Products
Company Profile
Our Company：
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
Packing & Delivery
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines has been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia, Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.
