Double Station PP Strap Band Winder Machine
US $1000-$2500
Полностью автоматическая машина для намотки пластиковых труб
- Category: Plastic Winding Machines >>>
- Supplier: Zhangjiagang Huaming Machinery Co. Ltd.
Share on (1600183299532):
Product Overview
Description
Head

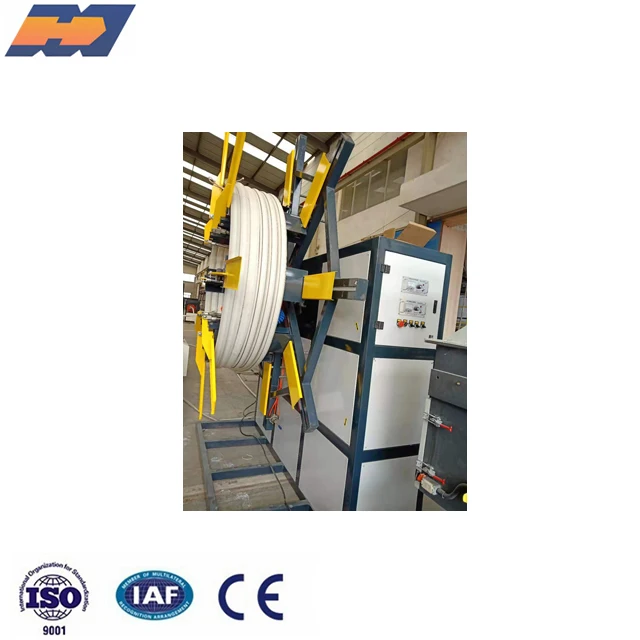

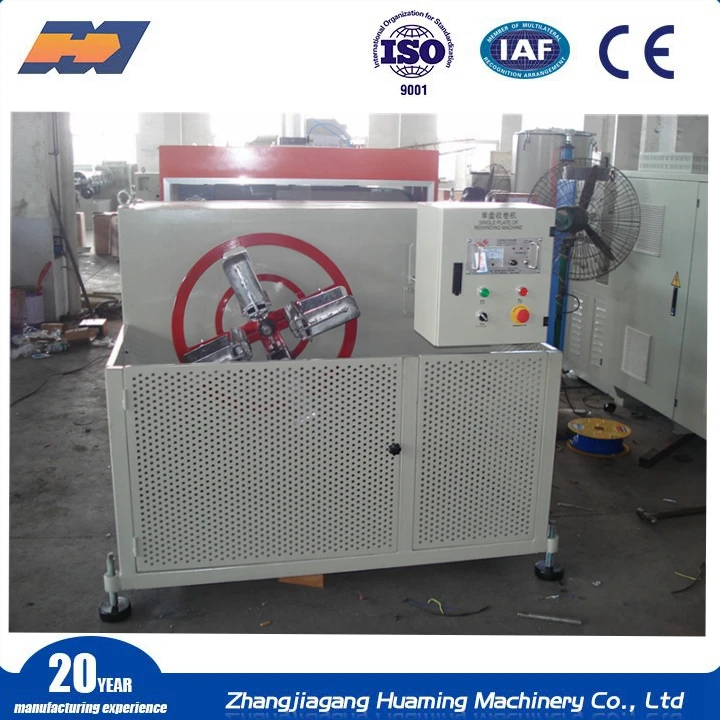

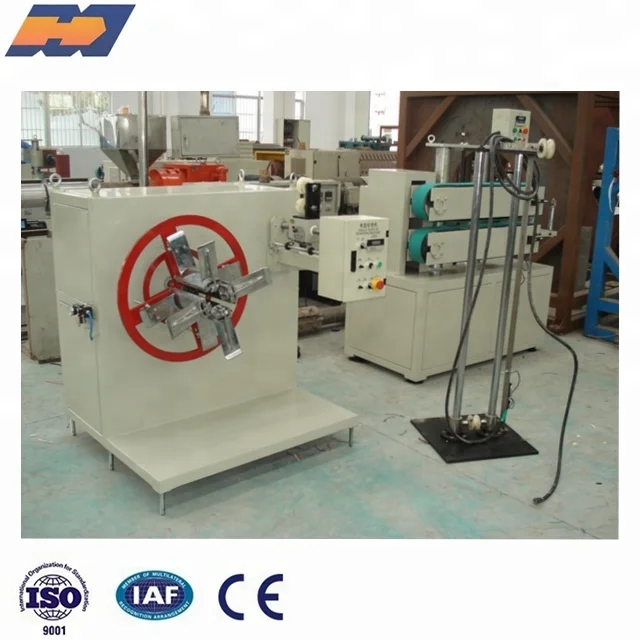

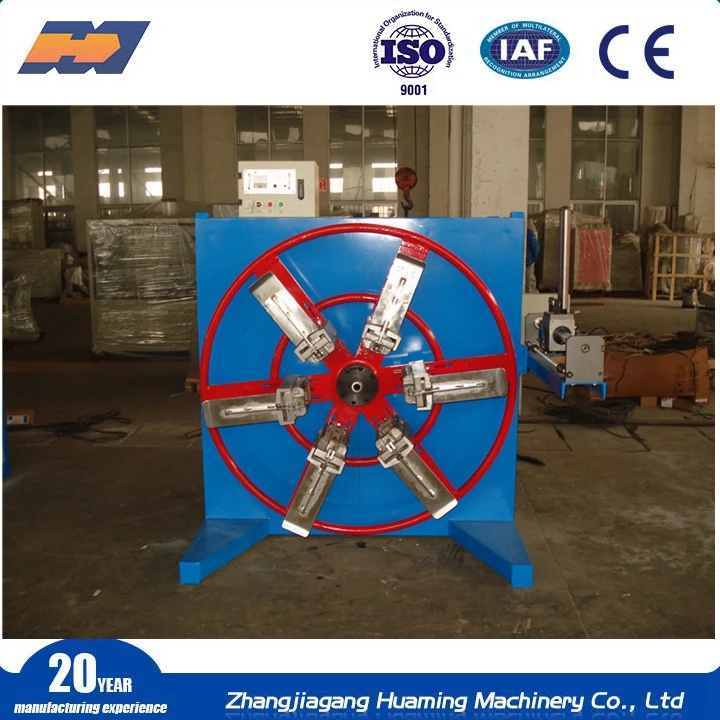

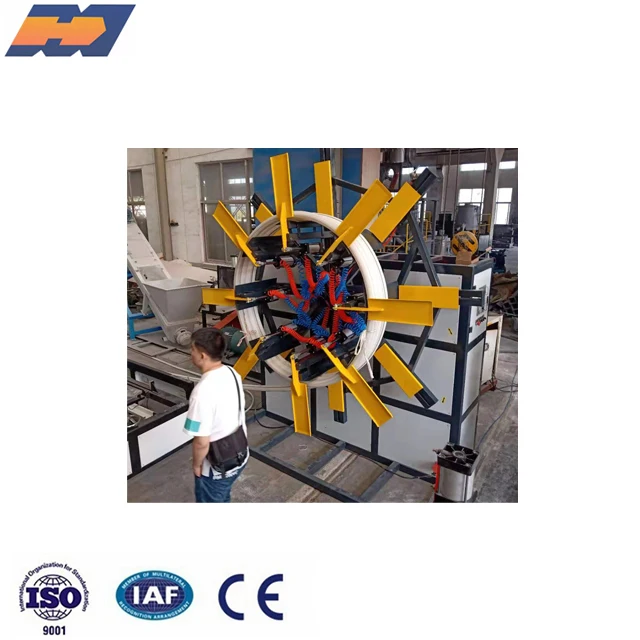

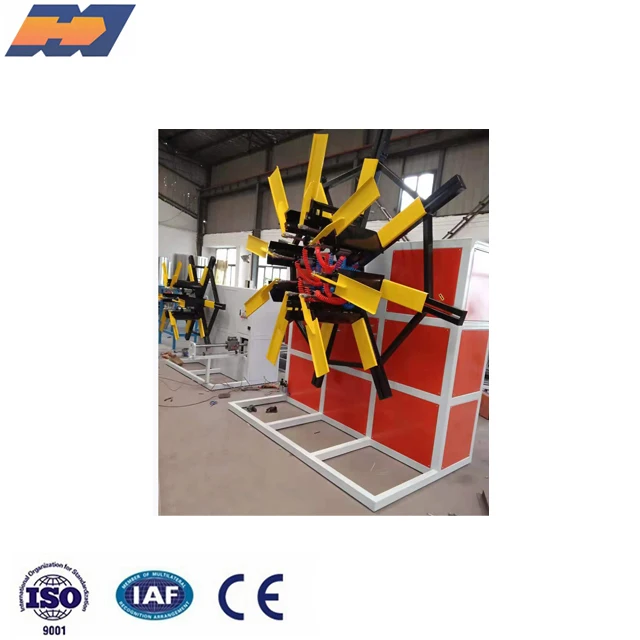

Single Disk Winder for plastic pipe
Product Application
This machine is mainly used to collect plastic cable and small & medium size plastic flexible pipes. It is used together with extruder, setting table and tractor to make the plastic soft pipes and cables into coil so as to save the transportation.
Application | plastic pipe winding |
Diameter | 3-110mm |
Technical Parameters
1. Applicability: φ3-φ32mm
2. Winding Speed: 3-12m/min
3. Winding Diameter: φ350-φ500mm
4. Motor Power: 1.1kw
5. Appearance Size: 1000×750×1500mm
Main techinical standards:
| model | SPS280 | SPS400 | SPS700 | SPS1250 |
| winding diameter | 280mm | 400mm | 700mm | 1250mm |
| winding speed | 0.5-15m/min | 0.5-15m/min | 0.8-8m/min | 0.8-5m/min |
| winding width | 220mm | 300mm | 400mm | 420mm |
| winded pipe specification | 12-16mm | 14-32mm | 14-63mm | 75-125mm |
| air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| appearance size | 2100x1000x1400mm | 2500x1150x1450mm | 4350x2100x2315mm | 4500x2250x2300mm |
| weight | 7000kg | 1000kg | 1500kg | 4500kg |
If you are interested in our plastic extruder machine pls contact me by below:
-- Phone / Wechat / Whatsapp : +86 18921980633
