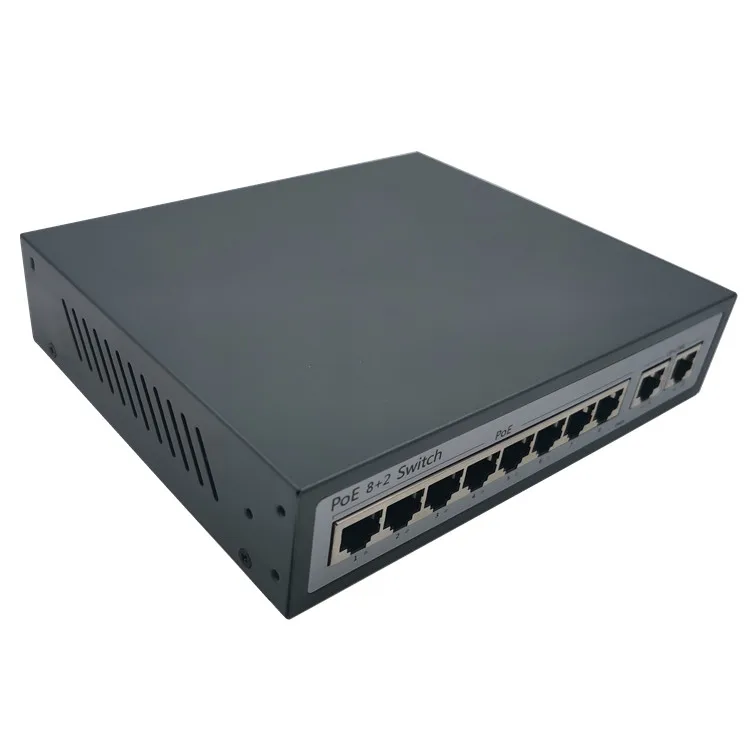

8 Port 96W POE 10/100Mbps and 2 port10/100Mbps Uplink Ethernet POE Switch

8 Port 96W POE 10/100Mbps and 2 port10/100Mbps Uplink Ethernet POE Switch

Category: >>>
Supplier: Shenzhen,Atongda,Technology,Co.,Ltd.

Price:$13.00 - $15.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Product Name	POE Switch 100Mbps
Port	4 8 16 24 Port POE
Power	15.4 W Power Supply
Uplink	1 or 2 100Mbps or 1000Mbps optional

Product features:

• 10/100/1000Mbps Auto-Negotiation RJ45 ports with POE port

Uplink 1 port or 2 Port 100Mbps or1000Mbps
• Complies with IEEE802.3af/at standards
• Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)
• Bandwidth 1.8Gbps/3.2G/52G
• Supports PoE power up to 15.4W for each PoE port
•Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device
• LED indicators for monitoring power, link,activity and speed
• 48V 2A power adapter,Optional

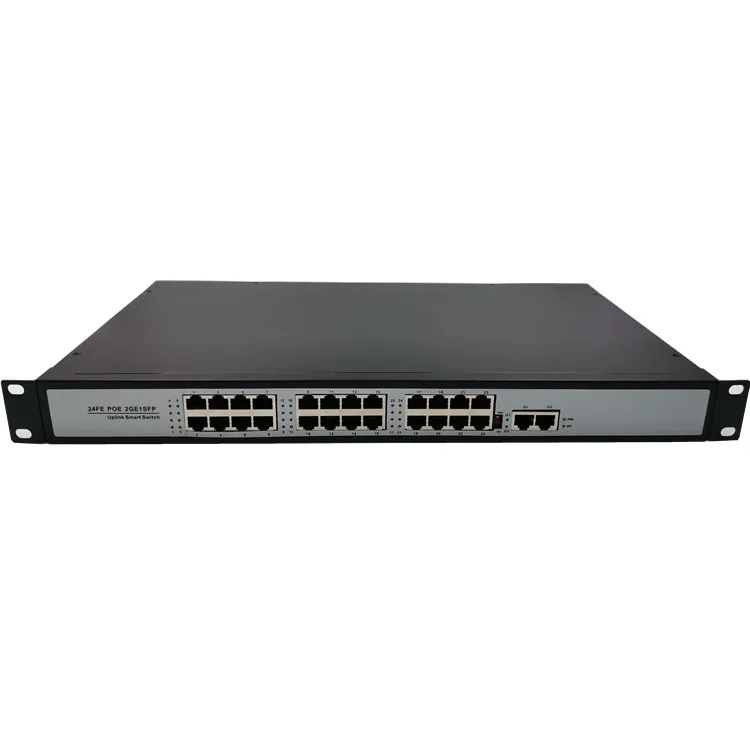

Model	MATD-POE4+2M	ATD-POE8+2M	ATD-POE16+2G	ATD-POE24+2G
POE port	4	8	16	24
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3x Flow Control	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af	IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control; IEEE 802.1af DTE Power via MDI
Data Transfer Rate	Ethernet: 10/100Mbps (Half / Full Duplex)	Ethernet: 10/100 Mbps (Half / Full Duplex)	Ethernet: 10/100/1000 Mbps (Half / Full Duplex)	Ethernet: 10/100/1000 Mbps (Half / Full Duplex)
Forwarding Rate	100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps	100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps	100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps	Packet Length is 10Kb, Packet Buffer is 4.1M, Gigabit wire-speed forwarding
Data RAM Buffer	96 K bytes	96 K bytes	96 K bytes	96 K bytes
Power	100-240 V, 50/60 Hz, 2.0A	AC110~265V 50Hz	AC100-240V 50/60Hz	AC100-240V 50/60Hz
Bandwidth		1.8 Gbps	3.2Gbps (non-blocking)	52Gbps bandwidth
Power Consumption	15.4W per each POE port PoE Max: 60 Watts	15.4W per each POE port PoE Max: 130Watts	15.4W per each POE port PoE Max: 260 Watts	15.4W per each POE port PoE Max: 440 Watts
Temperature	Operating: -20° ~ 70°C Storage: -20° ~ 75°C	Operating: -20° ~ 70°C Storage: -20° ~ 75°C	Operating: -20° ~ 70°C Storage: -20° ~ 75°C	Operating: -20° ~ 70°C Storage: -20° ~ 75°C
Humidity	Max 90% (non-condensing)	10%~90%,	10%~90%,	10%~90%,
Dimensions	130 x 116 x 30mm	180 x150 x 30mm	485 x 260 x 45 mm	485 x 260 x 45 mm
Weight	1.5kg	2.2kg	4kg	4.3kg

Related Products

Packing&Shipping

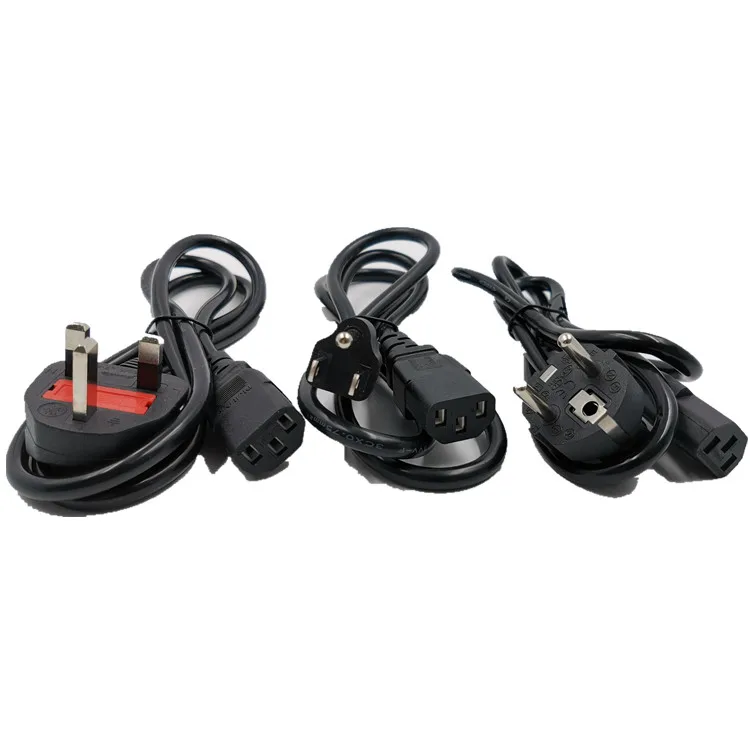

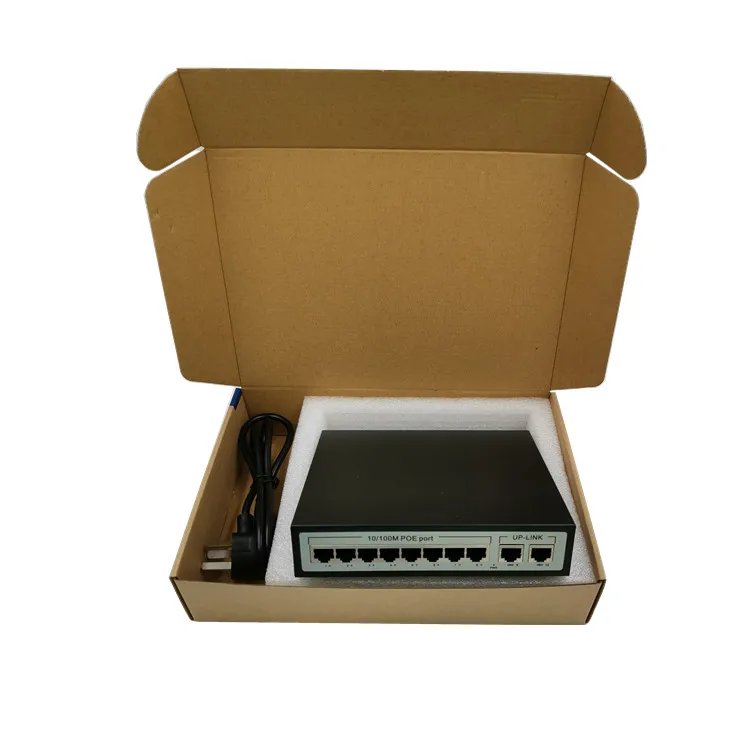

1pcs per Small Gift Box, include Power Adaptor

then put it on Outer Carton
