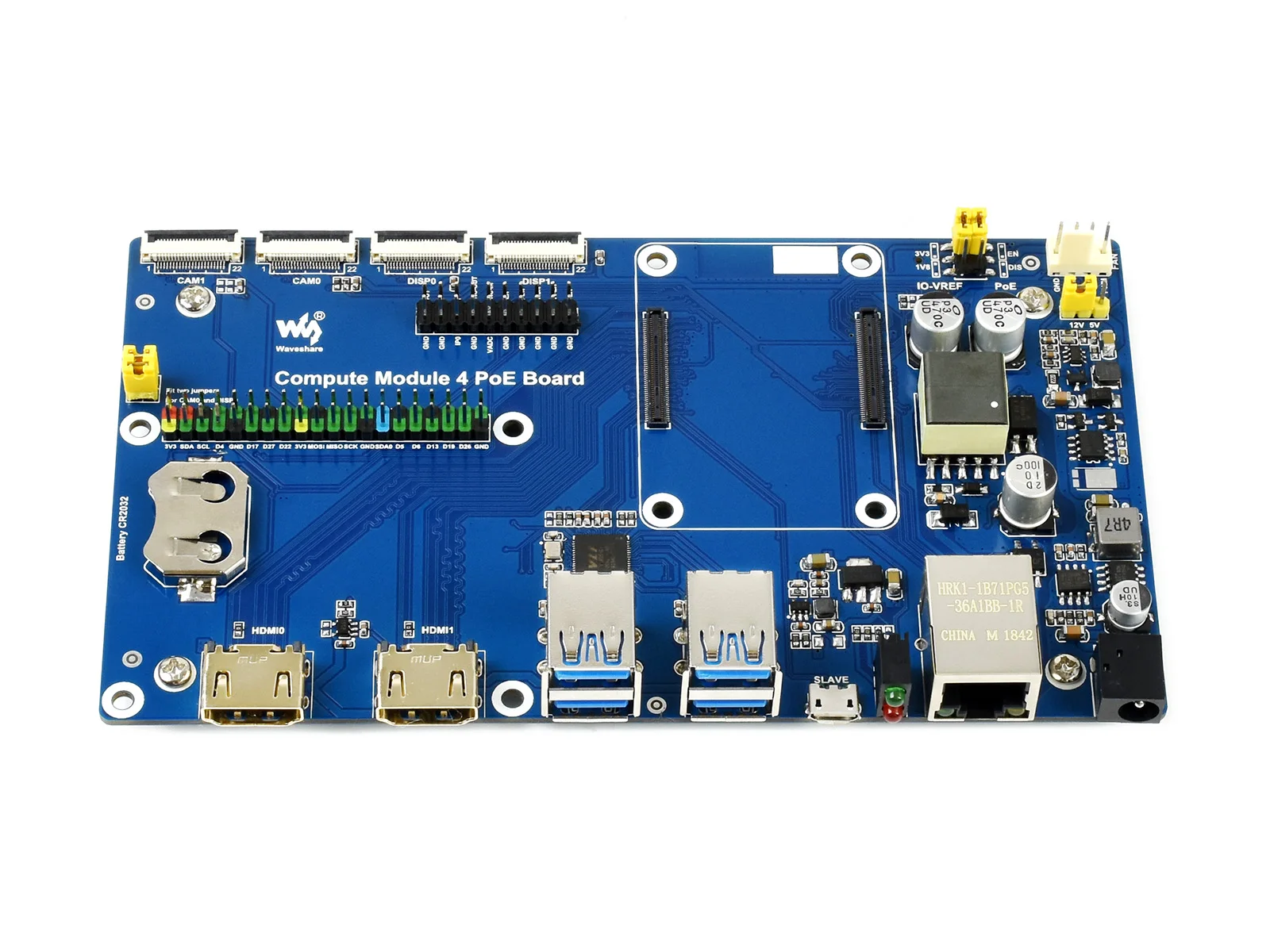

Waveshare Raspberry Pi вычислительный модуль 4 IO Плата с функцией PoE для всех вариантов CM4
- Category: Development Boards and Kits >>>
- Supplier: Shenzhen Guika Technology Co. Ltd.
Share on (1600183394471):
Product Overview
Description

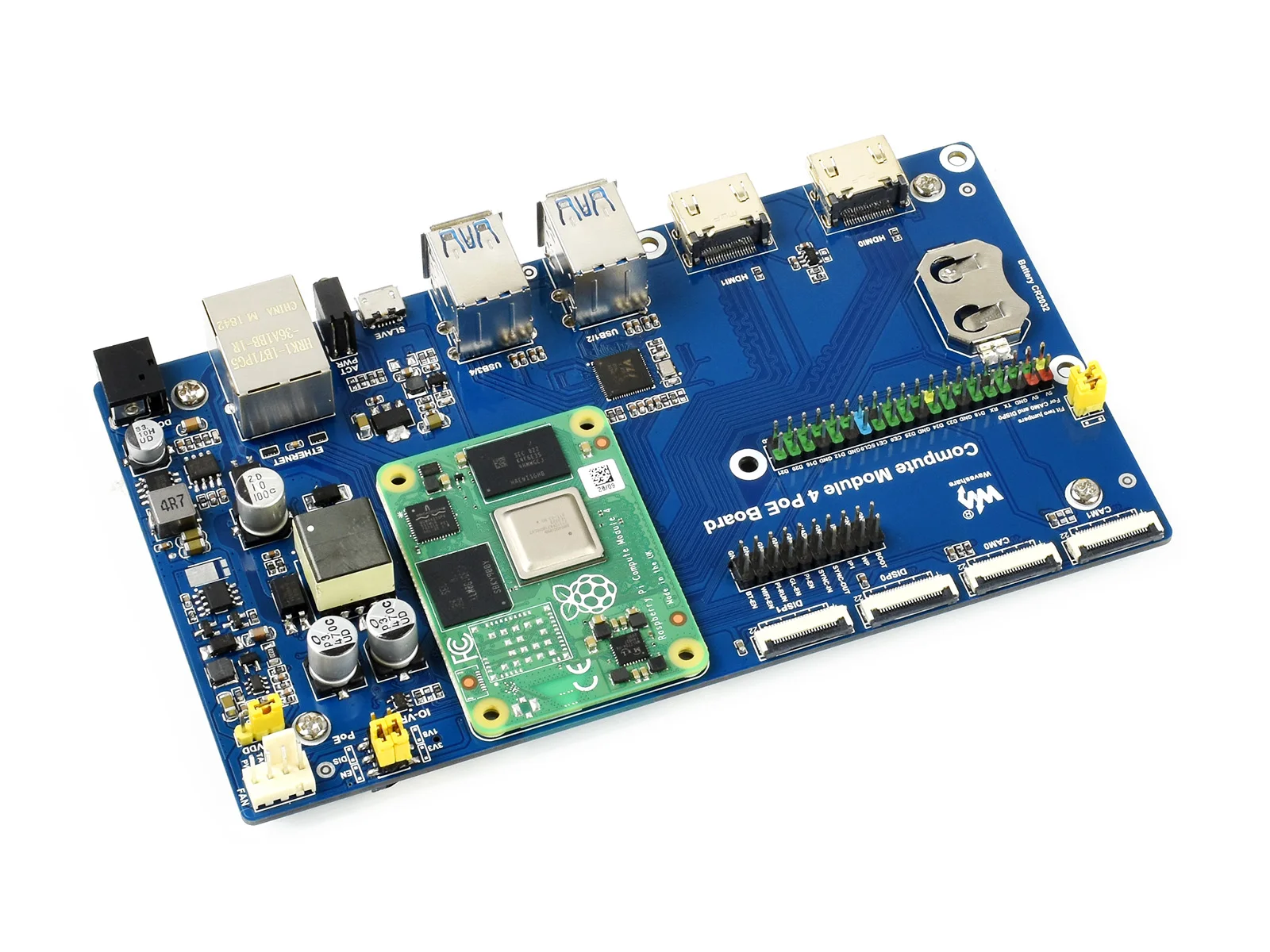

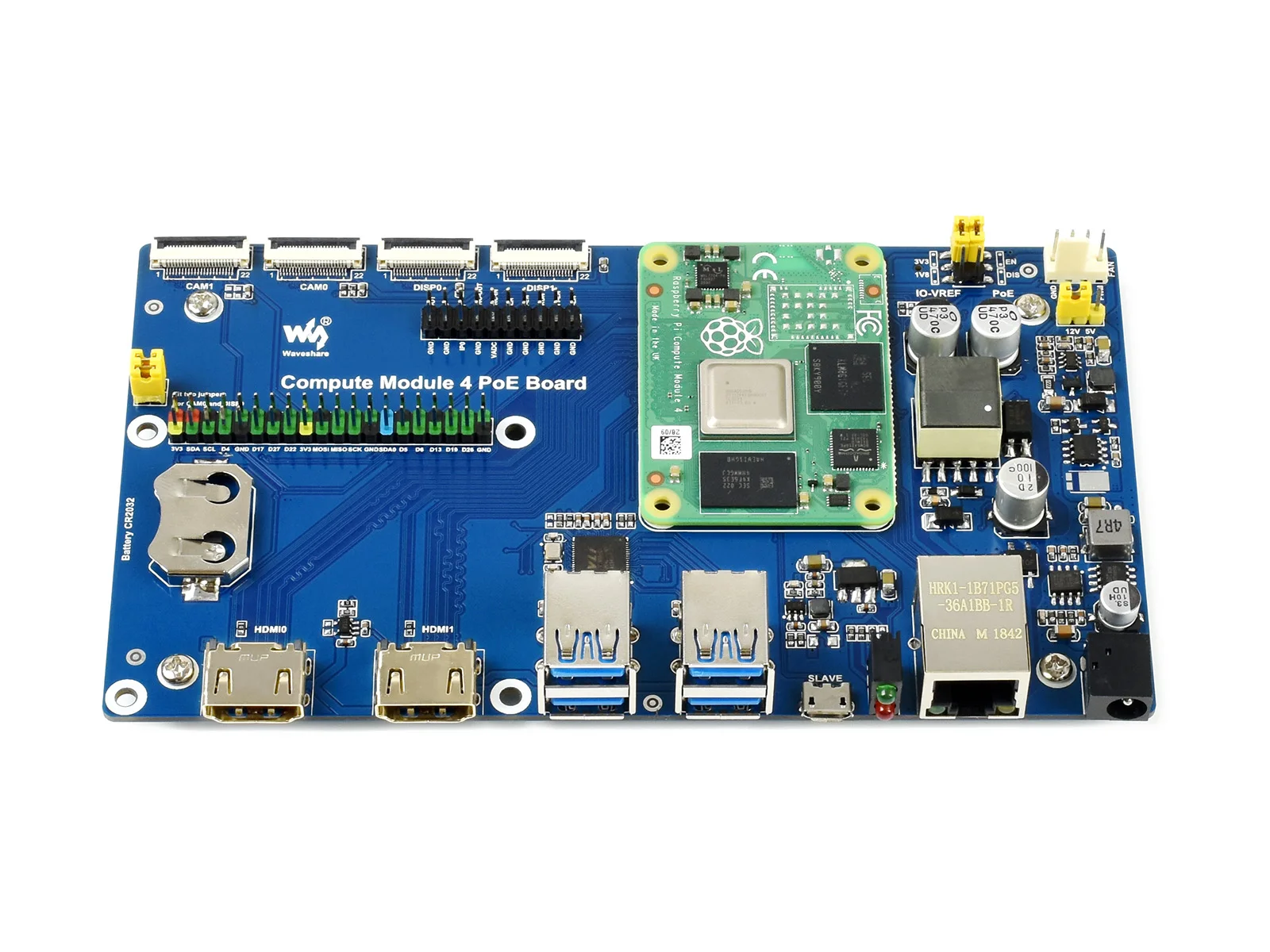

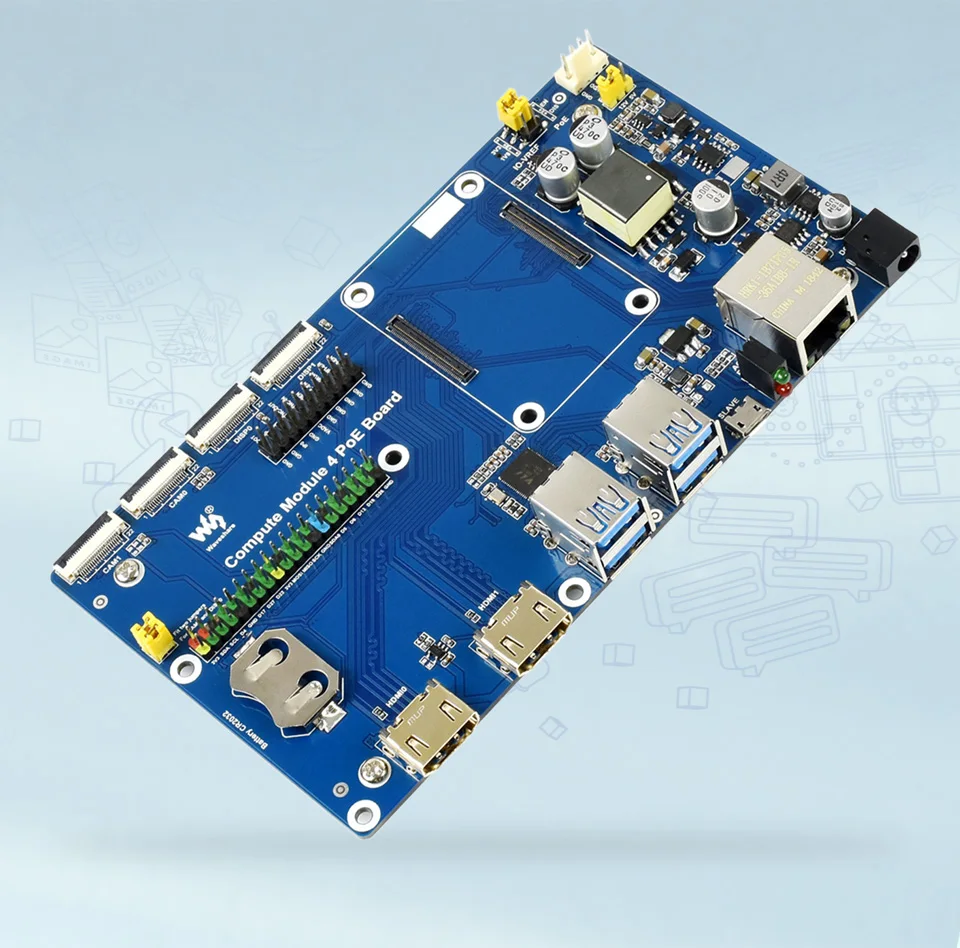

Raspberry Pi Compute Module 4 IO Board With PoE Feature, For All Variants Of CM4
Specifications
| CM4 SOCKET | suitable for all variants of Compute Module 4 |
|---|---|
| NETWORKING | Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A) |
| CONNECTOR | Raspberry Pi 40PIN GPIO header |
| USB | USB 3.2 Gen1 × 4 |
| DISPLAY | MIPI DSI display port × 2 (22pin 0.5mm FPC connector) |
| CAMERA | MIPI CSI-2 camera port × 2 (22pin 0.5mm FPC connector) |
| VIDEO | HDMI port × 2, supports 4K 30fps output |
| RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
| STORAGE | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
| FAN HEADER | allows speed adjustment and measurement, 5V / 12V |
| POWER INPUT | 7V-36V |
| DIMENSIONS | 160.0 × 89.8mm |
What's The Differences
| CM4 BASE BOARD | INTERFACE COUNT AND SPECIFICATIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POE | GIGABIT ETH | 40PIN GPIO | PCIE | USB(1) | DSI | HDMI | CSI | RTC | FAN HEADER | POWER INPUT | FEATURES | |
 MINI BASE A | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | 5V | 5V | mini size | ||
MINI BASE B | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | √ | 5V | 5V | mini size | |
 DUAL GIGABIT ETH | ×2 | √ | 3.0×3 | ×1 | ×2 | ×2 | √ | 5/12V | 7-36V | |||
 IOT BASE | √ | ×1 | Gen2×1 | 2.0×2 | ×2 | ×2 | ×2 | √ | 5/12V | 7-36V | 5G/4G support RS232 RS485 ADC | |
 POE BASE (B) | √ | ×1 | √ | Gen2×1 | 2.0×4 | ×2 | ×2 | ×2 | √ | 5/12V | 5V | RS232 RS485 |
 POE BASE | √ | ×1 | √ | 3.0×4 | ×2 | ×2 | ×2 | √ | 5/12V | 7-36V | ||
 RASPBERRY PI OFFICIAL | (2) | ×1 | √ | Gen2×1 | 2.0×4 | ×2 | ×2 | ×2 | √ | 12V | 12V | |
| NOTE | (1) USB 3.0 is equivalent to USB 3.2 Gen1 (2) There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). | |||||||||||

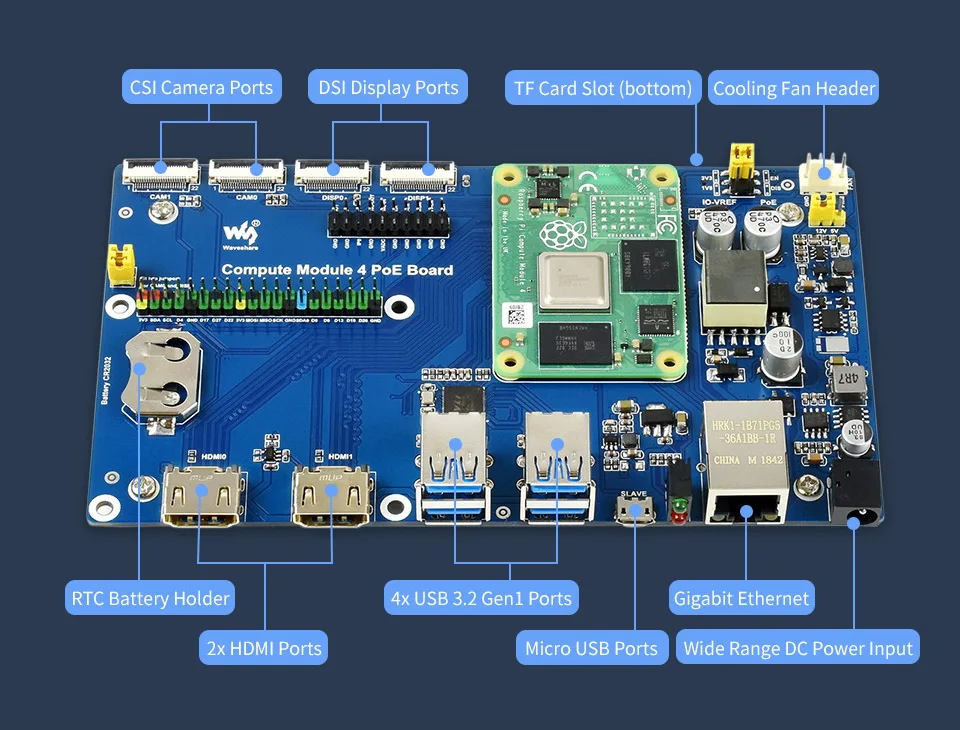

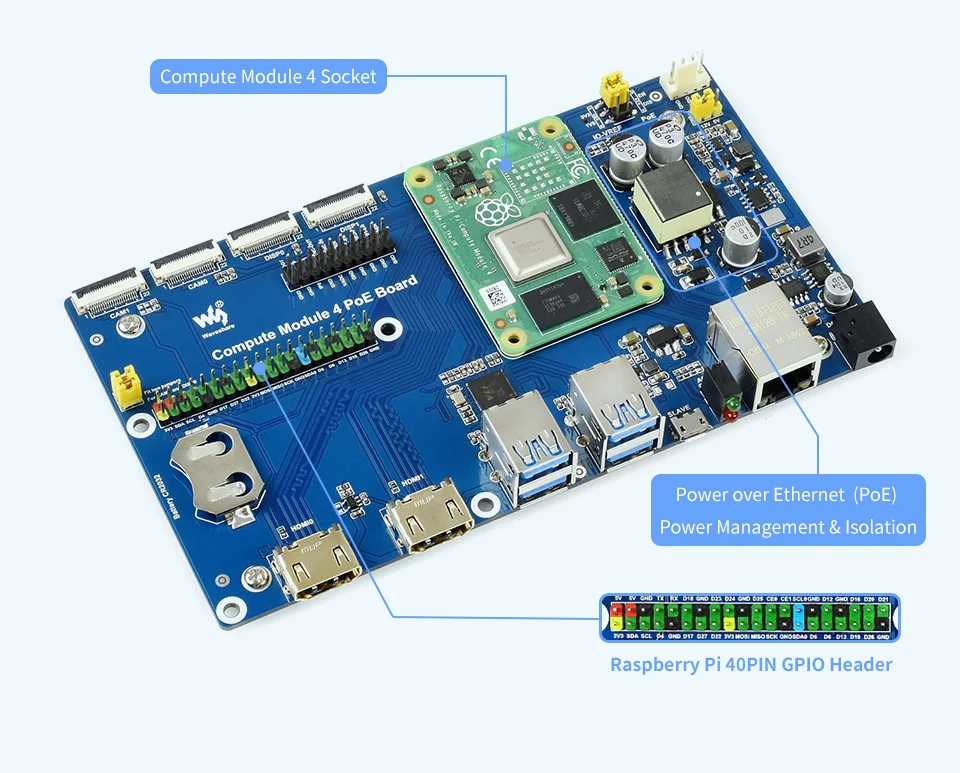

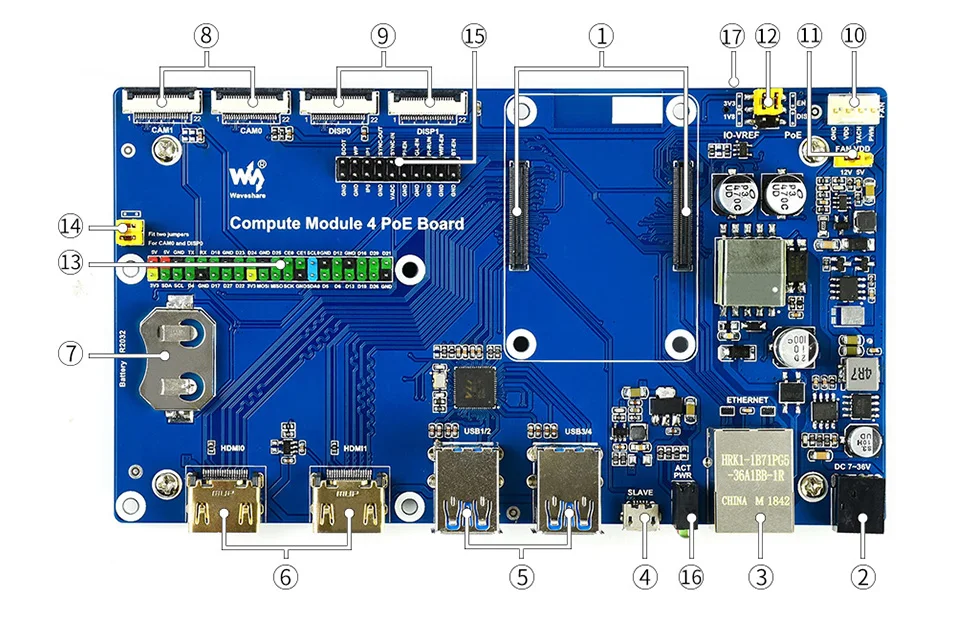

What's On Board
- CM4 socket
suitable for all variants of Compute Module 4 - Power input
7~36V wide range power supply - Gigabit Ethernet connector
Gigabit Ethernet RJ45 with PoE support - USB SLAVE port
allows burning system image into Compute Module 4 eMMC variants - USB3.2 ports
4x USB 3.2 Gen1 ports, for connecting sorts of USB devices - HDMI ports
2x HDMI ports, supports dual 4K 30fps output - RTC
RTC battery holder, allows RTC-related functions like wakeup, shutdown, reboot, and more - CAM
2x MIPI CSI camera ports - DISP
2x MIPI DSI display port
- FAN
for connecting cooling fan, allows speed adjustment and measurement - FAN power selection
5V or 12V voltage to drive the fan - IO-VREF/PoE selection
CM4 IO logic level: 3.3V or 1.8V
PoE: enable (EN) or disable (DIS) - 40PIN GPIO header
- CAM0 and DISP0 I2C bus
fit the jumpers when using CAM0 or DISP0 - Misc configurations
- Dual LED indicators
red: Raspberry Pi power indicator

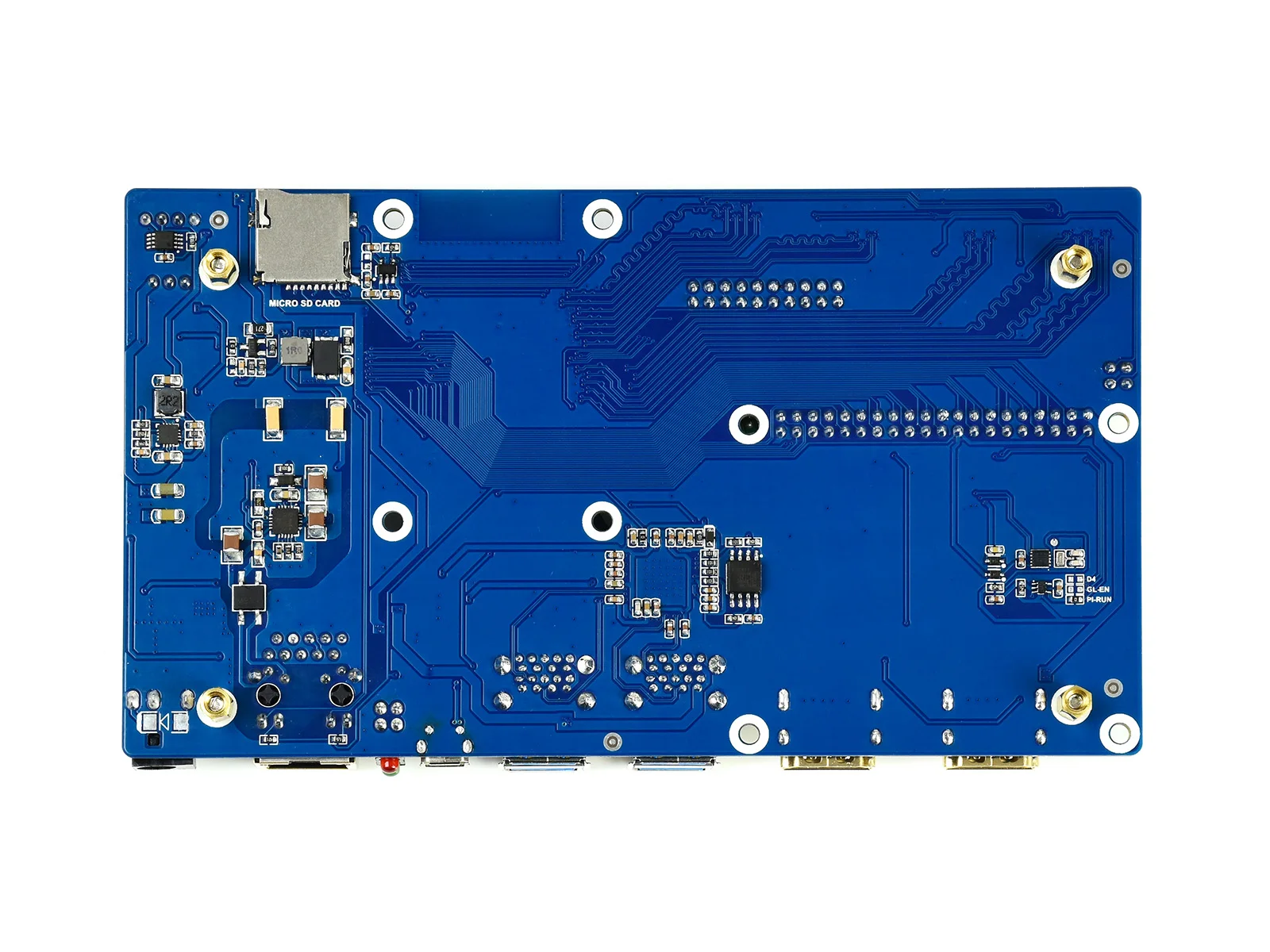

green: Raspberry Pi operating status indicator - TF card slot (bottom side)
insert a Micro SD card with pre-burnt system, to start up Compute Module 4 Lite

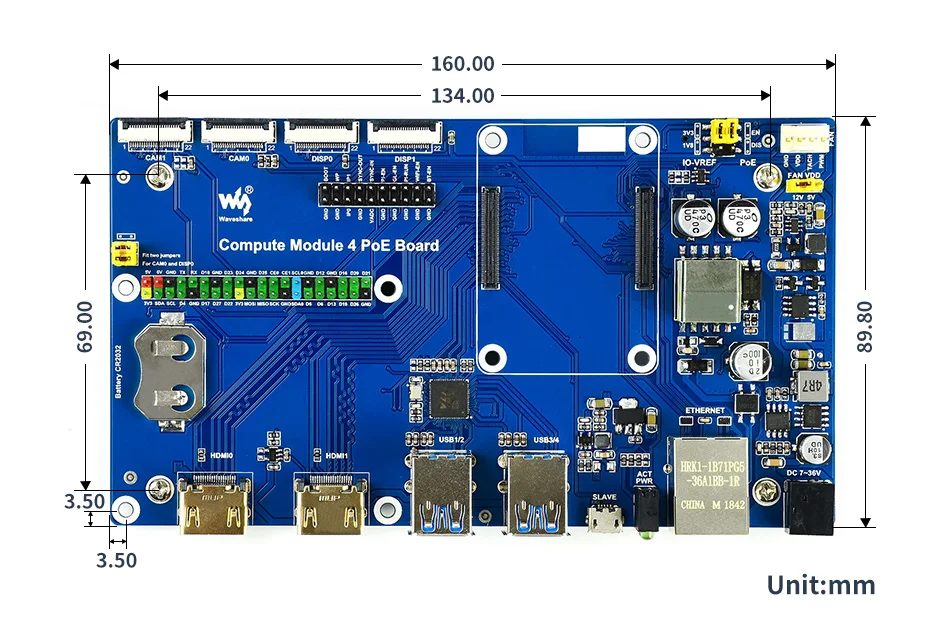

Outline Dimensions

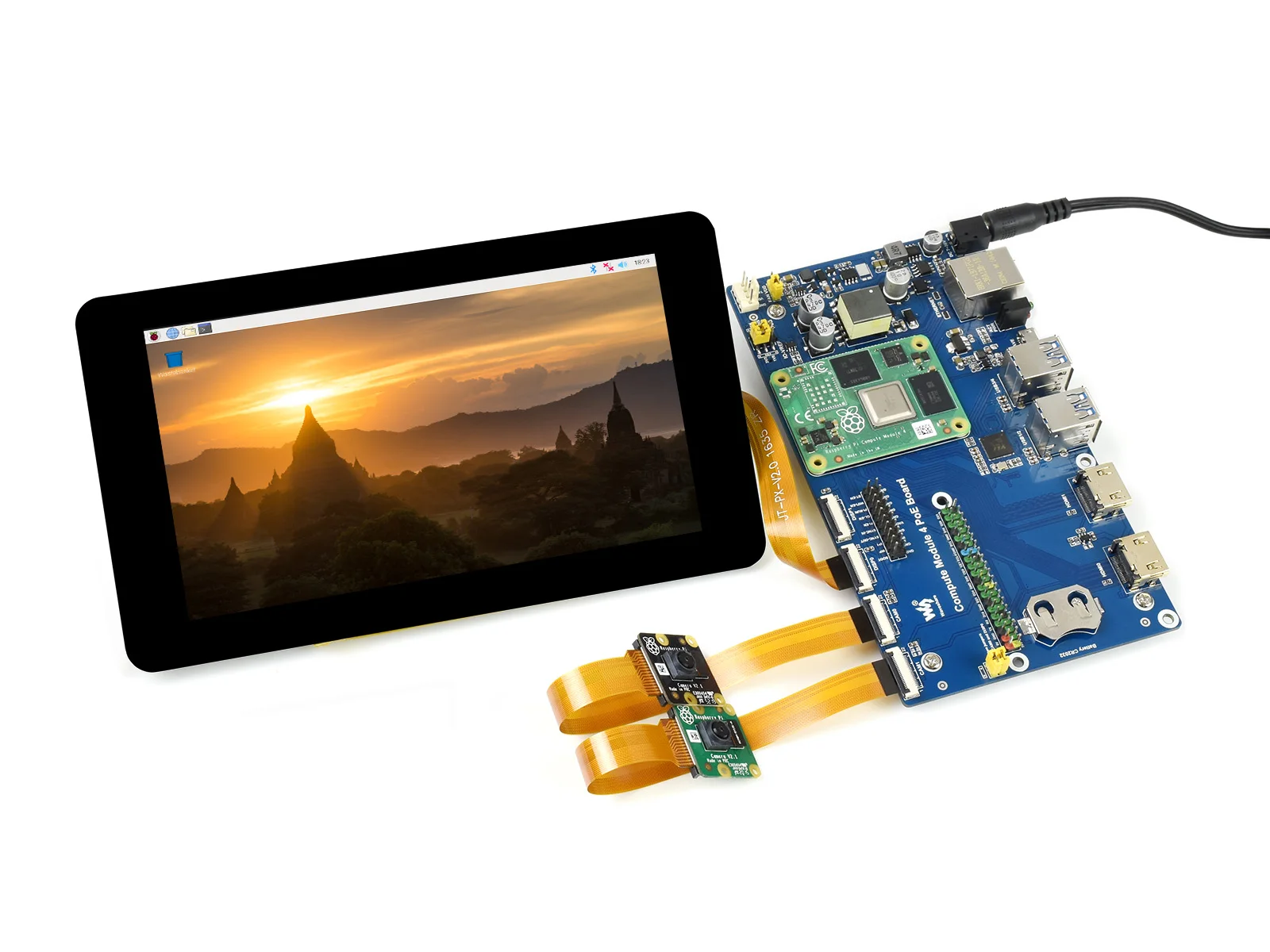

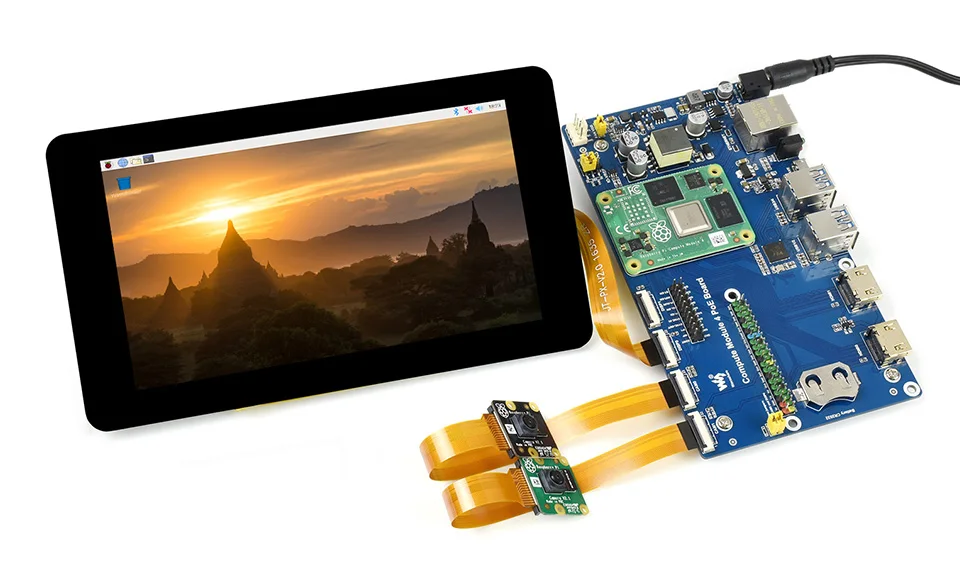

Application Example
Suitable For PoE Powered Raspberry Pi Projects, Or Other Industrial Context
for reference only, CM4, display, and cameras are NOT included.
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
PACKAGE CONTENT
Weight: 0.105 kg
- Compute Module 4 PoE Board x1
