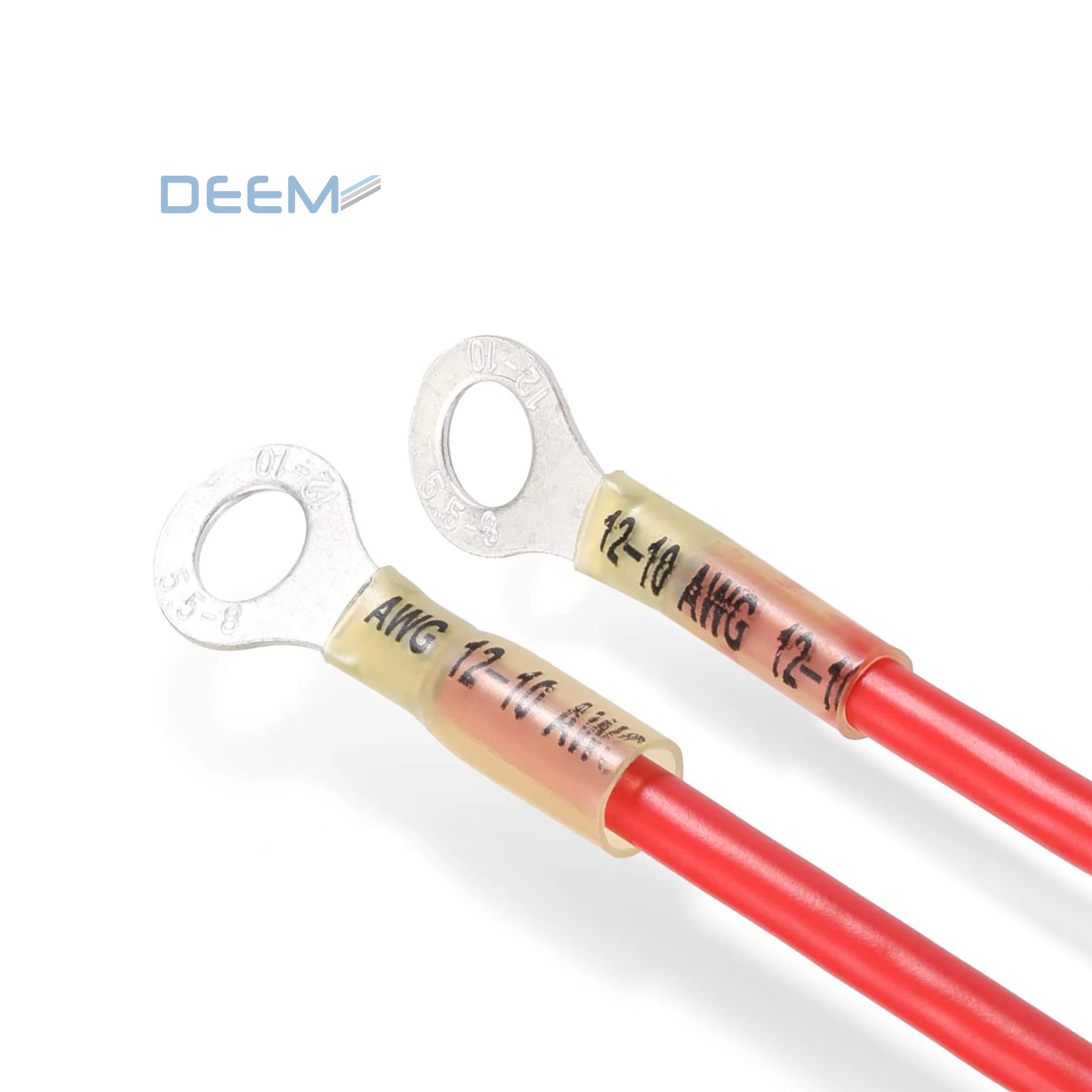

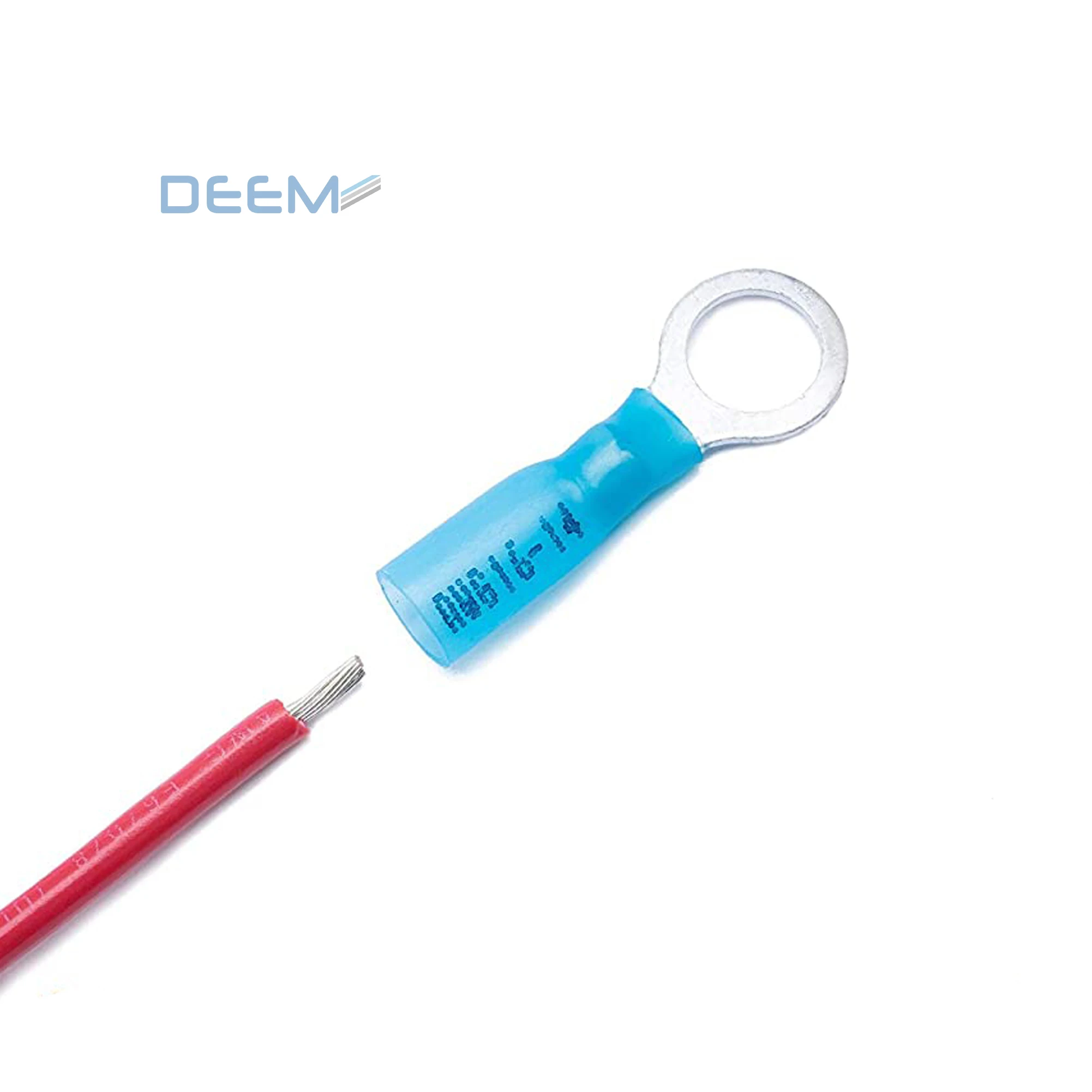

DEEM waterproof heat shrink crimp ring terminal connector for wire insulation
- Category: >>>
- Supplier: Deem,Electronic,&,Electric,Material,Co.,Ltd.
Share on:
Product Overview
Description
Technical Data(DC-SC R)
Wire Range mm2/AWG | Tab Size mm | d2 | d1 | W | Tube Length | D | L | Color |
0.5-1.5mm2 22-16AWG | #4 | 3.2 | 1.7 | 5.7 | 23 | 4.8 | 28.5 | Red |
| #6 | 3.7 | 6.6 | 31.5 | |||||
| #8 | 4.3 | 6.6 | 31.5 | |||||
| #10 | 5.3 | 8 | 33.5 | |||||
| 1/4 | 6.4 | 9.8 | 39.5 | |||||
| 5/16 | 8.4 | 11.6 | 39.5 | |||||
| 3/8 | 10.5 | 13.6 | 43 | |||||
1.5-2.5mm2 16-14AWG | #6 | 3.7 | 2.3 | 6.6 | 23 | 5.8 | 31.5 | Blue |
| #8 | 4.3 | 6.6 | 31.5 | |||||
| #10 | 5.3 | 8.5 | 33.5 | |||||
| 1/4 | 6.4 | 12 | 33.5 | |||||
| 5/16 | 8.4 | 12 | 39.5 | |||||
| 3/8 | 10.5 | 13.6 | 43 | |||||
4-6mm2 10-12AWG | #8 | 4.3 | 3.4 | 7.2 | 23 | 6.8 | 35 | Yellow |
| #10 | 5.3 | 9.5 | 43 | |||||
| 1/4 | 6.4 | 12 | 43 | |||||
| 5/16 | 8.4 | 12 | 43 | |||||
| 3/8 | 10.5 | 15 | 43 |
Technical Data(DC-SC Y)
Click here to get a free sample!
DEEM Electronic&Electric Material Co Ltd is a joint venture manufacturer between Chinese sourcing company with a professional heat shrink backgroud specialist in Europe more than 20 years.We are specialized in research,develop,manufacturer and sales of radiation cross linked heat shrinkable material in worldwide.Such as thin wall,dual wall,medium wall,heavy wall and other specialty products like PTFE,PVDF,silicon rubber,crimp seal connectors,Fiber optic protectors,Braiding Sleeve and other kits in plastic box or small mini box etc related products.Meanwhile OEM and ODM service are available
DEEM is also able to provide any kind of added value jobs.Such as what we already did for the customer packing,cutting,loading,labeling,any kinds of kitting etc.Meanwhile we are also having the capacity to do the trading work as customer request in related fields.
Delivery.Efficiency.Economic.Material.Reliable service and products are servicing the customers more than 20 countries in worldwide.Welcome to join it.
