Good Quality Sublimation Printer Head Fortune Printing Machinery Paper Printing

Product Overview

Description

CA1802 Heat Transfer Printer



We are Printer FACTORY with 15 years experience.

 And we dedicate to manufacture the quality printer at low cost with excellent service!!











Parameters

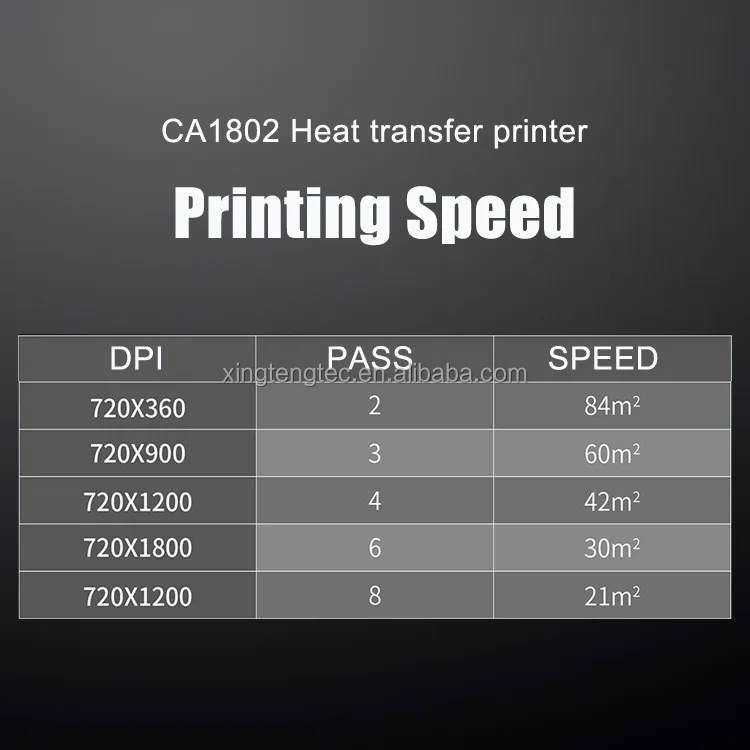

Mode:		CA- 1802 textile sublimation	Ink:		Sublimation Ink
print width:		1850mm	Printing Speed	3pass	60.0sq.M Per Hour
Print Head		4720 or 5113		4pass	45.0sq.M Per Hour
Number Of Nozzles		1 or 2 or 4 or 8		6pass	30.0sq.M Per Hour
Color		CMYK 4 Colors		8pass	15.0sq.M Per Hour
Resolution		720x720 720x1440 720x2880 dpi		12pass	10.0sq.M Per Hour
Height Of Print Head		up to 80mm	Media Feeder		Automatic
Size Of Ink Droplet		7-21 PL	Media Take-Up		Automatic
Max. Print Width		1600-1800mm	Ink Tank Account		4*1.5Liter Continuous Ink Supply
Max. Media Width		1800mm (Max)	Interface		HI-USB2.0/3.0
Material	Application Type	paper	Power		50/60HZ, 220V, 15A,3kw
			Control Software		Print Manager
			RIP Software		Maintop (Photoprint Wasatch Optional)
			Three Heating Sections		Pre-Heater, Printing Bed Heater, Rear Heater
Auto Cleanning System		Auto Cleanning System With Anti Clogged Flash Spray & Moisturizing Function	File format:		JPG,TIFF,BMP,PDF ect
			Machine size:		2880X860X1490mm
Picture Drying System		Fan Drying System, Infrared Heating	Packing Dimensions		L3000×W1000×H1500mm (Accessory box)
Operation System		MS Windows XP & Windows 7	Net /Gross Weight		750kg 900kgs
Printing Environment		Temperature: 20 -35℃, humidity: 35%-65%.	Computer  configuration		HD: Above 500G, ATI independent video card,gigabit network card, 4G memory,  Intel i5 processor.
Warranty		24 month















We are Printer FACTORY with 15 years experience.

 And we dedicate to manufacture the quality printer at low cost with excellent service!!

 1.8m large wide format Dye Sublimation Heat Transfer paper printer printing machine plotter roll to roll
