Foton 4x2 откатная буксировочная машина LHD или RHD буксировочная машина

Product Overview

Description

Foton 4x2 rollback tow truck LHD or RHD towing two recovery vehicle

CLW Group- ChengLi Special Automobile Co.,Ltd, which is a big and famous special function truck manufacturer in China, We produce many kind of special vehicles , also include the wrecker truck, Towing truck. one to one type,  one for two type.

Currently we produce the wrecker with its capacity from 3 ton type to 40 ton heavy duty type, welcome for your enquiry.

• Foton 4x2 rollback tow truck LHD or RHD towing two recovery vehicle


• rollback tow truck



Item		Unit		Description
Model				Foton Aumark
Dimension		mm		7460*2350*2400
Curb Weight		kg		4280
G.V.W		kg		8500
Wheel Base		mm		3860
F/R track base		mm		1504 / 1425
F/R Axle-Load		Kg		2500 / 6000
		Type		Steel Spring Type
Approach/Departure angle		.		24 / 9
Traction system		Type		4x2
Max speed		Km/h		90
Tire Specification/Number		Model		8.25R16 / 6 Units+1 Spare
Engine model		Model		YC4D130-33
		Emission/Ps		4214cc, 96 Kw~2800 r/min
		Horse Power		130
		Power		420 N.m - 1400~1800 r/min
		Type		Diesel, 4 cylinder, Turbocharge , water cooling.
		manufactuere		GuangXi Yuchai Engine Power Co.,Ltd
		Standard		Euro III
Gear box		Type		6F&1R, Manual,  6T120
Electric system		V		24
Cab		Person		3
		Type		Reversable, Manual
		Steering		Powering , LHD
		Installing		Mp3, Radio
		Air Conditioner		Hot Wind / Cold Wind
Function specification.
Arm Rated lifting weight		kg	1040		Tow arm expanding length			mm	1180
Tow Arm max valid length		mm	1300		Moving Speed with towing			Km/h	40
Flat bed dimension		mm	5240*2100		Flad bed max undertaking			Kg	3000
flat bed move length		mm	2680		Rated Tow Weight			Kg	3000
winch reel		Unit	1		Winch reel Speed			m/min	8
Steel line length		m	21

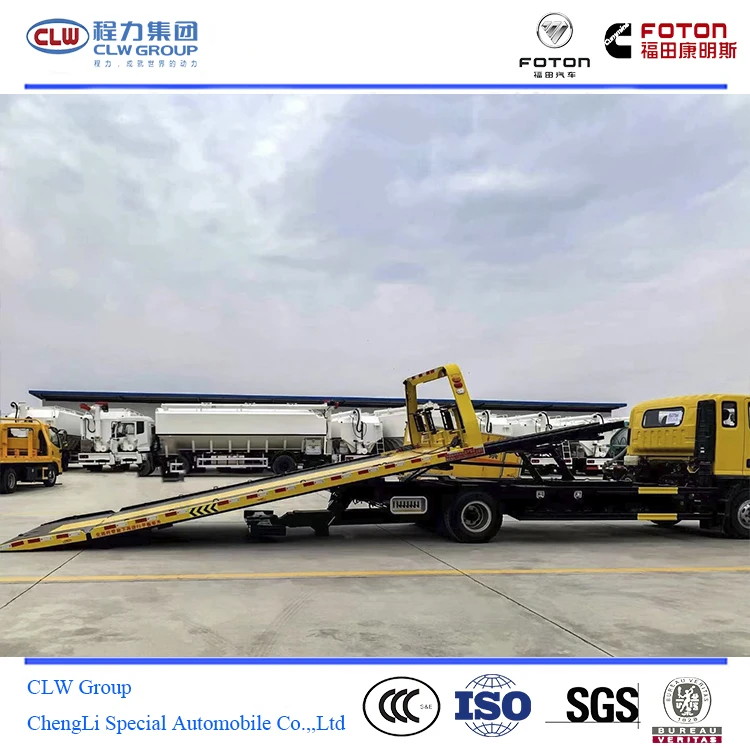

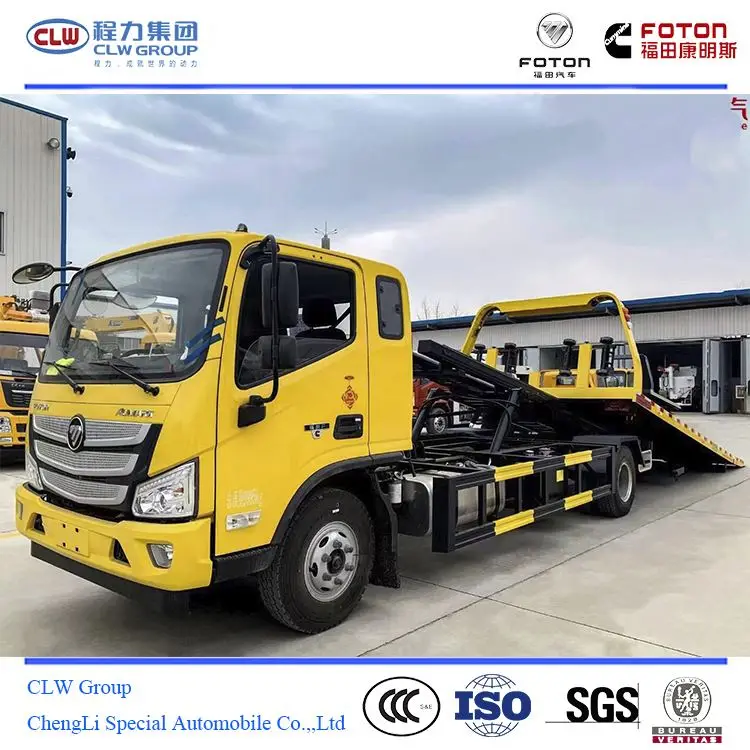

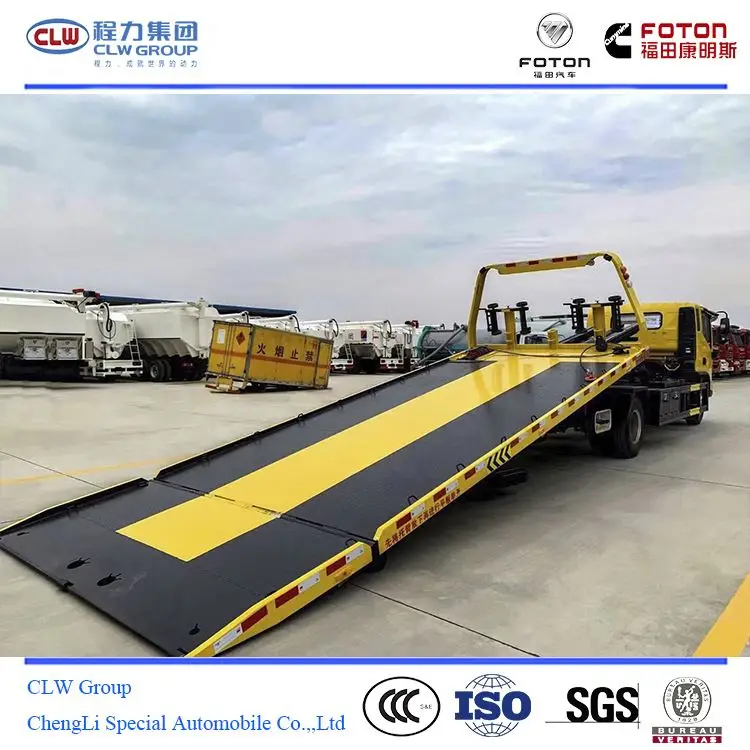

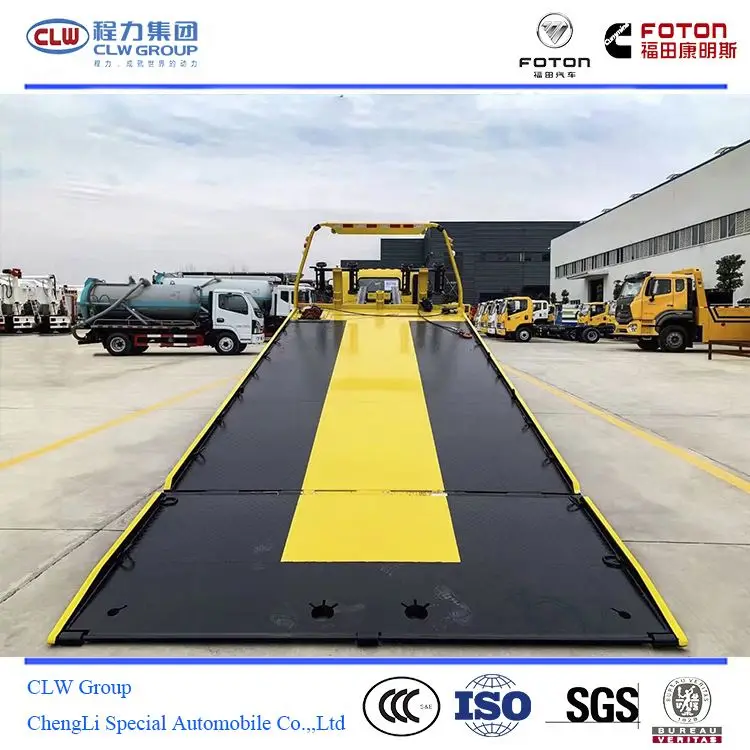

•  More photos showing of Foton 4x2 rollback tow truck LHD or RHD towing two recovery vehicle

• rollback tow truck



• FAQ for your demand in detail

  1.) Where do you plan to use the vehicle ?
        Different Country with different requirement, such as the Emission standard requirement from Euro 2 to Euro 6, if you don't know it in your local place, no matter , just show me the destination Country of vehicle, We will show the informtion to you.
  So please show me where you plant to use this kind of vehicle, very important.

  2.) For the Towing capacity, please also showing me your demand,  one to one type, or one for two type,  then we will make an recommendation to you.
