High Quality Hot Dip Galvanized transmission line hardware telescopic Pole Clamp
Product Description
Angled Guy Cable Clamp Pole Line Fasteners
Materials
bolt diameter
clamping length
clamping width
Weight/pc
Carbon Steel
1/2
6-3/4
2-3/16
1.659 kg
Features straight parallel grooves for greater clamping area without damage to guy strand. Bolts have shoulders to prevent turning when nut is tightened. Alternate bolts are reversed for wrench clearance.
Product Name
offset guy clamp with two curved clampings
Material
C1020 or C1015 hot roller steel
Zinc Coating
Hot dip galvanize per ASTM A153
Craft
Stamp
Parts
two bolts and nuts, two curved clampings
Clamping bolts
Two 1/2"
Accommodates strand sizes
3/16" to 5/16"
Clamp Length
3 1/4"
Clamp width
1 1/2"
Approx. Ship Wt. per Each
1.35 lbs.
Type
Messenger & Communications Hardware, guy clamp
This two-bolt guy clamp with curved clamping member provides a more positive hold on the guy strand.
Detailed Images:
Packing:
1. 3 Dual Slot splint using hot dip galvanized to prevent rust products.
2. Products comply with ISO-9001manufacturing standards.

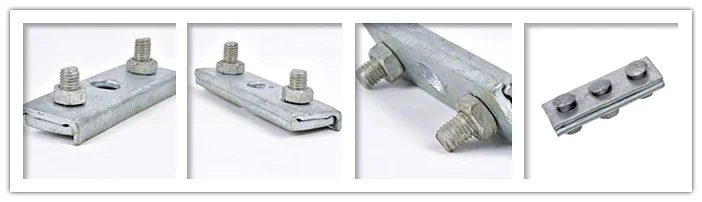

Detailed Images
single slot/double groove clamp
3 bolts parallel cable groove clamp
Drop Forged Suspension Clamp is made from hot rolled open health steel used to securely grip messenger wire.
Material
hot rolled open health steel
Service life
≥50years
Diameter
according to customer's requirement
Function
used to securely grip messenger wire
Characters
Easy installation, good conductivity, cost low
Stock No.
No. of Bolts
Clamp Bolts Diameter inch
Clamp length mm
Mtg.Hole Diameter mm
Strand Diamter mm
Approx. Ship Wt.Kg./100Pcs
Standard Packing Qty./Carton
I0110
3
1/2
188
18*23
6 to 11
100.00
35
I0180
3
1/2
144
18*23
6 to 11
80.00
35
Hot galvanizing groove clamp
widely use:Heavy Duty, Overhead Transmission Line
RELATED PRODUCTION OF POLE LINE HARDWARES:
Packaging & Shipping
Company Information
Qingdao Gold Power Machinery Co.Ltd is a professional factory to make rigging hardware, electric power fittings, concrete forming hardware and other OEM etc, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 150 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment is /630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and also we have welding machine and CNC machining workshop to do more process Main products comprise Building Concrete Products(coil rod ,coil insert ,coil tie ,coil cone ,jack ,nut ,plate,scaffolding accessory,foot anchor ,lifting anchor ) Poleline accessories, Powerline fittings( like anchor rod,ground screw anchor ,no wrench anchor rod,screw anchor ,helix anchor rod ,helix pile ), anti hail accessory (wire tensioner,anchoring clamp,wire tender,wire collar wire rope ,wire strand , anti hail net,wire anchor clamp ,wire stretcher),Rigging hardware(shackle, turnbuckle ,and wire rope clip) other OEM items.
Other sizes available on request All dimensions in mm / inches * We reserve the right to change design & construction without prior notice
