OEM sennuopu профессиональный автомобильный аудиоусилитель 8 канальный сетевой видеорегистратор Автомобильные усилители с 10 каналов DSP
- Category: Car Amplifiers >>>
- Supplier: Guangzhou,Nisson,Automobile,Products,Co.,Ltd.
Share on:
Product Overview
Description

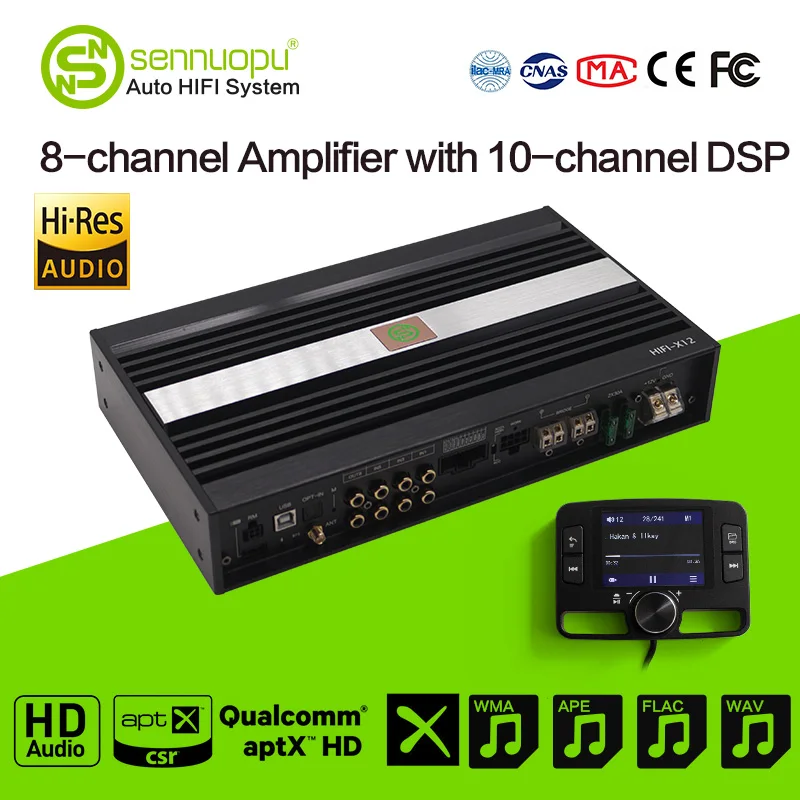

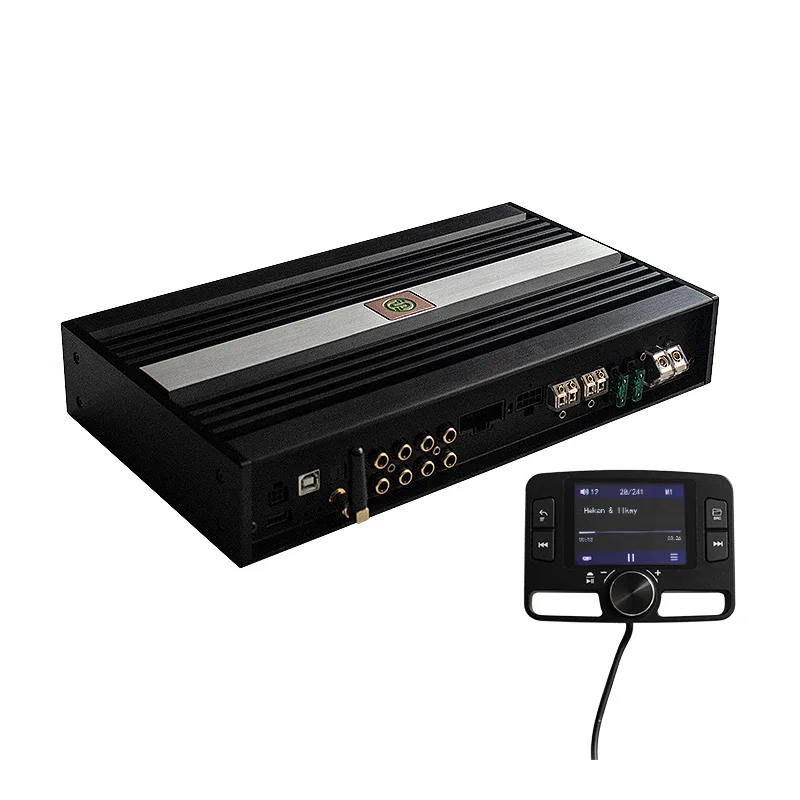

OEM Sennuopu Professional Car Audio Amplifier 8 Channel Power Car Amplifiers with 10 Channel DSP
Product Description
The HIFI-X12 Packs High Quality Audio Media Player, Amplifier and Digital Signal Processor into a Compact.Designed to Simplify Great Audio, Every Amplifier Combines Advanced Switching Amplifier Technology with an Integrated, Full Featured Digital Signal Processor.
●HIFI-X12 is a High Sound Quality Audio Media Player;
HI-FI BT5.0 Player Audio Scheme Application, Support APTX, APTX-HD, APTX-LL; Udisk Playback Input, USB Audio Input, Optical Input.
●HIFI-X12 is an 8 Channel Power Amplifier;
The 8 Channel Amplifier Combines Advanced Switching Amplifier Technology. Real Time Checking and Correcting Errors in Switching Circuit, Adjusting the Dynamic Effect of Output Filter, Correcting and Amplifying in Time, Making The Amplified Sound Output Smooth, Fine and Natural.
●HIFI-X12 is also a 10 Channel Digital Signal Processor;
Used of 2 Dual Core High-End Hi-Res Audio Processing Chips, Computing Power Up to 456 MHz, The Appeal of The Instrument and The Sound Separation Degree has been Natural Expression.
Product Technical Specification
Performance | ||
DSP Processor | OMAP 2 x 456 MHz, 32 Bit | |
DSP Processor Point | Fixed & Floating | |
DSP Sampling Rate | 96 KHz | |
ADC/DAC Processor | 64 Bit, 784 KHz | |
Frequency response | 5Hz @ 45 KHz | |
THD+N | 0,0008 ,1V Out | |
S/N Device Floor Noise | -125 dB | |
S/N Ratio | from 115 to 120 dB | |
Crosstalk | > 110 dB | |
Selectable filter slopes | 6, 12, 18, 24, 30, 36, 42, 48 | |
Function | ||
High level input | 6 Channels | |
RCA input | 10 Channels | |
HD BT5.0 input | APTX, APTX-HD, APTX-LL | |
USB input | FLAC/APE/WAV/FIA etc. | |
Optical input | Support | |
Sound card input | Support | |
AUX input | Support | |
High level CH1-CH6 | 75 watts*6 @ 4 ohms | |
High level CH7-CH8 | 125W*2 ,Bridged 250W | |
RCA output | 10 channels | |
Output signal gain | -60dB~6dB | |
Tuning program | support windows | |
Product Advantages
●BT5.0 Audio:
Aplication of CSR8675 in HI-FI Audio Solution, Support APTX, APTX-HD, APTX-LL, It Supports Audio with Up To 24bit/48kHz and Bit Rate of 576K Bit. The Official Introduction Shows that aptX HD has Surpassed CD in terms of data.
●Udisk Playback Input:
Support Multiple Music Playing Formats, (FLAC,APE,MP3.WAV.AAC.WMA), USB Format Support: FAT16/32, NTFS.
●USB Audio Input:
More and More Multimedia Playback Devices can be Expanded.
●Optical Input:
Optical Fiber Connection can Achieve Electrical Isolation and Prevent the Transmission of Digital Noise through The Ground Wire, which is Conducive to Improving the Signal-To-Noise Ratio (S/N) of DAC (Digital Analog Conversion).
The full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing direct outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
●The CH1~CH6 amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms, Class AB,THD < 1%.
●The CH7~CH8 amplifier outputs up to 125 watts per channel into 4 ohms, or 190 watts into 2 ohms, class D,THD < 1%. It can also be bridged into 4 ohms, producing up to 250 watts into 4 ohms or 380 watts into 2 ohms.

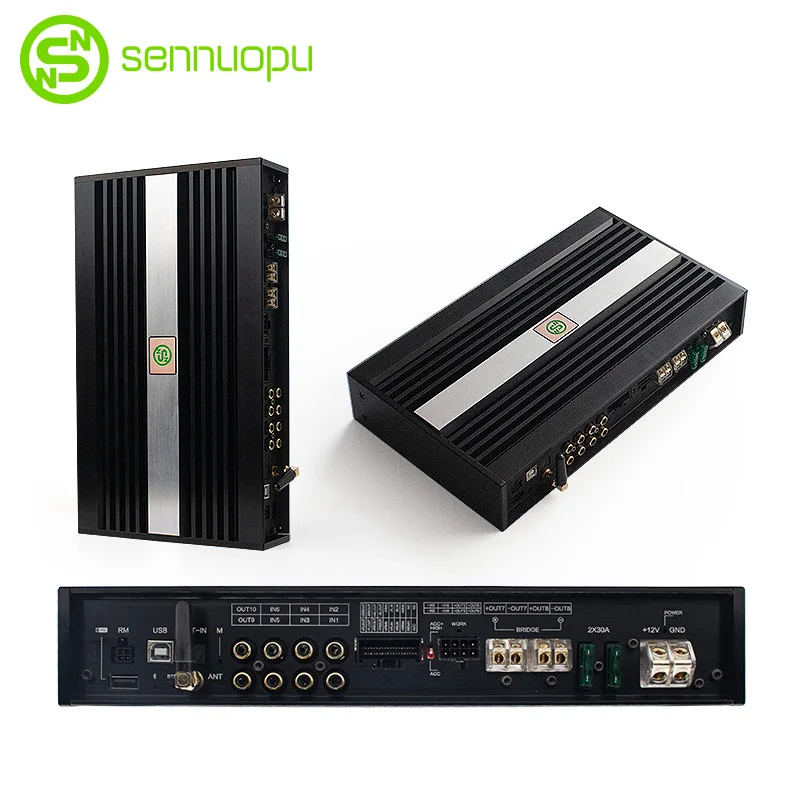

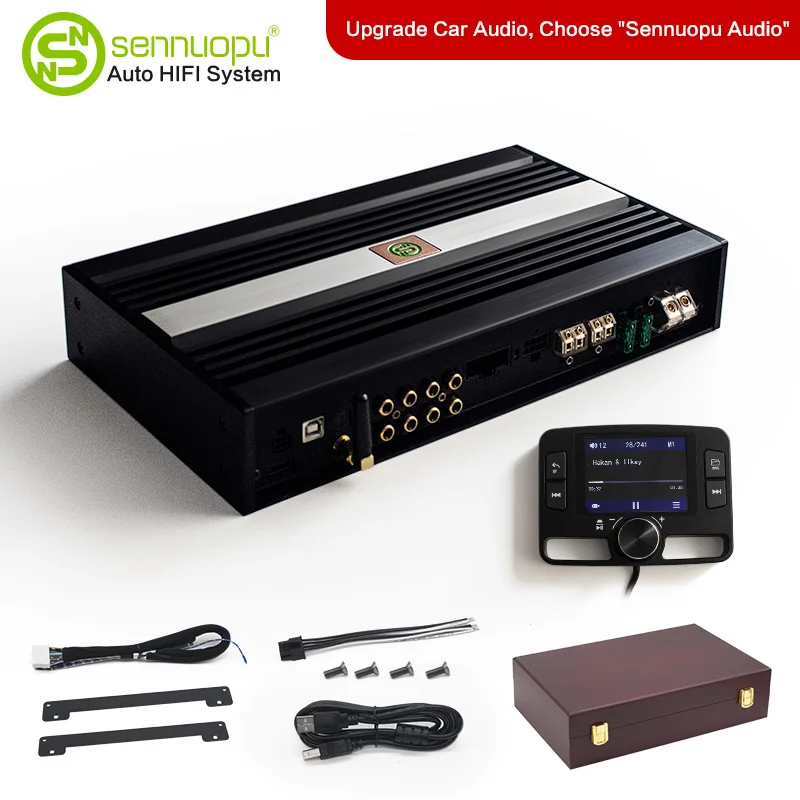

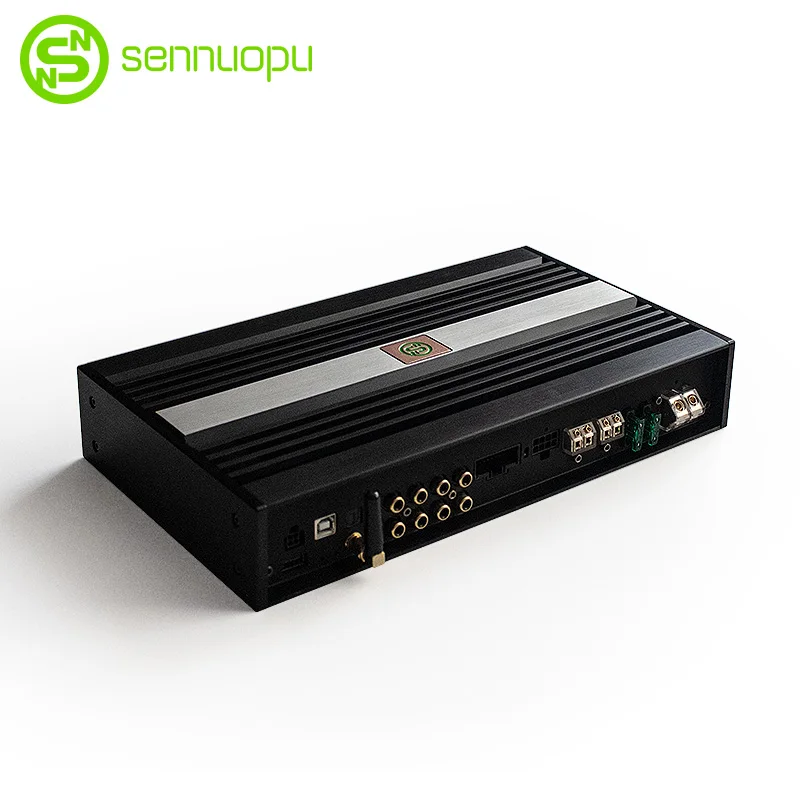

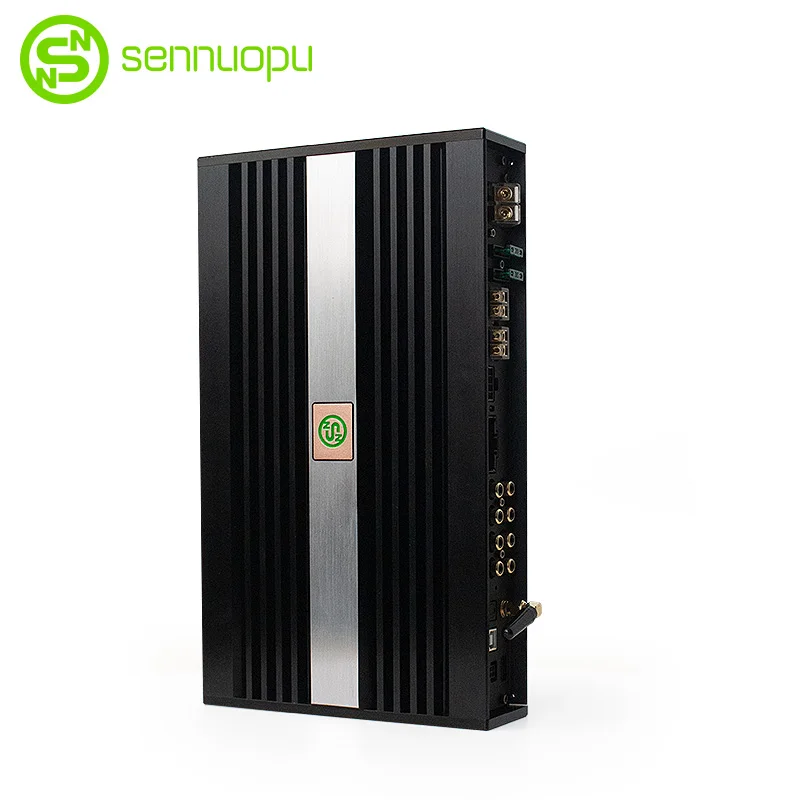

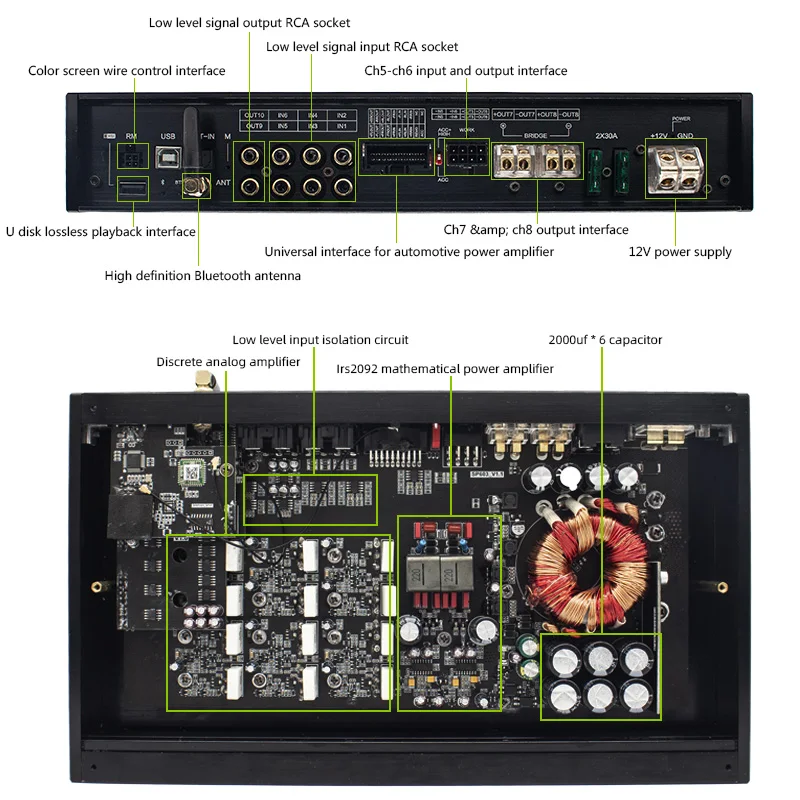

Details Images
Company Strength
Guangzhou NISSON Auto Accessories Co., Ltd., over 10 years of manufacting expericence, is a manufacturer of Car Audio subwoofer,Amplifier, DSP (Digital Sound Processor), Speaker, Audio car accessories,etc. Our services is letting everyone enjoy the pleasure of the car concert hall, always seeking to innovate and services to provide customers with a brand new automotive life.

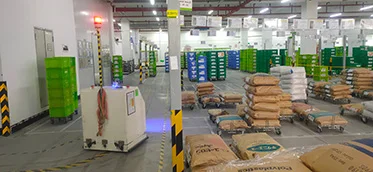

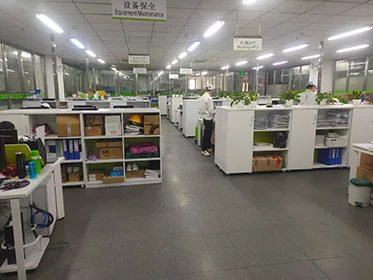

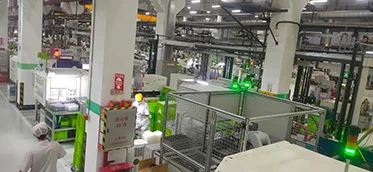

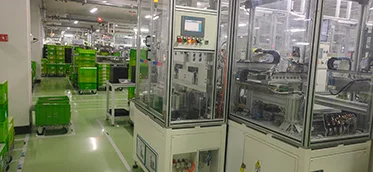

Our factory is located in Jiangmen, is in integration of science, industry and trade ,we have injection molding, metal processing,Painting, SMT and assembly workshops, with strong and flexible supply capacity, with professional and experienced R & D,production, distribution and service term. Strong QC system, ensure products quality before delivery.
Our products have been used by many car lovers, are exported to Russia, Europe and America, South Korea, Japan, Southeast Asia.OEM and ODM is very welcomed. The warranty is up to one year, also provide lifetime service for all our products.
We always Stick to the "Technology innovation, Common development" service objective to provide our clients with excellent sound.We sincerely welcome you to visit our company for more cooperation.
Business Activity
We have participated in exhibitions all over the world, recruited regional agents all over the world, created win-win business conditions, and fully supported agents in local business activities，We provide comprehensive technical services and installation instructions to help you quickly start your business.
Packing & Shipping
We can arrange air transportation, shipping and other transportation methods according to the needs of customers.
