5T Hot sale High quality factory price 3mm thickness Stainless steel 304/316 water storage tanks for beverage company
- Category: >>>
- Supplier: Zhangjiagang Keyuan Machinery Co. Ltd.
Share on (1600184365499):
Product Overview
Description
PRODUCT OVERVIEW

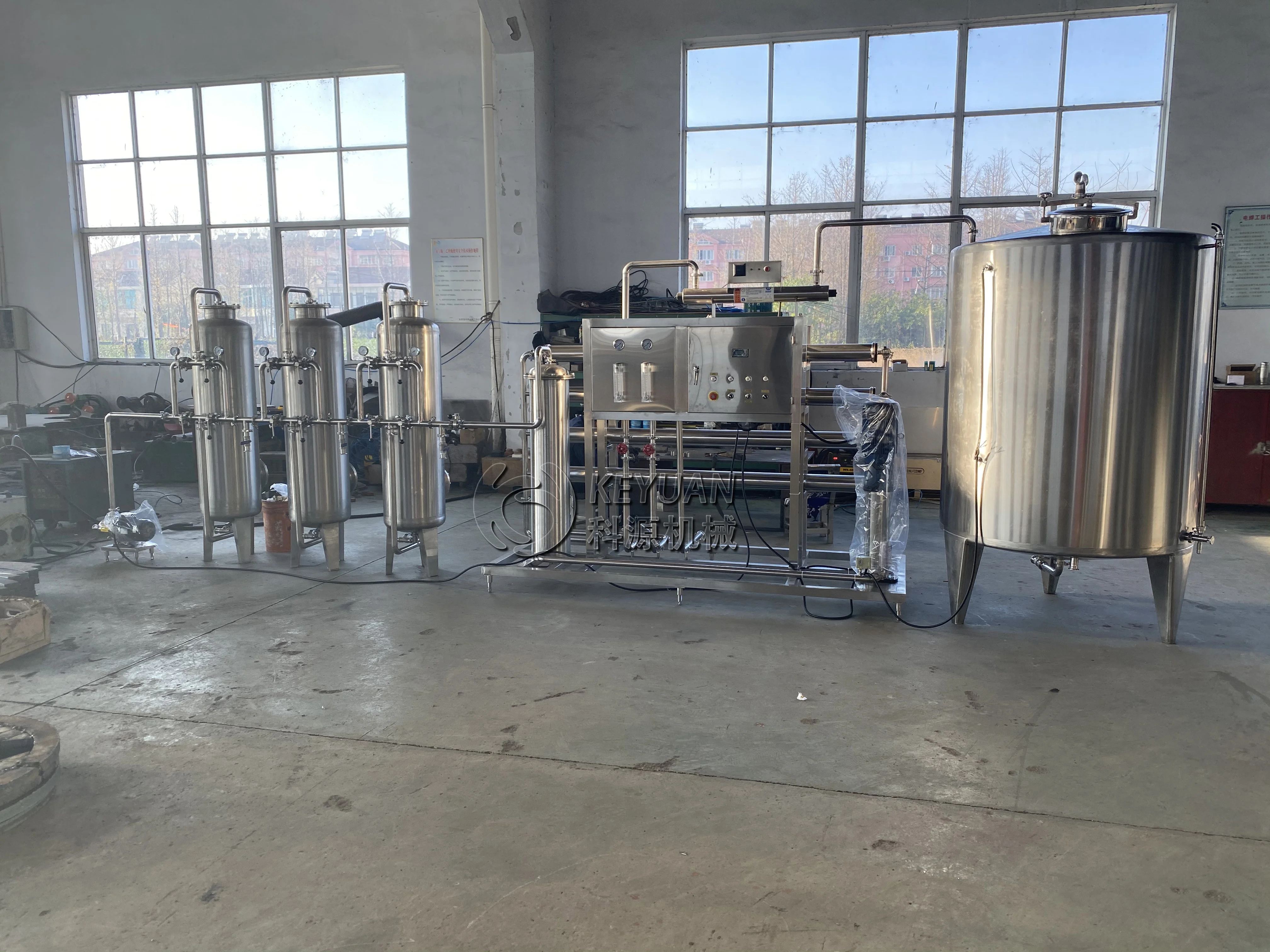

Water Treatment System
Water treatment methods include physical treatment and chemical treatment. The way humans treat water has been for many years. Physical methods include the use of various filter materials with different pore sizes, and the use of adsorption or barrier methods to exclude impurities in the water. The more important adsorption method is the adsorption of activated carbon. The barrier method is to pass the water through the filter material, so that the larger impurities cannot pass through, and then get cleaner water. In addition, the physical method also includes the precipitation method, which is to allow impurities with a smaller specific gravity to float on the water to be removed, or impurities with a larger specific gravity to be deposited and then obtained. The chemical method is to use various chemicals to convert impurities in water into substances that are less harmful to the human body, or to concentrate the impurities. The oldest chemical treatment method should be regarded as adding alum to the water. After the impurities in the water are assembled, the volume changes. Large, it can be filtered to remove impurities.
PRODUCT CONFIGURATION

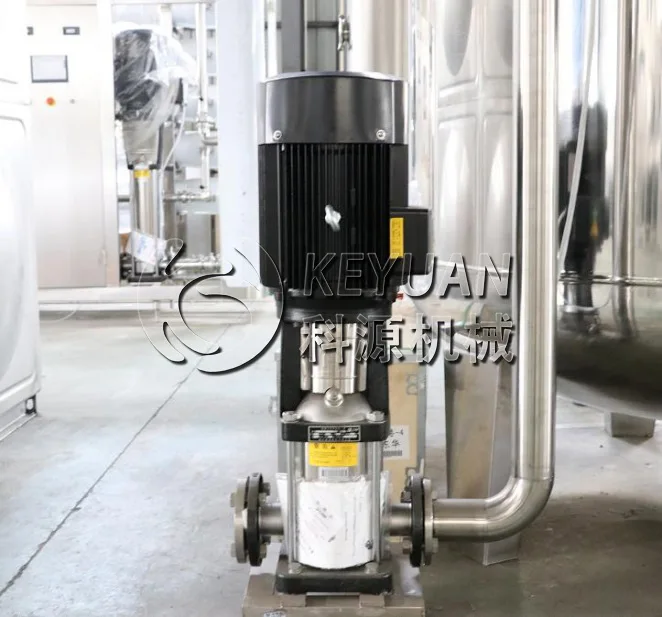

Raw Water Pump
Mainly used to run the time to overcome the pre-processor resistance, while providing sufficient water flow on the preprocessor backwash. Through the original water tank low water level valve to prevent its lack of water and idle.
First stage pretreatment.
(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid
material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment
(Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms,
reducing the residual value of water and pesticide pollution and other harmful pollutants.
reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment
(Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to
effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.

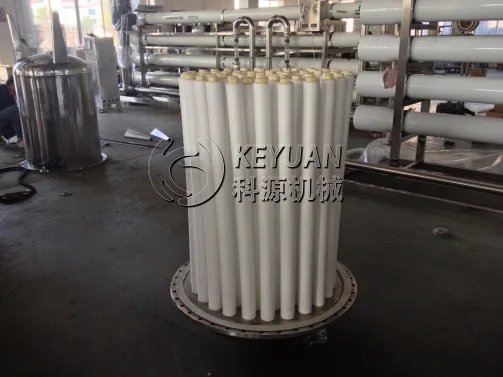

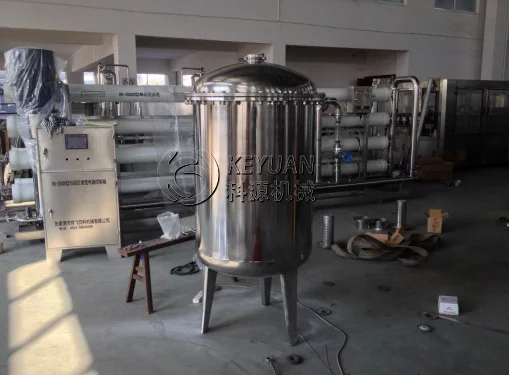

Precision filter
Precision filter (also known as security filter), the shell of the cylinder is generally made of stainless steel, and the interior uses PP melt blown, wire-fired, folded, titanium filter, activated carbon filter and other tubular filter elements as filter elements. According to different filter media and The design process selects different filter elements to meet the requirements of effluent water quality. It is used for the solid-liquid separation of various suspensions, and the filtration of chemical liquids with relatively high environmental requirements and high filtration accuracy. It has a wide range of applications and is suitable for industrial fields such as medicine, food, chemical industry, environmental protection, and water treatment.

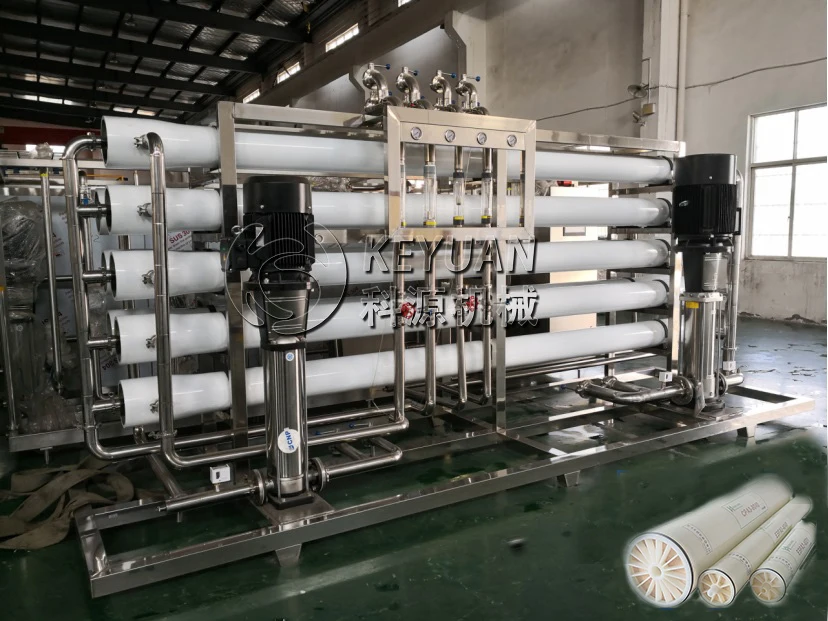

Reverse Osmosis System
The RO water purifier system adopts the most advanced American RO assembles and with a preset systerm. It enables the water to
pass the reverse osmosis film with a diameter of one ten-thousand of a micron and separates impurities, ion, microbes and colloids
in the water, so as to meet the water requirements in cosmetics, pharmacy, electronics and food industries.
pass the reverse osmosis film with a diameter of one ten-thousand of a micron and separates impurities, ion, microbes and colloids
in the water, so as to meet the water requirements in cosmetics, pharmacy, electronics and food industries.

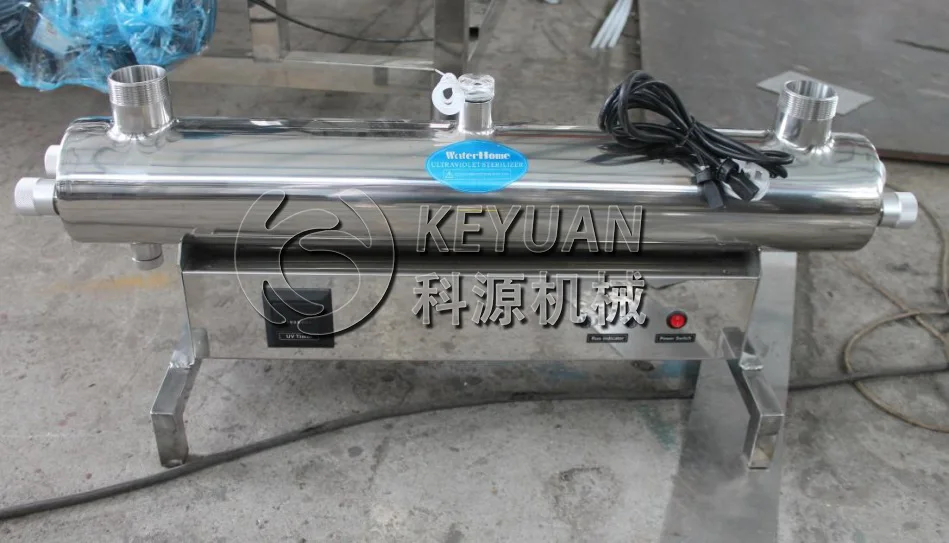

Ultraviolet sterilizing lamp
Ultraviolet sterilization is the most effective way to destroy the molecular structure of DNA (deoxyribonucleic acid) or RNA (ribonucleic acid) in bacteria and viruses in the ultraviolet wavelength range of 240~280nm, causing growth cell death and (or) regenerative cell death. The effect of sterilization. Especially when the wavelength is 253.7, the ultraviolet ray has the strongest bactericidal effect.

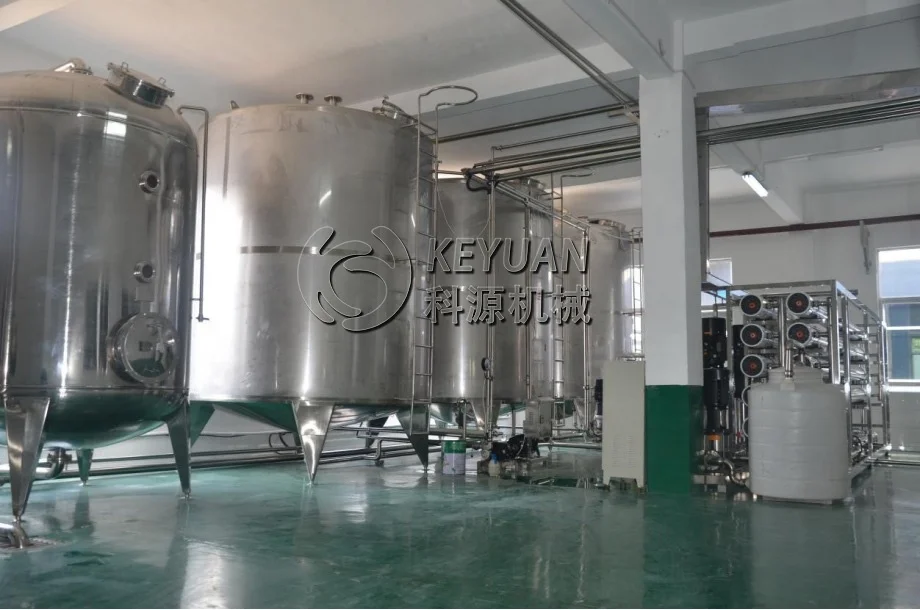

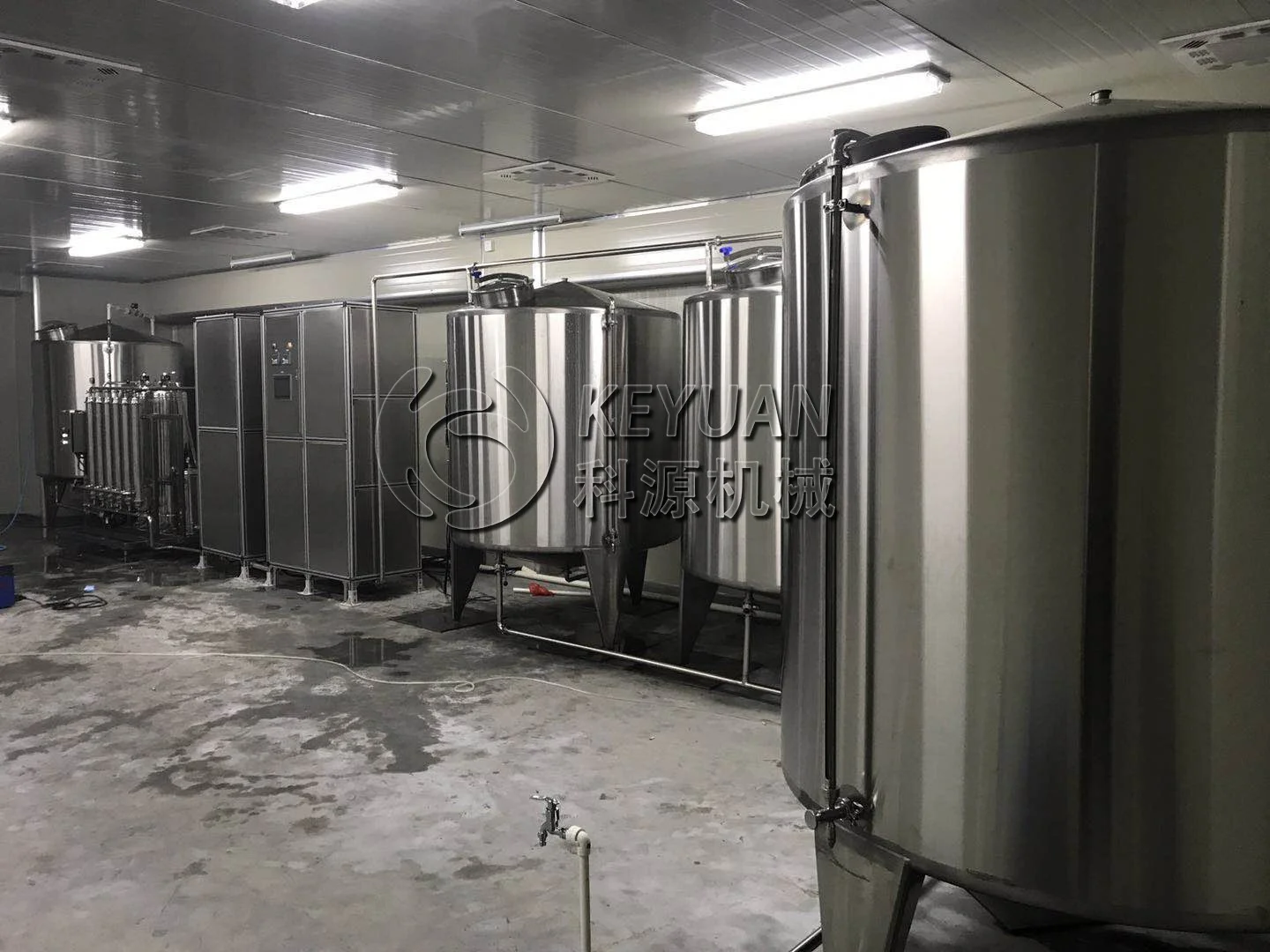

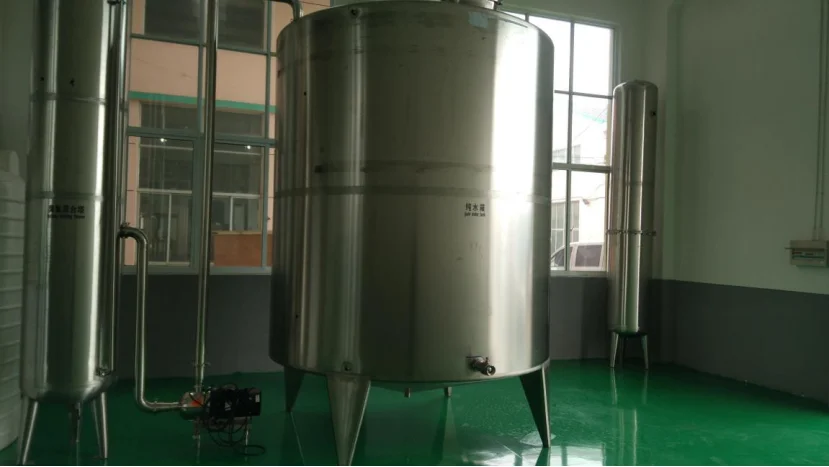

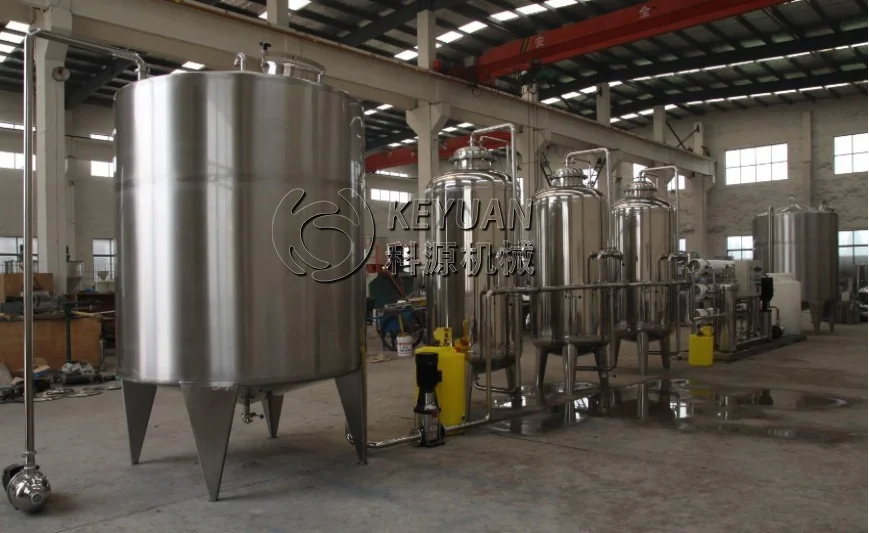

High quality water storage tank(thick type)
Water storage tank is used to store non-corrosive liquid including pure water, rain, raw water etc; - It is made of stainless
steel 304/316 which the material is anti-corrosive; - The water storage tank can be various basing on clients’ requirement and
real function; - Water storage tank can be applied in various industries including food, beverage, hotel, school and another
public place etc;
steel 304/316 which the material is anti-corrosive; - The water storage tank can be various basing on clients’ requirement and
real function; - Water storage tank can be applied in various industries including food, beverage, hotel, school and another
public place etc;
PRODUCT SPECIFICATIONS
Model No. | Productivity ( L/H ) | Power ( KW ) | Recycle Rate( % ) | Raw-Waterconductivity ( μs/cm ) | Water-out conductivity ( μs/cm ) |
KYRO-500L | 500 | 0.75 | 50 | ≤500 | 2-8 |
KYRO-1000L | 1000 | 2.2 | 65 | ≤500 | 2-8 |
KYRO-2000L | 2000 | 3.5 | 65 | ≤500 | 2-8 |
KYRO-5000L | 5000 | 5.0 | 70 | ≤500 | 2-8 |
KYRO-10T | 10000 | 12.0 | 80 | ≤500 | 2-8 |
RELEVANT MACHINES
PET Bottle Blowing Machine
Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.
300ml-2000ml Small Bottle 3 in 1 Water Filling Machine
The machine is mainly applied for the filling of still water. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water.
5 Gallon Barrel Water Filling Machine
The barreled purified water production line refers to a fully automatic production line in which raw water (tap water or deep well groundwater) is transformed into purified water that meets the national standard through water treatment equipment, and then is
produced by automatic barrel water filling equipment to produce finished barreled purified water.
produced by automatic barrel water filling equipment to produce finished barreled purified water.

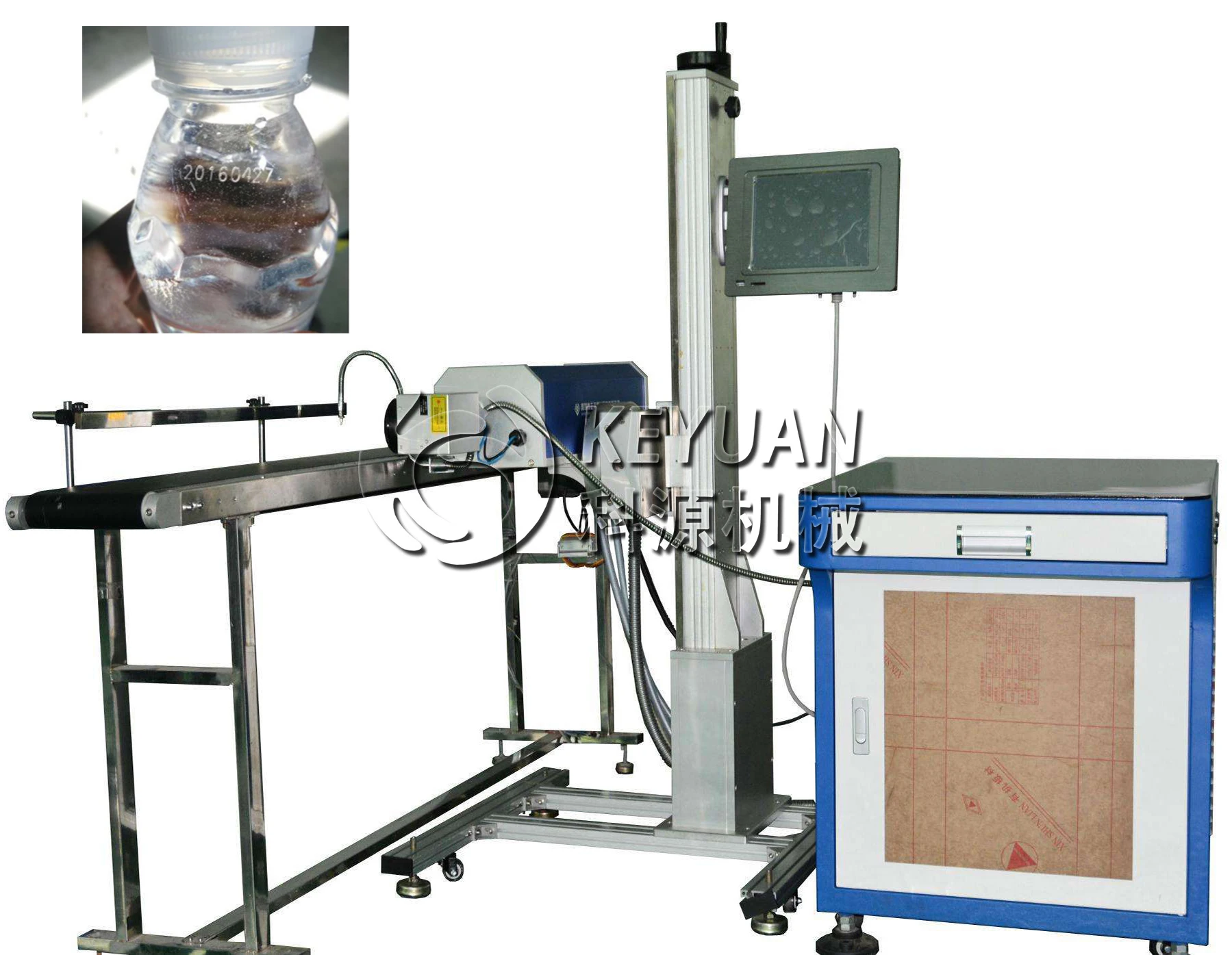

1.Laser Date Printing Machine

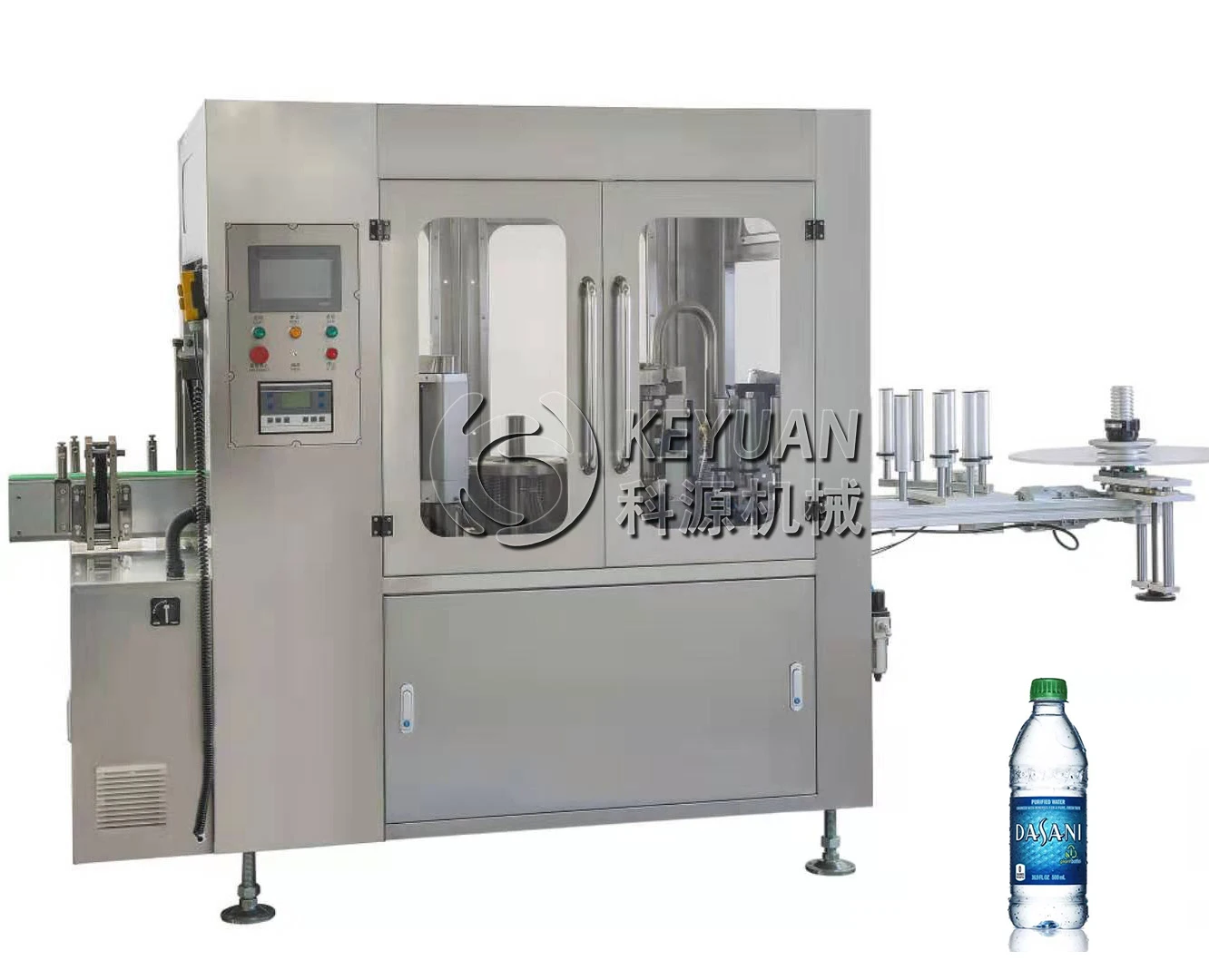

2.OPP Labeling Machine

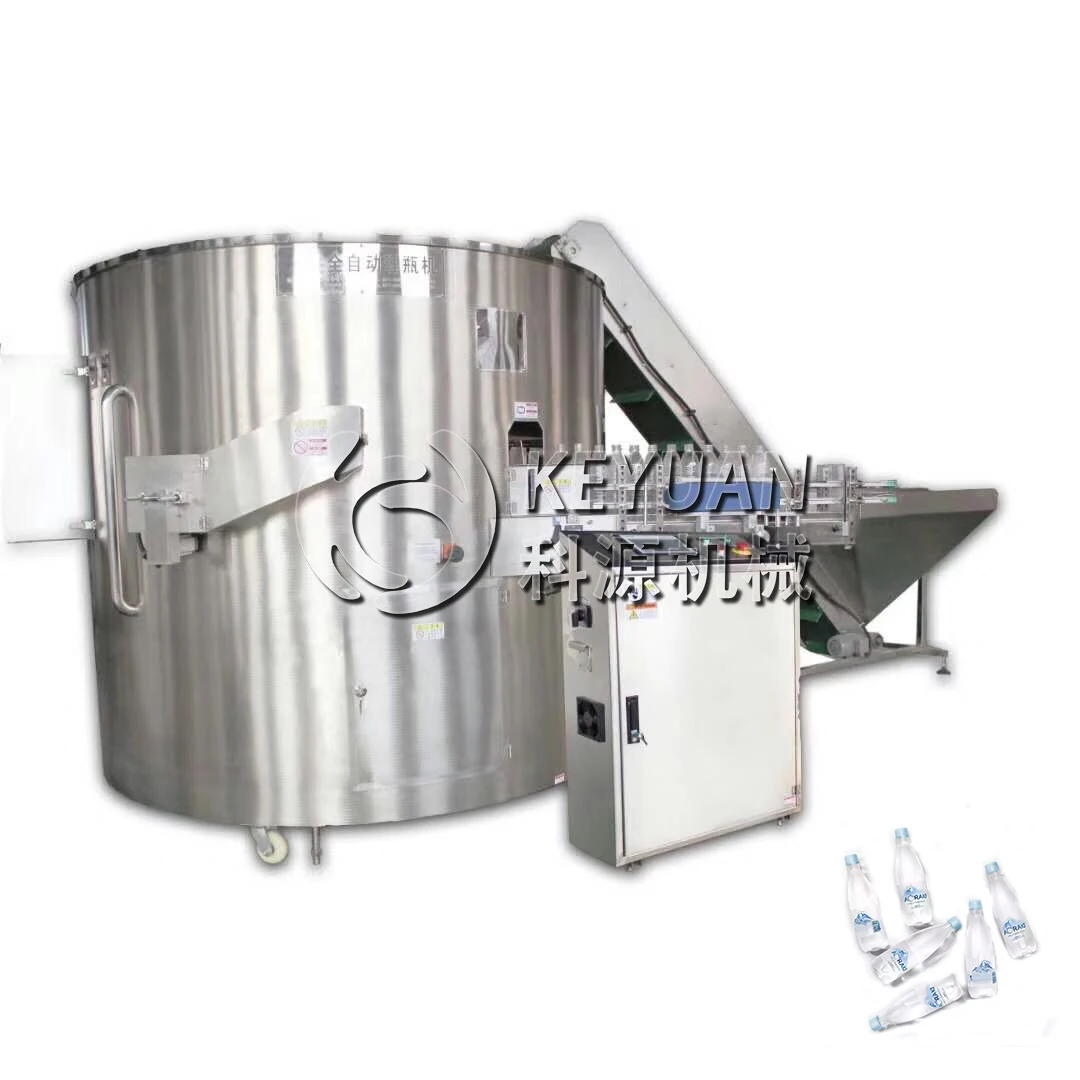

3.Empty Bottle Unscramble Machine

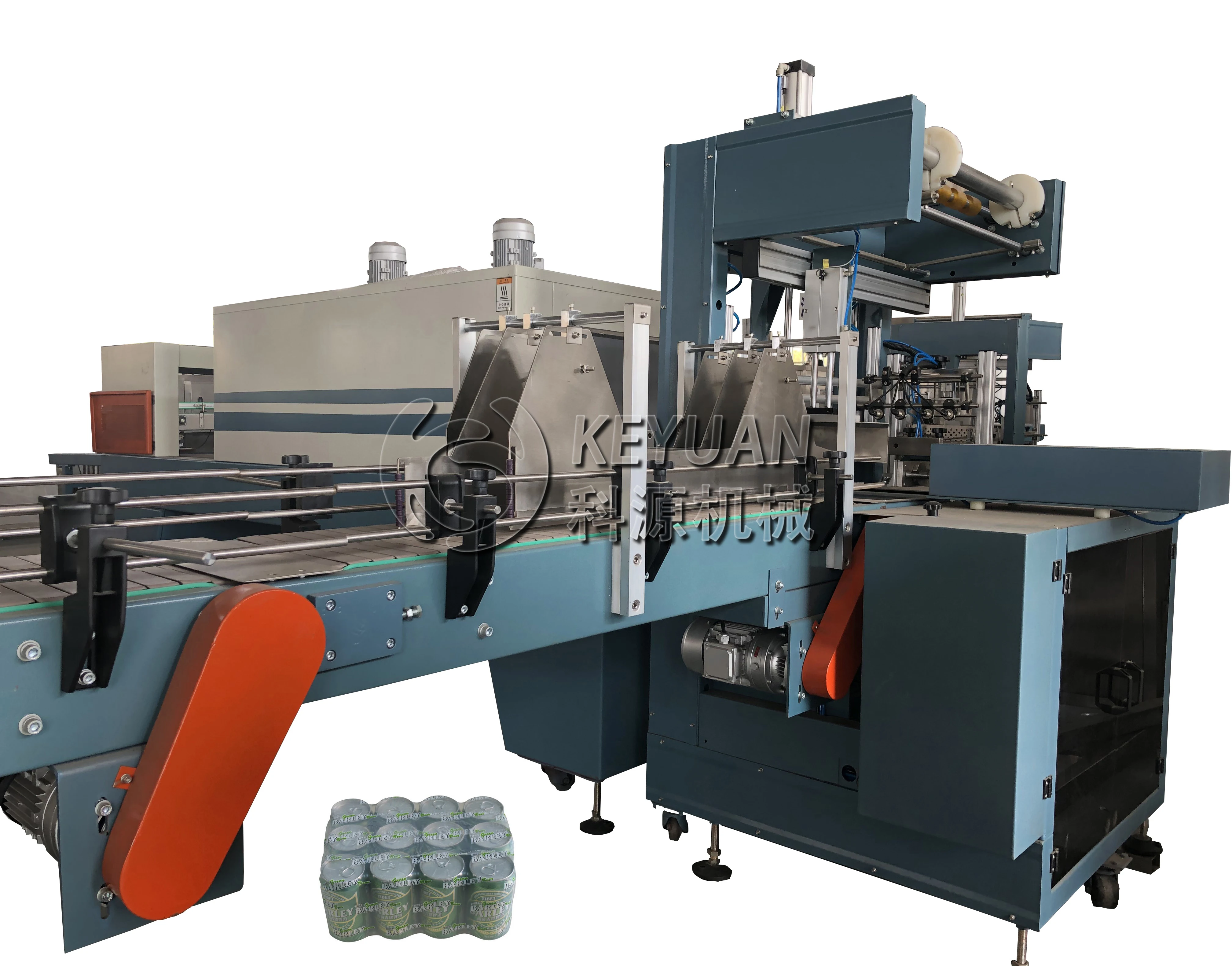

4.Shrink Wrap PE Film Packing Machine
SALES AND SERVICE NETWORK
Factory Design
Provide OEM Factory Design According to your facotry
Bottle Design
Design your dreamed bottle
Before Sales
1.Answer your any question on us with in 24 hours.
2.Supply all information you required.
3.Help building reasonable factory
4.Machines video for reference.
5.Welcome to visit factory.
After Sales
1.Update production progress each week.
2.Sending machines pictures on production .
3.Machines testing running over 8 hours, and sending testing videos.4.engineer arranged to install machines.
5.Spare Parts provided.
Free Contact Ways
if have any questions.can cotnact with me any time. 24 hours onlineWelcome to visit our company!!!
Whatsapp/Wechat:+8613812864615
Whatsapp/Wechat:+8613812864615
CERTIFICATION
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 10 years experience. Factory covers an area of 6000 square. There have been more than 30 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in sanxing yucai road.Jinfeng town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us !
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical
support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply;bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training;etc
Give me the basic information about you want:
1.what kind products will you produce: water, juice, with gas or others.
2.what is your capacity you want: that how many bottles per hour you want
3.what kind of the bottle: pet bottle or glass bottle; bottle volume; bottle sharp. bestly give me the bottle picture.
4.the single machine or the whole line.
So that I can make suitable proposal for you.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in sanxing yucai road.Jinfeng town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us !
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical
support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply;bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training;etc
Give me the basic information about you want:
1.what kind products will you produce: water, juice, with gas or others.
2.what is your capacity you want: that how many bottles per hour you want
3.what kind of the bottle: pet bottle or glass bottle; bottle volume; bottle sharp. bestly give me the bottle picture.
4.the single machine or the whole line.
So that I can make suitable proposal for you.
