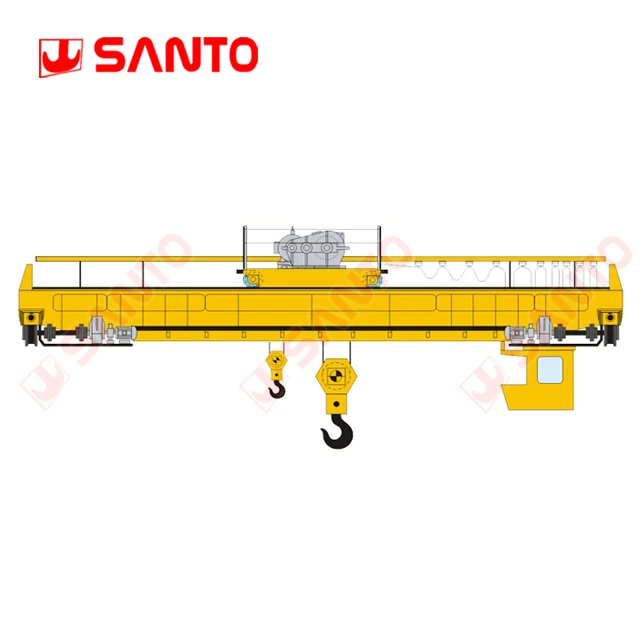

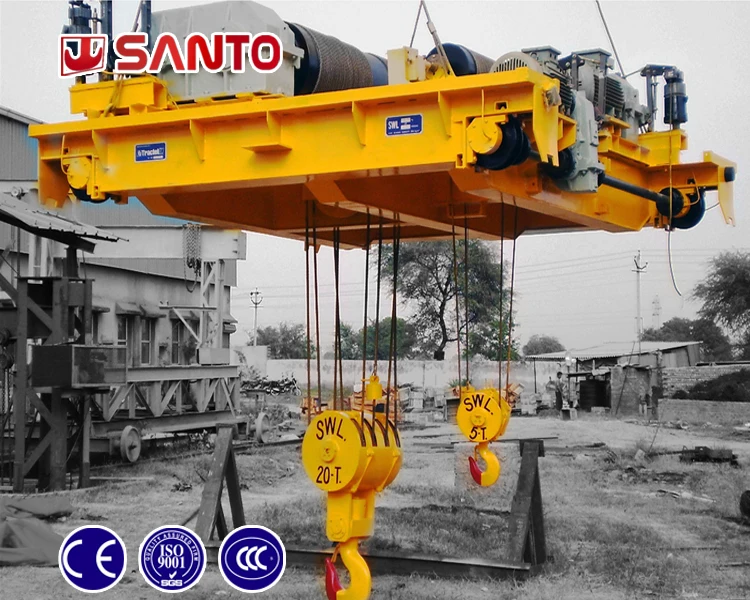

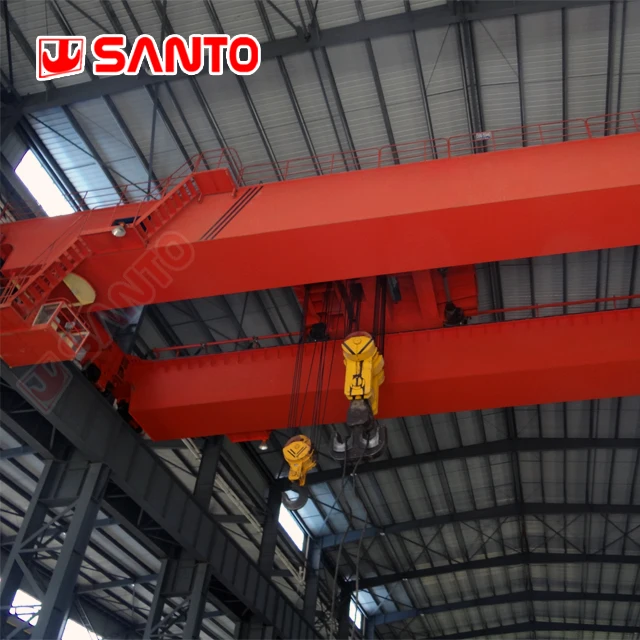

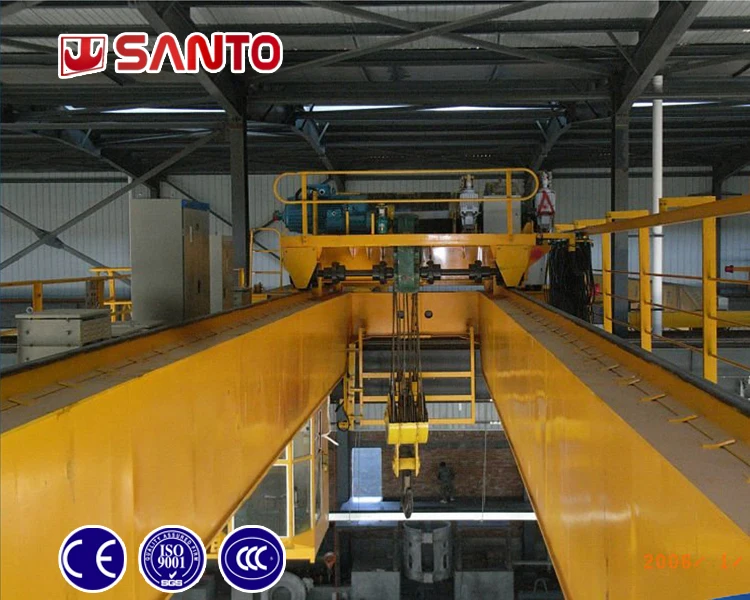

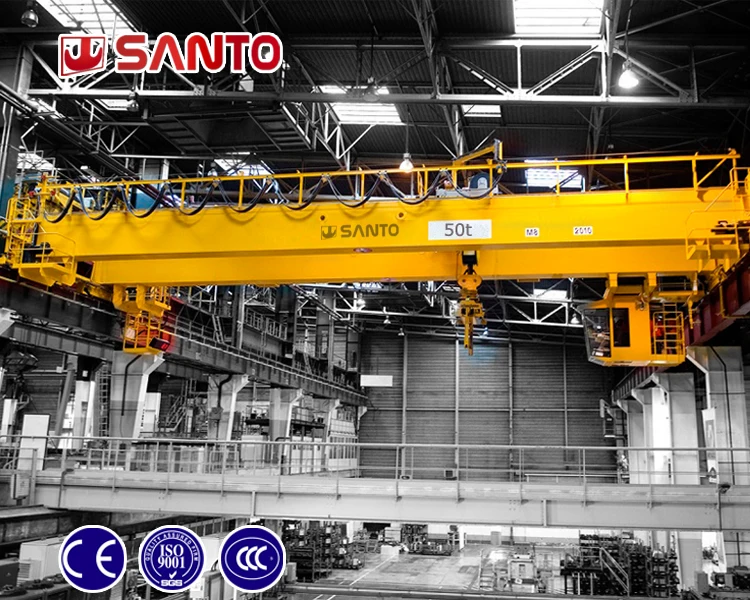

Double Beam 50/10t Bridge Crane With Main And Auxiliary Hook

Together with industry experience, combined with advanced technology, Heavy Duty Top Running Double Beam Overhead Crane with Inverter Control Open Winch Hoist for Indoor Use is the new generation product of santocrane. All of our innovation is incremental, and is marketed based on strict testing and successful operation experience, therefor our customers can choose the products of this series safely.

1.Lifting Capacity:5-550t or above(according to the customer's requirements).
2.Span is from 10.5-31.5m.(can be designed according to the customer's requirements).
3.Lifting Height:12,14.16,18,20,22,24m( acoording to the customer's demand to design)

4.Duty Class: A5-A8/ISO

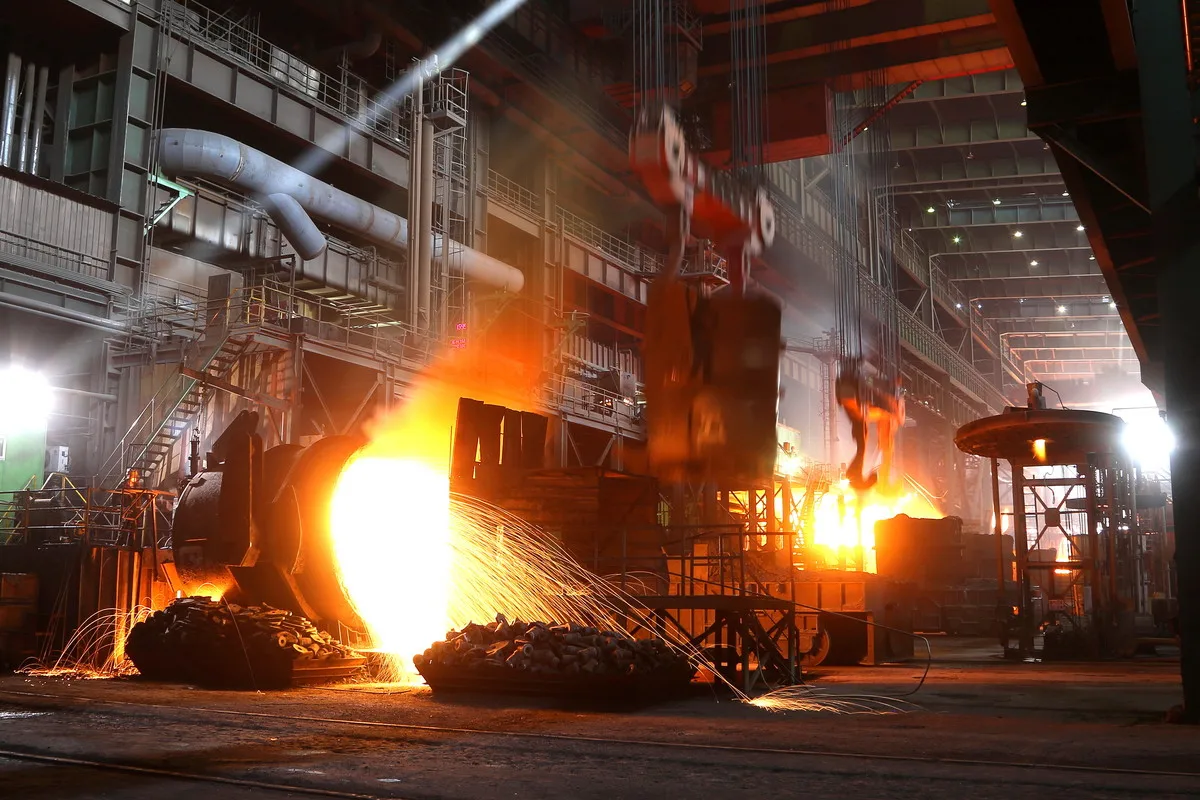

This kind of cranes can be applied to papermaking industry, power industry, garbage power generation industry, steel industry, petrochemical industry, metallurgy casting industry and so on.

This kind of product is suitable for all kinds of common operating conditions, which are used to handle the material, installation works and maintainence of equipment. It is the most widely used general lifting equipment. Such as, it is used in machinery manufacturing, assembling, petrochemical , warehouse logistics, electric power construction and etc.

This kind of product adopts double girders and double rails, individual trolley with winch. It has many advantages, such as simple structure, mature technology, stable performance, convenient manipulation, convenient maintenance and installation, high adaptive ability under all kinds of various working conditions, low price and etc, which attract the attention of the user greatly.

Feature Description:

1.     QD model 500/100-550/100t overhead crane with hook is mainly composed of bridge, running gear of crane, trolley and electric device, etc. It is divided into two working classed: A5 and A8 according to the use grade and load-up condition.
2.     There are three kinds of method for entering the platform of cab: from the side, from the end and from the top. The figure is the side entrance; arrowhead A shows the end entrance; the top entrance is at the place is no door.
3.     The figure shows that the cab is mounted at the left end.
4.     Safe slide wire or angle iron can be used for electric conduction of the crane; it can be either at the opposite side of the cab (same as the figure) or at the same side of the cab.
5.     Operation of the crane shall be finished in the cab completely.
6.     H0 is the increased height of buffer of the crane, H0≤250

Single & Double Girder Overhead Crane:

Overhead Cranes can also be referred to as Bridge Cranes.

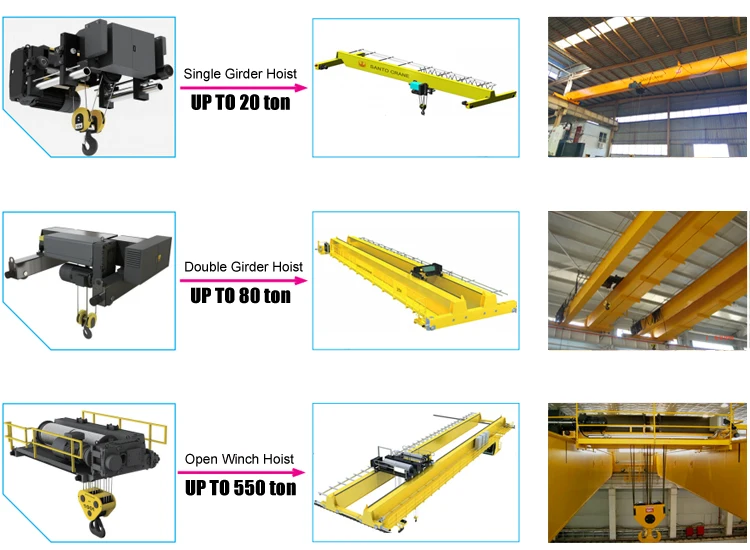

Using pre-engineered and bespoke components based on modular designs, we are able to deliver a large range of highly reliable cranes with capacities from 1 ton up to 550 ton SWL with single girder, double girder or underhung structures.

Our standard crane range uses our super efficient chain hoist, highly advanced wire rope hoist or built-up open winch hoist with competitive prices and very quick delivery times.
Santocranes' hoists and cranes have developed a strong reputation for reliability and endurance with an unparalleled record in a vast range of applications and environments worldwide.

Single and double girder top running crane:

• A single girder crane has only one bridge beam, and the hoist trolley operates or travels on the lower flange of the bridge girder.

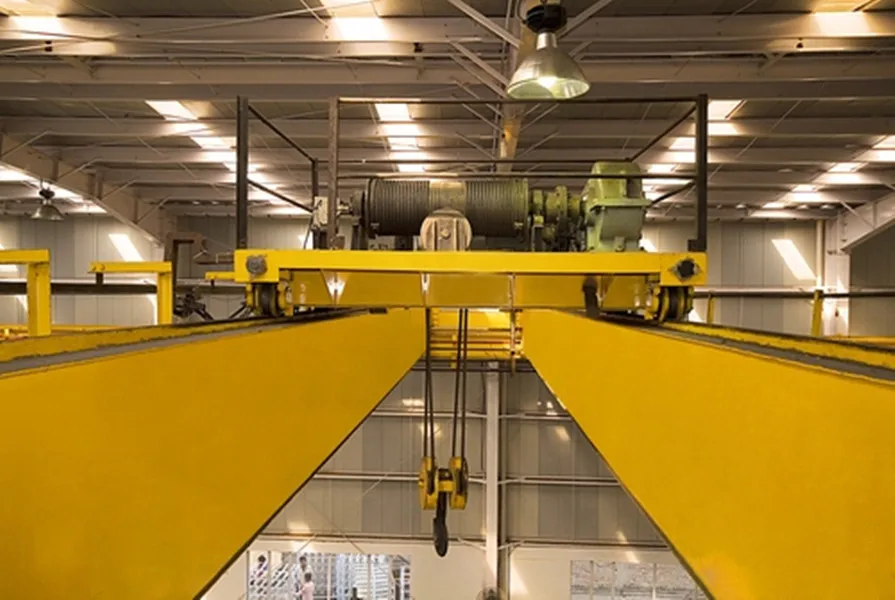

• A double girder crane will have two bridge beams, and the hoist trolley travels on rails, usually attached to the tops of the crane girder.

Compared with double girder electric hoist, the open winch trolley hoist and crane driving system is designed to be much stronger and faster. Open winch model double girder overhead bridge crane is a better choice for heavy duty working condition.

• High quality welding technology of the crane and it gets NDT inspection


• Good painting: primer and finishing paint, color as the clients' requirements

• Traveling and lifting smoothly


• The power for trolley moving adopts flat cable

• Adaptable for a wide range of applications


• Smooth, quiet operation


• Long service life


• Easy maintenance

• Smooth traveling and lifting work


• Low Dead Weight


• Low Noise


• German Quality, Safety and Durable

• Increases operator safety, prevents damage to loads


• Operate millions of times without adjustment


• Reduced service requirements


• Longevity

• Smooth and quiet operating characteristics with the high dampening effect of cast wheels


• Long life and high overload capacity


• Years of trouble free service

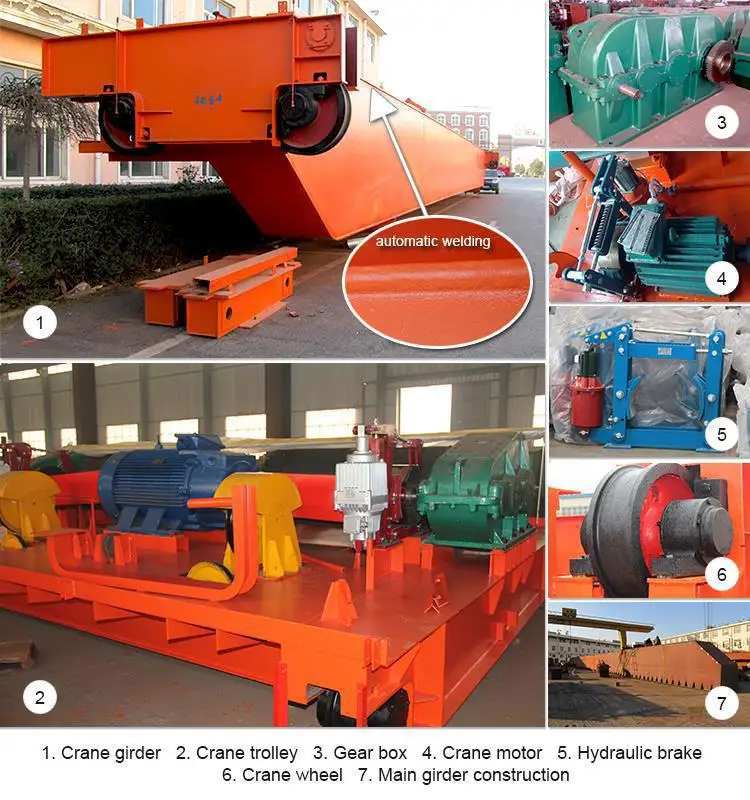

• Engineered and fabricated box style bridge girder can bring longe spans and higher capacities


• Sand Blasting treatment for steel plate


• Robot welder and top level welder insure the whole body very strong and beautiful


• Third times Primary Paint for whole structure


• Final Paint the color is depend on cutomer's requirement

Traditional Chinese type overhead Crane Design

Strong and durable steel material adapted make the whole crane more safety.

Cheaper price while the quality from us are top of line, because we are professional.

Euro-style single and double girder overhead crane

Compact design especially for low clearance workshop. Light deadweight help lower the total cost for construction.

Meanwhile, the price is also more affortable than other supplier.

There is some interconnectedness between different standards, We always insist that the crane & crane components design and manufacturing meet or exceed the latest international standards such as ISO, FEM, DIN, HMI, ASME and CMAA.

DIN EN 14492-2 Cranes – Power Driven Hoists
DIN EN 60204-32 Safety of Machinery; Electrical Equipment of Machines; Requirements for Hoisting Machines.
DIN 3051-Sections 1–4 Lifting Ropes; Steel Wires
DIN 15017 Cranes & Hoists; Principles of Motor and Gear Sizing
DIN 15020- Sections 1–2 Hoists; Principles of Rope Reeving
DIN 15061- Sections 1–2 Cranes & Hoists; Grooves for Rope Sheaves & Drums
DIN 15100 Serial Lifting Equipment; Nomenclature
DIN 15400 through DIN 15414 Detailed Aspects of Load Hooks and Bottom Block Construction

FEM standards

FEM 1.002 Illustrated Terminology of Heavy Lifting Equipment
FEM 9.811 Rope and Chain Hoists – General Specifications
FEM 9.511 Rules for the Design of Series Lifting Equipment - Classification of Mechanisms
FEM 9.661 Rules for the design of Series Lifting Equipment - Dimensions and Design of Rope Reeving Components
FEM 9.683 Selection of Hoist and Travel Motors
FEM 9.852 Power Driven Series Hoist Mechanisms, Standardized Test Procedure for Verification of the Classification
FEM 9.755 Measures for Achieving Safe Working Periods for Motorized Serial Hoist Units (S.W.P.)
FEM 9.751 Power Driven Series Hoist Mechanisms, Safety
FEM 9.901 Rules for the Design of Series Lifting Equipment and Cranes Equipped with Series Lifting Equipment

QD model double girder overhead crane with heavy duty hook

1. Lifting capacity: 5t, 10t, 16/3.2t, 20/5t, 25/5t, 32/5t, 40/5t, 50/10t, 63/10t, 75/20t, 80/20t, 100/20t, 125/30t, 160/30t, 200/50t, 250/75t, 300/75t, 400/80t, 500/80t


2. Span:10.5-31.5m


3. Max. lifting height:26m


4. Working duty:A3-A7


5. Power supply: 380V, 50Hz, AC, 3-Phase or as your request

QZ model double girder overhead crane for bulk & scrap handling

1. Lifting capacity: 5t, 10t, 16/3.2t, 20/5t, 32/5t, 50/10t


2. Span:10.5-31.5m


3. Max. lifting height:28m


4. Working duty:A6-A8


5. Power supply: 380V, 50Hz, AC, 3-Phase or as your request

QC/QL model double girder overhead crane for steel mills

1. Lifting capacity: 5t,10t,16/3.2t,20/5t,32/5t,10(5+5)t,20(10+10)t,32(16+16)t,40(20+20)t


2. Span:10.5-31.5m


3. Max. lifting height:18m


4. Working duty:A6-A8


5. Power supply:  380V, 50Hz, AC, 3-Phase or as your request

QE model double girder overhead crane with two winch trolley

1. Lifting capacity: 5+5t, 7.5+7.5t, 10+10t, 16+16/3,2t, 20+ 20/5t, 32+32/5t, 50+50/10t, 63+63/10t, 80+80/20t, 100+100/20t, 125+125/30t, 160+160/30t, 200+200/50t


2. Span:10.5-31.5m


3. Max. lifting height:18m


4. Working duty:A6-A7


5. Power supply:  380V, 50Hz, AC, 3-Phase or as your request

QDY/YZ model double girder overhead crane for steel making

1. Lifting capacity:10/5t, 20/5t, 32/10t, 40/10t, 50/10t, 63/15t, 80/20t, 100/30t, 125/30t, 140/40t, 160/30t


2. Span:19.5-28.5m


3. Max. lifting height:32m


4. Working duty:A7 A8


5. Power supply: 380V, 50Hz, AC, 3-Phase or as your request
