304 Stainless Steel Cup head Insulation Welding Pins

Product Overview

Description



General description

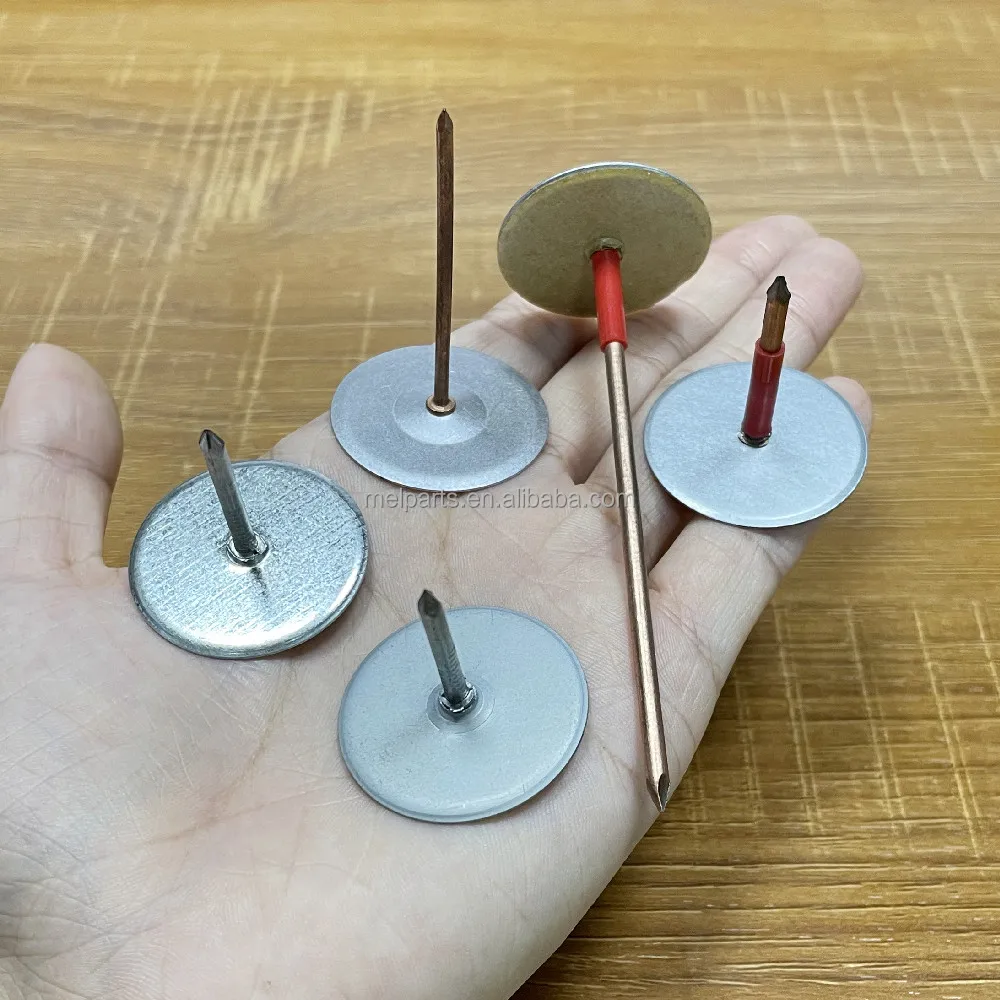

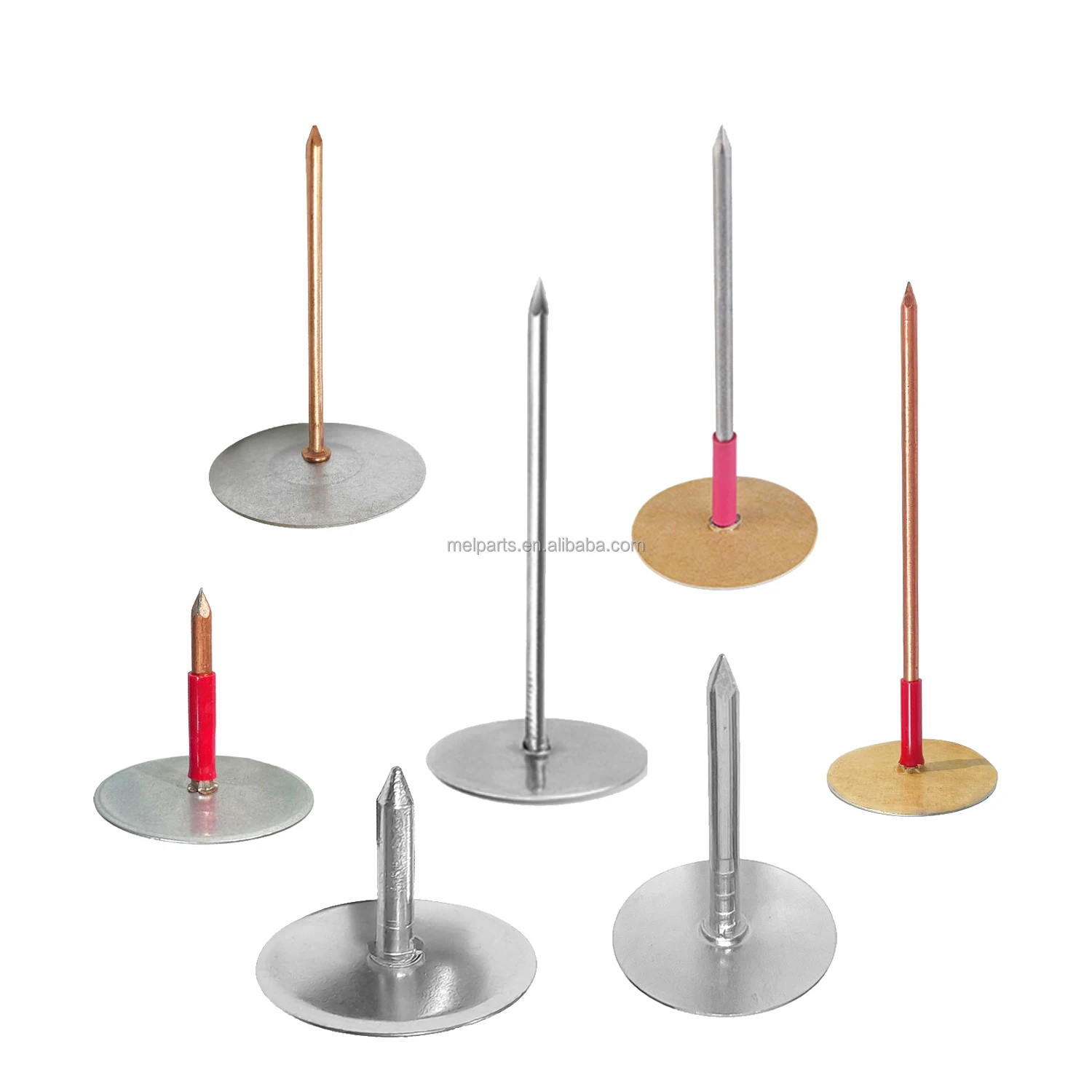

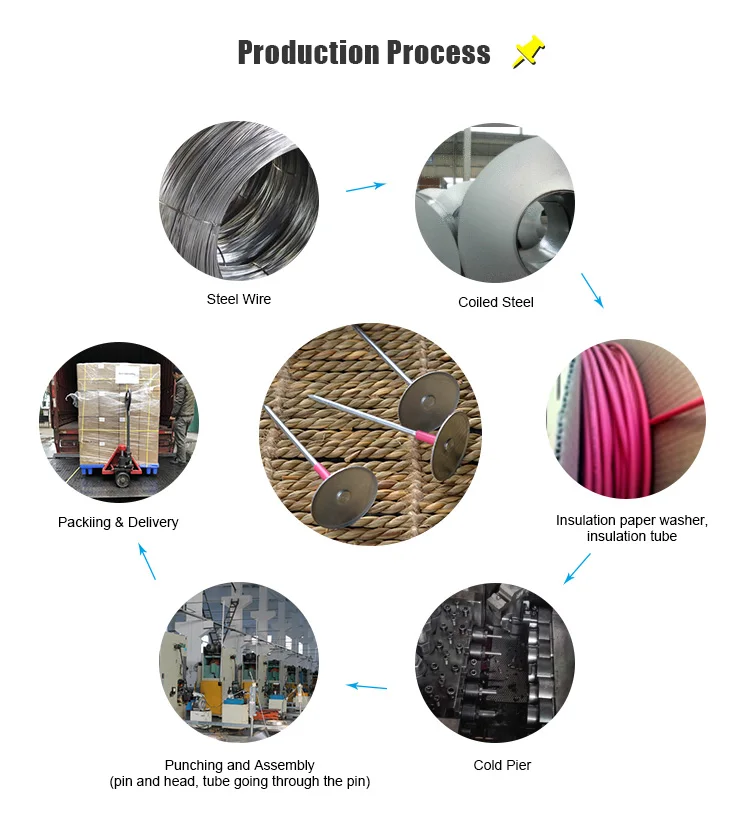

Cup Heap Pin with insulation consist of a copper or galvanized coated steel shank partly

insulated and firmly crimped on a galvanized steel washer head , with an insulated

underhead . It allow the fixing of aluminum faced insulation or wired mattress on sheet

metal such as airducts , metal beams , metal industrial equipment etc . in a single operation .

Cup Head Pin without insulation is suitable for plain insulation(without aluminum facing)

It is used with welding machine .

Technical description

Shank	Material	copper or galvanized coated steel
	Insulation	heatshrunk polylefin sleeve
Washer Head	Material	galvanized steel
	Under head insulation	paper
	Thickness	0.4mm (28 ga.)



Sizes

TYPE	SIZES
	A	B	C
CHP1	30mm(1-3/16”)	9.5mm to 300mm	2.7mm(12ga) ,2.0mm(14ga)
CHP2	38mm(1-1/2”)	9.5mm to 300mm	2.7mm(12ga) ,2.0mm(14ga)



 Application

Fix earth clamp of the welder      Place the pin on the magnetic head of the gun      Press the pin through the insulation

To the steel metal .                       Adjust the voltage according to the type and      until the point meets the sheet metal

Lay insulation on sheet metal.     thickness of sheet metal                        and press the trigger
