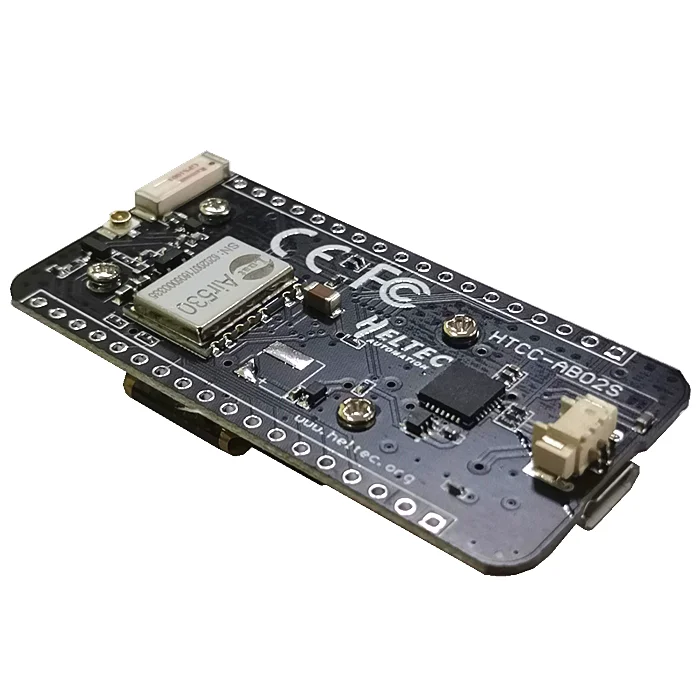

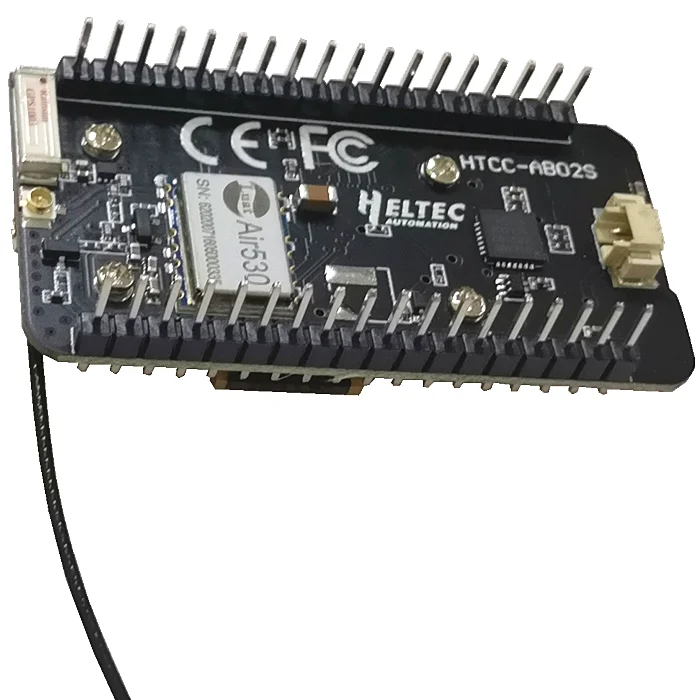

Heltec cubecell GPS ASR6502 868 915Mhz include the antenna Use Air530 GPS module, GPS / Beidou Dual mode position system support
- Category: IoT Solutions & Products >>>
- Supplier: Chengdu Heltec Automation Technology Co. Ltd.
Share on (1600184565166):
Product Overview
Description
Product Description
CubeCell GPS-6502 | ||
2020 NEW Heltec HTCC-AB02S 433-510Mhz Dev-Board | ||
Integrated AIR530 GPS module | ||
Perfect Arduino-Compatible | ||
Based on ASR6052 | ||
support LoRaWAN 1.0.2 | ||
50uA in deep sleep | ||
Onboard solar energy management system | ||
Micro USB interface with complete ESD protection | ||
Onboard 0.96-inch 128*64 dot matrix OLED display | ||
CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.
CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels.
HTCC-AB02S is a Dev-Board. Already integrated AIR530 GPS module, friendly designed for developers, easy to verify communication solutions.
CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels.
HTCC-AB02S is a Dev-Board. Already integrated AIR530 GPS module, friendly designed for developers, easy to verify communication solutions.

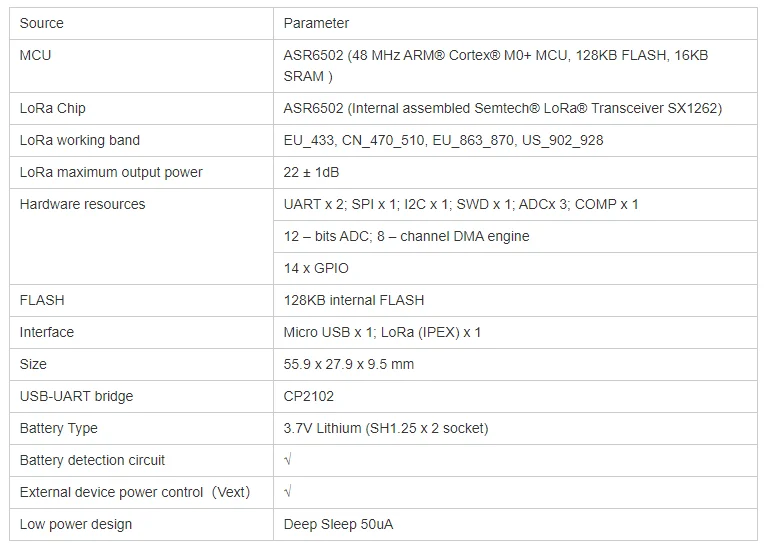

Product Parameters

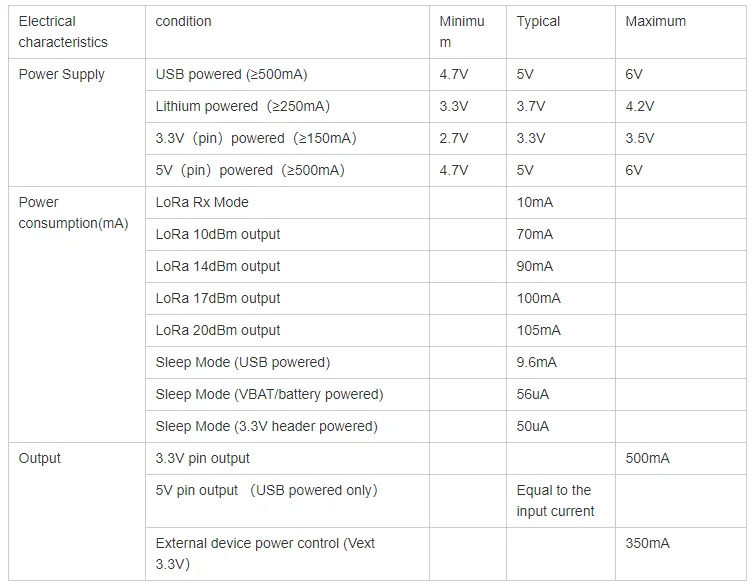

Eletrical characteristics
Perfect Arduino-Compatible! | ||||||||
CE and FCC certification; | ||||||||
Based on ASR6052, those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262; | ||||||||
LoRaWAN 1.0.2 support; | ||||||||
Ultra low power design, 50uA in deep sleep; | ||||||||
Onboard solar energy management system, can directly connect with a 5.5~7V solar panel; | ||||||||
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching); | ||||||||
Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures; | ||||||||
Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing; | ||||||||
Good impendence matching and long communication distance. | ||||||||
Use Air530 GPS module, GPS / Beidou Dual-mode position system support; | ||||||||

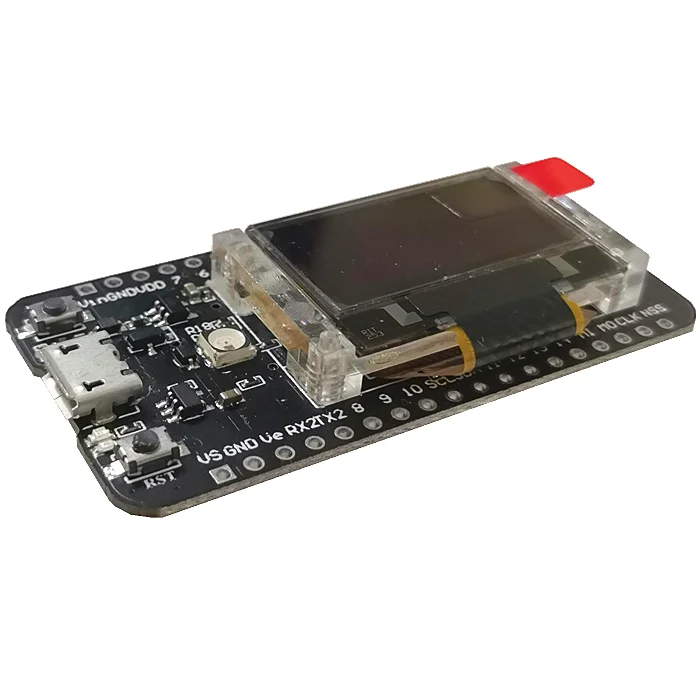

Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information; | ||||||||

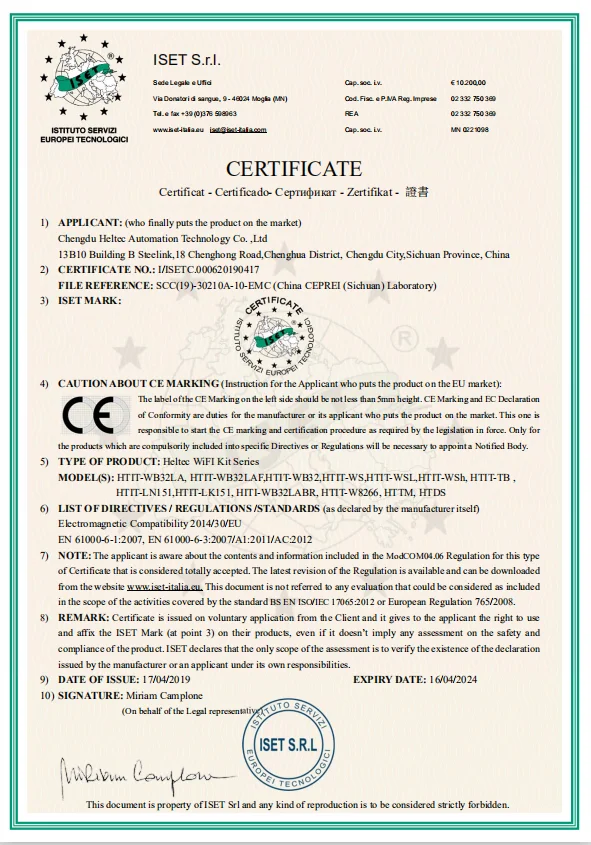

Certifications
