Factory Supplier 35 Seats 147 kw YUTONG Coach Bus

Product Overview

Description

Factory Supplier 35 Seats 147 kw YUTONG Coach  Bus



Yutong ZK6858H9 bus (diesel No.3 24-35 seats) model parameters

Vehicle parameters/information

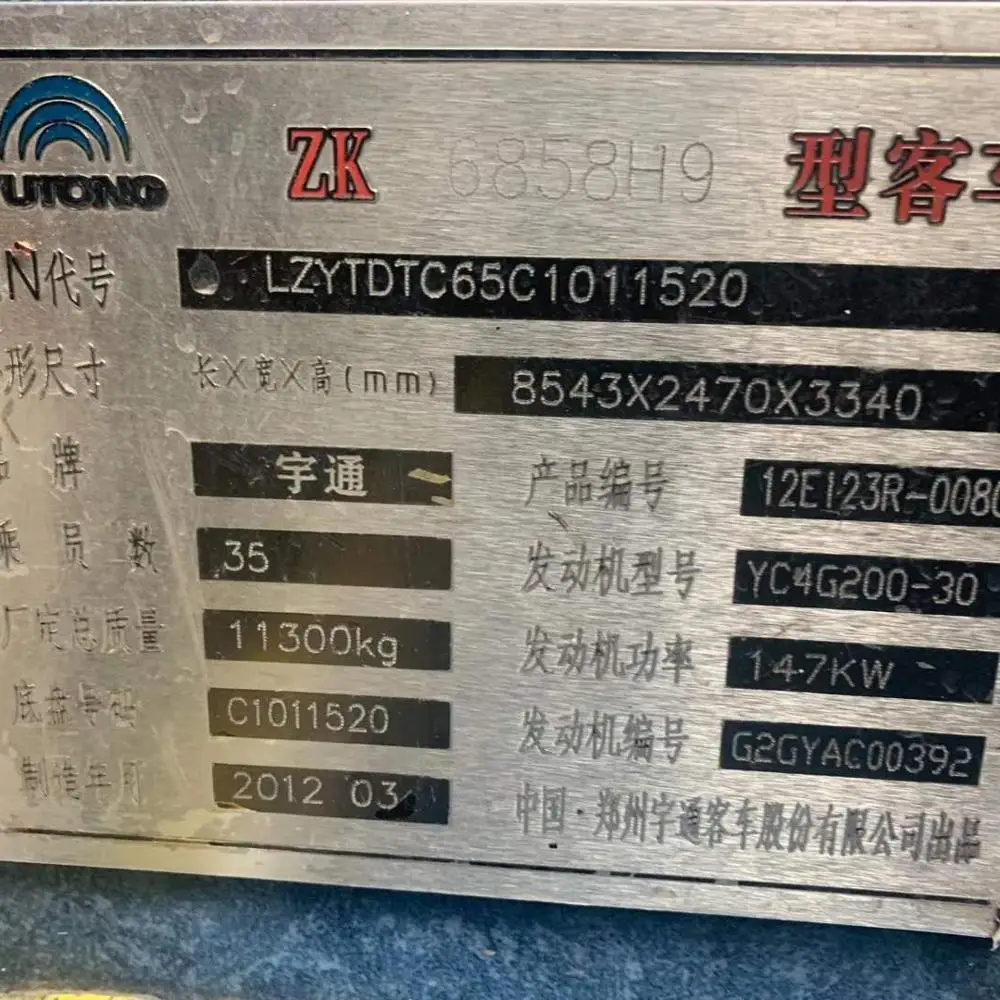

Announcement model ZK6858H9

Use for passenger buses, tourist buses, group buses

The body length is 8543mm

The body width is 2470mm

The body height is 3340,3130mm

The weight of the whole vehicle is 8415,8570kg

The total mass of 11300 kg

24-35, 24 to 37 seats

The seat form is 33+1, adjustable front and rear, with transverse movement mechanism

The maximum speed is 100km/h

Fuel consumption 16

Baggage hold capacity 3

Audio-visual system playing system, with LCD display

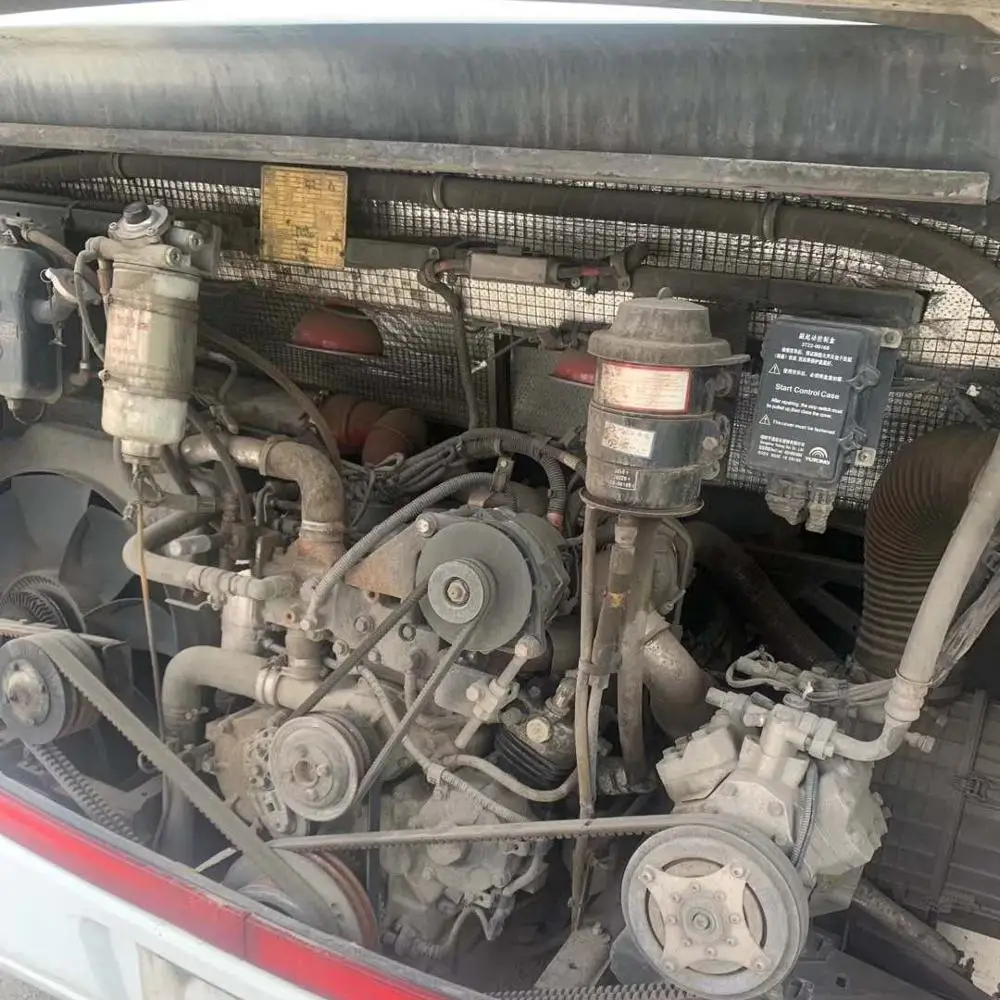

Engine/motor parameters

Engines CA4DL1-21E3,YC4G200-30,ISDe210 30,YC6J200-30,BF6M2012-20E3,YC4G190-30,YC6J220-30,YC4G215-30,WP5.200E30

Engine power 155KW

5130520 0670 0650 0600 6520 2650 0520, 2476 ml

Engine brand liberation faw car Co., Ltd., wuxi diesel engine branch company, guangxi yuchai machinery Co., Ltd., dongfeng cummins engine Co., Ltd., guangxi yuchai machinery Co., Ltd., faw liberation of automobile Co., Ltd., dalian diesel engine branch, guangxi yuchai machinery Co., Ltd., guangxi yuchai machinery Co., Ltd., guangxi yuchai machinery Co., Ltd., Weichai Power Co., Ltd.

Emissions standards Ⅲ GB17691-2005 countries, GB3847-2005

Chassis parameters/configuration

Chassis model ZK6810CRA

Front and rear suspension 1783/2660mm

Suspension system six airbag air suspension

The number of springs is 9/11,-/-,9+-/11+-,3/4,9/10

The gearbox has six gears

Clutch domestic clutch, optional import clutch

Shaft number 2

The wheelbase 4100 mm

Axle weight 3760/7540 kg

Before the wheelbase 2020206 3209 4 mm

After the wheelbase 1800186 mm

Approaching 11/10 degrees of departure

tire

Tyre number 6

Specification 8.25 R20, 9 r22. 5255/70 r22. 5

note

Note 1. The air conditioning can be cancelled. When the air conditioning is cancelled, the height of the vehicle shall be 3130mm, and the reconditioning weight shall be 857kg when the high configuration is selected;2. Side Windows can be installed with push-pull window structure;3. Optional middle door, which can be moved behind the rear wheel, is rated to carry 24-35 passengers;4. When the middle door is cancelled, there is an emergency door on the left side of the body;The vehicle is equipped with a driving recorder with satellite positioning function.Net engine power :155kW(CA4DL1-21E3),140kW(YC4G200-30),150kW(ISDe210 30),143kW(YC6J200-30),147kW(BF6M2012-20E3),135kW(YC4G190-30),153kW(YC6J220-30),150kW(YC4G215-30),145kW(WP5.200E30).Fuel consumption value: 17.0 L / 100 km (CA4DL1-21 e3), 18.0 L / 100 km (YC4G200-30), 18.0 L / 100 km (ISDe21030), 19.0 L / 100 km (YC6J200-30), 19.0 L / 100 km (e3) BF6M2012-20, 18.0 L / 100 km (YC4G190-30), 19.0 L / 100 km (YC6J220-30), 18.0 L / 100 km (YC4G215-30), 18.0 L / 100 km (WP5.200 E30)
