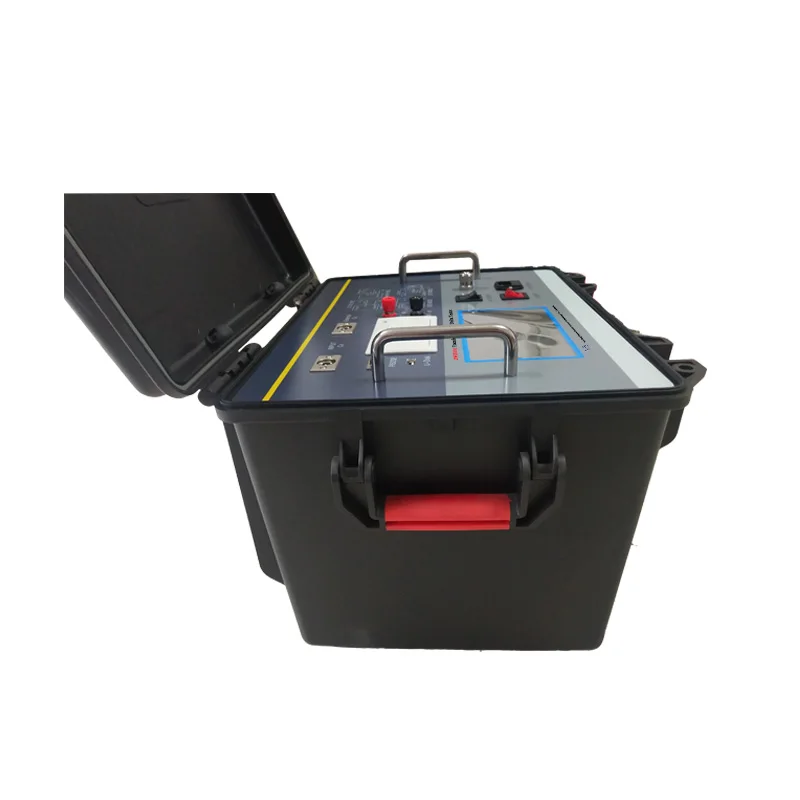

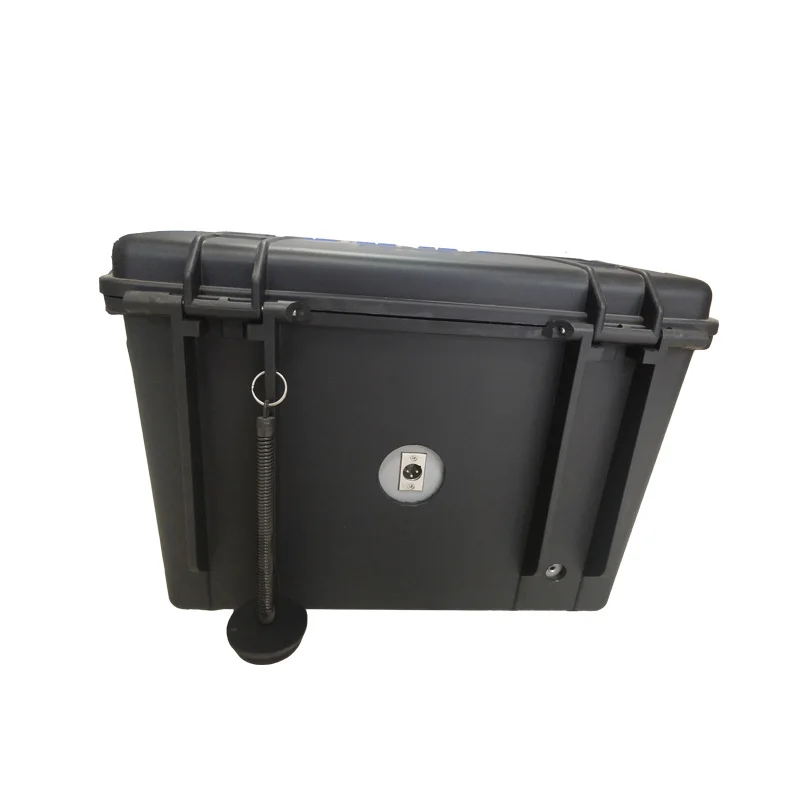

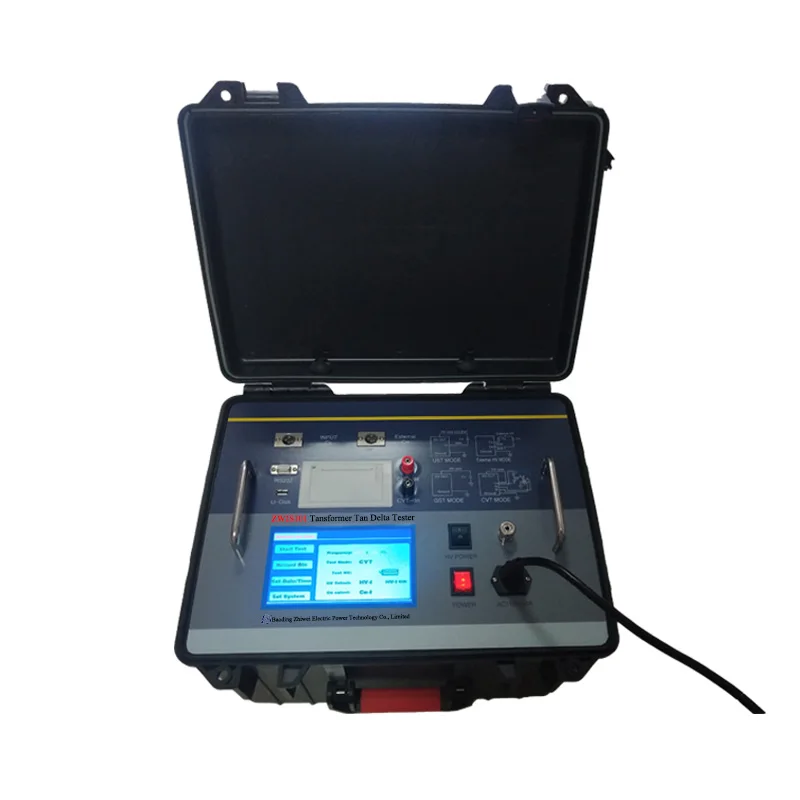

Automatic HV hipot dielectric loss transformer tan delta tester
- Category: >>>
- Supplier: Baoding Zhiwei Electric Power Technology Co. Limited
Share on (1600185137278):
Product Overview
Description
Product Description

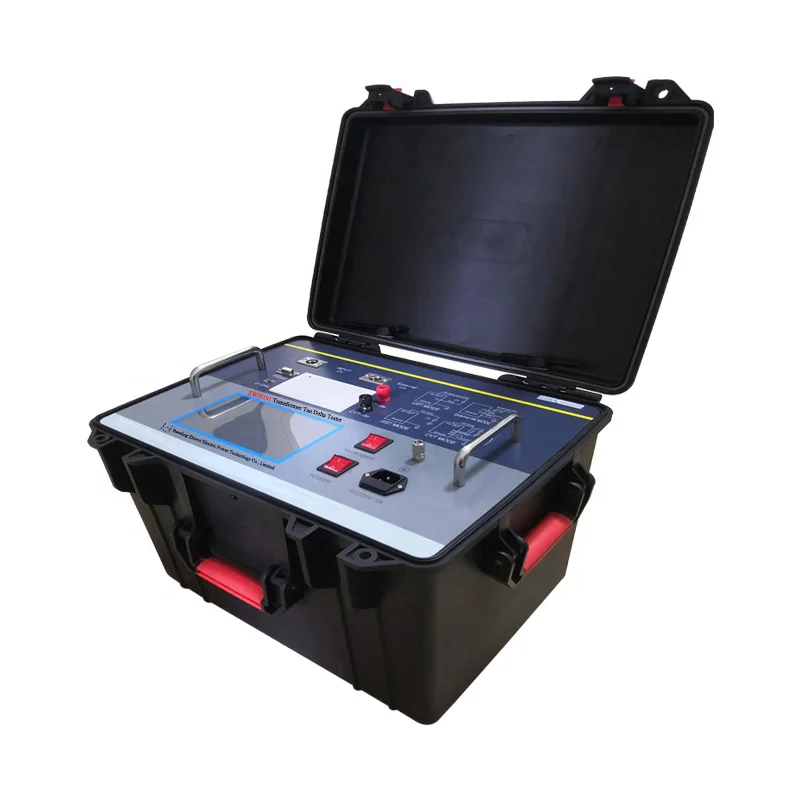

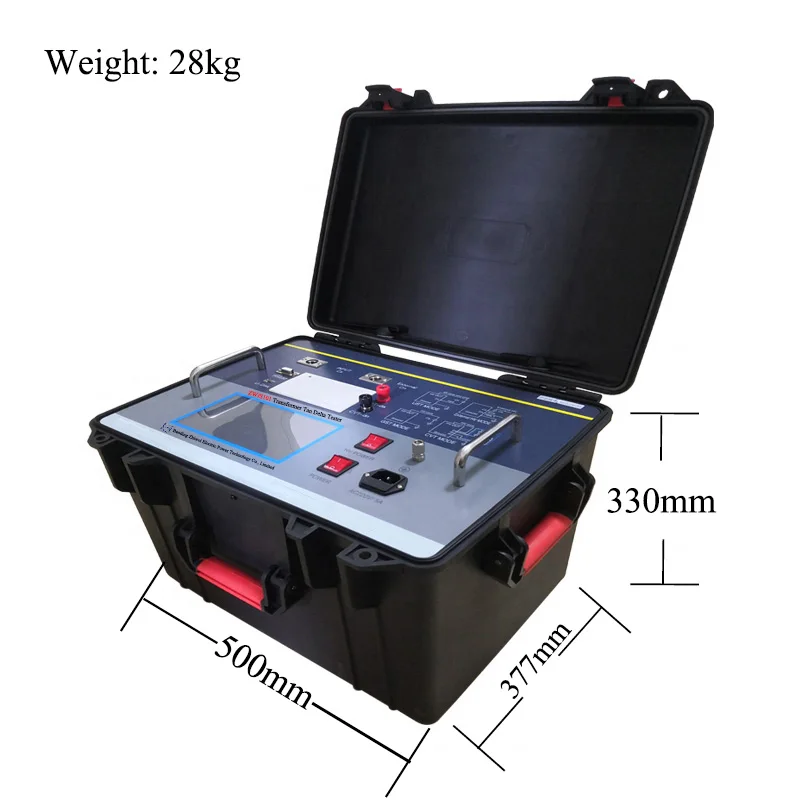

Automatic HV hipot dielectric loss transformer tan delta tester

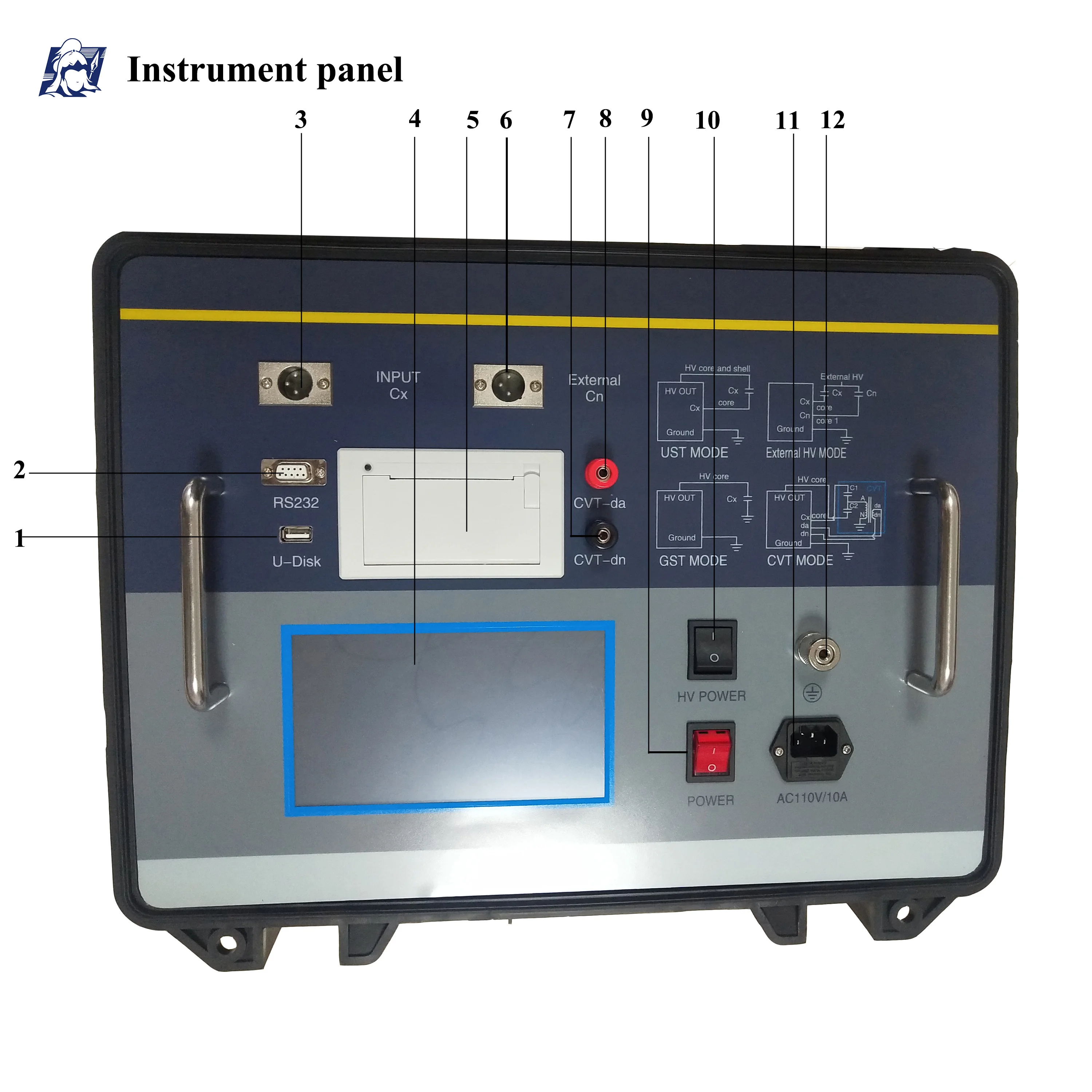

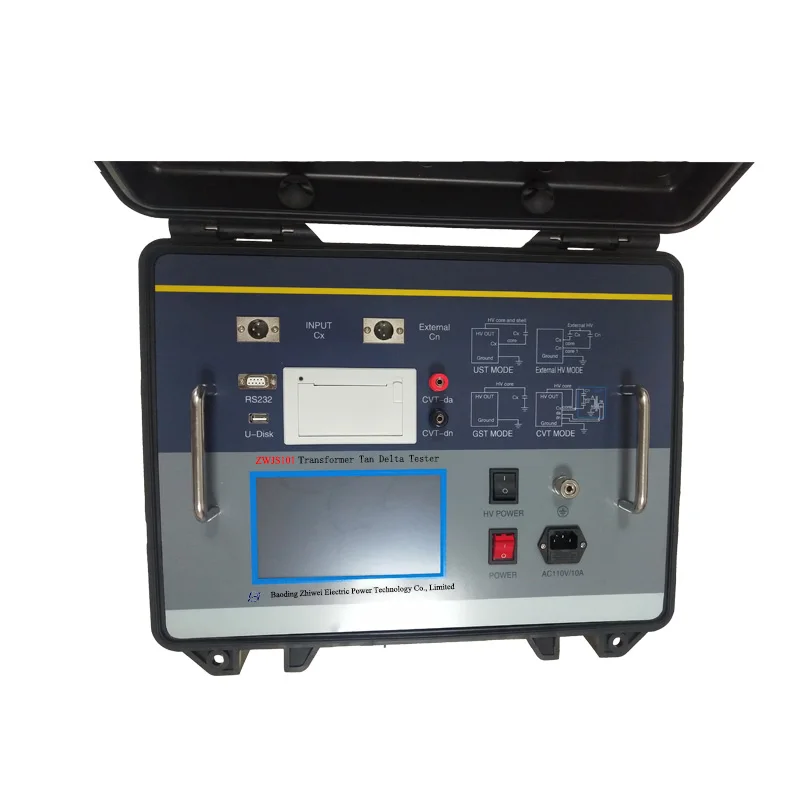

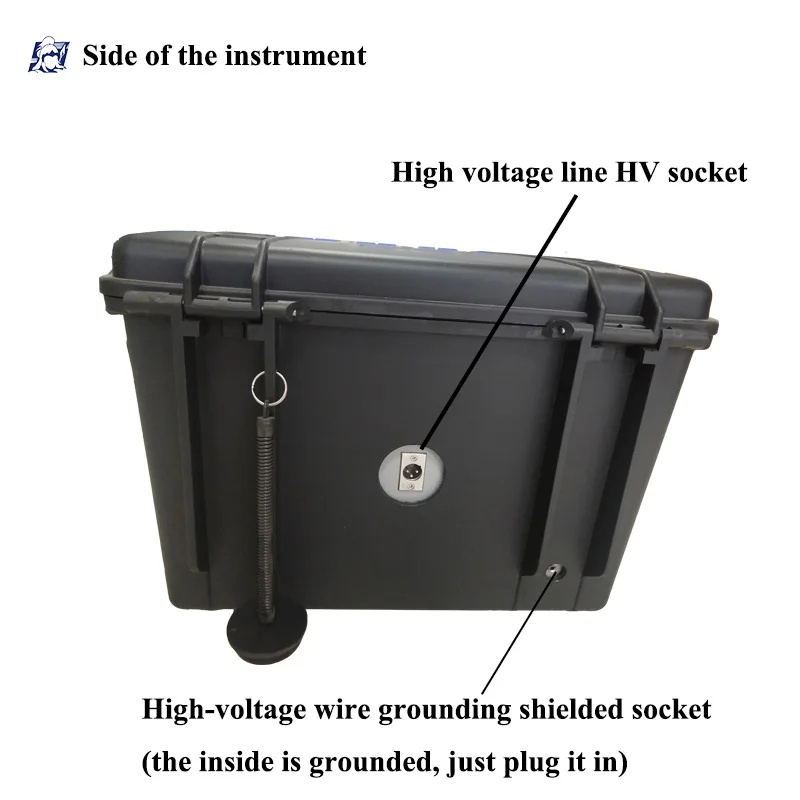

1. Udisk socket-used to export the data stored in the instrument.
2. RS232 interface-used to connect to a computer, control the instrument, and upload data.
3. CX socket-is the measurement input terminal of the test product signal. It is connected by a special low-voltage cable during the positive connection. This cable has a single-layer shield with a special alligator clip, and is 8m long, connected to the low end of the test product. When reverse wiring, this end is vacant.
4. Color touch screen display-640*480 resolution, control and display menus, various prompt messages and measurement results.
5. Printer-print measurement data.
6. CN socket-is the measurement input terminal of the external standard capacitance signal, this terminal is empty when the internal standard is used.
7. Self-excited current output terminal-dedicated terminal when measuring CVT, generally connected to auxiliary winding dn.
8. Self-excitation method current output terminal-dedicated terminal when measuring CVT, generally connected to auxiliary winding da.
9. Power switch-turn on and off the power of the whole machine.
10. High-voltage switch-responsible for the startup and shutdown of the high-voltage power supply inside the instrument. It is closed only when the external high pressure is used, and should be in the open state at the rest of the time.
11. Power socket--AC 220V±10%, 50±1Hz power input port, with 5A fuse.
12. Grounding terminal-is the grounding wire terminal.
2. RS232 interface-used to connect to a computer, control the instrument, and upload data.
3. CX socket-is the measurement input terminal of the test product signal. It is connected by a special low-voltage cable during the positive connection. This cable has a single-layer shield with a special alligator clip, and is 8m long, connected to the low end of the test product. When reverse wiring, this end is vacant.
4. Color touch screen display-640*480 resolution, control and display menus, various prompt messages and measurement results.
5. Printer-print measurement data.
6. CN socket-is the measurement input terminal of the external standard capacitance signal, this terminal is empty when the internal standard is used.
7. Self-excited current output terminal-dedicated terminal when measuring CVT, generally connected to auxiliary winding dn.
8. Self-excitation method current output terminal-dedicated terminal when measuring CVT, generally connected to auxiliary winding da.
9. Power switch-turn on and off the power of the whole machine.
10. High-voltage switch-responsible for the startup and shutdown of the high-voltage power supply inside the instrument. It is closed only when the external high pressure is used, and should be in the open state at the rest of the time.
11. Power socket--AC 220V±10%, 50±1Hz power input port, with 5A fuse.
12. Grounding terminal-is the grounding wire terminal.

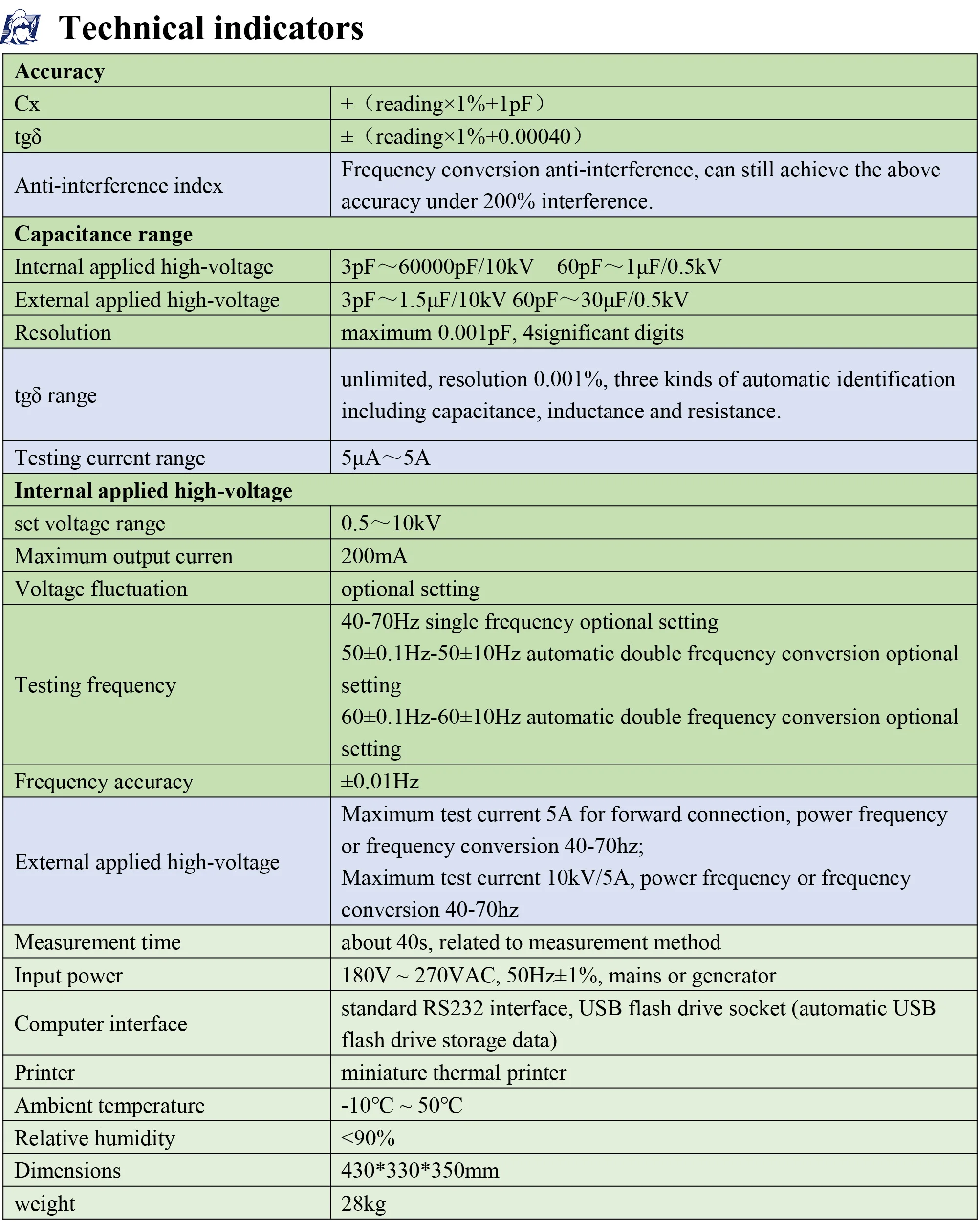

Brand Name | Zhiwei Electric |
Model Number | ZWJS101 |
Power | Electronic |
Name | Transformer Capacitance Tan-delta Teste |
Key words | High voltage dielectric loss tester |
Performance characteristics
1. UseFourier transform digital filtering technique to measure capacitance, dielectric loss and other parameters. High test accuracy, easy to achieve automatic measurement.
2. Adoptedfrequency conversion technology to eliminate 50Hz power frequency interference in the field, can obtained reliable test result data even in a strong electromagnetic interference environment.
3. Touchable large LCD screen, easy to operate. Every process is very clear, operator do not need additional training to use this instrument.
4. Equip with calendar chip and large capacity memory, which can save test results , check history record and print outat any time. Current time and storage time can also be display and print at any time.
5. The instrument data can be exported by USB flash drive, its also can be viewed and managed by special software on any PC.
6. The instrument is easy to operate and the measuring process is controlled by microprocessor. Its only need to select the measurement mode, the data measurement process will automatically complete under microprocessor control.
7. Integrated model with standard capacitor and high voltage power supply for field test, and can reduce field wiring.
8. The instrument are high precision which can meet the requirement of dielectric loss measurement.
9. It has reverse wiring and low voltage shielding function, which can measure the dielectric loss of C11 without disconnecting 10kV reverse wiring when 220kV CVT bus is grounded.
10. Able to do ac withstand test.It is convenient for PT and CT to do AC voltage withstand test twice, and also 400V low-voltage system to do voltage withstand test.
11. Can identify external high voltage power supply frequency for40Hz~70Hz, and allow to use power frequency supply or series resonance power supply to do large capacity and high voltage dielectric loss test.
12. With CVT test function, can realize CVT self-excitation test, 4 protection limitscan be set including high voltage/current and low voltage/current, to ensure the safety of operator and equipment.
13. When testing CVT,can automatically test the capacitance and dielectric loss values of C1 and C2, and can also test the total capacitance and dielectric loss values of CVT equipment.
14. Equipped with thermal printer with calendar clock,with USB flash drive, convenient to output test report.
15. Equipped with computer interface.One computer can control 32 instruments, which can be integrated into the comprehensive high-voltage test vehicle to achieve measurement, data processing and report output.
16. Grounding protection function, when instrument is not grounded or grounded imperfect, the instrument will not enter normal program, either will not output high voltage.
17. Over-currentprotection, the instrument will not be damaged in short circuit or breakdown.
18. Electric shock protection function, when operator accidentally get an electric shock, the instrument will cut off the high voltage immediatelyto ensure the safety of
1. UseFourier transform digital filtering technique to measure capacitance, dielectric loss and other parameters. High test accuracy, easy to achieve automatic measurement.
2. Adoptedfrequency conversion technology to eliminate 50Hz power frequency interference in the field, can obtained reliable test result data even in a strong electromagnetic interference environment.
3. Touchable large LCD screen, easy to operate. Every process is very clear, operator do not need additional training to use this instrument.
4. Equip with calendar chip and large capacity memory, which can save test results , check history record and print outat any time. Current time and storage time can also be display and print at any time.
5. The instrument data can be exported by USB flash drive, its also can be viewed and managed by special software on any PC.
6. The instrument is easy to operate and the measuring process is controlled by microprocessor. Its only need to select the measurement mode, the data measurement process will automatically complete under microprocessor control.
7. Integrated model with standard capacitor and high voltage power supply for field test, and can reduce field wiring.
8. The instrument are high precision which can meet the requirement of dielectric loss measurement.
9. It has reverse wiring and low voltage shielding function, which can measure the dielectric loss of C11 without disconnecting 10kV reverse wiring when 220kV CVT bus is grounded.
10. Able to do ac withstand test.It is convenient for PT and CT to do AC voltage withstand test twice, and also 400V low-voltage system to do voltage withstand test.
11. Can identify external high voltage power supply frequency for40Hz~70Hz, and allow to use power frequency supply or series resonance power supply to do large capacity and high voltage dielectric loss test.
12. With CVT test function, can realize CVT self-excitation test, 4 protection limitscan be set including high voltage/current and low voltage/current, to ensure the safety of operator and equipment.
13. When testing CVT,can automatically test the capacitance and dielectric loss values of C1 and C2, and can also test the total capacitance and dielectric loss values of CVT equipment.
14. Equipped with thermal printer with calendar clock,with USB flash drive, convenient to output test report.
15. Equipped with computer interface.One computer can control 32 instruments, which can be integrated into the comprehensive high-voltage test vehicle to achieve measurement, data processing and report output.
16. Grounding protection function, when instrument is not grounded or grounded imperfect, the instrument will not enter normal program, either will not output high voltage.
17. Over-currentprotection, the instrument will not be damaged in short circuit or breakdown.
18. Electric shock protection function, when operator accidentally get an electric shock, the instrument will cut off the high voltage immediatelyto ensure the safety of
Packing & Delivery
Power Transformer Dielectric Loss Angle Test Set Transformer Power dissipation factor tan delta tester
1.Wooden box with foam inside,
2.No fumigation,not influence the delivery;
1.Wooden box with foam inside,
2.No fumigation,not influence the delivery;
