DH XVR5116HS X Network Video Recorder HDCVI DVR 16 Channel Penta brid 720P Smart 1U Digital Video Recorder NVR in stock
- Category: >>>
- Supplier: Shenzhen Yaze Tiancheng Technology Co. Ltd.
Share on (1600185139379):
Product Overview
Description

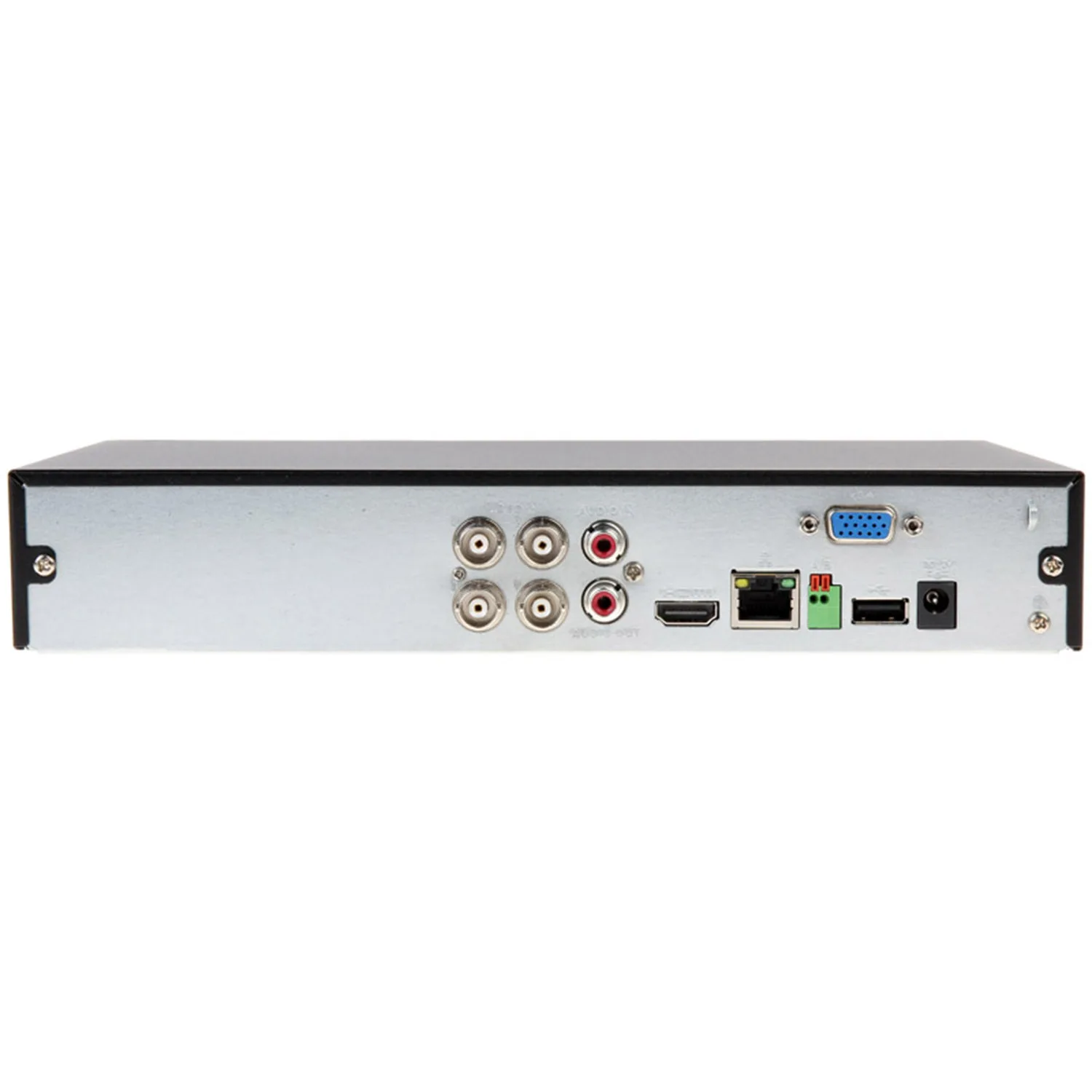

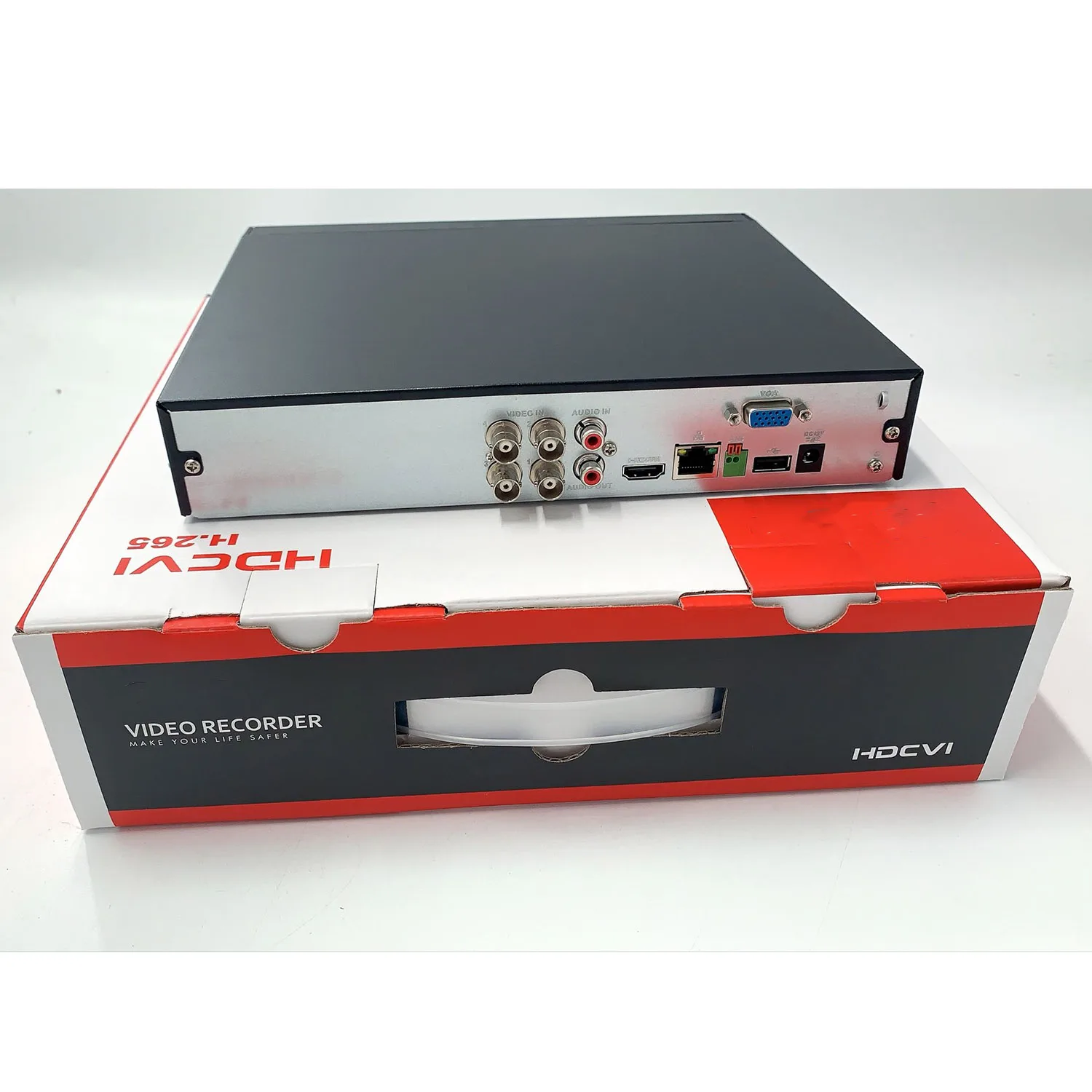

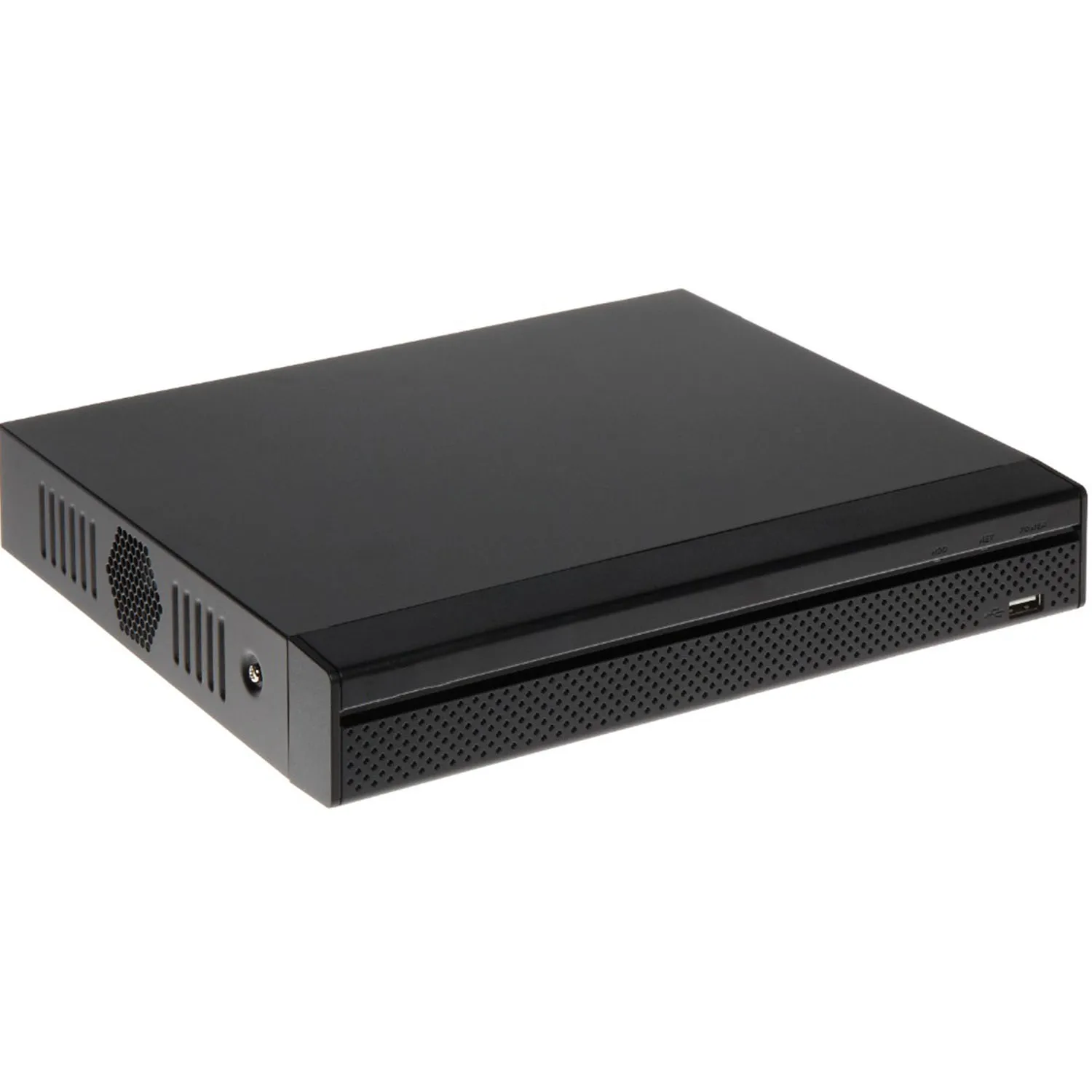

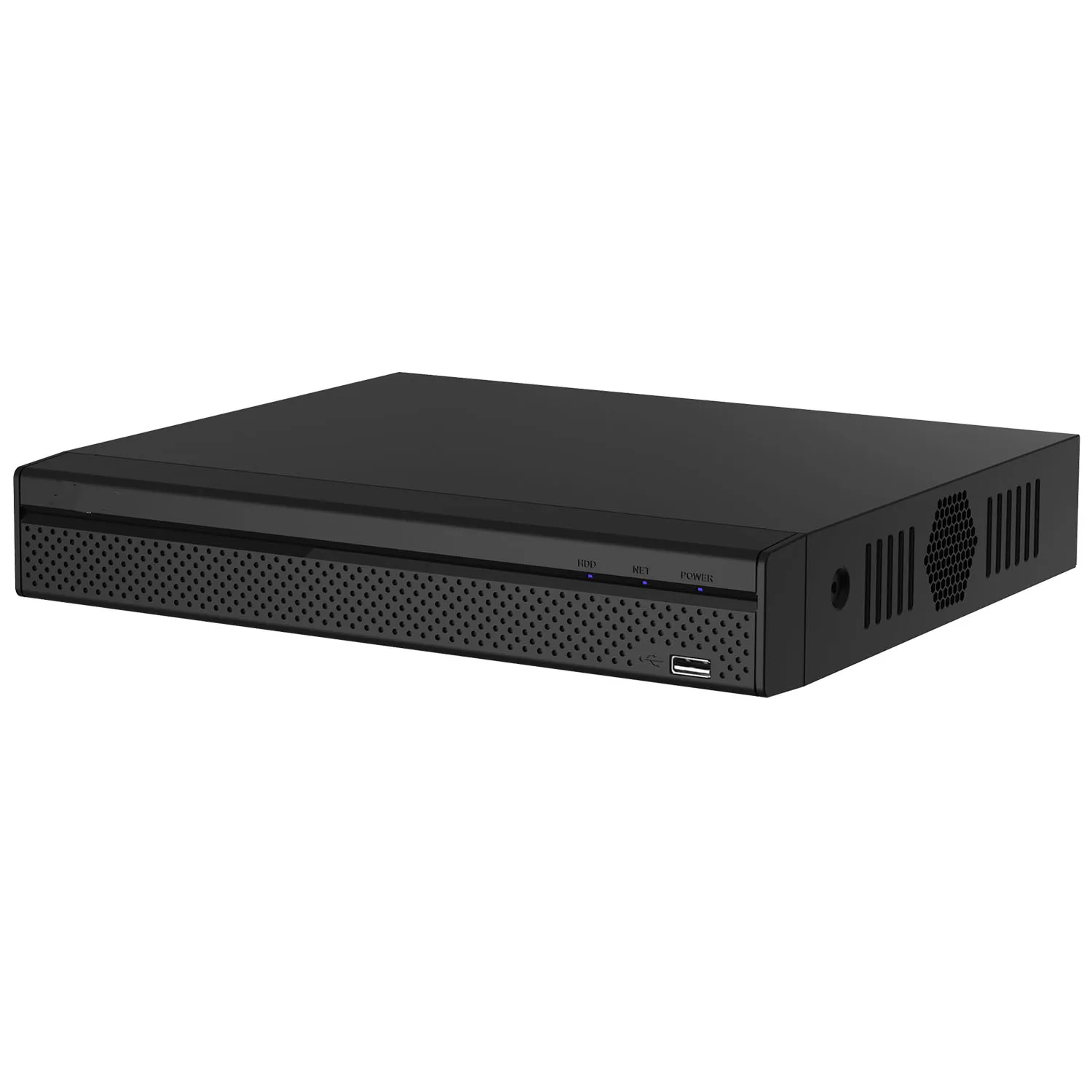

Product Show
Product Parameters
XVR4104C-X1
4 Channel Penta-brid 720P Smart 1U Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps incoming bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps incoming bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB
XVR4104C-X1
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input
4 Channel, BNC
HDCVI Camera
1080P@25/30fps, 720P@25/30fps
AHD Camera
1080P@25/30, 720P@25/30fps
TVI Camera
1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
4+1, each channel up to 2MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA
Recording
Video Compression
H.265+/H.265/H.264+/H.264
Resolution
1080N, 720P, 960H, D1, CIF
Record Rate
Main Stream:
1080N/720P/960H/D1/CIF (1~25/30fps)
Sub stream:CIF (1~15fps)
Video Bit Rate
32Kbps ~ 4096Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression
G.711A, G.711U, PCM
Audio Sample Rate
8KHz, 16 bit Per Channel
Audio Bit Rate
64Kbps Per Channel
Display
Interface
1 HDMI ,1 VGA
Resolution
1920×1080, 1280×1024, 1280×720
Multi-screen Display
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (100M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Playback
1/4
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
1 SATA Port, up to 6TB capacity
eSATA
N/A
Auxiliary Interface
USB
2 USB 2.0
RS232
N/A
RS485
N/A
Electrical
Power Supply
DC12V/1.5A
Power Consumption
(Without HDD)
<10W
Construction
Dimensions
Smart 1U, 205mm×211mm×45mm (8.1“×8.3”×1.8“)
Net Weight
(without HDD)
0.47kg (1.0lb)
Gross Weight
1.1kg (2.4lb)
Installation
Desktop installation
Environmental
Operating Conditions
-10°C ~ +45°C (+14°F ~ +113°F), up to 55°C/131°F with case fan, 10~ 90% RH
Storage Conditions
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
