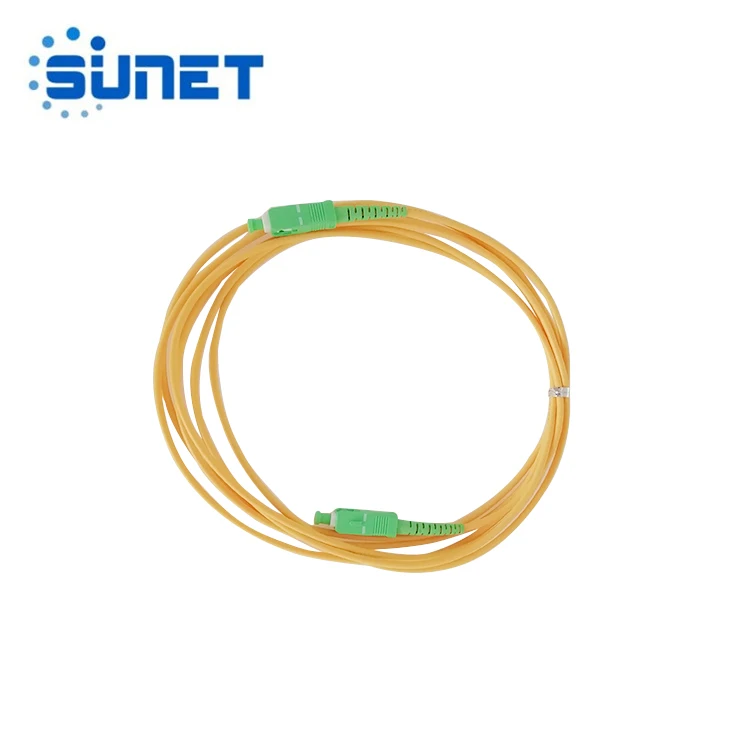

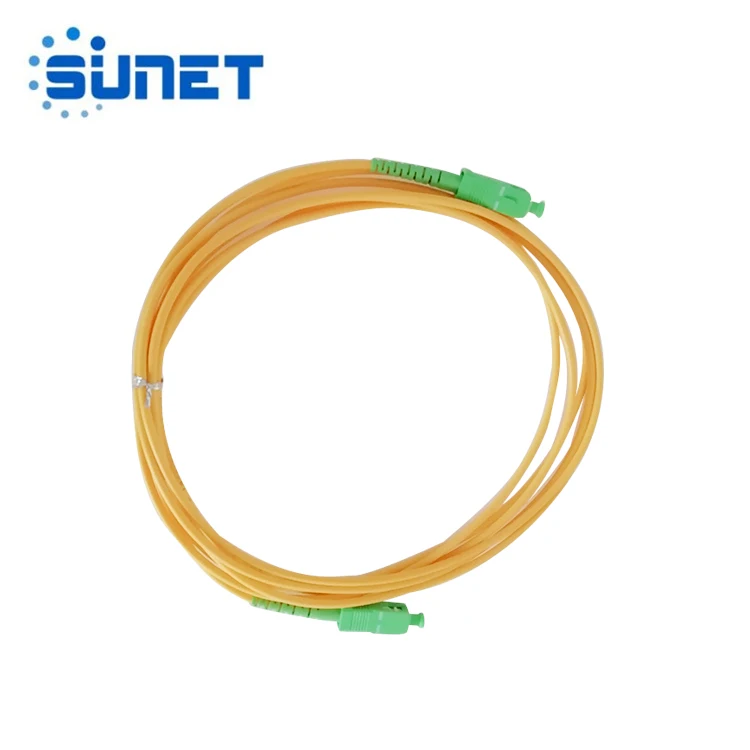

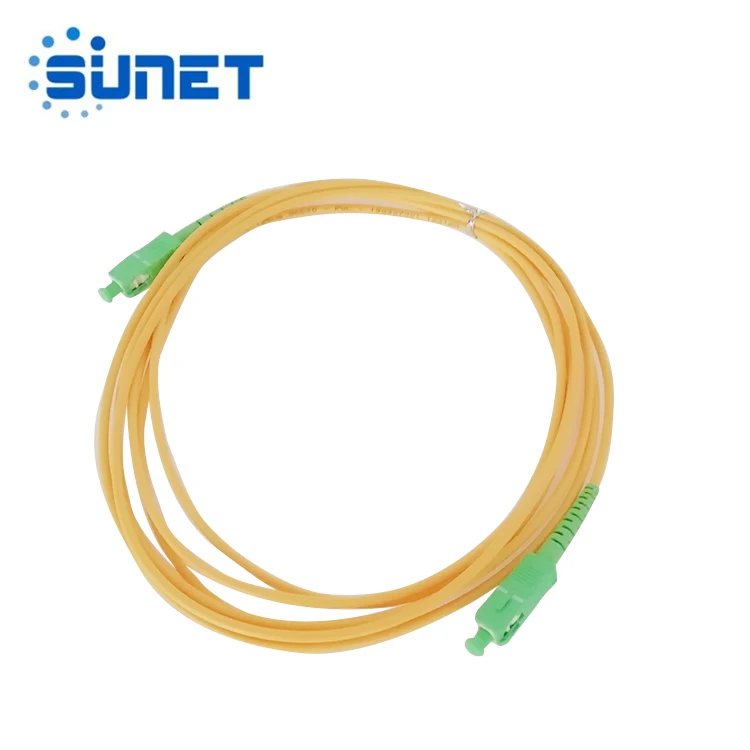

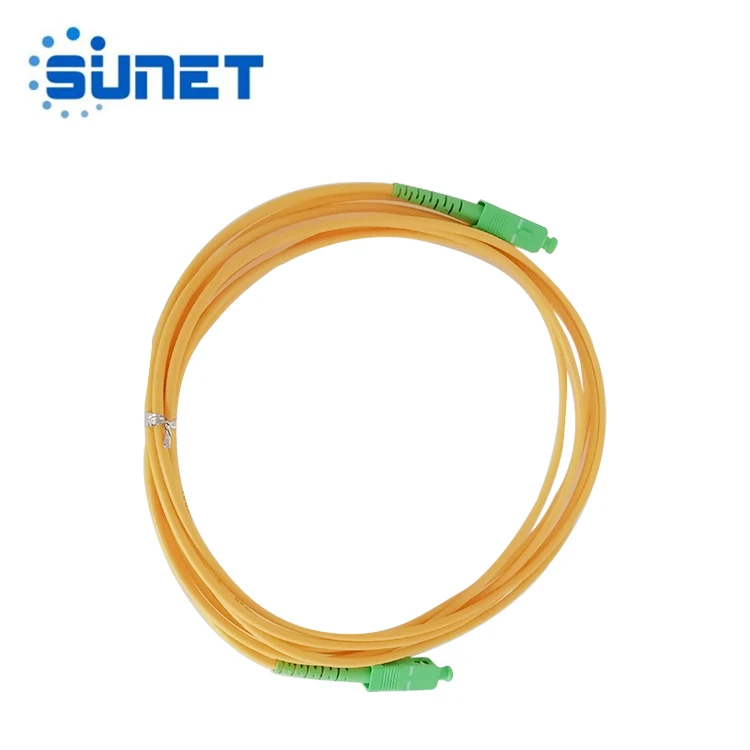

FTTH Single Mode Simplex SC/ APC 9/125 2M 3M fiber optic patchcord
- Category: >>>
- Supplier: Qingdao Sunet Technologies Co. Ltd.
Share on (1600185145715):
Product Overview
Description
Product Description

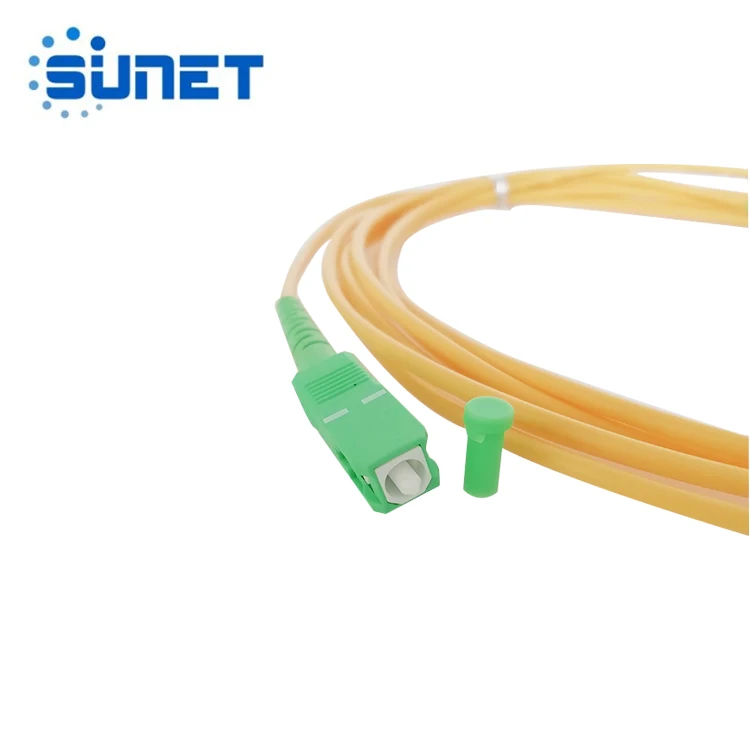

SC/APC SM SX 3.0mm iber optic patch cord
Fiber Optic Patch Cord is important of optic network, they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection od lengths and connectors to fulfill your demand for the deployment.
Specification
| Parameters | Standard Fiber Cable Assemblies |
| Fiber Type | SM(G.652/G657A) / MM(OM1/0M2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC |
| Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 |
| Ferrule Materials | Ceramic |
| Testing Wavelengths | 1310+30/1550+30nm / 850+30/1300+30nm |
| Insertion Loss(dB) | <0.25dB / <0.3dB |
| TIA/EIA-455-107 | (PC/UPC/APC) / (PC/UPC) |
| Return Loss(dB) | >50dB(PC/UPC) />40dB |
| TIA/ELA-455-107 | >60dB (APC) />40dB |
| Exchangeability | <20dB |
| Cable Assemblies | Pigtail/Simplex/Dupiex/Fan-out Patchcord |
| Operating Temperature(°C) | -10~+70 |
| Storage Temperature(°C) | -40~+85 |
| Package | 1unit/bag |
| *All values specified are with connectors |
|
