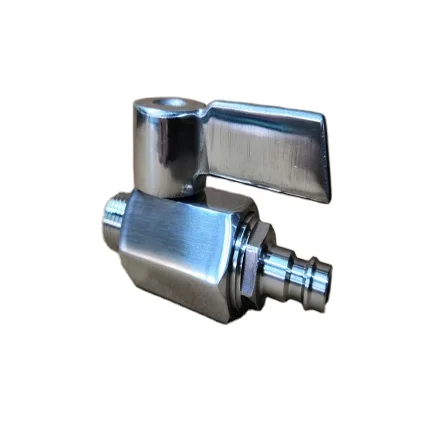

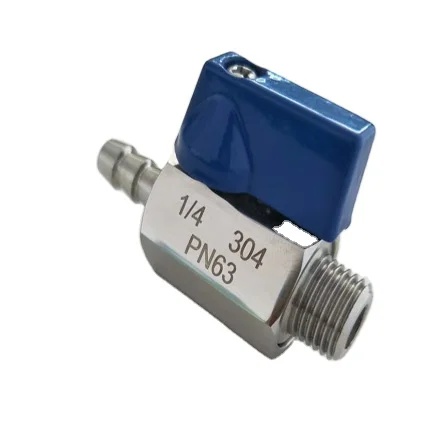

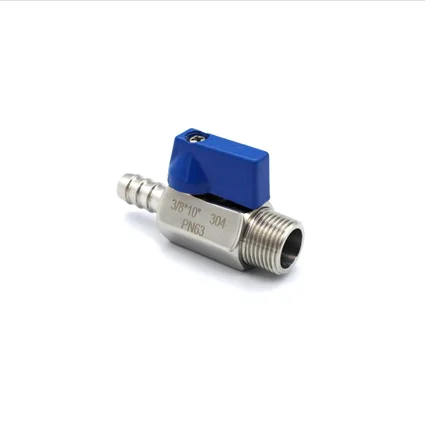

Blue or Aluminium Handle Mini Ball Valve, Sanitary Stainless Steel Mini Ball Valve
- Category: >>>
- Supplier: Linch Machinery Co. Ltd.
Share on (1600185185165):
Product Overview
Description
Blue or Aluminium Handle Mini Ball Valve, Sanitary Stainless Steel Mini Ball Valve
Features:
1. 1000 PSI/PN63
2. Reduce Port
3. Investment Casting
4. Blow-out Proof Stem
5. Sanitary Design
6. PED97/23/EC(CE0036) Approved
7. Casting Approved AD2000-W0
8. Thread: ASME B1.20.1 BS21.0, DIN2999/259, ISO228-1, JIS B203, ISO7/1
8. Inspection Testing: API598, EN12266
2. Reduce Port
3. Investment Casting
4. Blow-out Proof Stem
5. Sanitary Design
6. PED97/23/EC(CE0036) Approved
7. Casting Approved AD2000-W0
8. Thread: ASME B1.20.1 BS21.0, DIN2999/259, ISO228-1, JIS B203, ISO7/1
8. Inspection Testing: API598, EN12266

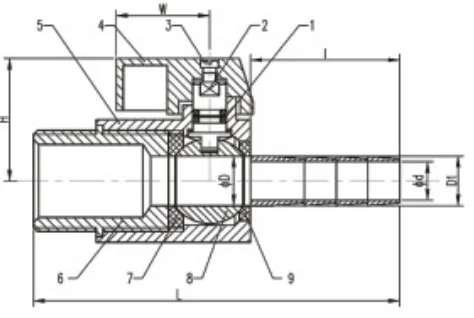

Material List:
ITEM | Designation | Material |
1 | O-ring | NBR |
2 | Stem | SUS304 |
3 | Bolt | SUS304 |
4 | Lever | Aluminium Alloy (CF8) |
5 | Body | CF8/CF8M |
6 | Cap | CF8/CF8M |
7 | A Ball Seat (a) | RPTFE |
8 | Ball | CF8/CF8M |
9 | B Ball Seat (b) | RPTFE |
Dimension Table:
Item Size | 1/8’’ | 1/4’’ | 3/8’’ | 1/2’’ | ||||||
D | 7 | 7 | 7 | 7 | 9.2 | 9.2 | 9.2 | |||
H | 26.5 | 26.5 | 26.5 | 26.5 | 28.3 | 28.3 | 28.3 | |||
W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 | |||
L | 58.5 | 58.5 | 60.5 | 65 | 64.5 | 71 | 71 | |||
d | 5 | 5 | 6.5 | 7 | 5 | 8 | 8 | |||
l | 18.5 | 18.5 | 20.5 | 25 | 18.5 | 25 | 25 | |||
D1 | ¢7 | ¢8 | ¢10 | ¢2 | ¢8 | ¢10 | ¢12 | |||

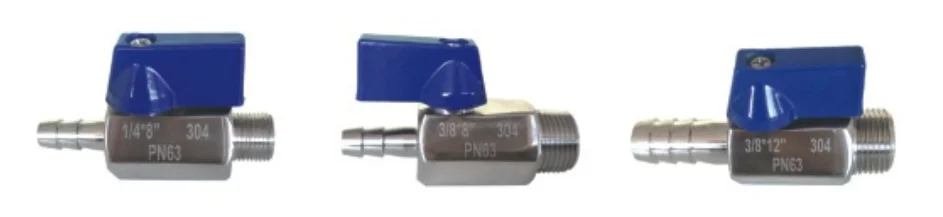

Photo Show:
