Cheap Price With Nice Quality Small Wood Chips Briquette Machine
US $786.00-$5986

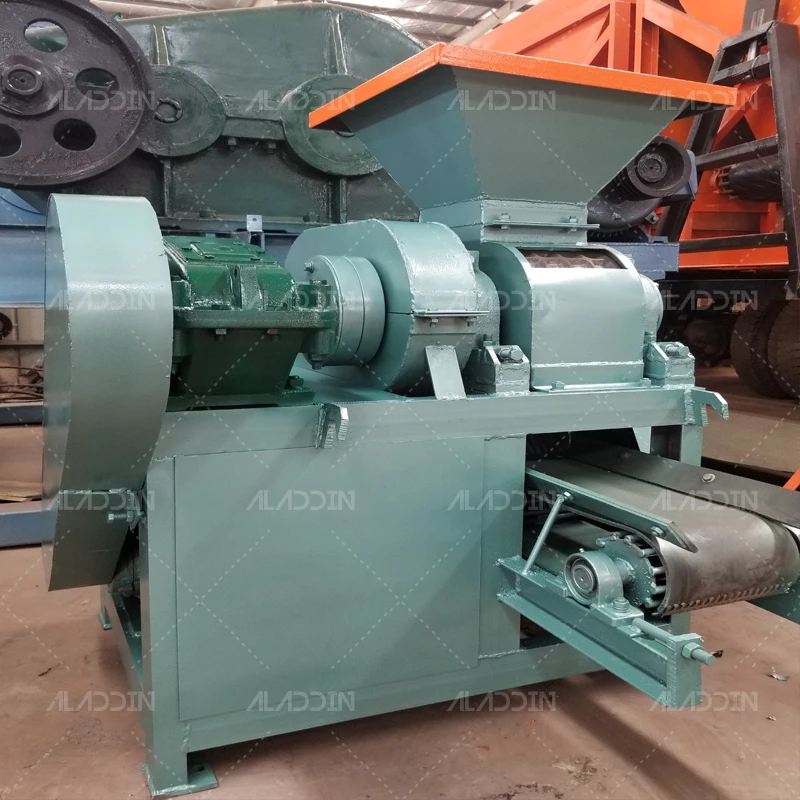

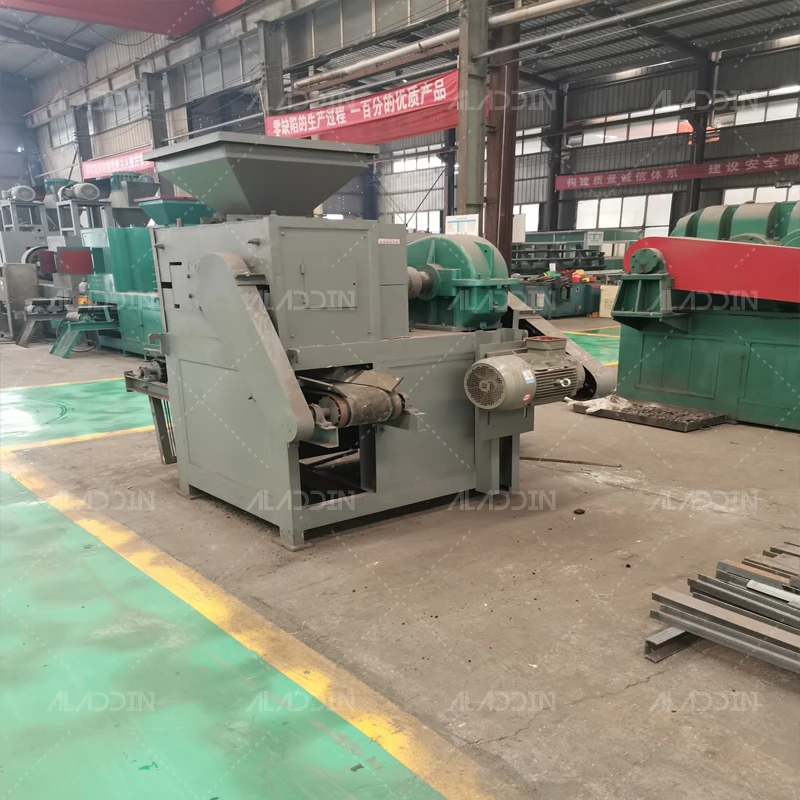

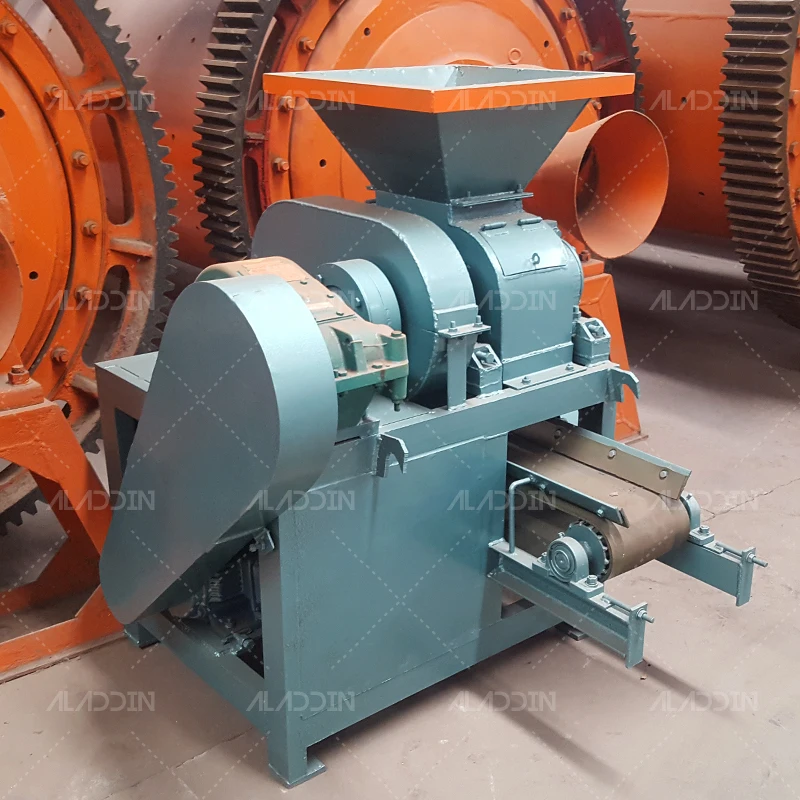

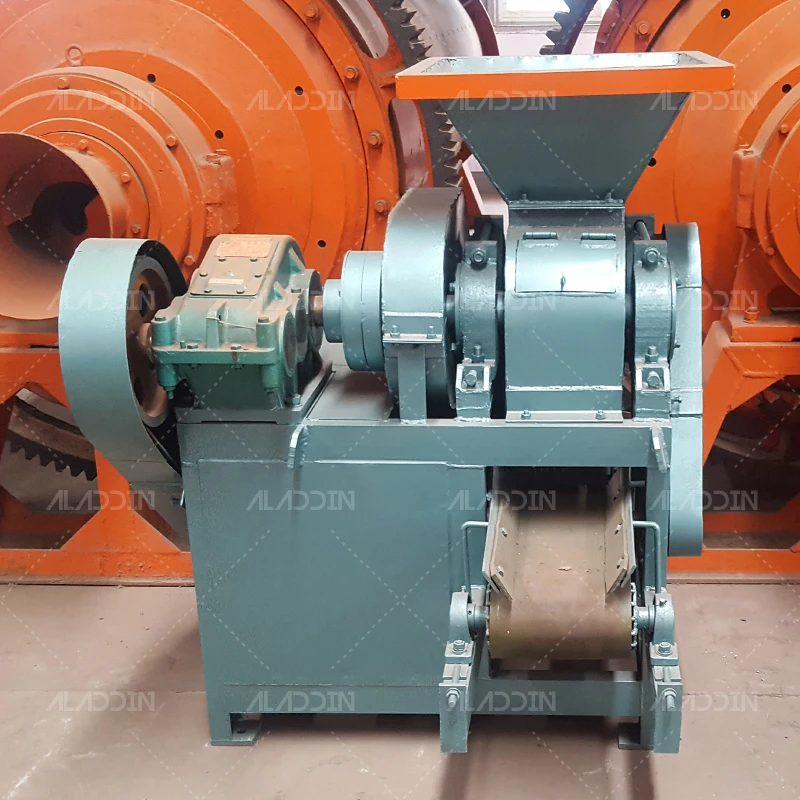

Simple operation of roller forming machine, mineral powder forming machine
- Category: Biomass Briquette Machines >>>
- Supplier: Henan Aladdin Machinery Co. Ltd.
Share on (1600185208533):
Product Overview
Description

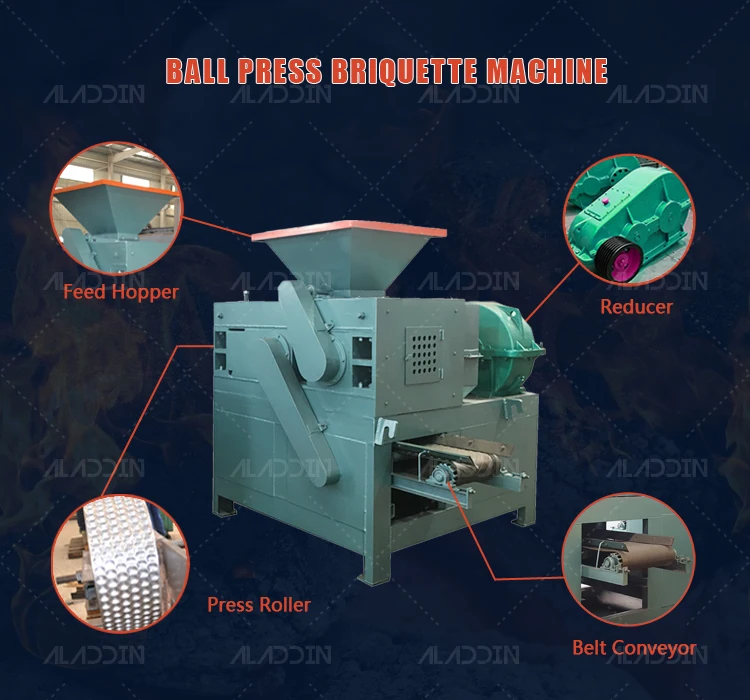

Thematerials produced by the briquetting machine are energy-saving andenvironmentally friendly, easy to transport, and increase the utilization rateof waste materials.Ball Press Briquette Machine is a kind of mechanical equipment which can press powder particles into spherical, oval, square. As granular powder is difficult to shape, briquette machine can make it formed quickly and stably.

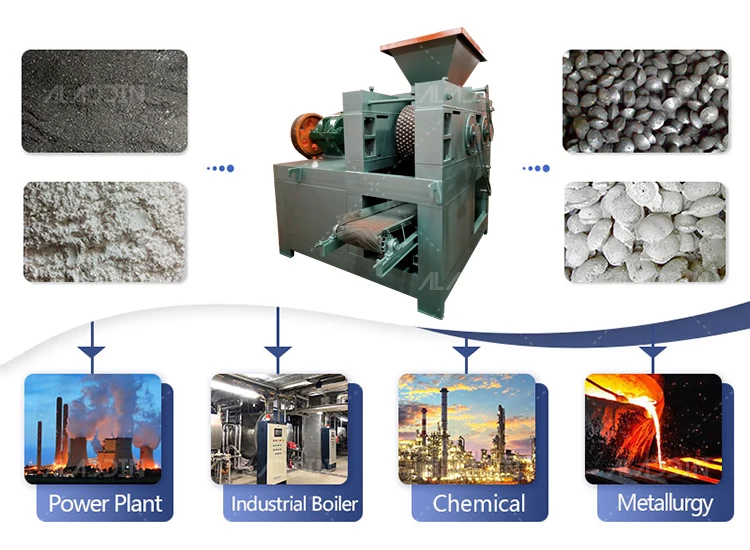

The briquette machine is mainly used for refractory, power plant, metallurgy, chemistry, energy, transportation, heating, and other industries. Its finished product is eco-friendly, and easy to transport, which improves the utilization of waste and contributes to excellent economic and social effects.
What materials can be processed by the briquetting machine?
1. Fuel: charcoal (coconut shell charcoal, hardwood charcoal, hookah/shisha charcoal, etc.), coal, coke, lignite, coal slime, etc.
2. Steel plant by-products: steel scale, steel grating, steel plant sludge/dust, blast furnace sludge, DRI fine powders, ferroalloy fine powders, etc.
3 Minerals: kaolin, red soil, pottery clay, bentonite, clay, alumina, talc, bauxite, lime, dolomite, magnesite, magnesium oxide, fluorite, ground calcium carbonate, etc.
4. Metals and metal alloys: iron powders, aluminum powders, magnesium powders, copper powders, lead powders, zinc powders, tungsten powders, sulfur powders, chromium powders, cobalt powders, silicon powders, nickel powders, oxide scale, etc.
5. Others: paint pigments, gypsum, graphite, etc.
1. Fuel: charcoal (coconut shell charcoal, hardwood charcoal, hookah/shisha charcoal, etc.), coal, coke, lignite, coal slime, etc.
2. Steel plant by-products: steel scale, steel grating, steel plant sludge/dust, blast furnace sludge, DRI fine powders, ferroalloy fine powders, etc.
3 Minerals: kaolin, red soil, pottery clay, bentonite, clay, alumina, talc, bauxite, lime, dolomite, magnesite, magnesium oxide, fluorite, ground calcium carbonate, etc.
4. Metals and metal alloys: iron powders, aluminum powders, magnesium powders, copper powders, lead powders, zinc powders, tungsten powders, sulfur powders, chromium powders, cobalt powders, silicon powders, nickel powders, oxide scale, etc.
5. Others: paint pigments, gypsum, graphite, etc.
Ball types of charcoal briquette machine
The mould whose material is 65Mn determines the shapes of the ball. As the main wearing part, the mould is assembled in combination and can be replaced after being worn. Besides, its hardness can reach more than 58 degrees after special heat treatment.
Common ball shapes are round, oval. It can also be customized according to the special needs of customers, such as square, goose-shaped, round, cylindrical, strip, pincushion, rectangle, heart shape and so on. Usually forming size is 45mm, 50mm.
The mould whose material is 65Mn determines the shapes of the ball. As the main wearing part, the mould is assembled in combination and can be replaced after being worn. Besides, its hardness can reach more than 58 degrees after special heat treatment.
Common ball shapes are round, oval. It can also be customized according to the special needs of customers, such as square, goose-shaped, round, cylindrical, strip, pincushion, rectangle, heart shape and so on. Usually forming size is 45mm, 50mm.

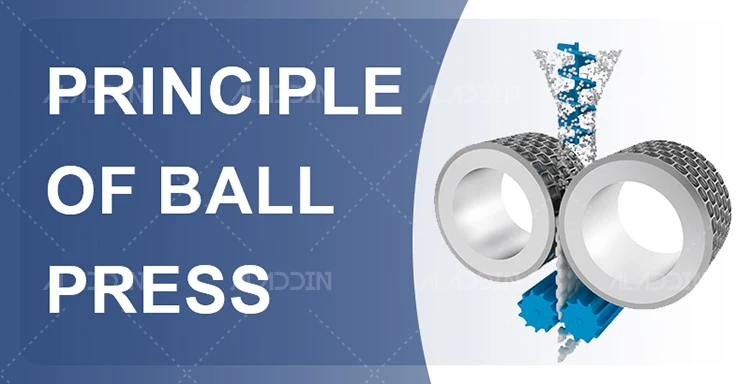

Working Principle
When the machine works, the powder is quantificationally added to the pre-pressing device of the powder ball press machine at a steady material level. Then the pre-pressing spiral presses powder into the space between the rollers and transports them to the arc-shaped groove of the twin rollers.
The same roller concave spreads in average on the surface of the two rollers, meshed and driven to turn the rollers in the same speed and opposite direction. Then the chromium powder at the rabbet port is nipped into the rabbit and gets compressed.
As the rollers continue rotating, powder materials are separated under the effect of elastic force and gravity; as the motor turns constantly, the compression rollers do the periodic rotating and ball forming movement, thus completing the volume production.
The same roller concave spreads in average on the surface of the two rollers, meshed and driven to turn the rollers in the same speed and opposite direction. Then the chromium powder at the rabbet port is nipped into the rabbit and gets compressed.
As the rollers continue rotating, powder materials are separated under the effect of elastic force and gravity; as the motor turns constantly, the compression rollers do the periodic rotating and ball forming movement, thus completing the volume production.
Technical Data
| Model | LM-290 | LM-360 | LM-500 | LM-650 | LM-750 | LM-850 | Remark |
| Capacity(t/h) | 0.5-1.5 | 2-3 | 5-7 | 10-12 | 18-20 | 25-30 | |
| Roller width(mm) | 250 | 280 | 300 | 336 | 400 | 500 | (65Mn) |
| Roller diameter(mm) | 290 | 360 | 500 | 650 | 750 | 850 | |
| power | 5.5kw | 7.5kw | 18.5kw | 30kw | 45kw | 75kw | |
| Spindle speed | 18r/min | 15 r/min | 13 r/min | 13 r/min | 13 r/min | 10 r/min | |
| reducer | ZQ290 | ZQ360 | ZQ500 | ZQ650 | ZQ750 | ZQ850 | Standard Configuration |
| Pressure form | Constant pressure | Either is ok | |||||
| Shaft seat rod | Hydraulic | ||||||
| Roller material | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | Either is ok |
| 9cr2mn | 9cr2mn | 9cr2mn | 9cr2mn | ||||
| Alloy steel | |||||||
| Spindle(mm) | Ø95 | Ø110 | Ø135 | Ø165 | Ø165 | Ø180 | |
| 45#steel | 45#steel | Forge | Forge | Forge | forge | ||
| Ball size | As clients requirement | Usually 40-50mm | |||||
Product Details
Requirements of the raw material:
1.Size:
smaller than 5mm, if the material can not achieve the requirement, it should be crush first.
2.Moisture:
8%-12%, If raw material has high moisture it should be reduced by Sun drying or using dryer machine.
1.Size:
smaller than 5mm, if the material can not achieve the requirement, it should be crush first.
2.Moisture:
8%-12%, If raw material has high moisture it should be reduced by Sun drying or using dryer machine.
Related Products of Briquette Machine
FAQ about Biomass Sawdust Briquette Machine
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: Can you send products to my country?
A: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q: When can I get the quotation?
A: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation. Please call us or tell us in your mail, so that we could regard your inquiry priority.
Q: How can I place the order?
A: First sign the PI, pay deposit, then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q: What's your payment terms?
A: 40% deposit in T/T advance, balance 60% before goods shipment from factory.
Packaging & Shipping
Ways of Packing
1. Product wrap by PP-Bubble, Wooden Boxes, etc
2. Spear parts in wooden case
3. Load Standard Containers
Transportation
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
