Sintered tungsten carbide ball good wear resistance hard metal preform 2 4 6 8 10 12 14 16 20 40 mm carbide ball blank

Product Overview

Description

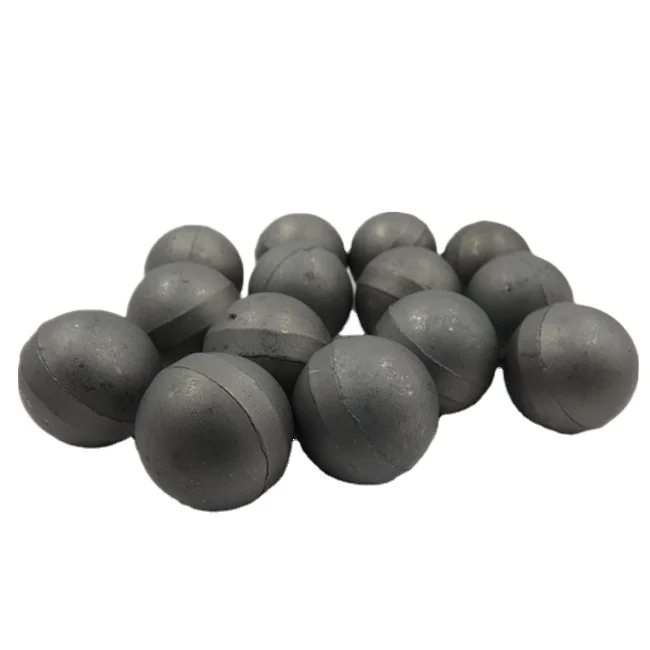

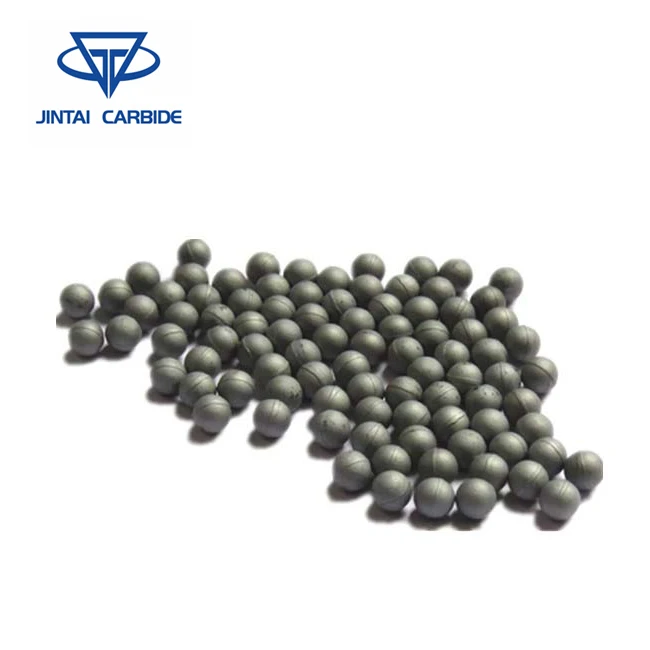

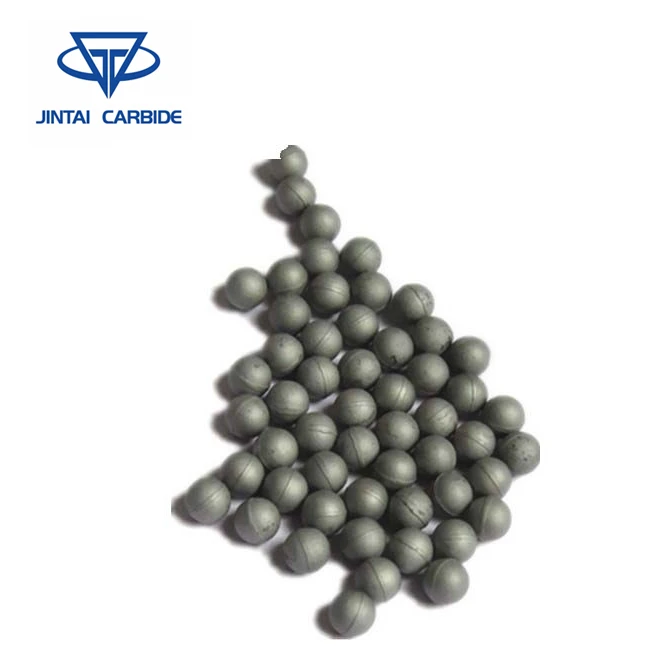

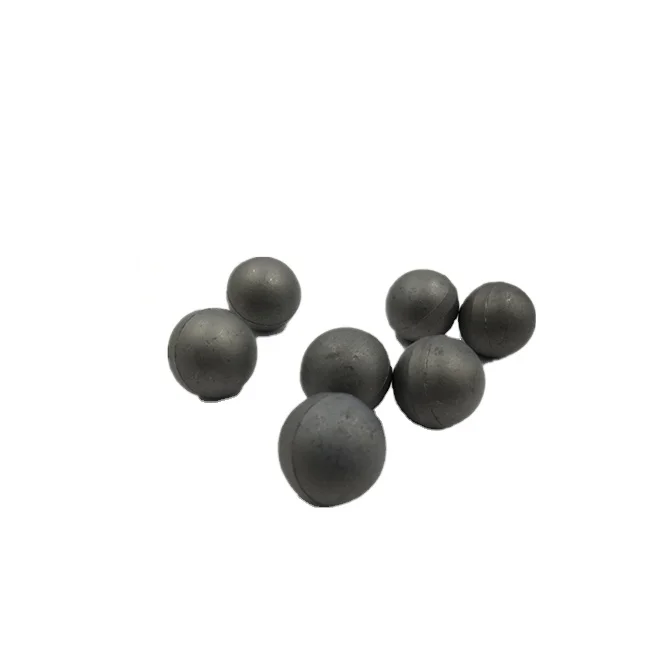

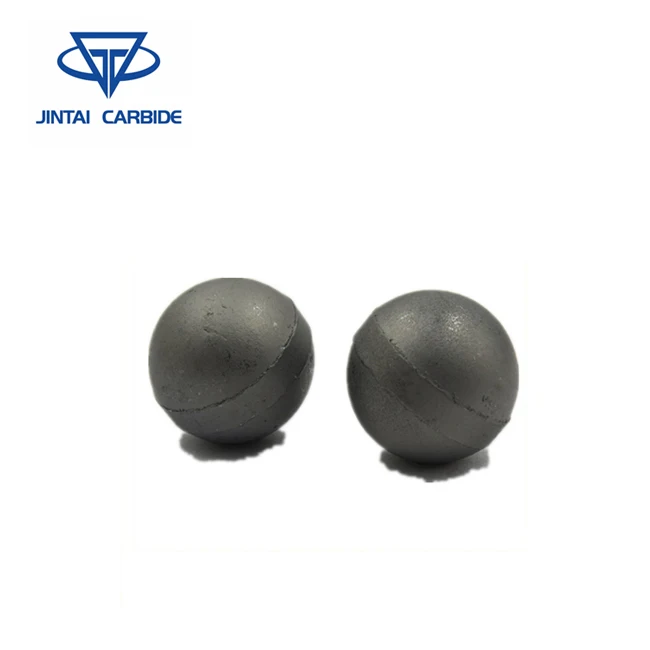

 More photos of tungsten carbide ball





This is customerized tungsten carbide ball.



Regular Grade & Application of tungsten carbide ball, and customerization is available.



Grand	Physical and mechanical properties
	Density                 g/cm3	Hardness           No Less Than HRA(HV)	TRS   No Less Than     (Mpa)
YG6X	14.4-14.9	91	1700
JL05	14.7-15.1	91.5	1800
YG10X	14.3-14.6	90	2000
JL10	14.2-14.5	90.5	2200
JL15	14.5-15.0	91.5	2400
JL20	14.7-15.1	92.5	3000





Diameter:

Dia. 2, 5, 7, 8, 10, 12mm (or 5/8, 3/4, 15/16, 1-1/8, 1-1/4, 1-3/8, 1-1/16, 2-1/4") and more.

Specification: The size of range is available from 3/32" to 2" inches, the tolerance grade is divided into G10, G25, G48, G50, G100 and so on. The available grades and sizes are shown in the below table.



Application:

Tungsten carbide ball was widely used in precision tools drawing and punching,high precision bearings,high precision measuring instrument and appratus,water pump and brake pump,and various machinery sealing accessories part in high-tech industry.



Customer NOTICE:

To save your value time, please inform us of the following information:

1, Grade

2, Type

3, Dimension for each type

4, Blanks or finished products

5, If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
