Large output Potato chips production line for Industry
- Category: Potato chips making machine >>>
- Supplier: Shandong Xindaxin Food Industrial Equipment Co. Ltd.
Share on (1600185249606):
Product Overview
Description
100-2000kgh Automatic Fried potato frozen french fries production line

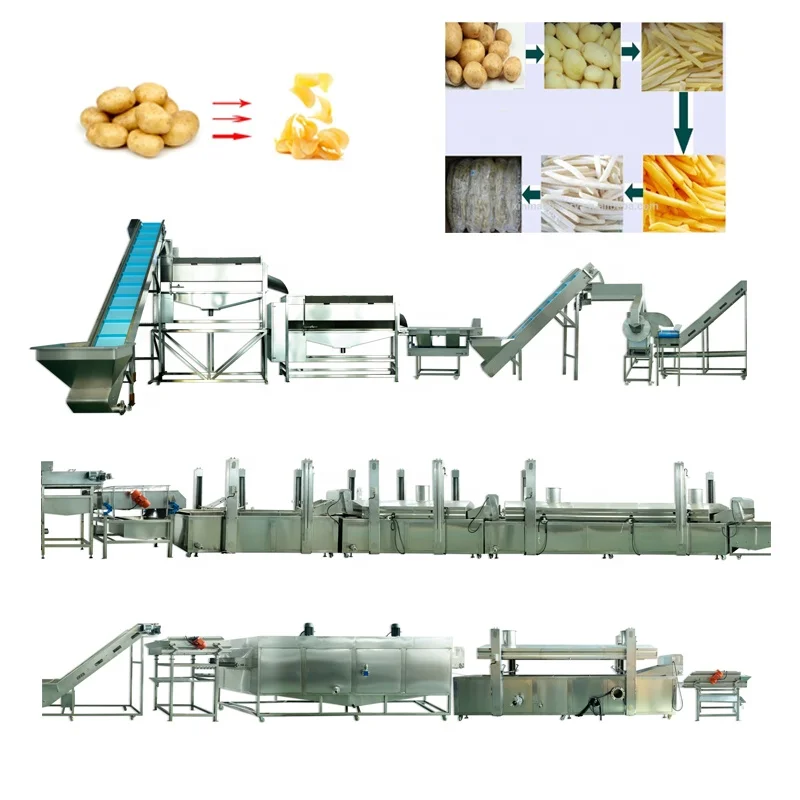

Main process

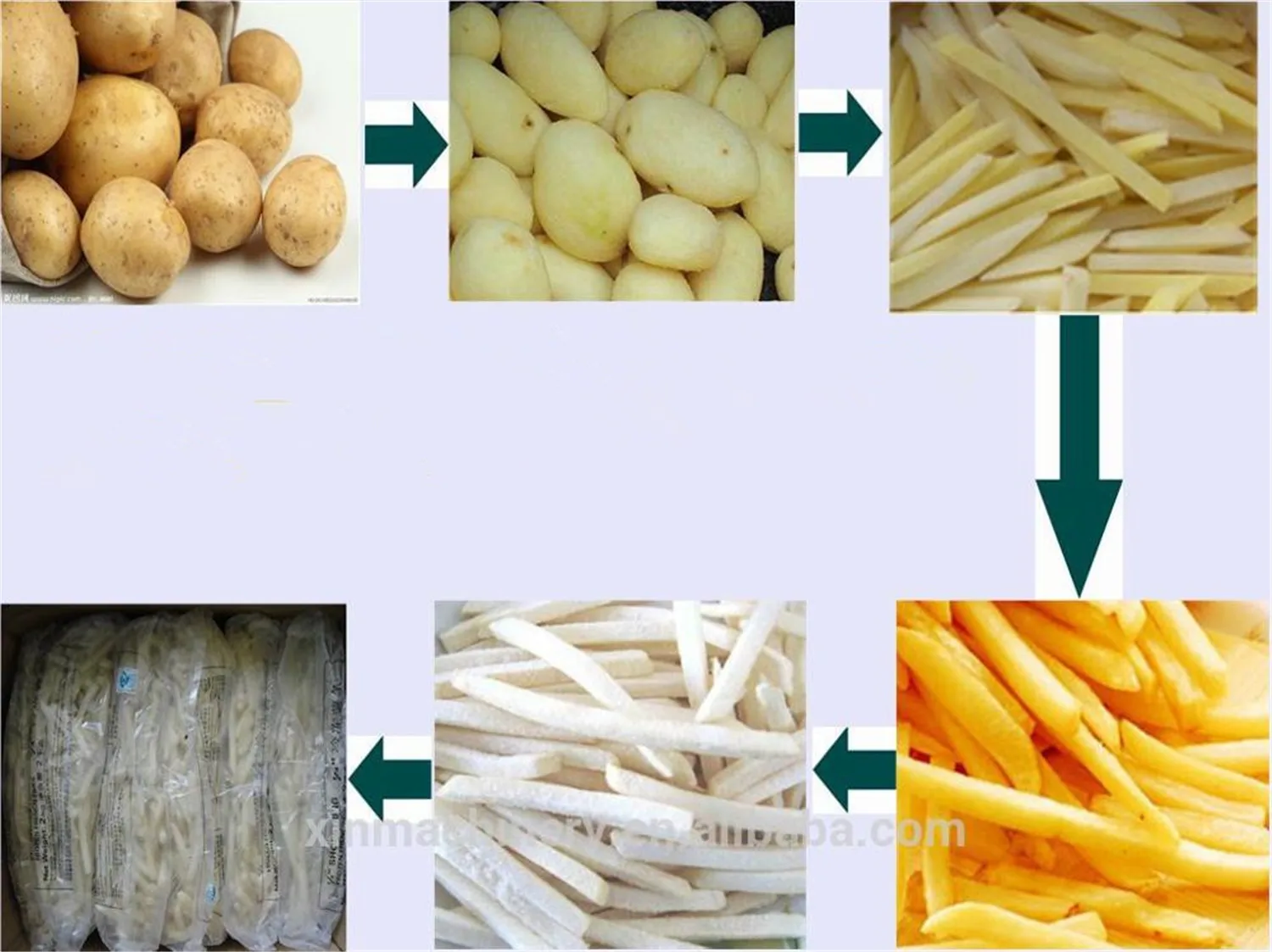

Fresh potato feeding→→Potato peeling and washing→→Picking line→Conveyor to cutter→→Cutting machine→→Washing machine→→Blanching machine→→Drying machine→→Frying machine→Deoil machine→→Cooling→→Conveyor→→IQF Quick freezing machine→→Automatic weigher and package machine
No. | Machine Name | Power | Dimensions |
1. | Feeding machine | 0.75KW | 4000*1200mm |
2. | Washing and peeling machine | 3.75KW | 3200*1000mm |
3. | Picking line | 0.75KW | 3000*1000mm |
4. | Conveyor | 0.75KW | 3000*1200mm |
5. | Cutter | 1.5KW | 880*770mm |
6. | Washing machine | 4KW | 3500*1400mm |
7. | Blanching machine | Customized | Customized |
8. | Drying line | 3KW | 3000*1000mm |
9. | Frying machine | Customized | Customized |
10. | Deoil vibrator machine | 0.75KW | 2000*1200mm |
11. | Conveyor | 0.55KW | 2000*1000mm |
12. | IQF freezing machine | Machine model | machine model |
13. | Conveyor | 0.75KW | 2000*1000mm |
14. | Automatic weigher and package machine | Customized | Customized |
Total | 17.3KW +Customized | Most 20-80 meters. |

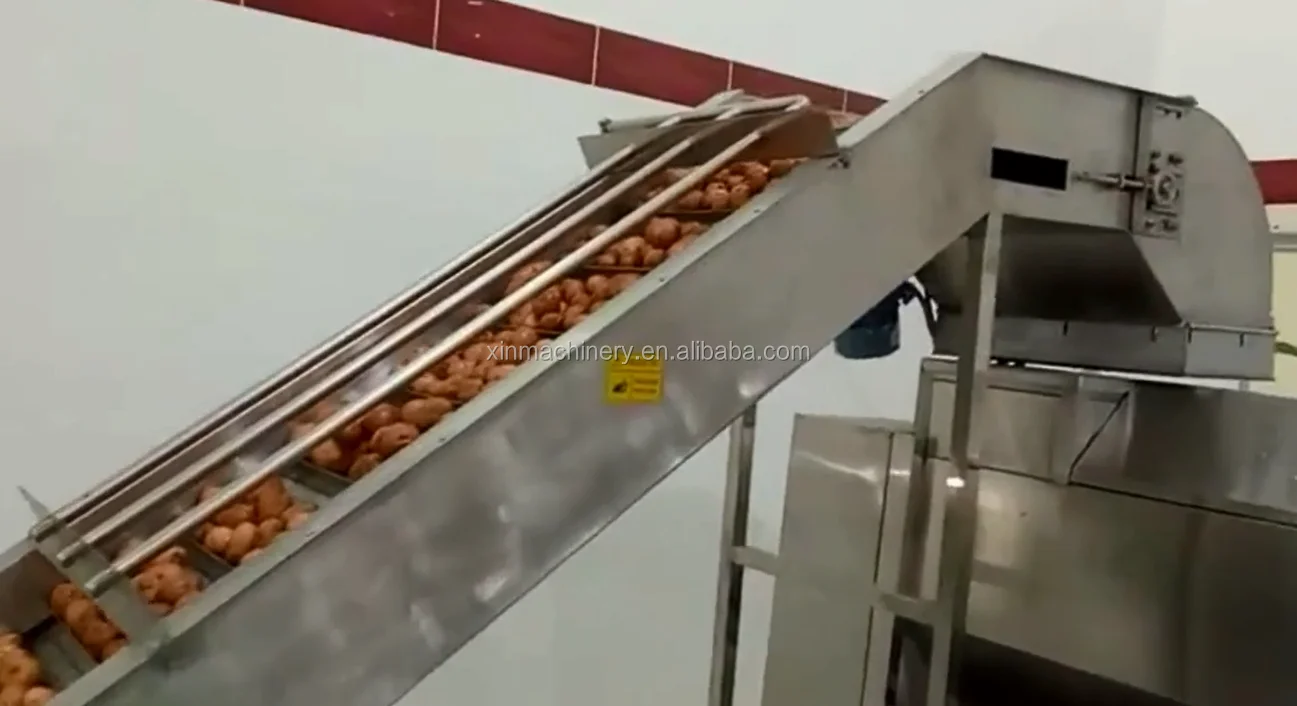

Feeding conveyor
Beginning machine of whole production,to feed fresh potatoes and convey it to next machine.
Peeling machine
Wash potatoes clean
Peeling with hard brush and stone to complete peel with fresh potatoes

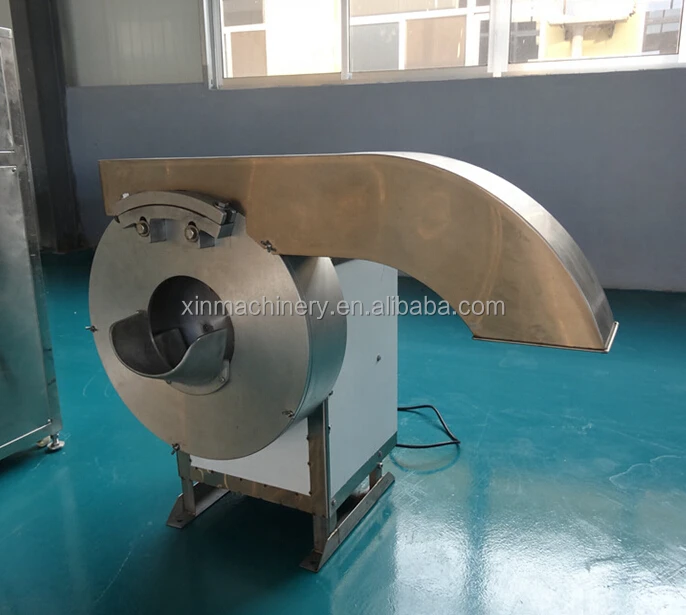

Cutting machine
Automatic cut fresh potatoes into strips
Material:SUS304
Slice surface smooth and cut in fast speed .

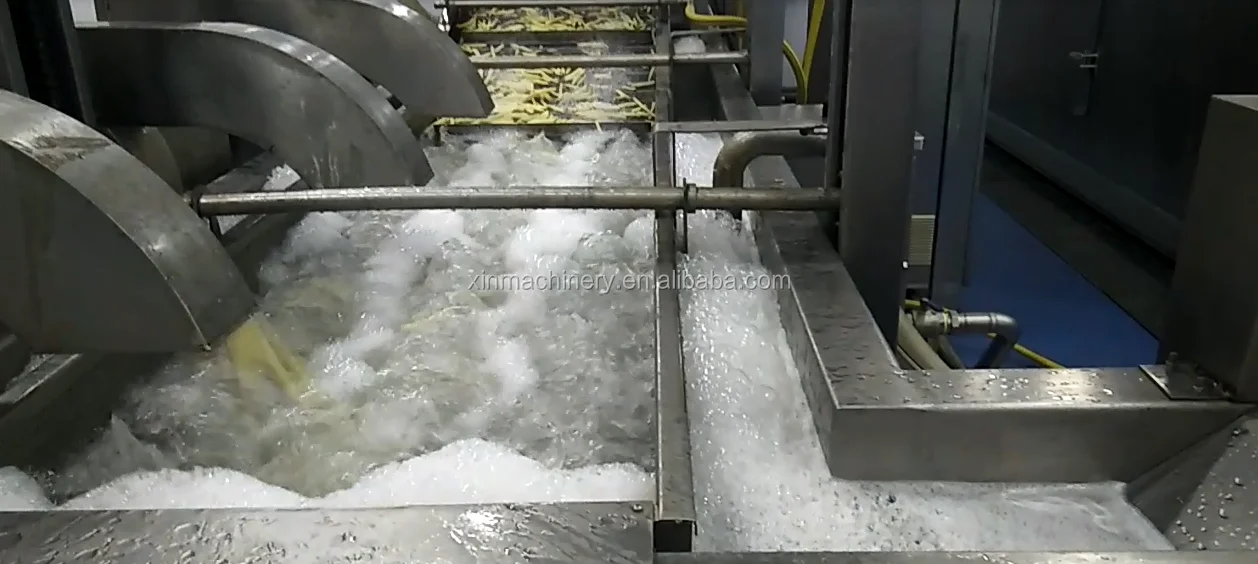

Washing machine
Wash potato chips clean,protect its own color .Material:SUS304
Frying machine
Automatic continuous frying machine
Made by SUS304
Automatic control by PLC control Box

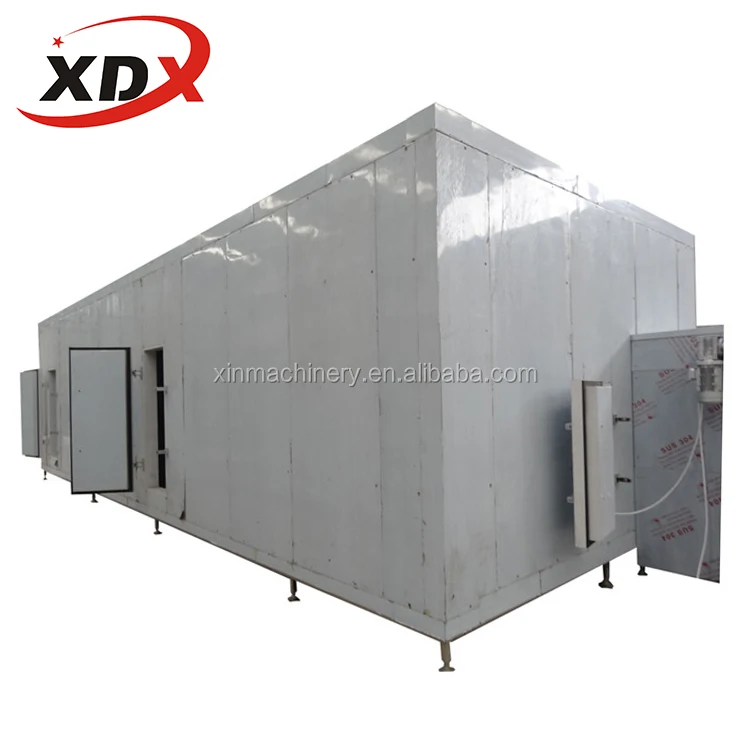

IQF freezing machine
Automatic freezing machine machine
Freeze goods to -18 degrees
Made by SUS304

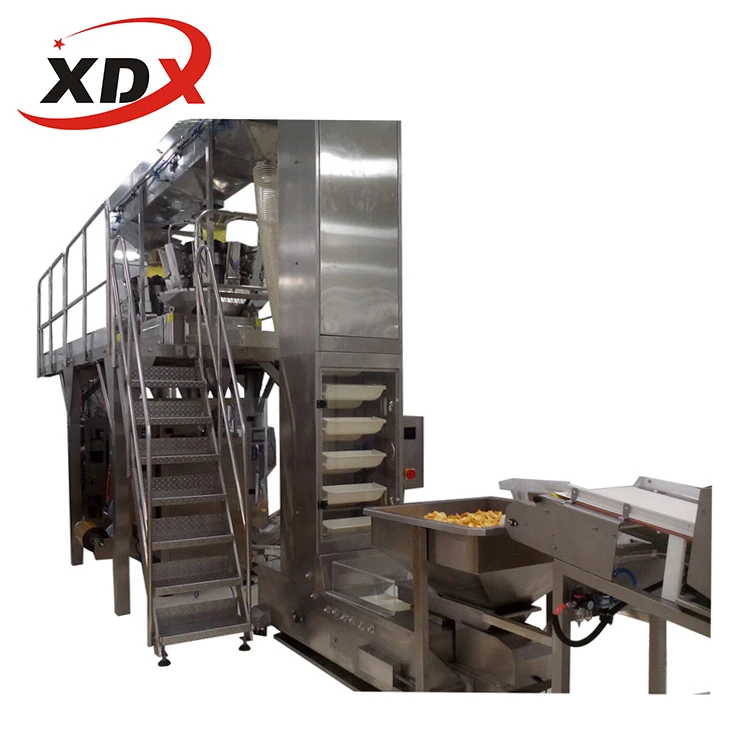

Automatic weigher and package
Consist of three parts:
PLC control
Made by SUS304
1.Automatic conveyor device
2.Automatic weigher device
3.Automatic package machine

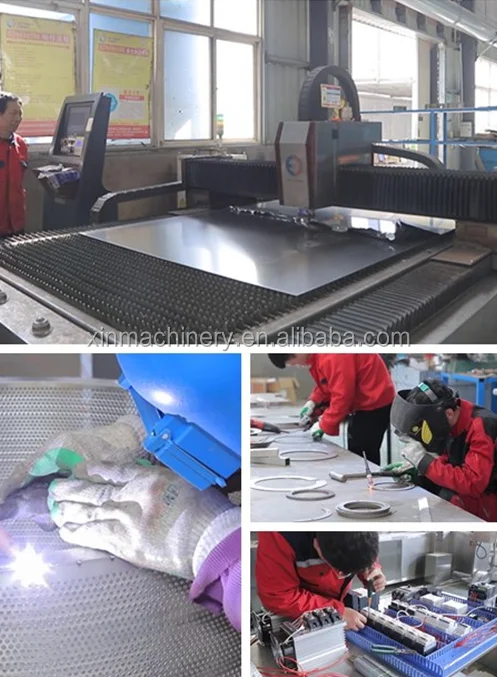

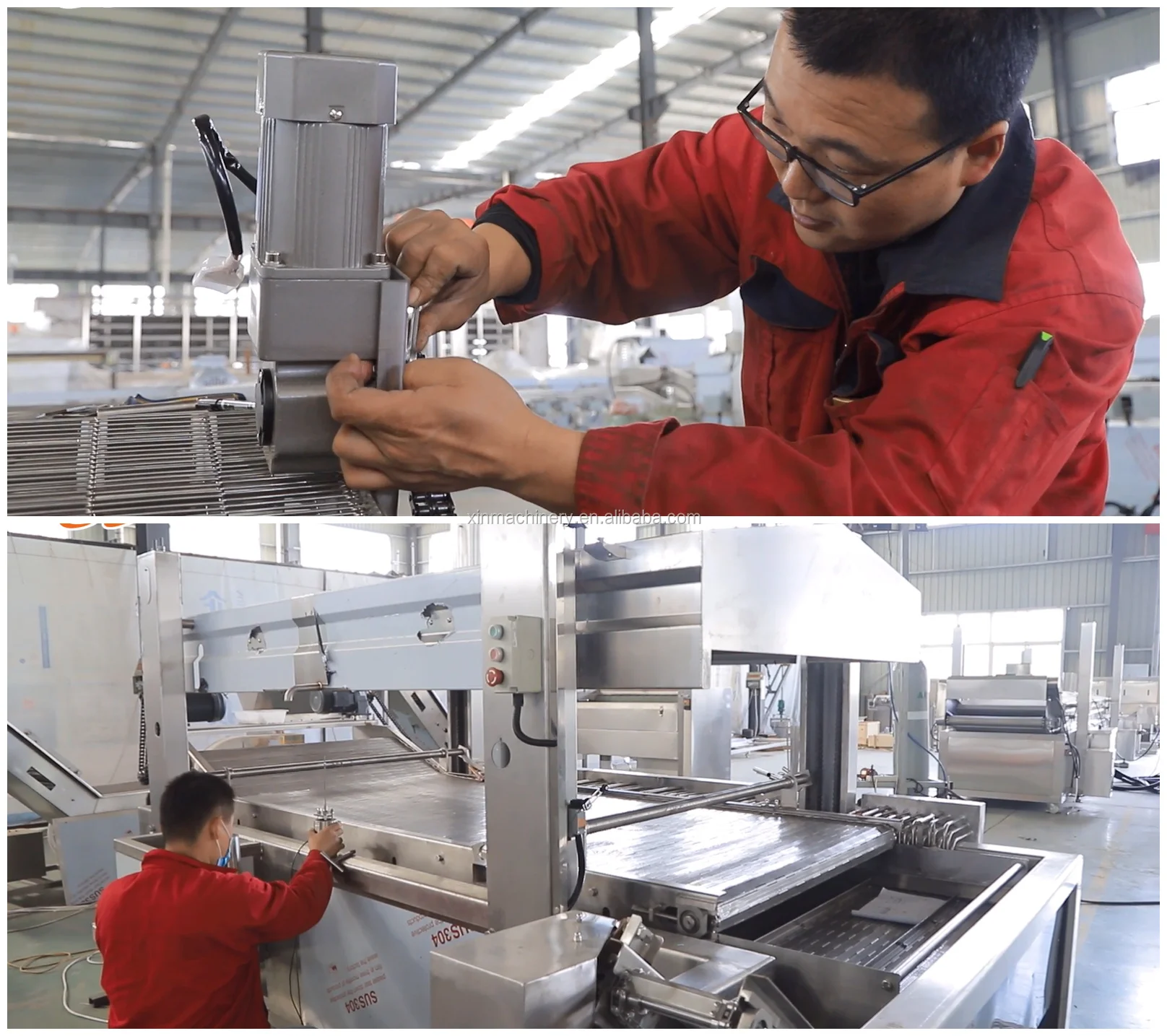

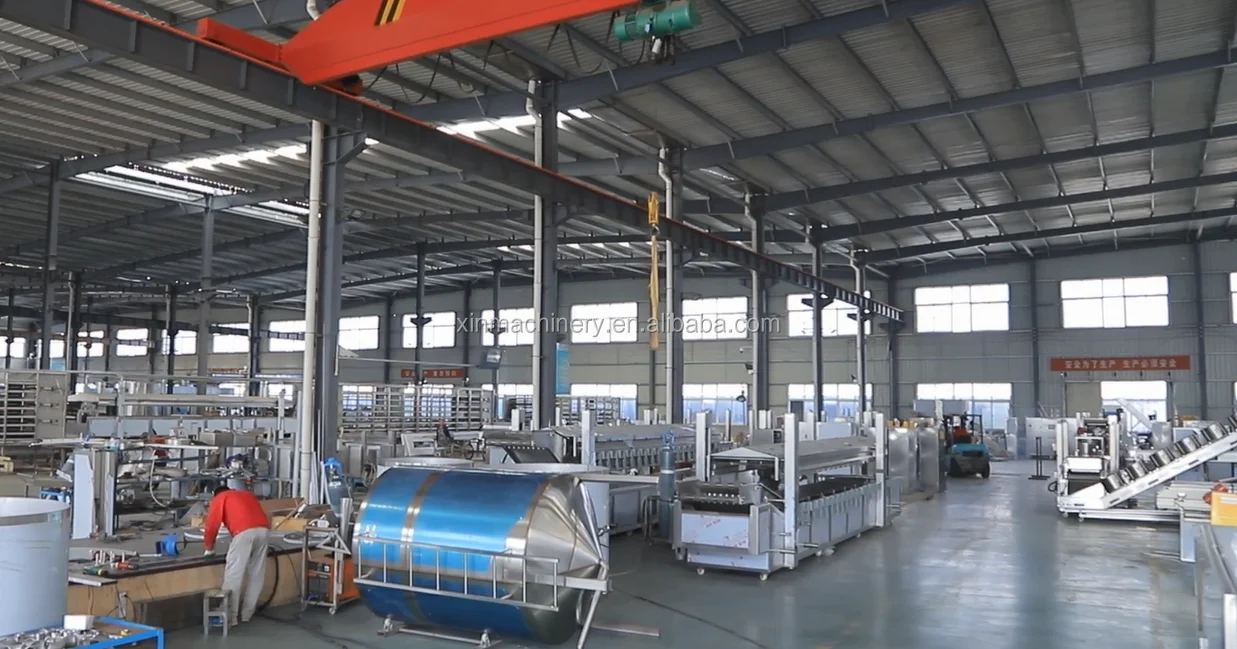

TCA Workshop

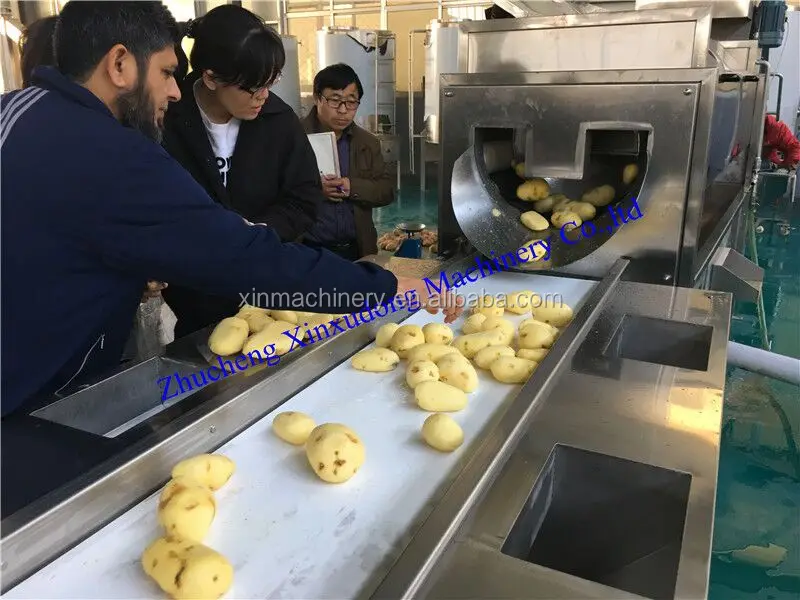

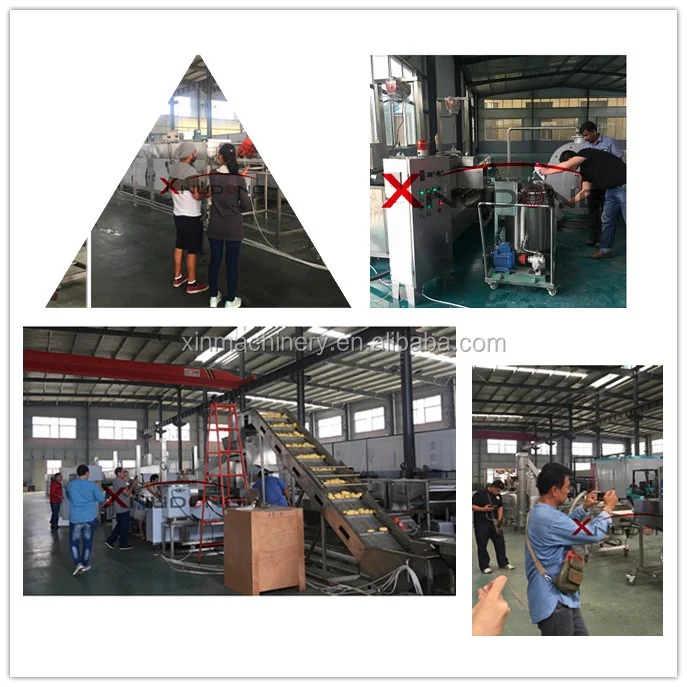

Customer Photos
Packing & Delivery
Certifications

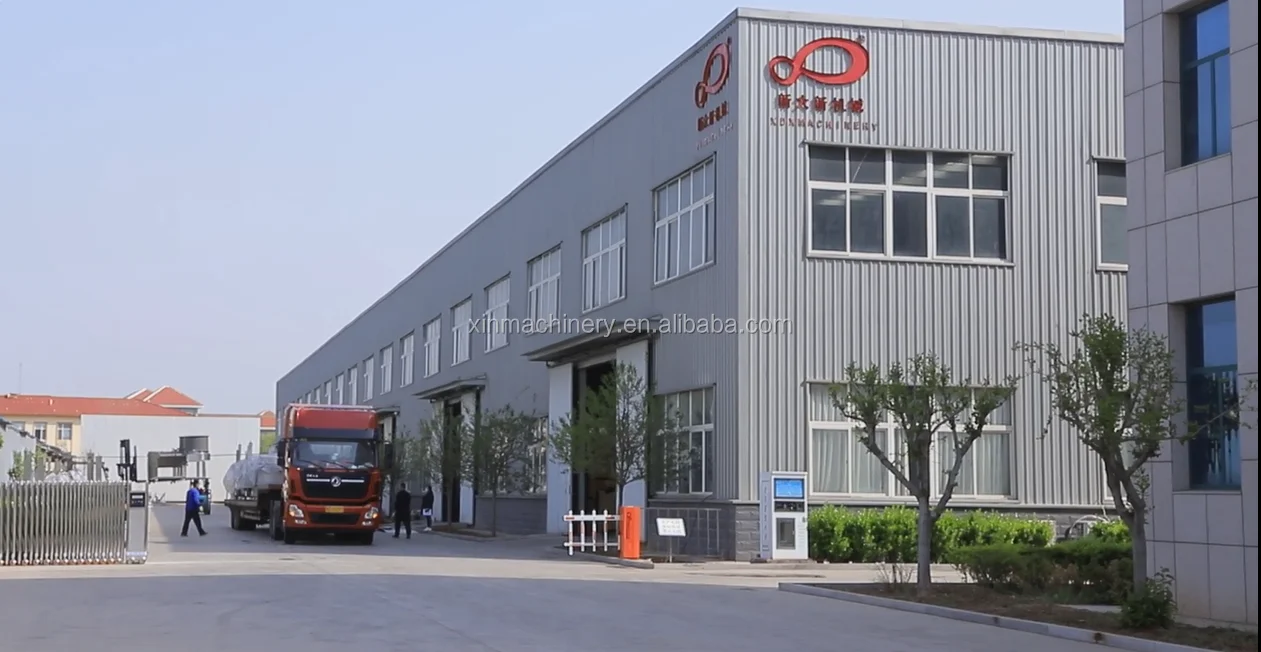

Company Profile
SHANDONG XINDAXIN FOOD INDUSTRIAL EQUIPMENT CO.,LTD. Is a professional global supplier of global food industry equipment, company is focused on R & D manufacturing and sales of food industry equipment including equipment of French fries, potato chips, starch production,potato flakes,meat food, vegetable processing, corn processing etc .We provide a complete production line to our customers, corn processing .We provide a complete production line to our customers . Company's products have been certified by CE and ISO9000 (1) -2000 international quality management system certification, and in accordance with the QS standard food enterprises. After many years of efforts and innovation, "XDX" "TCA"brand food equipment has been exported to Canada, Australia, USA, Britain, France, Russia,Spain, Algeria,Qatar,Kenya,Guinea,India,Japan, Malaysia, Thailand, Indonesia, Vietnam, Brazil, Bolivia and other 80 countries, enjoy a high reputation in the same industry.
FAQ
1.Are you the manufactory?
A:Yes we are manufactory and have our factory.Welcome to China to visit our factory.
2.What is the material of the machine?
A:We use Food Grade SUS304 ,it is easy cleaning and with long life
3.How can I determine the quality of the machine?
A:Before place the order,you can come our factory to see the same or similar machine.
After finish the machine,wen will test it and send the video to you.
Before shipping,we will invite you to check it again.
4.How should we do if we don`t know how to install and operate the machine?
A:We provide overseas installion and also can train for you.
5.How long will the warranty be?
A:One years warranty,overseas after-sales service availabe.
6.How to find us?
A:Please inquire us.
Or contact Tony at tony @xinxudong.com
A:Yes we are manufactory and have our factory.Welcome to China to visit our factory.
2.What is the material of the machine?
A:We use Food Grade SUS304 ,it is easy cleaning and with long life
3.How can I determine the quality of the machine?
A:Before place the order,you can come our factory to see the same or similar machine.
After finish the machine,wen will test it and send the video to you.
Before shipping,we will invite you to check it again.
4.How should we do if we don`t know how to install and operate the machine?
A:We provide overseas installion and also can train for you.
5.How long will the warranty be?
A:One years warranty,overseas after-sales service availabe.
6.How to find us?
A:Please inquire us.
Or contact Tony at tony @xinxudong.com
