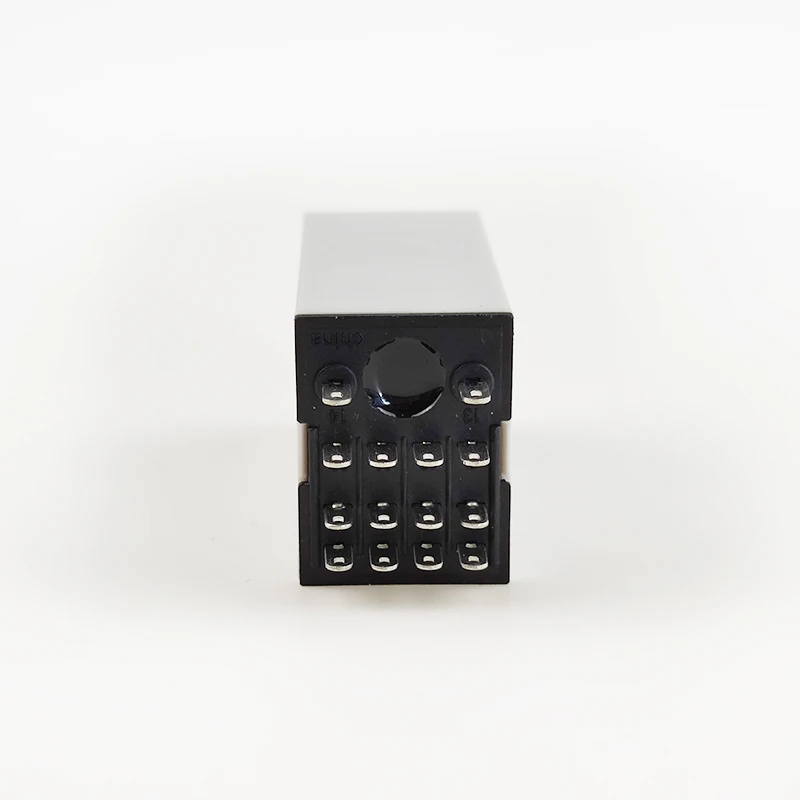

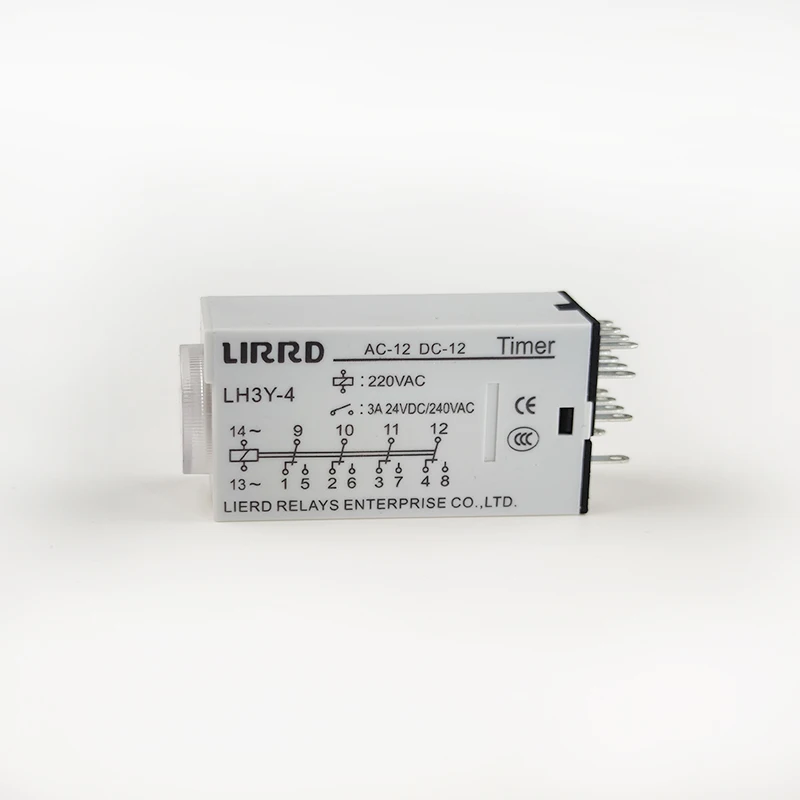

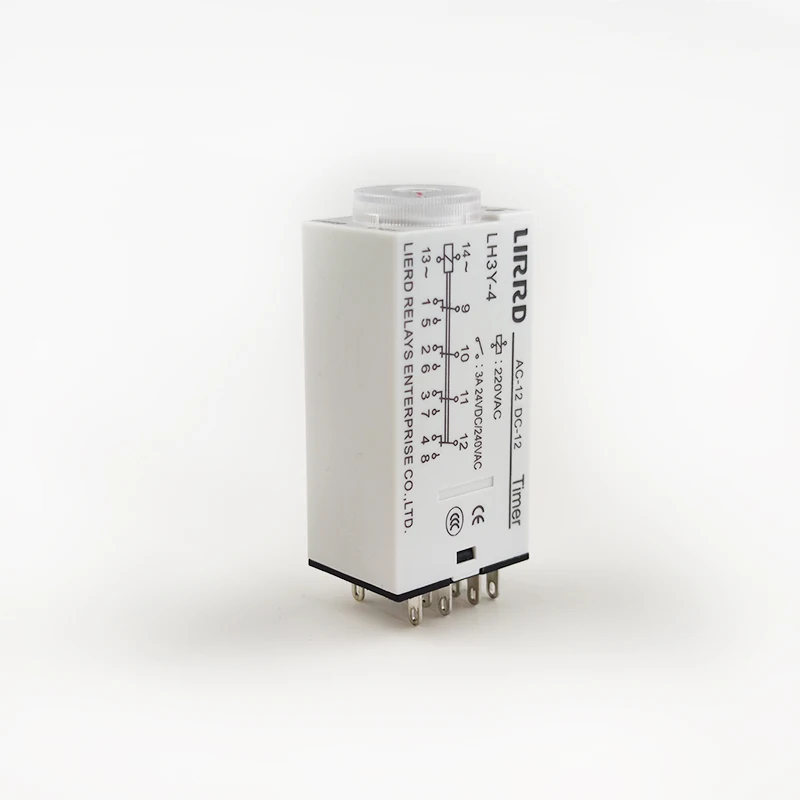

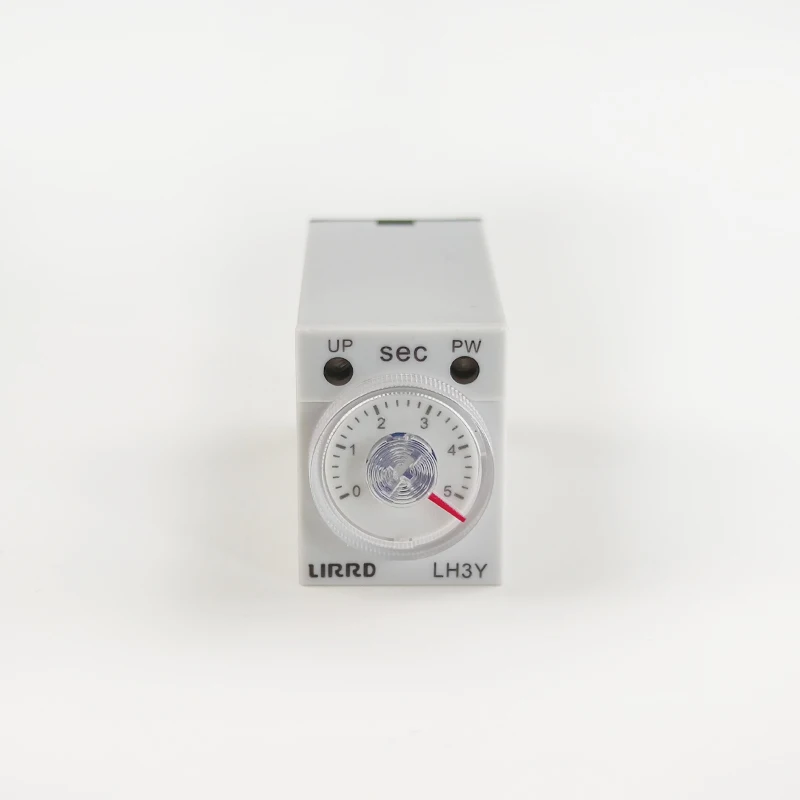

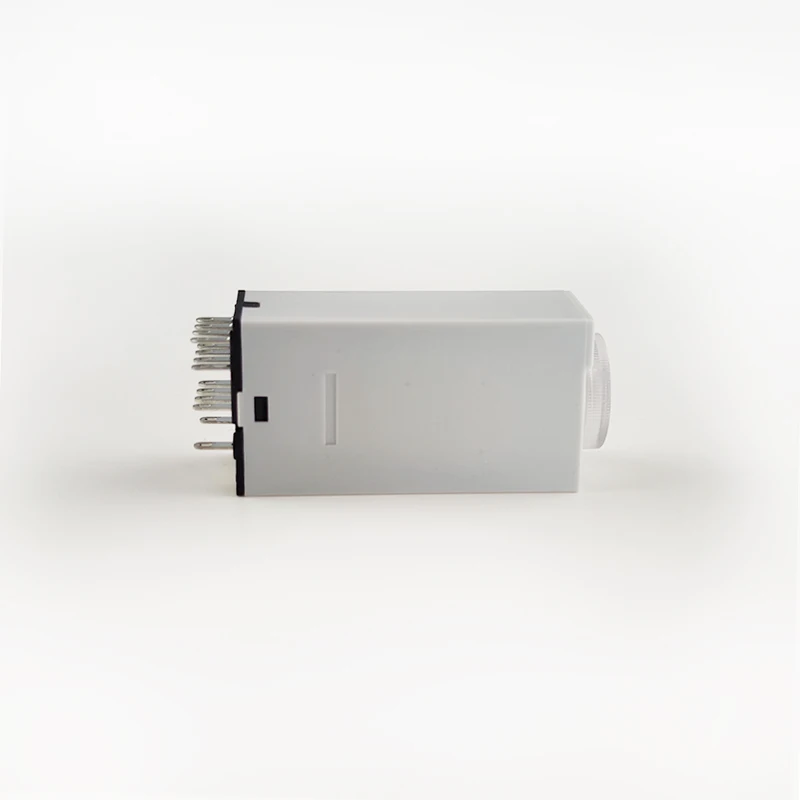

H3Y 4 Timer Relay On Delay 5 Seconds Time Range 220V AC 14 Pins
- Category: >>>
- Supplier: Yueqing Cleanlysis Import & Export Co. Ltd.
Share on (1600185251120):
Product Overview
Description
Application
Specifications
| Classification | Time Relay | ||
| Model | LH3Y | ||
| Dimension(mm) | 28.0H * 21.5W * 63.0L | ||
| Full Timing Range | SEC:1, 5, 10, 30, 60 | ||
| MIN:3, 5, 10, 30, 60 | |||
| HR:3, 5, 10, 12 | |||
| Rated Voltage | AC: 110V, 220V 50/60Hz | ||
| DC: 12V, 24V | |||
| Indicator Operating | Power, up | ||
| Contact | Model | H3Y-2(ST6P-2) | H3Y-4(ST6P-4) |
| 1C Time Limit | |||
| 2C Time Limit | 5A | 3A(4C) | |
| 1C Instantaneous | |||
| Service Life | Mechanical | 5*106 times | |
| Electrical | 105 times | ||
| Accuracy | Repeat Error | ±3% max. | ±1.5% max. |
| Setting Error | ±10% max ± 50ms | ||
| Voltage Error | ± 2% max. | ||
| Temp Error | ± 5% max. | ||
| Reset Time | 0.2sec max. | ||
| Power Consumpting | 3VA | ||
| Ambient Temperature | -10~+55 °C | ||
| Ambient Humidity | 48~85%RH | ||
| Weight | 45g | ||
| Mounting&Socket | Surface | PYF08A | PYF14A |
| Flush | With Y-20 adapter | ||

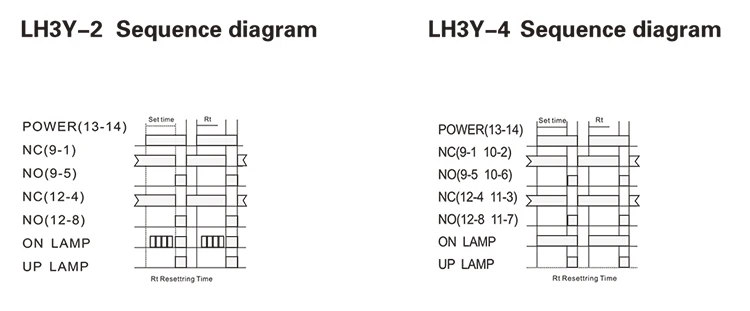

Diagram
Company
Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.
Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.
We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.
As an officially authorized agent of Korea Kacon Auto Controls Import&Export Co., Ltd, we provide a discount rate of Kacon foot switch, limit switch, micro switch, relay, push button, etc.
