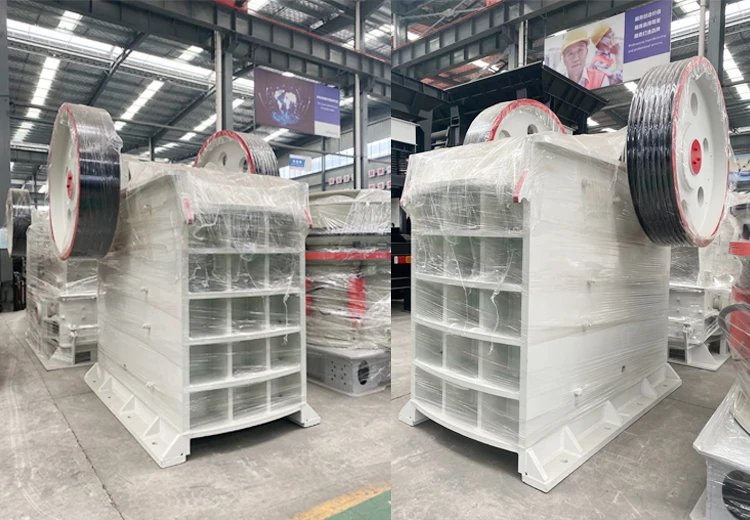

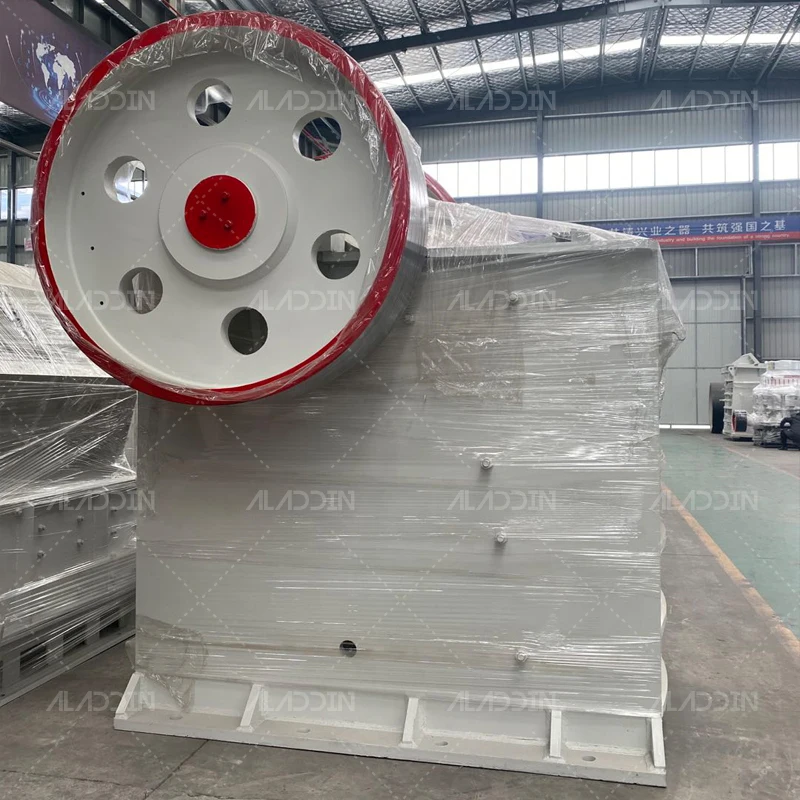

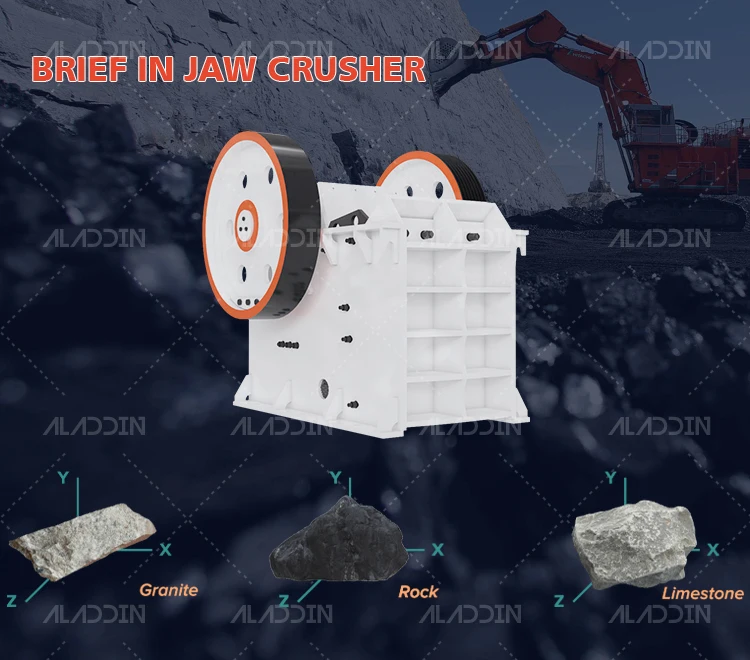

Jaw crusher is a kind of crusher, which has the characteristics of large crushing ratio, uniform product particle size, simple structure, reliable operation, convenient maintenance and economic operation cost. Especially in the design and production of large jaw crusher, has been in the excellent level at home and abroad. Jaw crusher is widely used in mining, smelting, building materials, highway, railway, water conservancy, chemical industry and other departments, crushing all kinds of materials with compressive strength less than 320 MPa
Jaw crusher is mainly used to reduce the size of various materials. Jaw crusher can crush stone with compressive strength less than 300 MPa. The materials used are usually pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, gangue, construction waste, ferrosilicon, basalt, sandstone, cement clinker, etc. Fine crushing of hard ores and rocks in metallurgy, mining, chemical industry, cement, construction, refractory and ceramics industries.
Product Structure

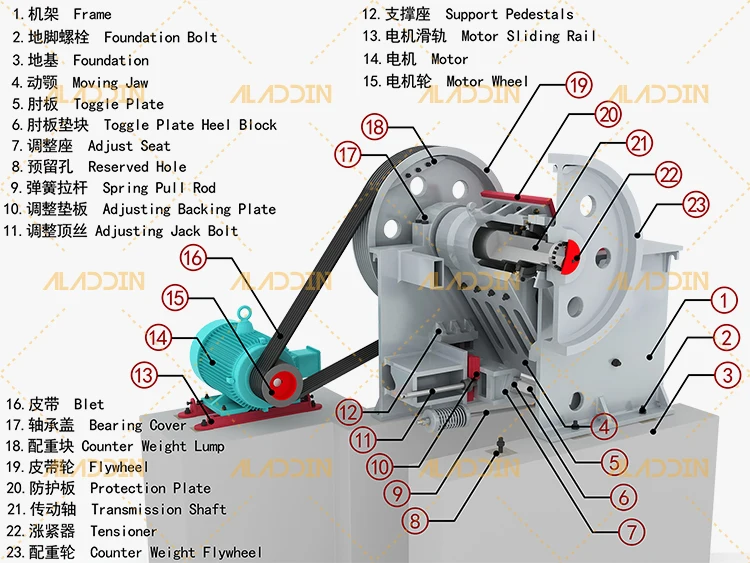

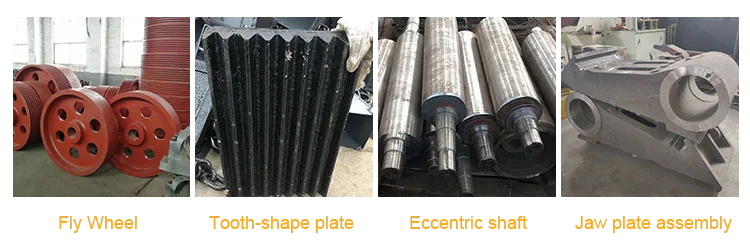

The PE jaw crushers are mainly composed of fixed body, rotating body, safety device and adjusting device.
1. Fixed body of the jaw crusher: The main component of the fixed body is rack, which has two manufacturing engineers: carbon steel casting rack and carbon steel plate welded rack. Welded rack uses the reinforced stiffener on the basis of the original cast rack, and can achieve the same effect as casting rack through strict quality control and specific process requirements. In order to prevent the serious wear and tear of the lateral wall, crushing chamber is equipped with shield on the left and right side, which can be easily replaced.
2. Rotating body: PE jaw crusher as a kind of double toggle jaw crusher is composed of moving jaw, eccentric shaft, bearings, pulleys and other parts, and it is the main part of the jaw crusher transmission and endurance.
a. Moving jaw of this type of double toggle jaw crusher is composed of movable jaw bracket and movable jaw plate.
b. The eccentric shaft is made up of 45 # steel can go though quenching and tempering treatment.
c. Bearing adopts an aligning spherical roller bearing, with characteristics of fine-tuning, big endurance and durability.
d. Jaw plate can be divided into mobile jaw plate and fixed jaw plate. In order to enhance the crushing effect, the surface is made up of material with high hardness and wear resistance.
3. Adjustment device: It is used to adjust the size of discharging mouth and control the discharging granularity. The jaw crusher has two forms: long wedge type and plunger gasket type with convenient and flexible adjustment, can achieve stepless adjustment.
Working Principle
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
Technical Data
Model
Feed opening (mm)
Max.feeding size (mm)
Adjusting range of discharge opening (mm)
Processing capacity (t/h)
Rotation speed of eccentric shaft (r/min)
Motor power (kw)
Dimensions (L×W×H) (mm)
PE-150×250
150×250
125
10-40
1-3
250
5.5
720×660×850
PE-200×300
200×300
180
15-50
2-6
260
7.5
910×750×990
PE-200×350
200×350
180
18-70
3-10
260
11
1000×870×990
PE-250×400
250×400
210
20-60
5-21
300
15
1300×1090×1270
PE-400×600
400×600
340
40-100
16-64
275
30
1730×1730×1630
PE-500×750
500×750
425
50-100
40-110
275
55
1980×2080×1870
PE-600×750
600×750
500
150-200
80-240
275
55
2070×2000×1920
PE-600×900
600×900
500
65-160
50-160
250
55
2190×2206×2300
PE-750×1060
750×1060
630
80-140
110-320
250
110
2660×2430×2800
PE-900×1200
900×1200
750
95-165
220-380
200
132
3380×2870×3330
PE-1200×1500
1200×1500
1020
150-350
400-800
180
160-220
4200×3300×3500
PE-1500×1800
1500×1800
1200
220-350
500-1000
180
280-355
5160×3660×4248

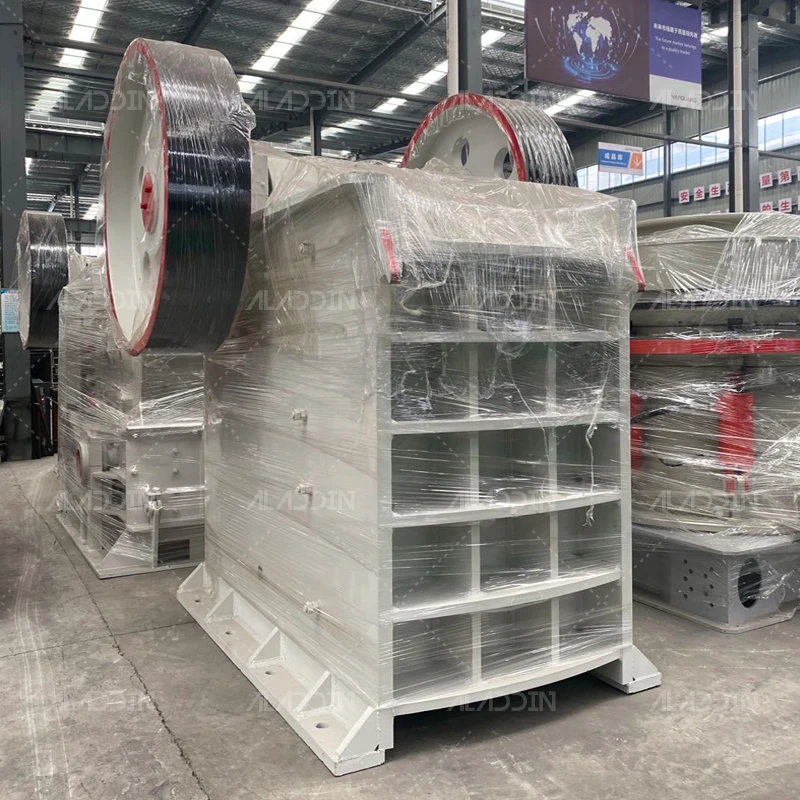

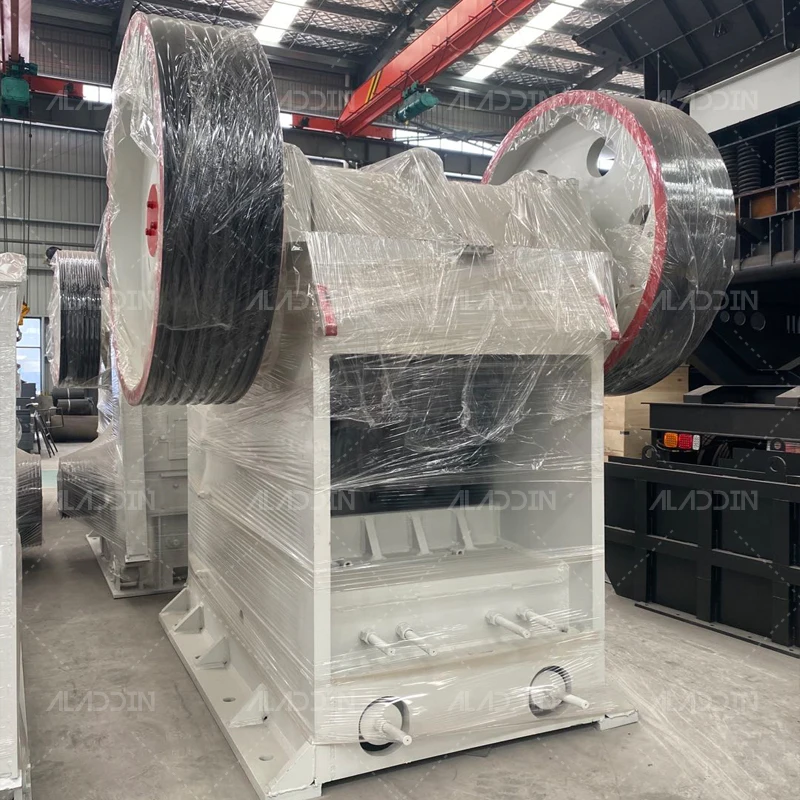

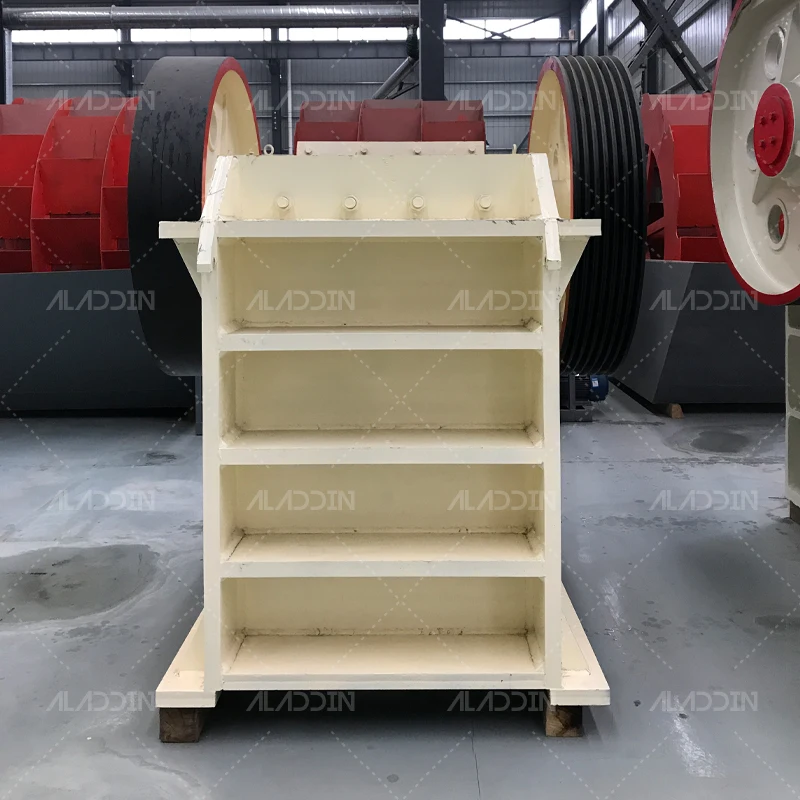

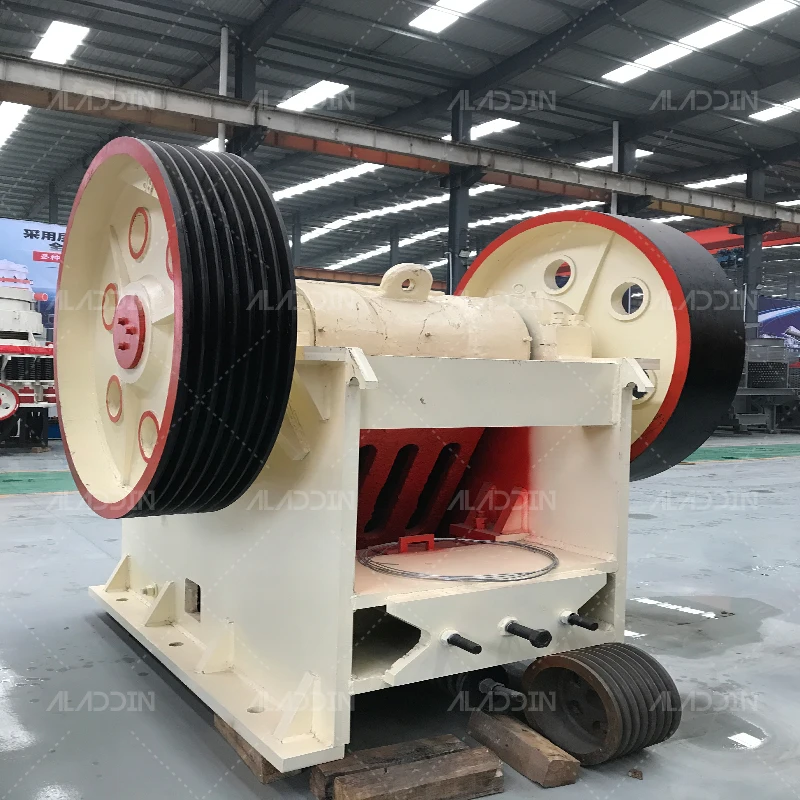

Product Details
Processing Materials of Stone Jaw Crusher
It can be used for primary secondary fine crushing of over 120 kinds of stones and rocks, such as granite, gold stone, quarry stone, rock, gravel, river rock, boulder, aggregate, basalt, etc. Adjustable final size meets different needs. Following is common final output size.
