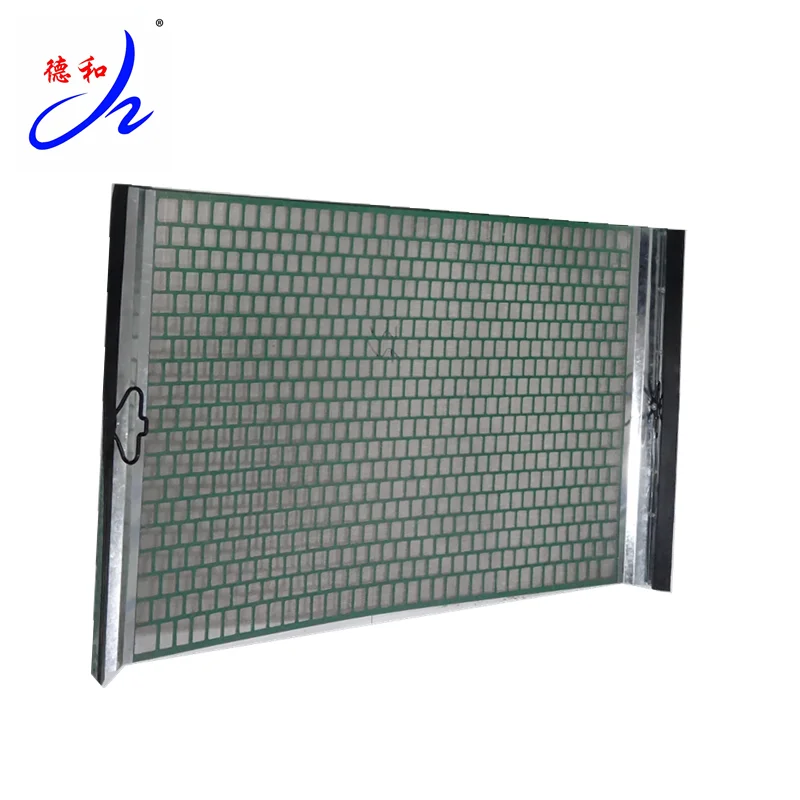

514 Hook Strip Flat Shaker Screen for Drilling Mud Shale Shaker

Hookstrip Flat screens the series applied most widely at present ,Main feature as follows:
1)These products screen panel are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate combined together, because of different mesh size ,and steel backing plate ,on the condition of using intensity ,to get the best and most effective filtering area .
2)The above of thin wire cloth with middle and the bottom of the thick wire cloth ,combine with different thickness steel backing plate together ,infinitely enhance the whole screen use intensity .because of different model and clients requirement ,can choose different steel backing plate form ,for example hexagonal ,rectangular ,square and so on ,supporting the above different screen cloth ,the whole cloth is divided into independent small surfaces ,prevent the part excessive expansion damaged ,better extend working life .



Product Parameters Product Parameters

Model of  Shaker Screen	Dimension	Mesh Range	Weight
500 series PWP	1050*695mm	20-325	6.1kgs
2000series PWP	1053*697mm	20-325	4.8kgs
313M series PWP	846*697mm	20-325	4.0kgs
Swaco ALS-2	1212*1141mm	20-325	9.0kgs
Swaco DFE	1225*720mm	20-325	7.0kgs

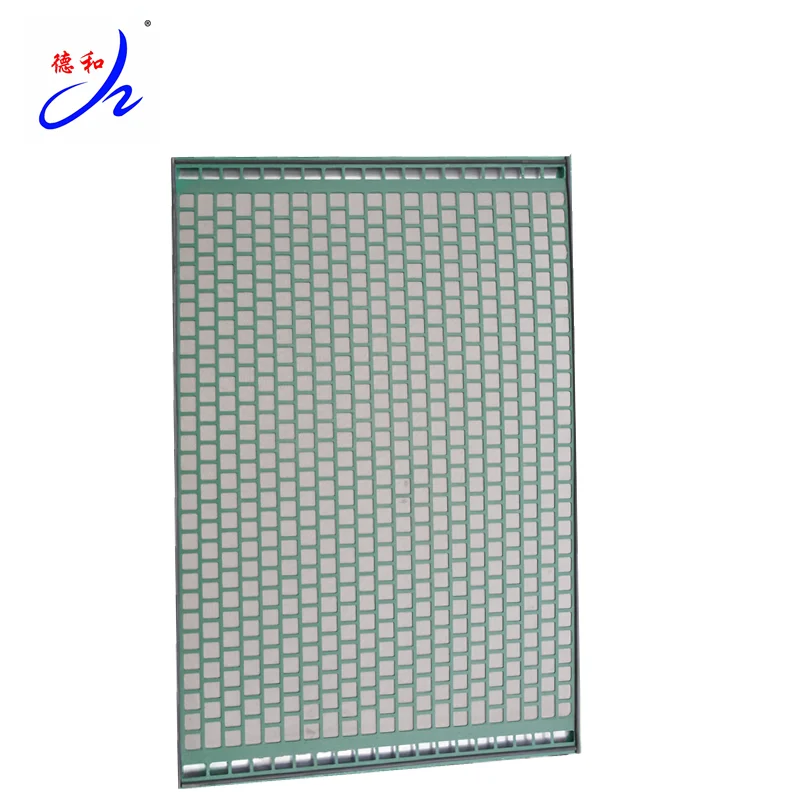

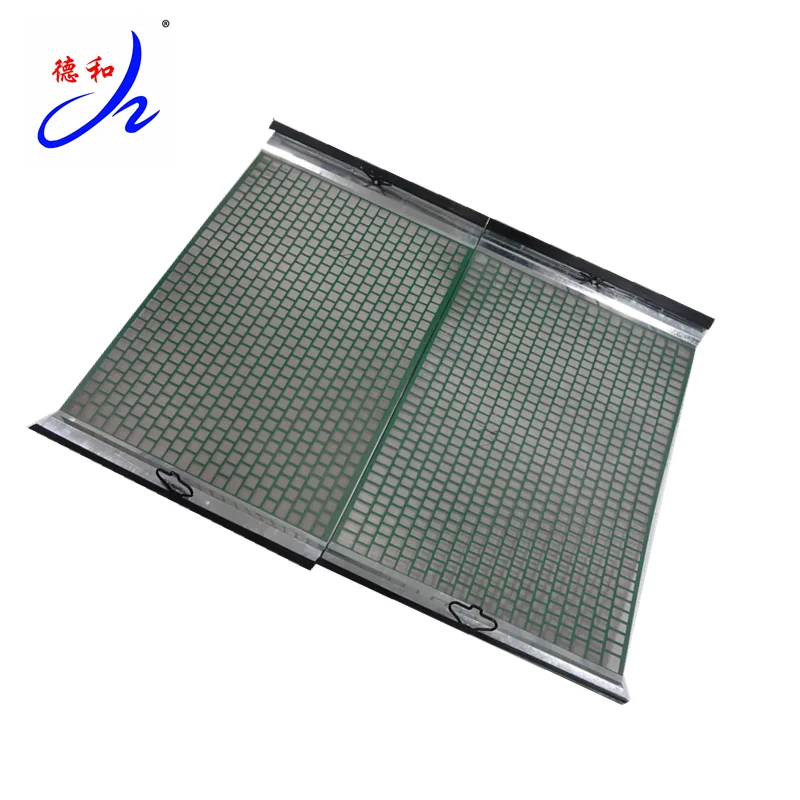

Product Details Show Product Details Show

Our Company Our Company

ANPING COUNTY XINGHUO METAL MESH FACTORY ,found in 1986 ,which is special factory in developing and producing Shaker Screen. Our factory developing the product of stainless steel high desity filter mesh in 1986 ,which win the title of “XingHuo”product from national scientific committee. Our factory is always insist on the rule of taking science and technology and developing as technical guide,the sincerity and pragmatie as manage aim, the mutually beneficial as cooperating base ,It is cited for this by higher department responsible for the work ,trusted by bank department,and well received by the customers.
