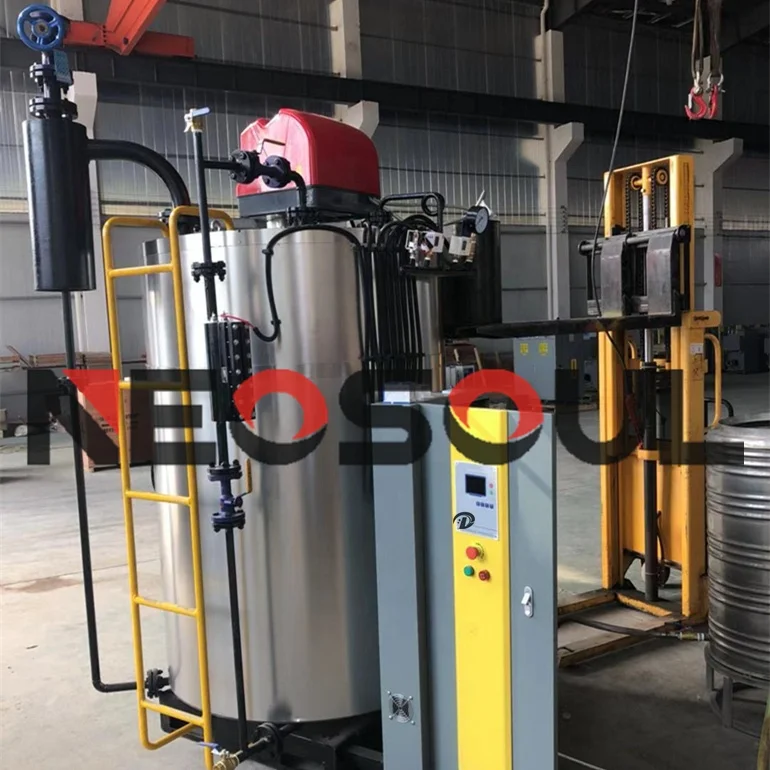

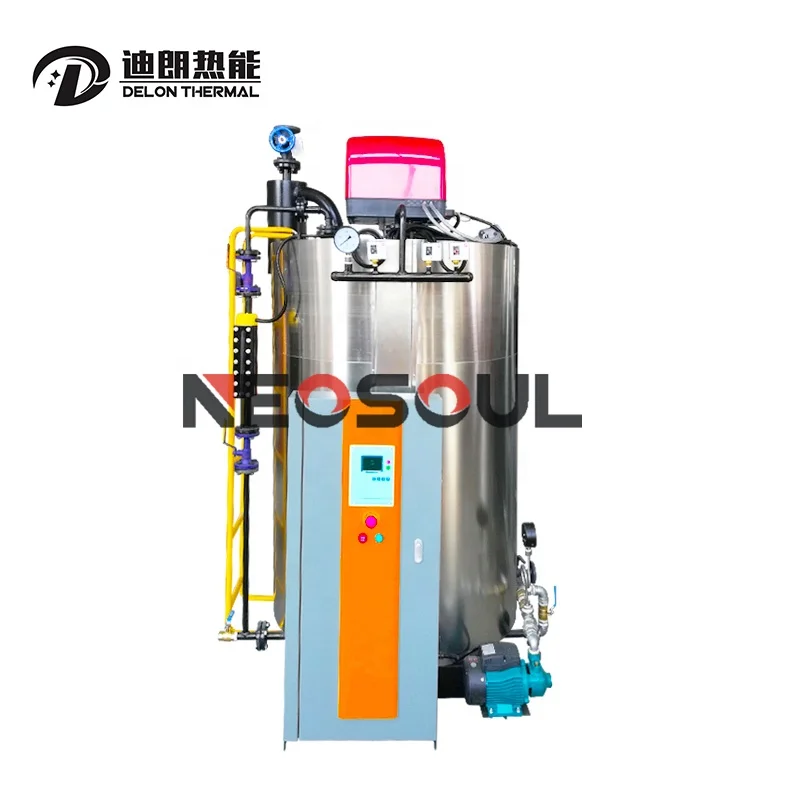

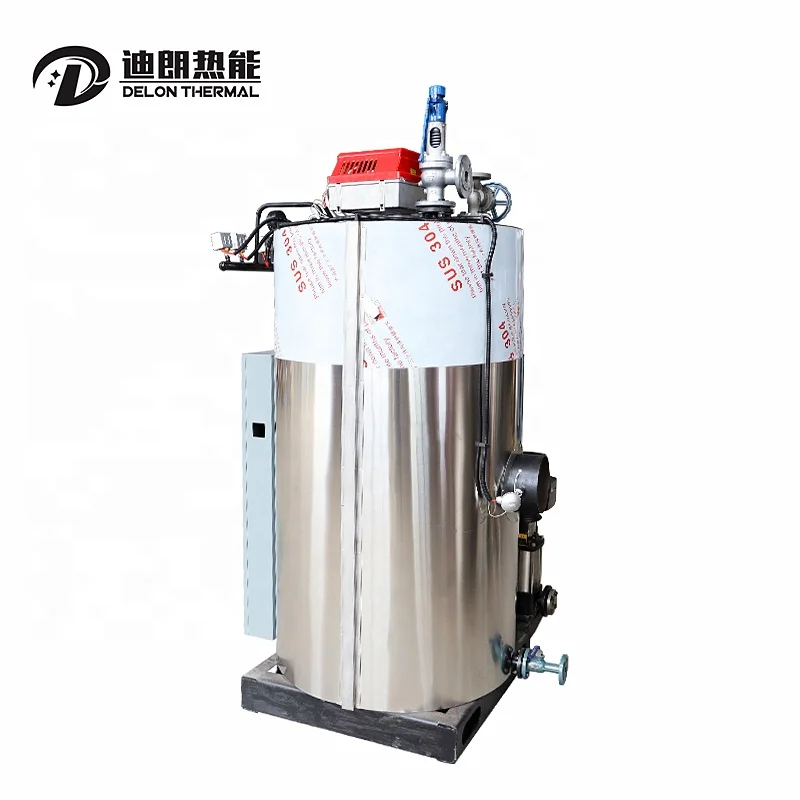

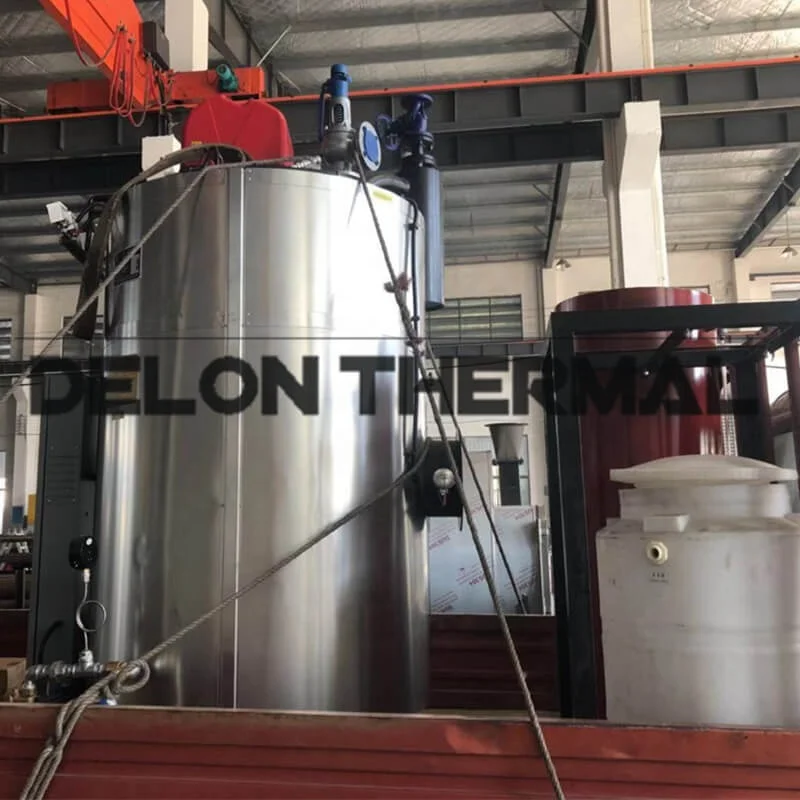

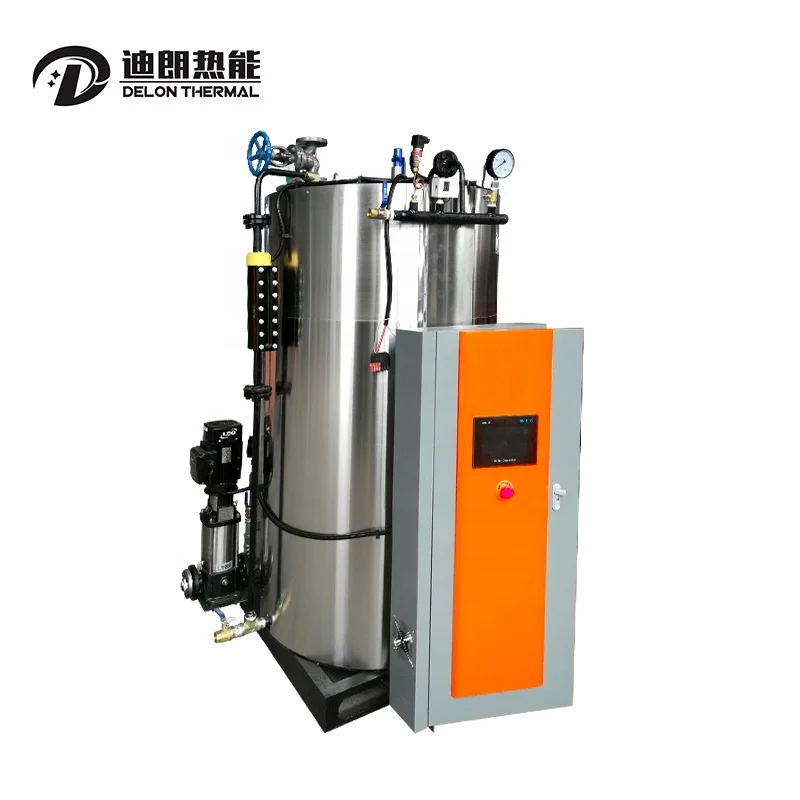

Compact diesel fired steam generator is one kind of package internal-combustion bent water tube boiler, with excellent technical performance of the automatic burner, as the main combustion equipment, high temperature flame will be generated through the automatic ignition from the top furnace into the water tube inside, when the bottom in the fold up 180 ° then into the furnace and the interlayer, and vent to atmosphere from the chimney which lies in top furnace. This kind of boiler has a high thermal efficiency, simple structure and long service life.
DELON COMPACT DIESEL(GAS) FIRED STEAM GENERATOR IS A SAFE, RELIABLE AND RAPID METHOD OF STEAM GENERATION UNIT FOR THE INDUSTRIAL USERS.
Main Features for Diesel Steam Generator:
1. Compact Design Vertical top fired design ensures minimum floor space required.
2. Easy Operation LSS Series of steam boilers are designed for fully automatic operation and have minimal maintenance requirements.
3. Highly Efficient Operation Experts from Chinese National Industrial Boiler Research Institute made a rigorous testing of the boiler, the thermal efficiency reached to 89%.
4. Safety Features The LSS steam boilers are fitted with safety valves in excess of the requirements of the standards covering the boiler design.
5. Quick Steam Generation Time DELON boilers generate steam at the prescribed pressure in 10-15 minutes after starting the operation. Quick steam generation allows users to set work at any time.

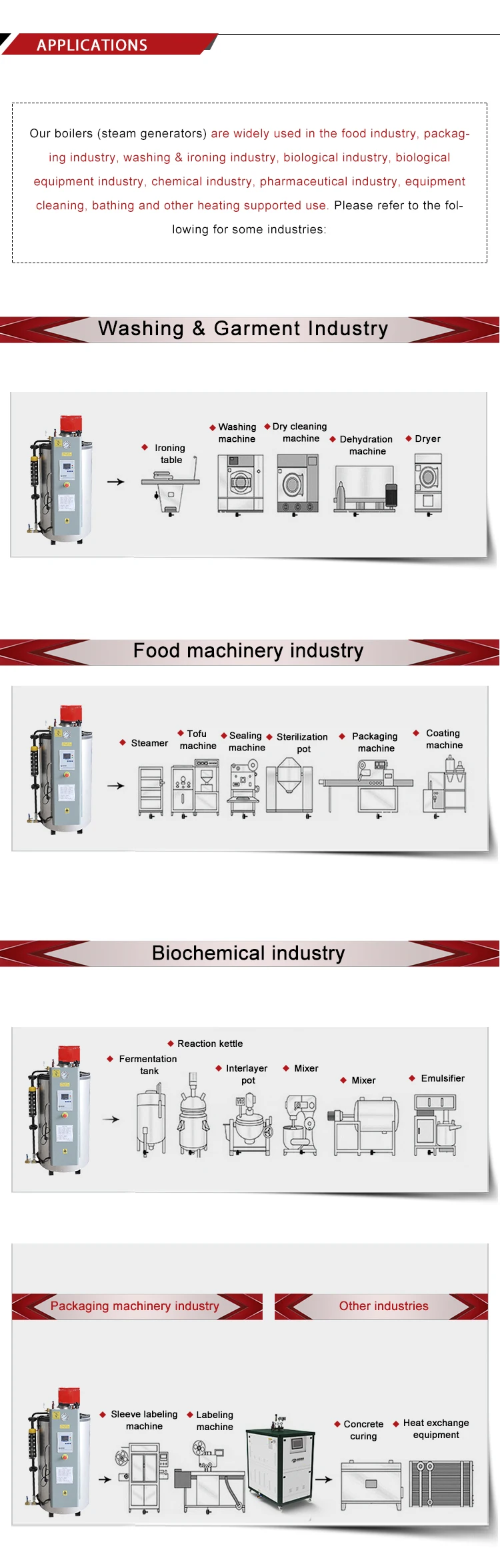

Applications for Diesel(Gas) Fired Steam Generator: Packaging machinery industries: Matching with labeling machines. Pharmaceutical equipments: Extraction tank, sterilization tank, concentrated tank. Washing and ironing industries: Matching with dry cleaning machine, dryer, washing machine, extractor, flatwork ironer, iron, etc. Food machinery industries: Matching with bean curd, steam-box, steam sterilization tank, packing machine, coating equipment, etc. Chemical industries: Matching with fermentation tank, reactor, steam-jacked kettle, mixer, emulsifying machine etc…
Technical Specifications for Diesel Fired Steam Generator:
Model
LSS0.1-0.7-Y.Q
LSS0.15-0.7-Y.Q
LSS0.2-0.8-Y.Q
LSS0.3-0.8-Y.Q
LSS0.4-0.8-Y.Q
LSS0.5-0.8-Y.Q
Item
Unit
Rated steam capacity
Kg/h
100
150
200
300
400
500
Rated working pressure
MPa
0.7
0.8
Saturated steam temperature
℃
170
174
Fuel Consumption
Light diesel
Kg/h
3.4
6.7
13.5
20.3
27
Natural gas
Nm3/h
3.7
7.3
14.7
22.1
29.4
LPG
Nm3/h
1.6
3.3
6.7
10.1
13.4
Water inlet diameter
DN
15
15
15
15
25
Steam outlet diameter
DN
15
15
25
40
40
40
Safety valve outlet diameter
DN
20
20
25
40
40
40
Blow-down valve diameter
DN
20
20
25
25
32
32
Overall dimension (L*W*H)
mm
1250×1050×1580
1350×1100×1700
1350×1100×1820
1460×1180×1950
1580×1520×2570
1580×1520×2570
Net weight
kg
320
380
450
790
1650
1850
Note:
1. The diameters of connection pipe sizes could be modified as per customers’ requirements.
2. The above specifications are subject to change without notice, special requirements could be designed.
Diesel Steam Generator Characteristics:
