Customized RS232 TTL Interface Port 1D 2D QR Code Reader Wired Embedded Module CMOS Fixed Mount 1D 2D Barcode Scanner

Physical Parameter

Material

ABS

Power Supply

DC 3.3V ±5%

Power Consumption

90mA (Working); 120mA (Maximum)

Maximum Consumption

0.5W

Color

Black

Button life

>150,000 times

Performance Parameter

Interface

USB, TTL RS 232 (PS/2 customizable)

System Supported

Linux,Android,Windows XP,7,8,10,MAC

Language Supported

English; French (France/Canada); Dutch; Spanish (Spain); Italian (Italy14); German; Português (Brazil/Portugal); Türkçe (Turkey
F/Q); Polski (Poland)

Capture pixel

640*480

Resolution

4mil

Bit error rate

1/5 milion

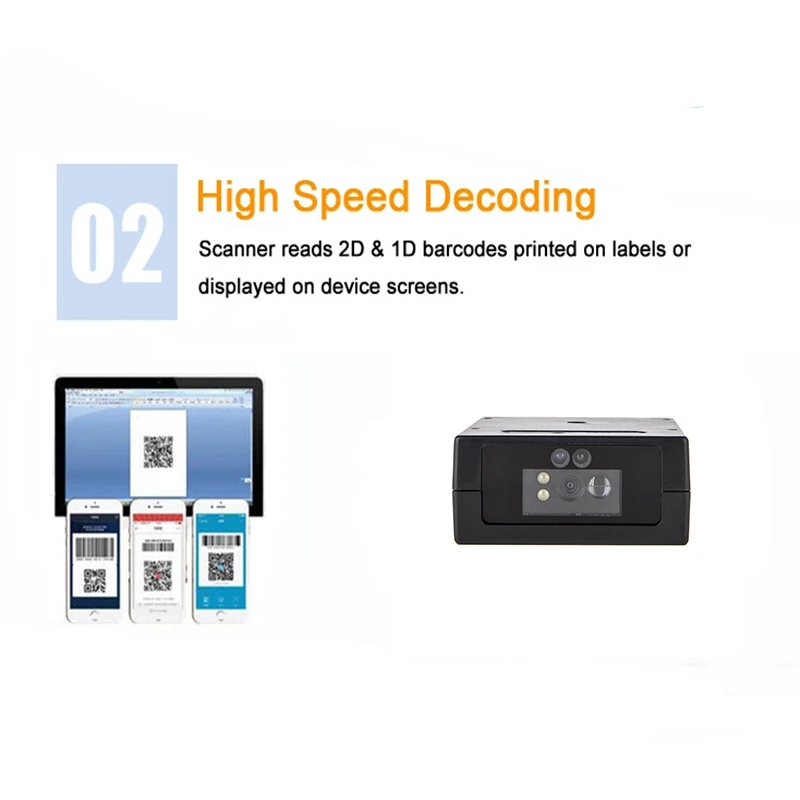

Decoding speed

300 times/s

Reading Mod

CMOS

Trigger Mode

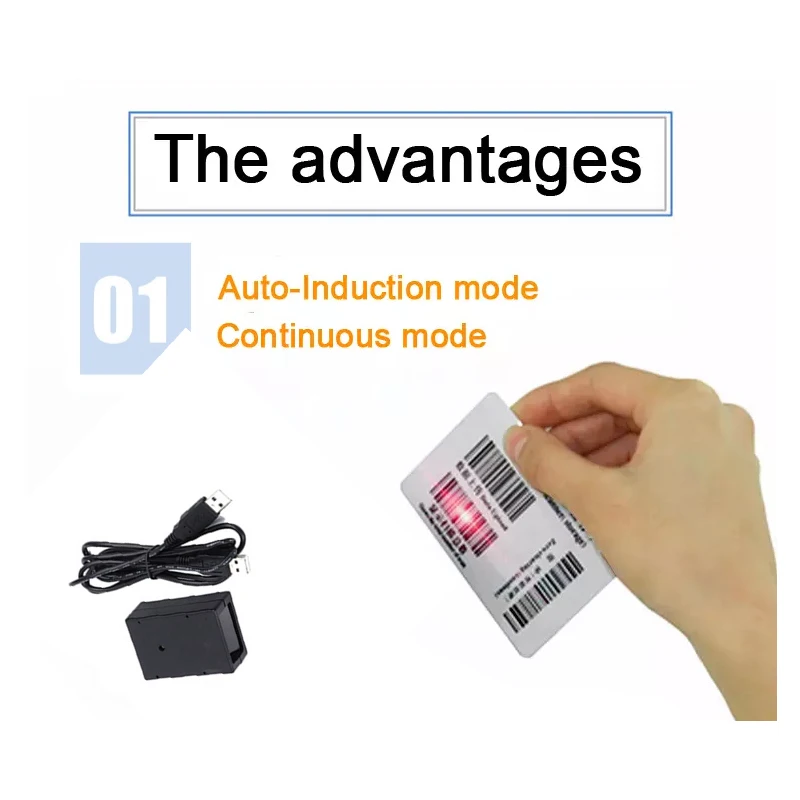

Key trigger; Auto-Sensing; Continuous scanning

Reading Distance

10mm-600mm

Prompt Mode

Buzzer, Indicator Light(LED)

Print Contrast

20%

Decoding
Capability

Code25-Interleaved Code25-Standard Code25-Matri
Code39-Regular Code39-FullASCII Code32
Code93-Regular Code93-FullASCII Code128
EAN/GSL/UCC-128Auto Codabar MSI
EAN/JAN-13 UPC-A JAN-8
Code11 UPCE0

scanning Angle

Rotation angle 60°, elevation angle 40°, inclination angle 40°

Scanning Depth

Code39 4.17mil(15 bytes):1cm - 9cm
Code39 7.50mil(15 bytes):3cm - 18cm
Code128 4.17mil(15 bytes):1cm - 9cm

Environment Parameter

IP Grade

IP52

Operating Temp.

-20℃~+50℃

Storage Temp.

-20℃~+60℃

Operating Humidity

5% to 90%(No Condensation)

Storage Humidity

50% to 90%(No Condensation)

ESD Protection

15KV air discharge

Shock Resistance

Free Fall 1.5 m(concrete surface)
