Pure Sine Wave 12VDC 24VDC 48VDC 230VAC 1000W Inverter with Charger
- Category: >>>
- Supplier: Hangzhou Maixi Electronics Co. Ltd.
Share on (1600185336711):
Product Overview
Description
Product Description

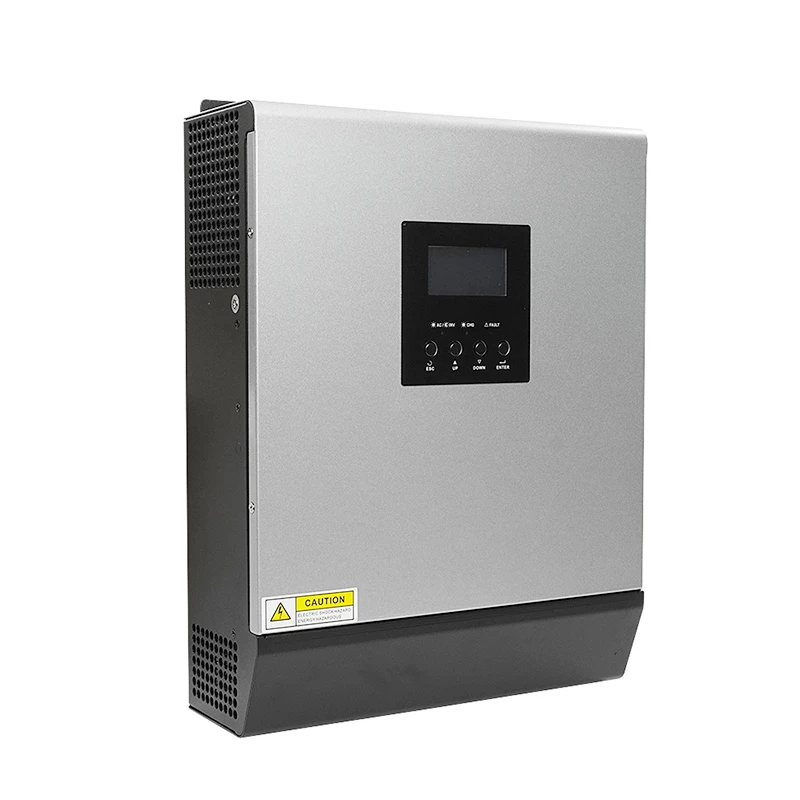

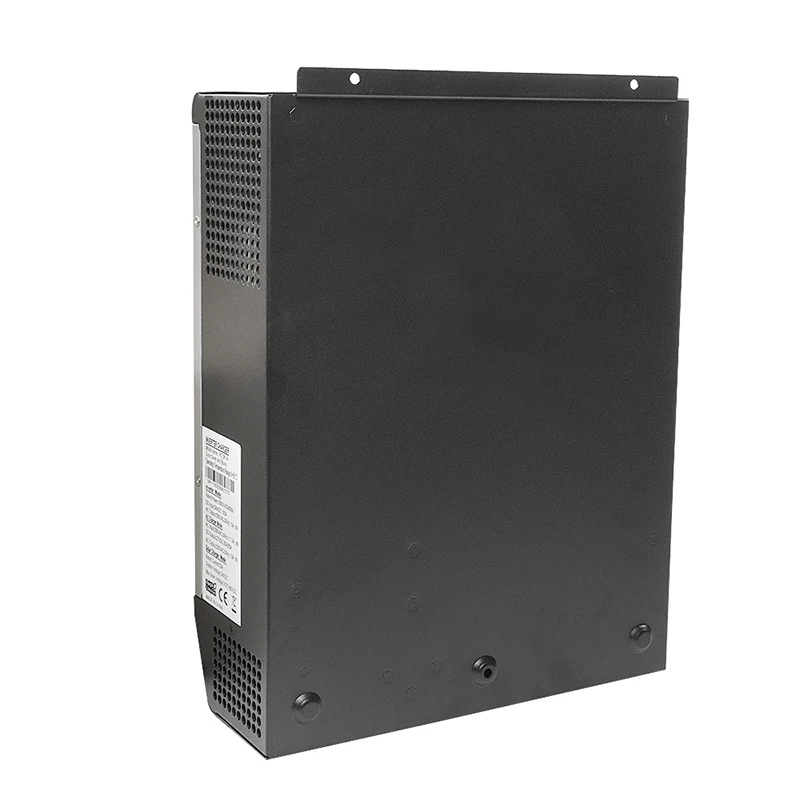

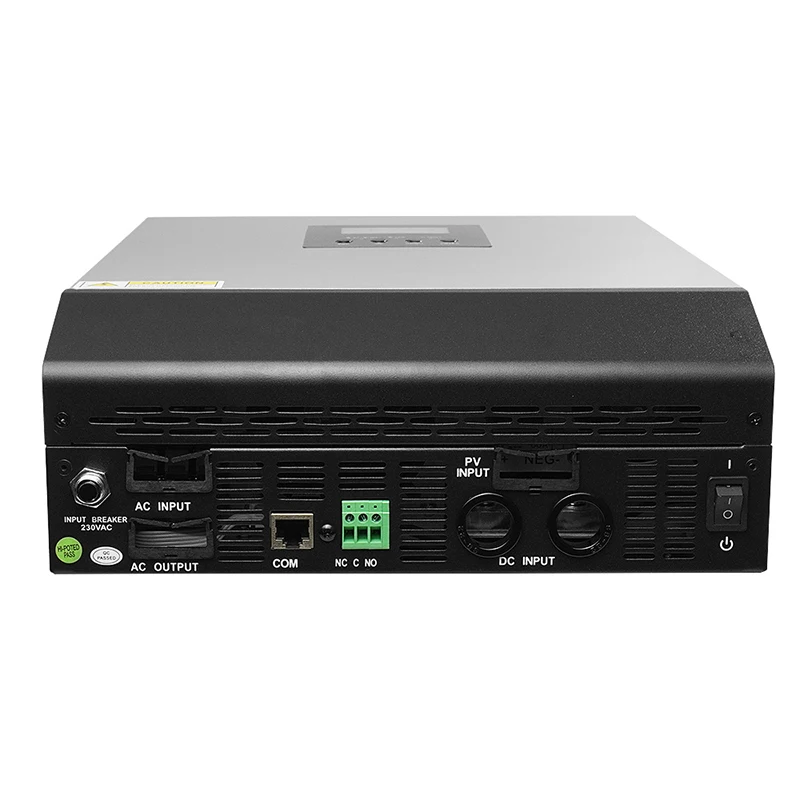

Pure Sine Wave 12VDC 24VDC 48VDC 230VAC 1000W Inverter with Charger
Product Details

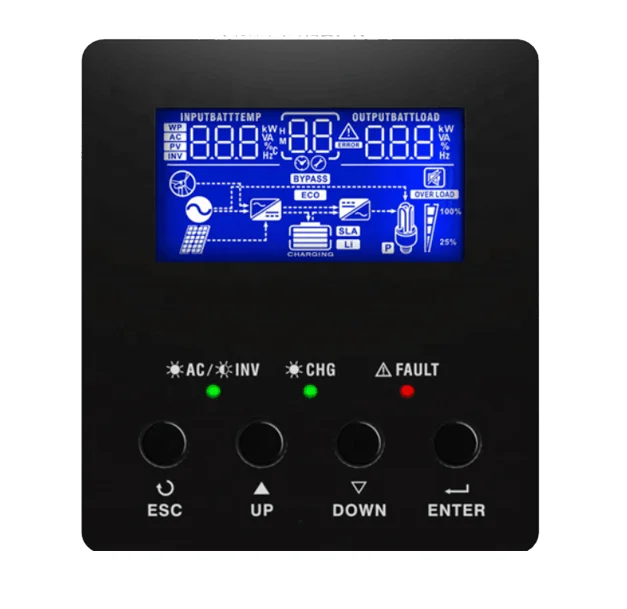

Smart Monitoring System, solar power and ac power available.
Paramenters
Model | PS 1KVA | PS 3KVA | PS 5KVA | |||
Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W | |||
INPUT | ||||||
Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||||
OUTPUT | ||||||
AC Voltage Regulation | 230VAC±5% | |||||
Surge Power | 2000VA | 6000VA | 10000VA | |||
Efficiency(peak) | 90% | 93% | ||||
Transfer Time | 10ms(personal computers) 20ms(for home appliances) | |||||
Waveform | Pure Sine Wave Solar Inverter | |||||
BATTERY & AC CHARGER | ||||||
Battery Voltage | 12VDC | 24VDC | 48VDC | |||
Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | |||
Overcharge Protection | 15VDC | 30VDC | 60VDC | |||
Max Charge Current | 10A or 20A | 20A or 30A | 10A/20A/30A/40A/50A/60A | |||
SOLAR CHARGER(OPTION) | ||||||
Charging Current | 50A | |||||
Max PV Array Open Circuit Voltage | 40VDC | 80VDC | 105VDC | |||
PV Range | 15-18VDC | 30-32VDC | 60-72VDC | |||
Standby Power Consum. | 1W | 2W | 2W | |||
OPERATING ENVIRONMENT | ||||||
Humidity | 5% to 95% relative humidity(non-considering) | |||||
Operating Temp. | 0℃-55℃ | |||||
Storage Temp. | -15℃-60℃ | |||||
Packing & Delivery
Custom-made foam
Carton+wooden pallet
Application
Solar inverters widely for small PV plants, home appliances, PC computers, electric fan, FM radio and solar power system.

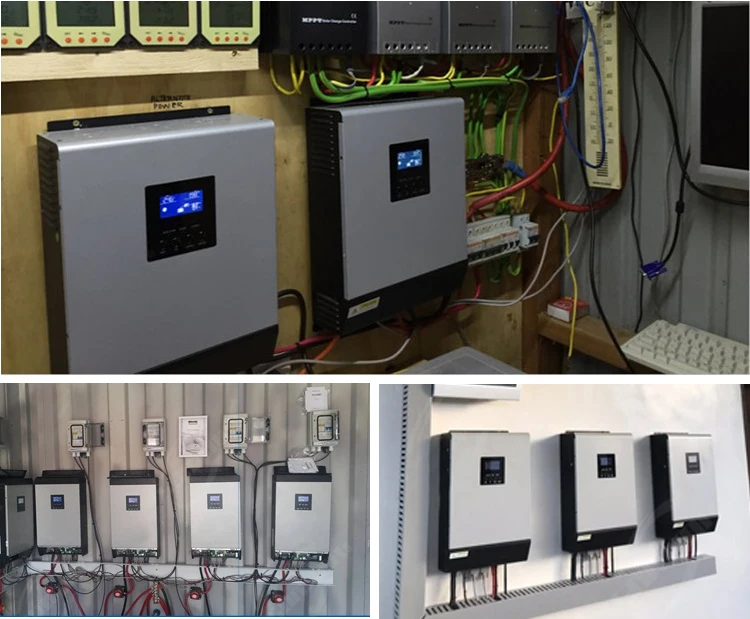

Factory Show
FAQ
Q: What is the solar inverter?

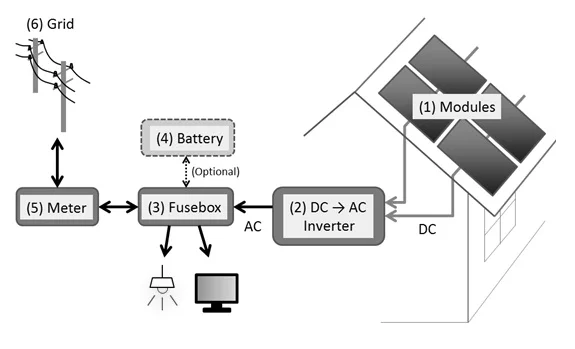

A: The solar inverter or PV inverter, is a type of electrical converter which converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network.
A: Solar inverters may be classified into three broad types:Stand-alone inverters, Grid-tie inverters,Hybrid solar inverters.
A: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
A: The solar inverter or PV inverter, is a type of electrical converter which converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network.
Q: How many kinds of solar inverters can be divided into?
A: Solar inverters may be classified into three broad types:Stand-alone inverters, Grid-tie inverters,Hybrid solar inverters.
Q: What's hybrid solar inverters ?
A: Intelligent hybrid solar inverters, manage photovoltaic array, battery storage and utility grid, which are all coupled directly to the unit. These modern all-in-one systems are usually highly versatile and can be used for grid-tie, stand-alone or backup applications but their primary function is self-consumption with the use of storage.
Q: What's the different between inverter and solar inverter?
Q: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
