high intensity 20000 gauss wet magnetic separator roller

Product Overview

Description

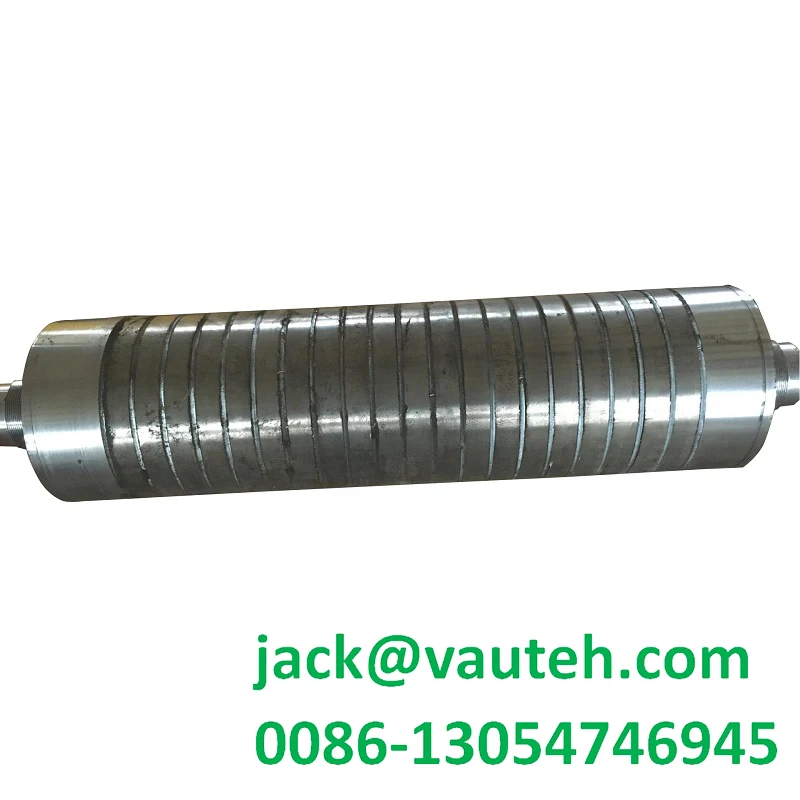

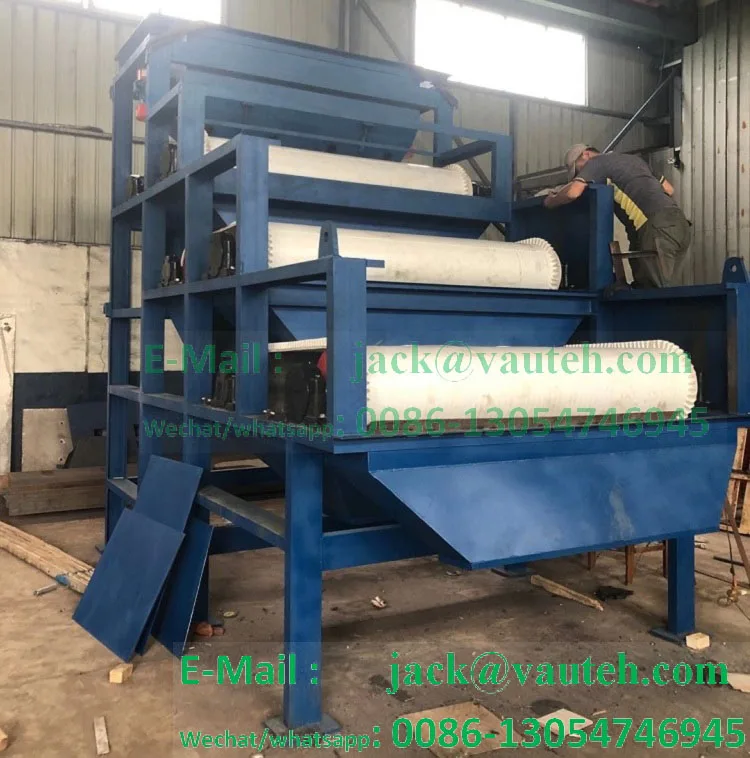

high intensity 20000 gauss wet magnetic separator roller



 Introduction of magnetic roller separator

With the ever increasing demand for high-purity feedstocks used in manufacturing, HuaXin offers its Dry High Intensity Rare Earth Roll Magnetic Separators. These provide maximum efficiency in the separation of weak magnetic particles for product purification applications. Huaxin applied sophisticated finite element analysis in magnetic circuit design to produce an energy-free separator capable of generating the exceptionally high field-strengths needed to remove unwanted fine iron contaminants,or more workable for iron beneficiation usage.

Magnetic cleaning has been applied to the most basic industry foundations such as industrial minerals, metals recycling, glass batch and cullet, abrasives and refractories, chemicals, pharmaceuticals, and plastics.

Applications of magnetic roller separator

 Refractory and abrasive.

Magnetite beneficiation.

Raw materials cleaning.

Iron ore beneficiation.

Glass sand and manganese beneficiation.

Pyrophyllite and andalusite beneficiation.

Diamond beneficiation.

Kainite and the diatomaceous earth cleaning.

Pre-concentration of copper-nickel ore.

Feldspar cleaning.

The Bauxite upgrading.

Removal of the Ferro silicates from the limestone magnetite etc.

Graphite and flint clay beneficiation.

The recovery of metals from the slag.

Ultra high quartz purity cleaning.

Ceramic raw materials cleaning.

The selective separation of the rutile/ zircon / ilmenite and garnet recovery.

Bauxite cleaning.

Advantages of the magnetic roller separation

it lower the installation costs.

 Easy access to the dust generation points.

 Reduced periodic cleaning and the downtime.

 Ready observation of operation and the ease of process control.

It lower the maintenance costs.

 It lower the capital costs and the operating costs at per tones of the product.

Latest emf- Chinese factories incorporates the special new designs of the operational and the development experience.

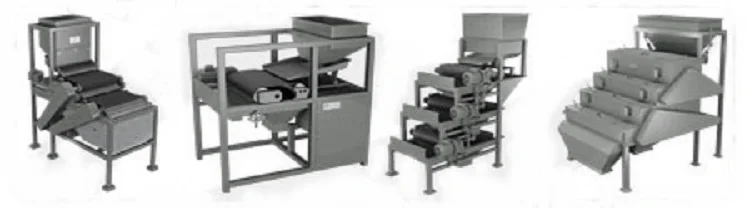

Design options of magnetic roller separator

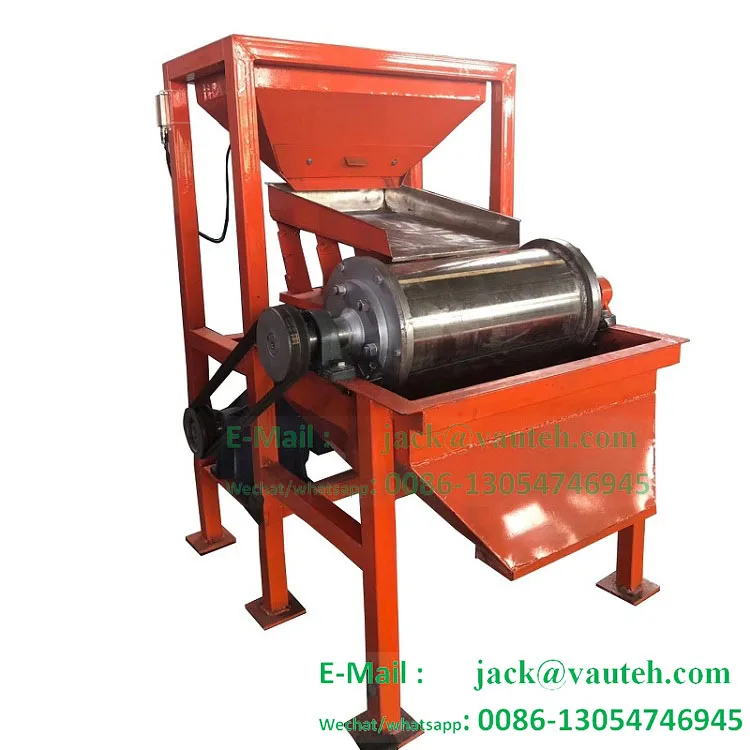

Working Principles magnetic roller separator

A short conveyor belt envelopes the Magnetic Roll and a tensioning Ideal Roll. A Suitable Feeder discharges material on

the Belt. The Ferro Magnetic and Paramagnetic Particles adhere to the Belt while the non Magnetic particles flow freely

off the end of the conveyor.

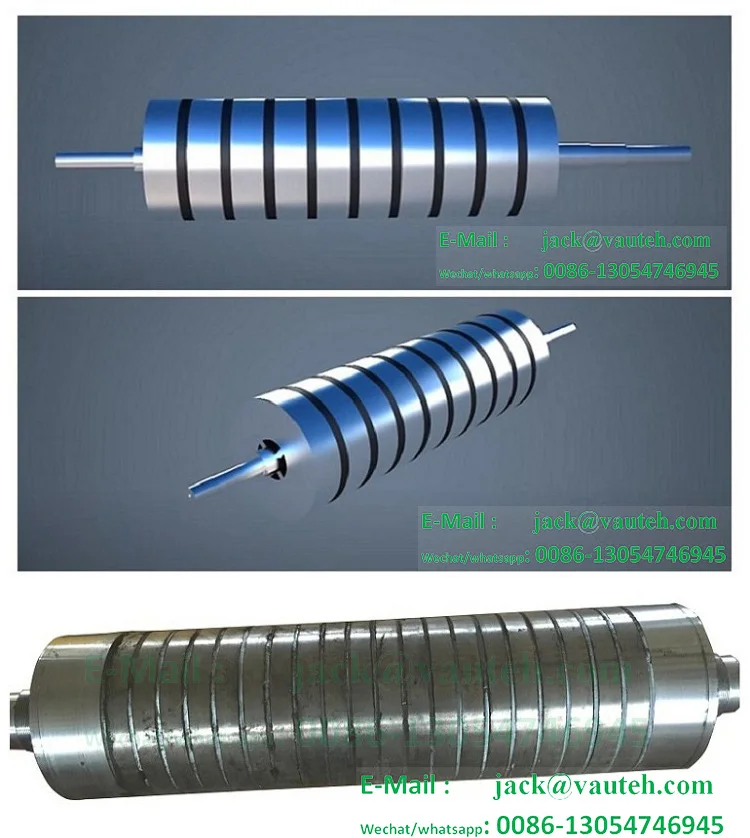

Features magnetic roller separator

1. The combination of permanent magnet drum and permanent magnet roller makes the iron removal effect better.

2. The drum is adopted a new type of compensation magnetic model magnetic system, magnetic field strength can reach 8000GS, magnetic field strength is higher, suction is stronger.

3. Magnetic cylinder can be made to turn over to improve the net removal rate. Roller and magnet roller speed can be adjusted to adapt wider particle size and yield requirements.

4. The magnetic roller adopts a polymagnetic composite magnetic system with a magnetic field strength of 17000GS and a higher gradient.

5. The controllable feeding system guarantees the homogeneity of the material flowing through the magnetic field. The conveyor belt is made of special materials and with good wear resistance.

6. The product can a clean weak magnetic oxideutomatically, can guarantee long-term trouble-free operation.

7. The equipment has a dust-removing port and concentrated dust emission to meet the requirements of environmental protection.





Technical specifications of magnetic roller separator

Model	The length of the   roller               (mm)	Magnetic induction   density       (GS)	Rotation rate of   magnetic roller(r/min)	Material size  (um)	Capacity (T/h)	Driving Power (kw)
HX -80-A	Φ80×(500-1000)	10000-18000	60	83-1000	0.8-1.2	1.1
HX-80-C					1-2	1.1×2
HX -100-A	Φ100×(500-1000)				1.5-1.8	1.5
HX -100-C					1.5-3	1.5×2
HX -120-A	Φ120×(500-1200)				2-2.5	2.2
HX -120-C					2-4	2.2×2
HX -150-Ⅰ	Φ150×(800-1500)				4-6	3.0
HX -150-C					5-10	3.0×2
HX -180-A	Φ180×(1000-2000)				8-15	3.0
HX -180-C					10-20	3.0×2
HX -220-A	Φ220×(1000-2000)				12-18	4.0
HX -220-C					15-30	4.0×2

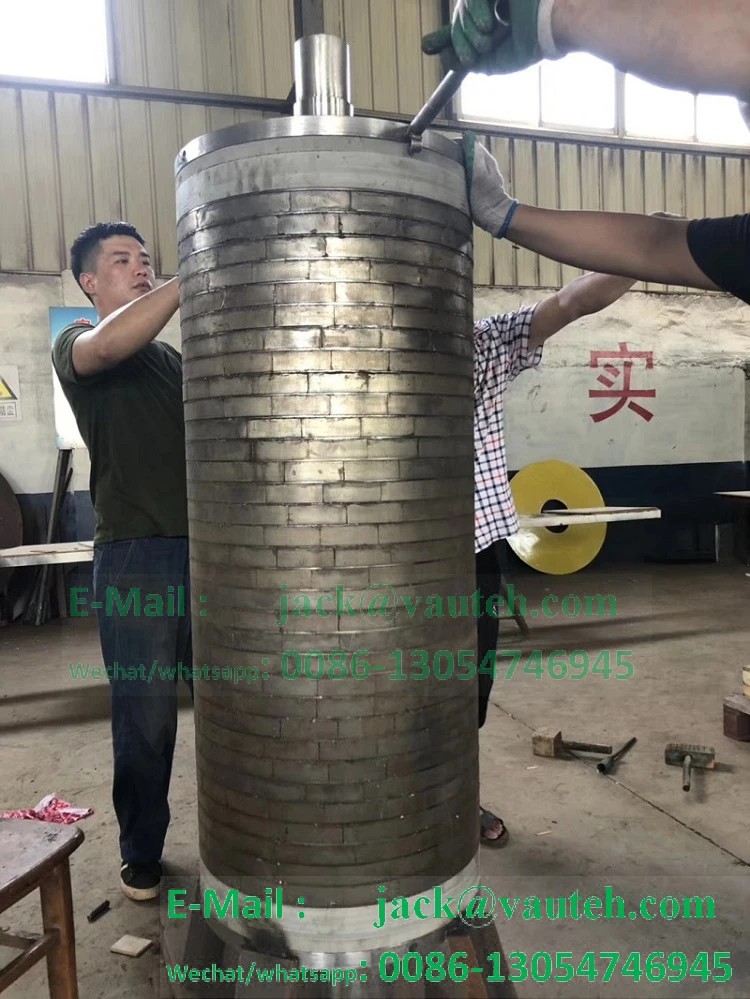

OEM and ODM of of magnetic roller separator

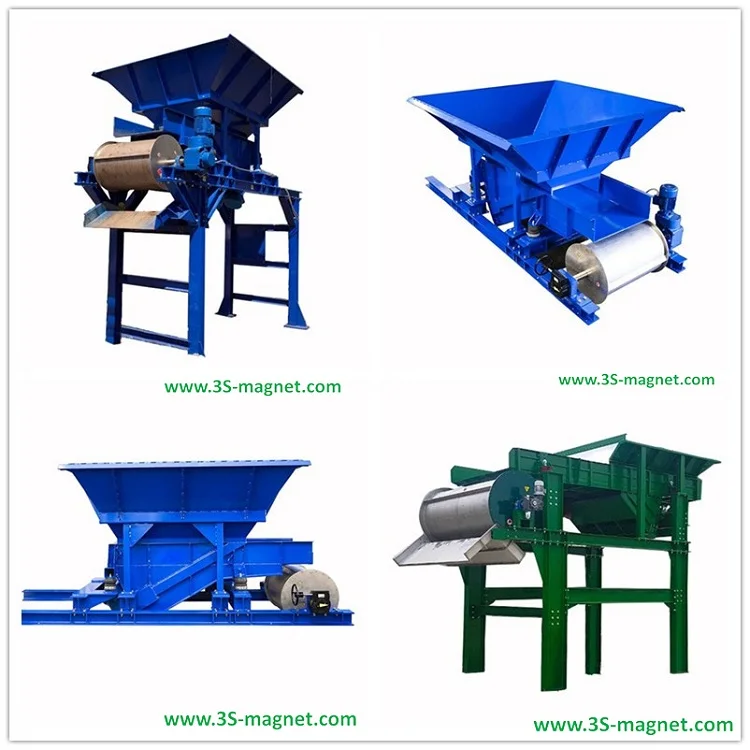

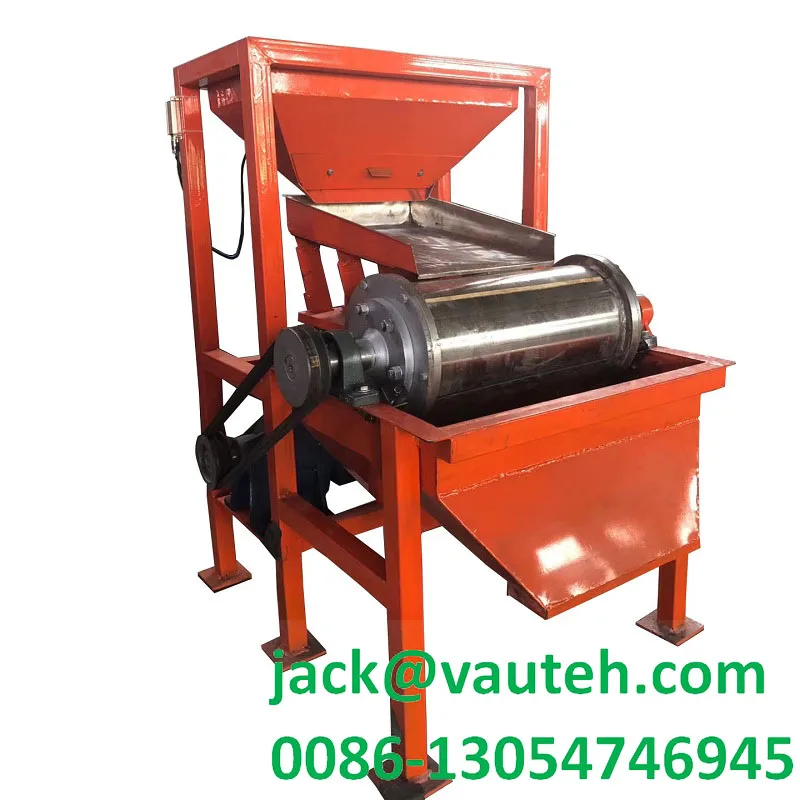

Magnetic drum Separator of of magnetic roller separator



Applications of magnetic roller separator
