Biometric Attendance IR Thermal scanner Smart AI access control Face Recognition Temperature measuring machine WIFI SDK API
- Category: >>>
- Supplier: Chengdu Tommi Technology Co. Ltd.
Share on (1600185343764):
Product Overview
Description
Product Description
Specification
| General | |
| Processor | Dual core ARM cortex-a7 @ 900 MHz; NPU:1.0 TOPS |
| OS | Linux |
| Face capacity | 50000 |
| Event capacity | 100000 |
| Screen | |
| Size | 5 inch |
| Type | Optional touch screen |
| Camera | |

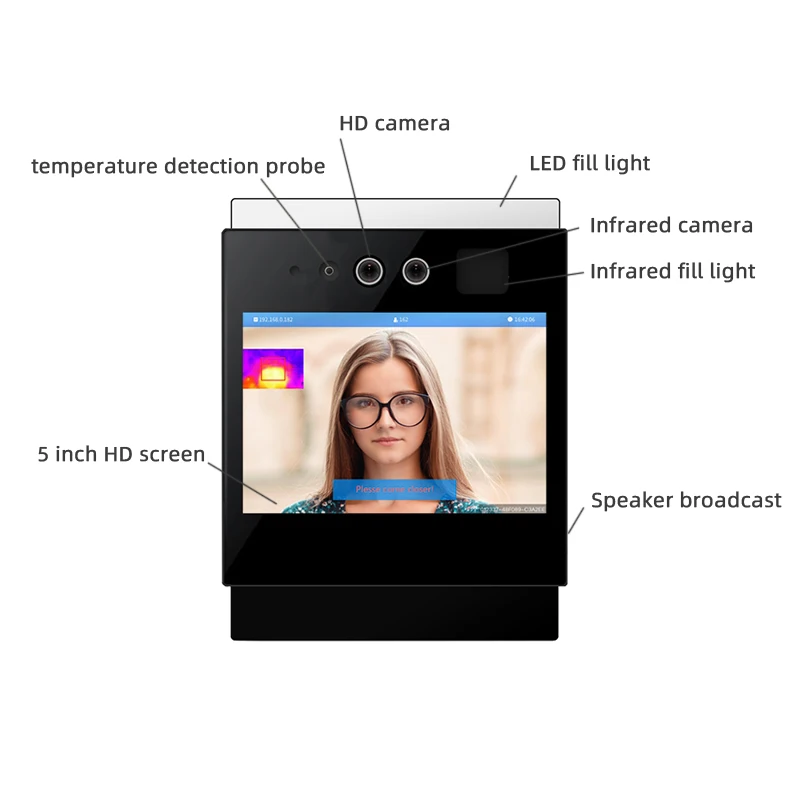

| Type | Dual camera |
| Pixel | 2M |
| HDR | support |
| Digital noise reduction | support |
| Face recognition | |
| Detection type | Support live detection |
| Face Recognition rate | 99% |
| Face recognition Speed | ≤80ms |
| Face recognition distance | 0.5-1.2m |
| Function | |
| Audio prompt | support |
| Secondary development | support |
| Face anti-spoofing | support |
| Video Record & output | support |
| Capture Photo output | support |
| Network function | |
| Network protocol | ONVIF,TCP/IP,HTTP,FTP,485, GB28181, Wiegand, DNS,NTP, MQTT, WEBSOCKET |
| Interface protocol | ONVIF, RTSP,SDK |
| General functions | Heartbeat, password protection, NTP timing |

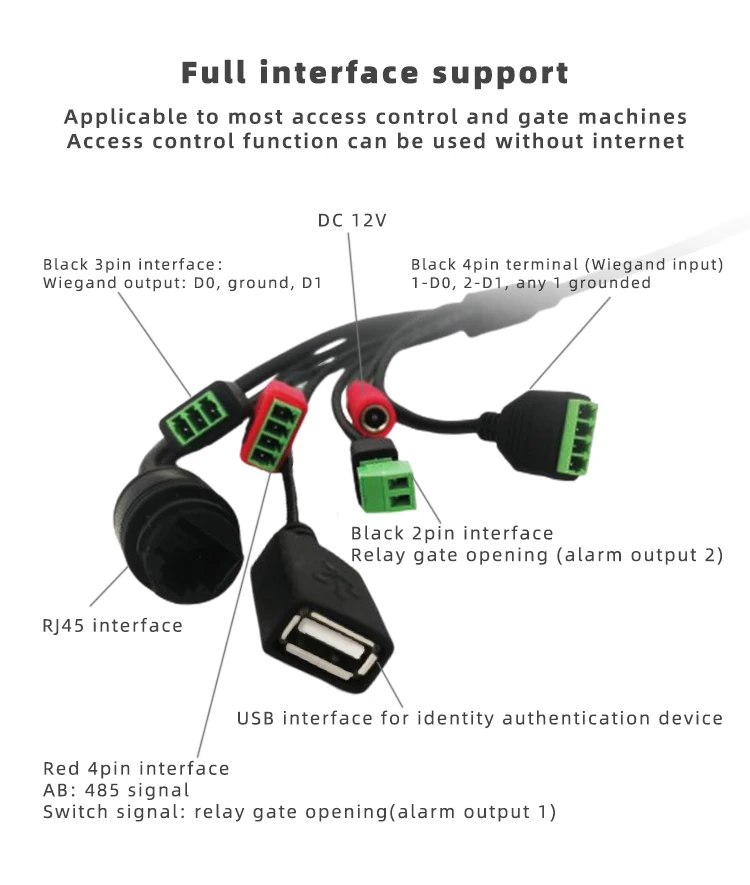

| Interface | |
| Network interface | RJ45 10m / 100M network adaptive |
| WiFi | support |
| Relay signal | support |
| RS485 | support |
| Wiegand | input,output |
| USB | / |
| Others | |
| Power Supply | DC12V 2A |
| working temperature | 0℃-40℃ |
| Working humidity | 0%-90% |
| Power consumption (maximum) | ≤12W |
| Size | |
| Application environment | Indoor or windless environment |

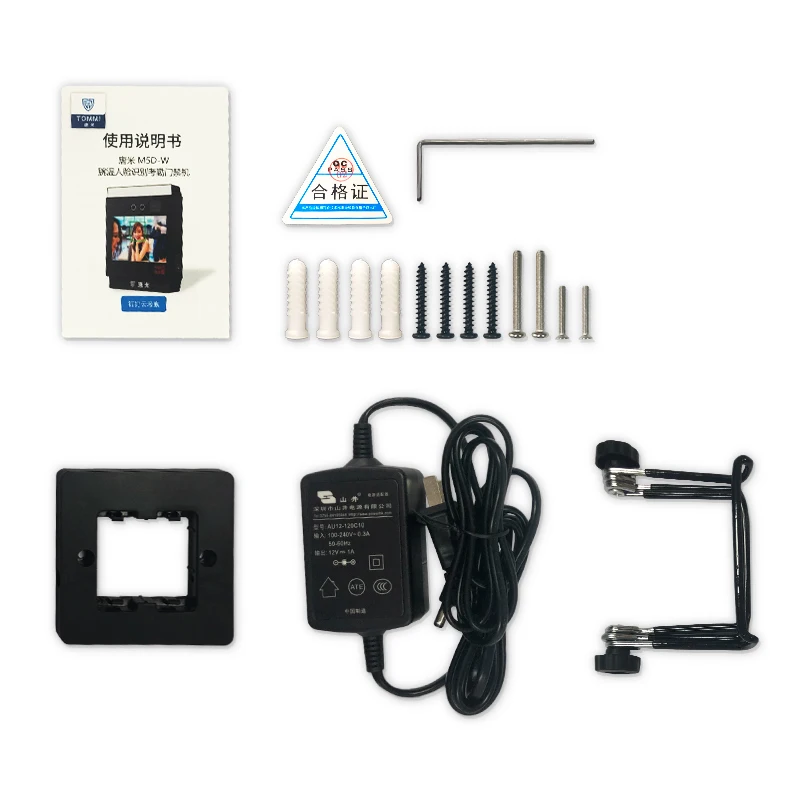

| Accessories | wall bracket, Power supply, allen wrench, warranty card, manual |
| Package | |
| Size | 198mm*250mm*95mm |
| Weight | 1025G |
| Warranty | 1 year |
| Certification | CE FCC |
| Temperature measurement | |
| measurement position | forehead |
| Measuring distance | 20-120cm |
| Temperature range | 34-42℃ |
| Temperature response | ≤0.5s |
| Measurement accuracy | 0.01℃ |
| Measurement deviation | ±0.2℃ |

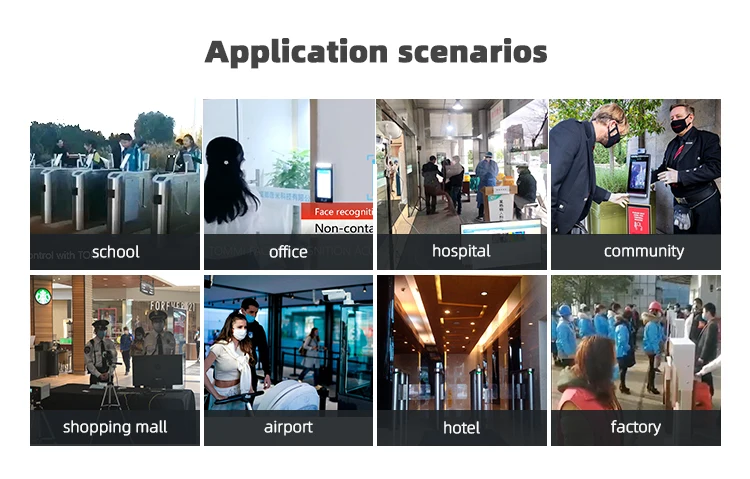

Application of Tommi Flash Series
Face recognition body temperature access control
Dual 2M pixel thermal camera can recognize faces within 80-300ms and detect body temperature with an accuracy rate of +/-0.2°C.For normal temperature and right face ID, access is allowed automatically. Alarms go off when the temperature exceeds preset value and records can be kept for review.
Automation and save labor force as it replaces an operator or guard with hand-held temperature gun
Non-contact temperature measurement at a distance of 0.3m-2m and no need for an operator to monitor the access control system as it can automatically displays real-time temperature reading and face ID and determine whether a person should be allowed or denied access. The whole process takes less than a few seconds.
Make sure masks are worn

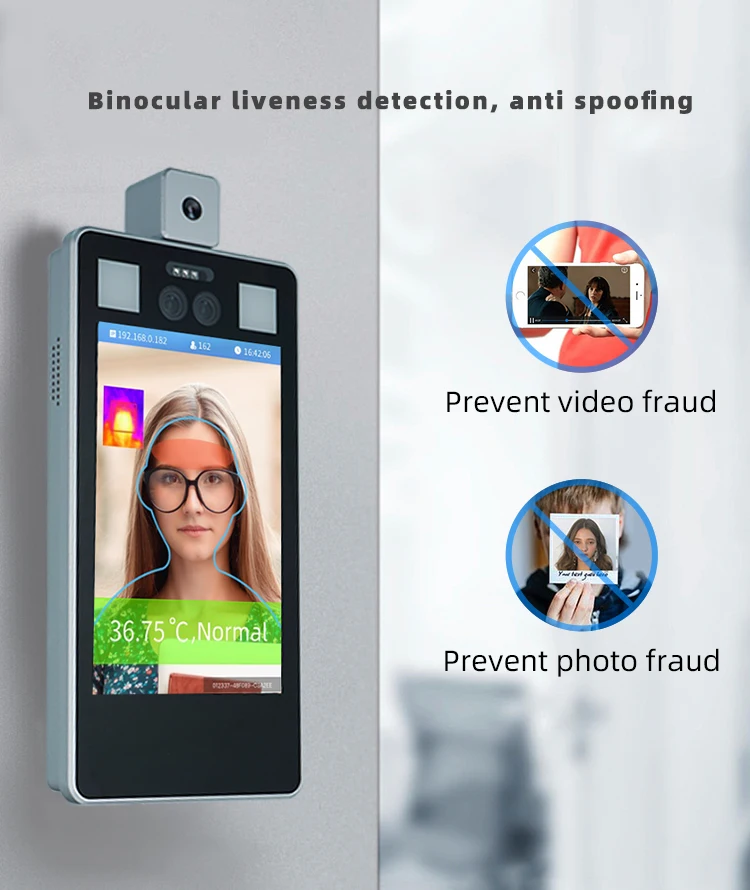

Flash series has mask detection function which supports face ID recognition when wearing a mask and also sound an alarm and remind the user to wear a mask with voice broadcast if preset with mask wearing requirement.
Customization Options | ||
Options | Function | Specifications |
Health QR Code Recognition | Version 12 above 65*65 | |
Advertisement Playback | Image or Video advertisement playback | 1280*800 equal ratio picture |
4G | 4G Communication |
|
Swipe Card | Swipe a card to get access | IC+ID |
Audio&Video Intercom | Intercom | Two-way audio, one-way video |
Built-in NFC | Swipe a card and mobile to get access | Cards and devices that comply with NFC specifications |
WIFI | WIFI network | IEEE 802.11 b/g/n |
Touch Screen | Touch screen setting system | Multi-point capacitive touch screen |
50,000 Face Library | Local storage of 50,000 face library (offline) | 50,000 face library with self-developed algorithms |
Buyer Feedback
Buying Guides

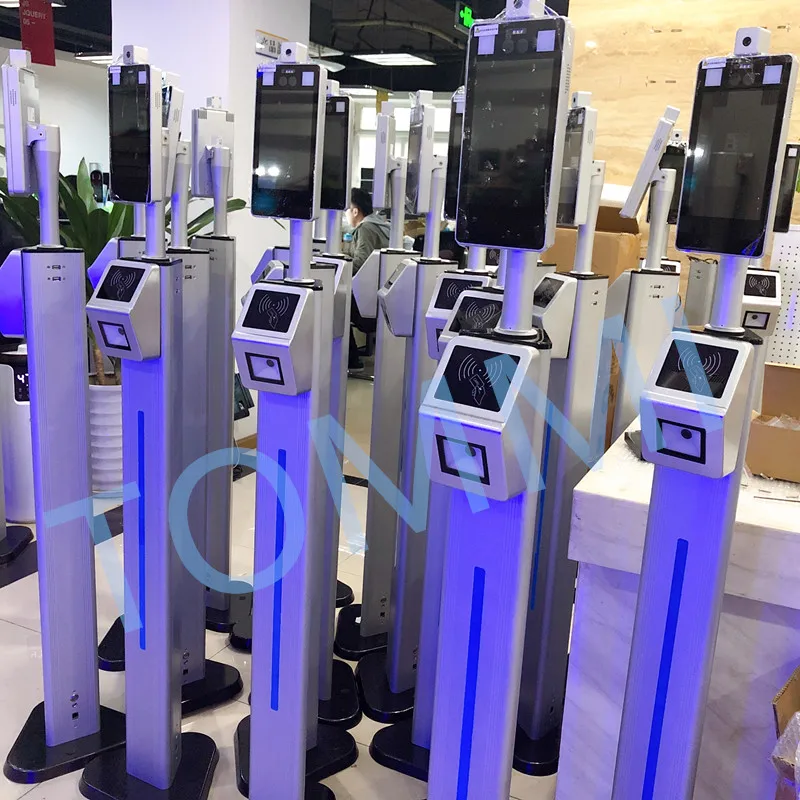

Card reader and QR code reader can be added to the face recognition device.
Note: The cost of the added card reader,QR code reader and the metal stand is not included in the current price, pls contact us for the price of the stand or questions about customized functions.

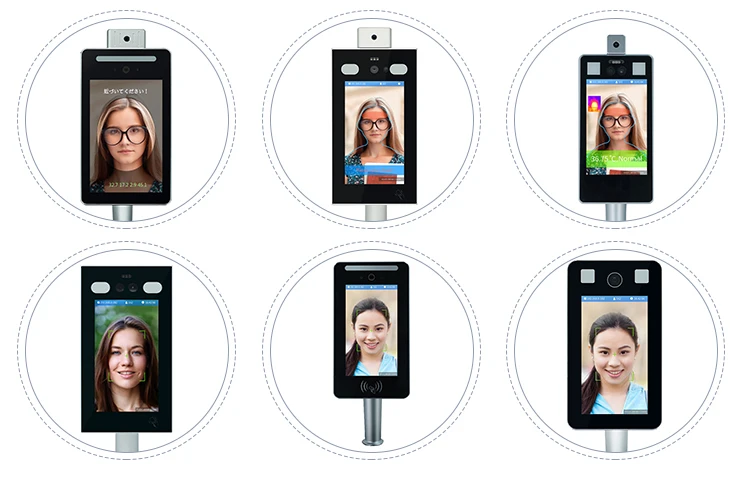

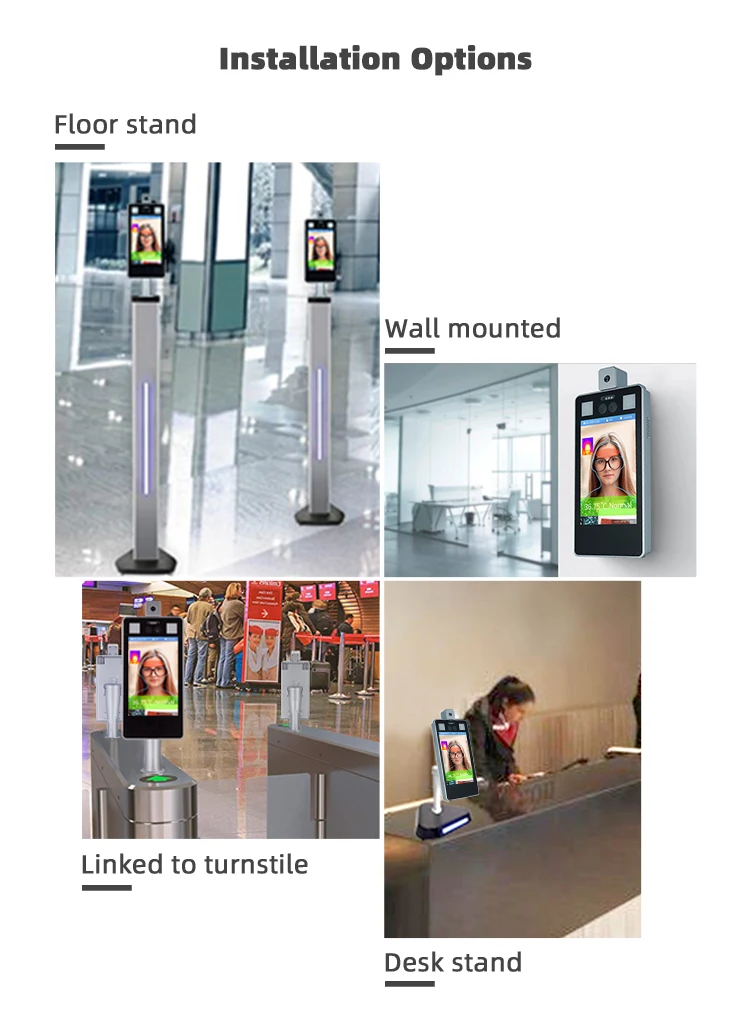

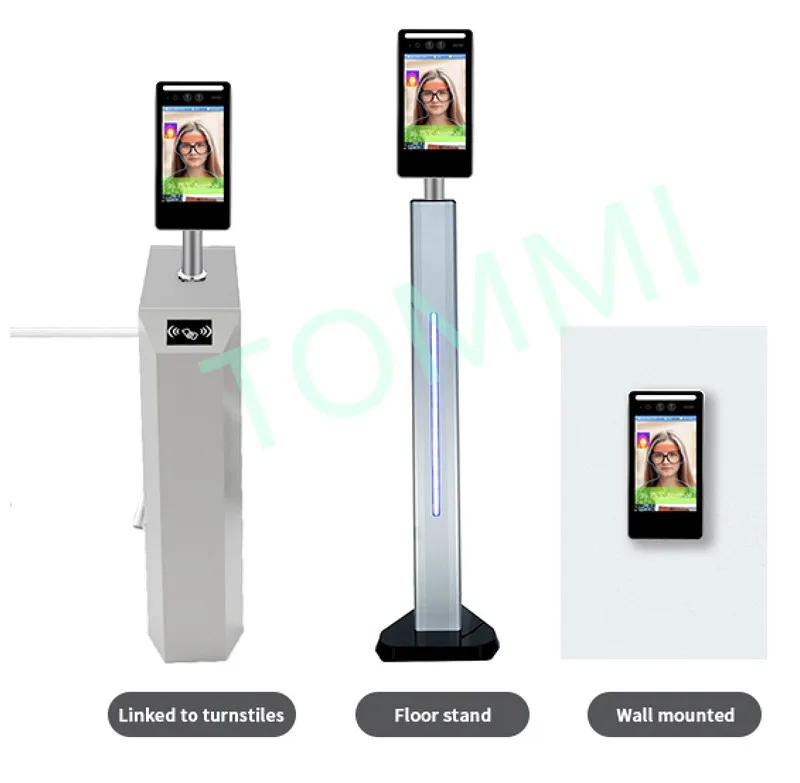

Three most frequent installations of our face recognition devices are as above.
Note: We offer different standard accessory for each installation, pls inform us which is your preferrable installation before placing your order or before we send out your order.
We have 34 technical engineers to support you, either it's about custom functions, SDK, API, or other secondary development related questions, welcome to contact us!

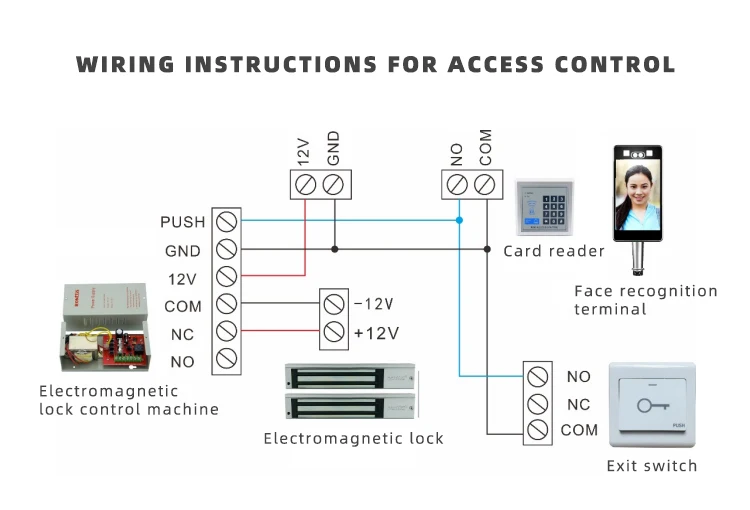

Application&Install
Related Products
Company Information
Our Services
FAQ
1. How can I get the price?
- We usually quote within 24 hours after we get your inquiry (except weekend and holiday) if you are in a hurry to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples?
-Yes. Our MOQ is 1 pcs. Please feel free to contact us.
3. What is your lead time?
- It depends on the order quantity and the season you place the order. Usually we can ship within 3-15 days for small quantity, and about 15-30 days for large quantity.
4. What is your payment term?
- We accept L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal. 100% payment for samples and 30% deposit and 70% balance before delivery for bulk orders.
5. What is the shipping method?
- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX etc). Please confirm with us before placing orders.
6. What's your warranty policy?
- We provide 1 year warranty.
7.Can you accept OEM order?
-Yes, we can provide customers complete solutions and OEM.
