The overflow of general bending machine is realized by proportional electromagnetic (liquid) overflow valve controlled by NC.Calculate and adjust the pressure according to your bending program Settings.Just at the normal relief valve (high.Medium. Low )based on a proportional electromagnet.Or proportional electro-hydraulic mechanisms. Bending machine is a kind of can be carried out on the thin plate bending machine, the structure mainly includes the bracket,workbench and clamping plate, workbench on the scaffold, workbench consists of base and the clamp, the base through a chain connected with the clamping plate, the base is composed of shell, the coil and plate, coil placed inside the shell of the sag, the depression at the top of the cover plate.When in use, the wire is electrified to the coil, and after electrified, the pressure plate is attracted, so as to realize clamping of the thin plate between the pressure plate and the base.Because of the use of electromagnetic force clamping, so that the pressure plate can be made into a variety of workpiece requirements, and can have the side wall of the workpiece processing, the operation is also very simple.

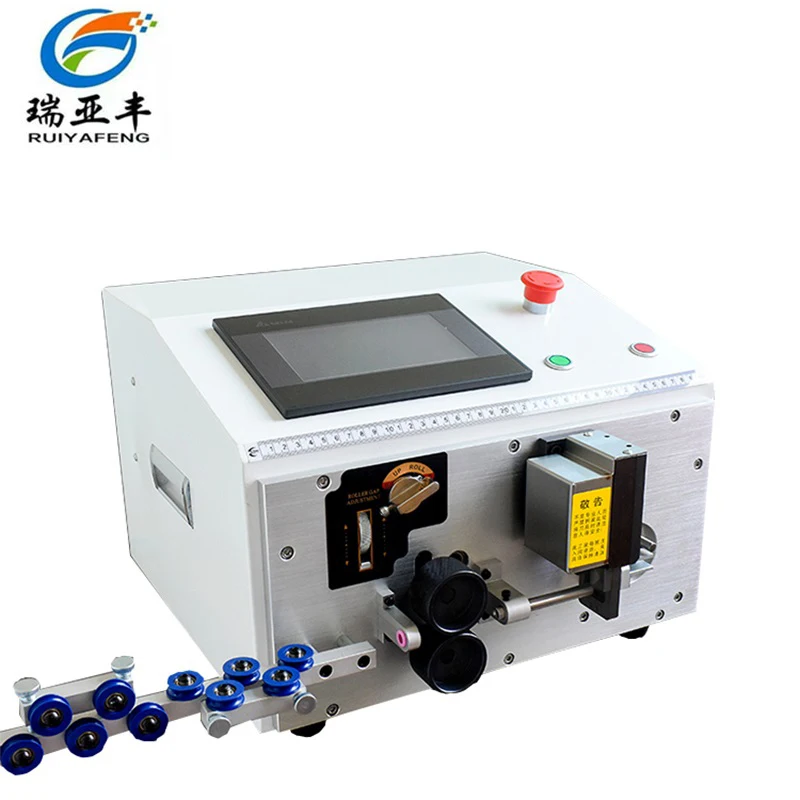

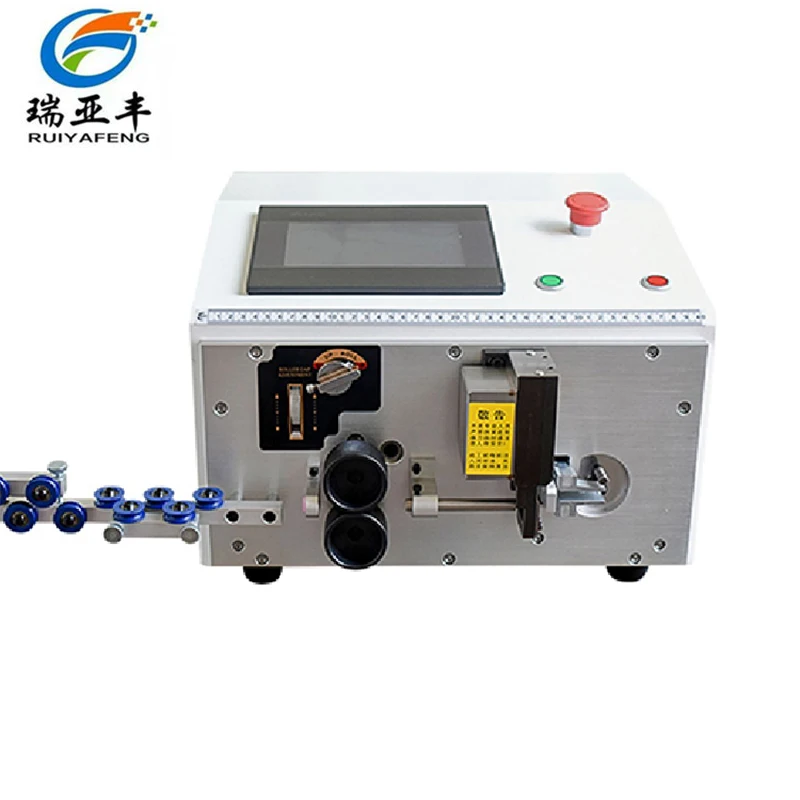

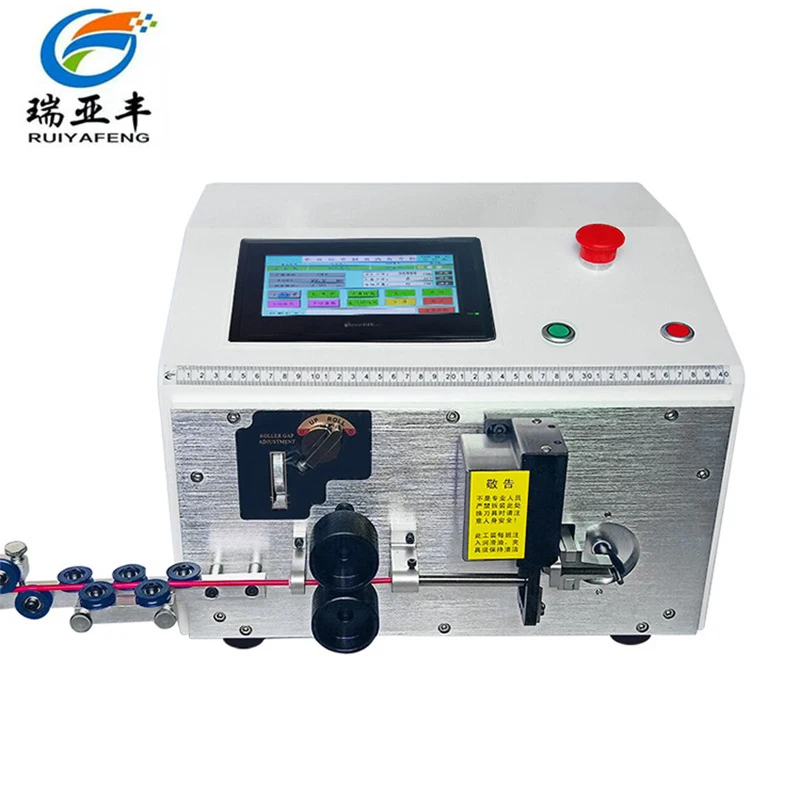

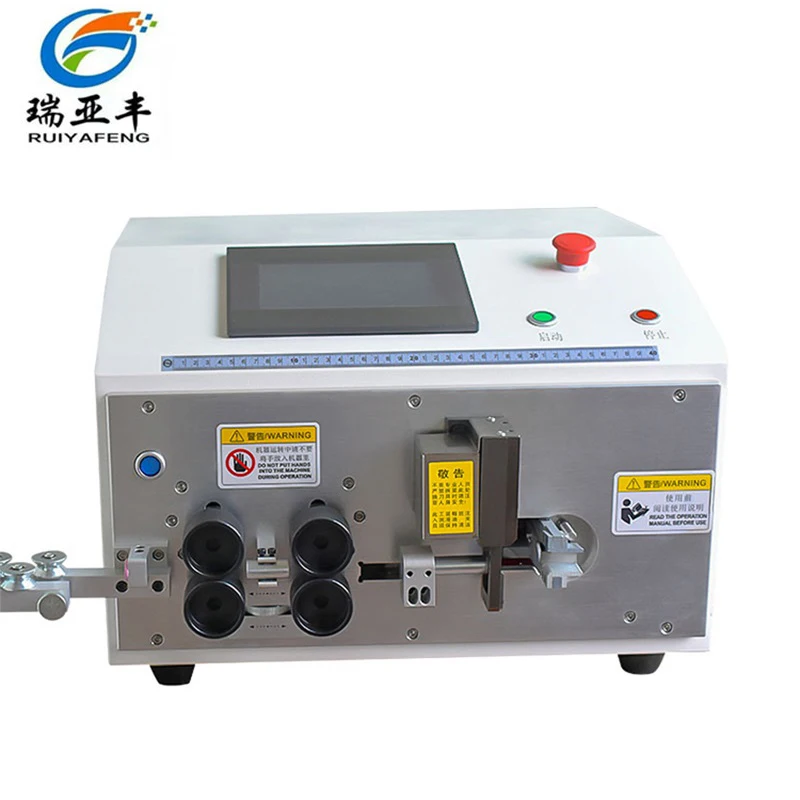

Specification
Modle
RYF-ZW16
RYF-ZW25
RYF-ZW35
Display method
200*145 LCD touch screen (Chinese and English switch)
200*145 LCD touch screen (Chinese and English switch)
200*145 LCD touch screen (Chinese and English switch)
PLC control
Taiwan Delta
Taiwan Delta
Taiwan Delta
Slide rail
Taiwan silver straight track
Taiwan silver straight track
Taiwan silver straight track
Voltage
AC175V-250≤50/60HZ
AC175V-250≤50/60HZ
AC175V-250≤50/60HZ
Power
180W~600W
800W
800W
Cutting length
0.1mm-99999.9mm
0.1mm-99999.9mm
0.1mm-99999.9mm
Stripping head
0.1-100mm
0.1-100mm
0.1-100mm
Bending length
Adjustable
Adjustable
Adjustable

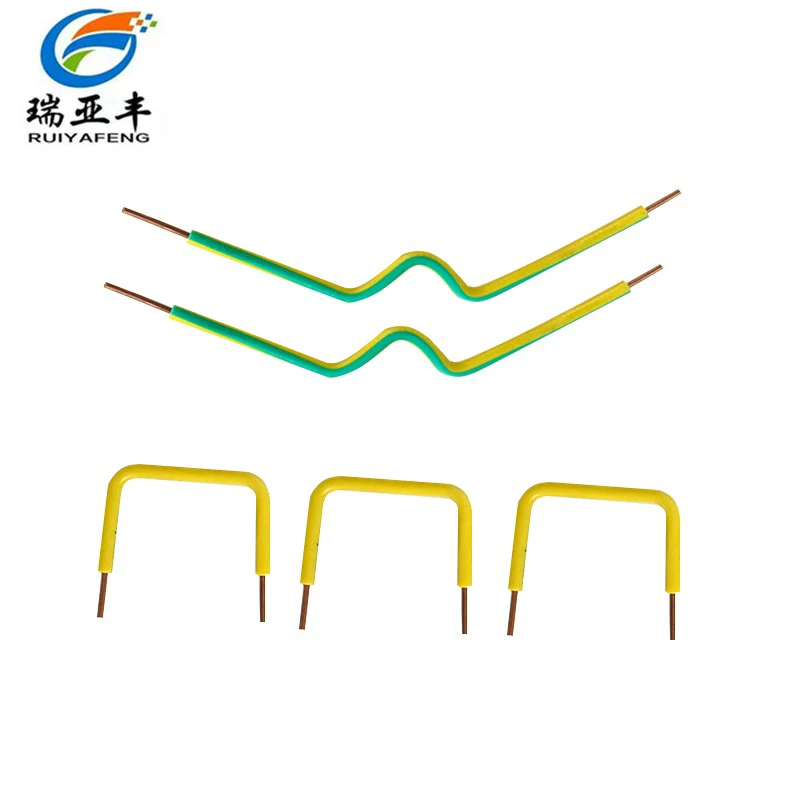

Bending type
Clockwise, counter-clockwise, adjustable angle degree of bending degree adjustable
Clockwise, counter-clockwise, adjustable angle degree of bending degree adjustable
Clockwise, counter-clockwise, adjustable angle degree of bending degree adjustable
Cutting diameter
0.1-16mm2
2-25mm2
4-35mm2
Cutting tolerance
0.002xLmm ※L
0.002xLmm※L
0.002xLmm※L
Tool material
Imported high speed steel
Imported high speed steel
Imported high speed steel
Drive mode
Two wheel
Six wheel
Six wheel
Bending number
10
10
10
Dimensions
600* 550* 450mm
600*550*450mm
600* 550* 450mm
weight
52KG
85KG
90KG
Details Images
Direct Angle programming with Angle compensation function Real-time detection feedback correction of grating ruler, full closed-loop control, positioning accuracy of rear stopper and slider dead stopper is 0.02mm
The upper die adopts fast clamping device and the lower die adopts inclined wedge deformation compensation mechanism
With multi - step programming function, it can realize multi - automatic operation, complete multi - step parts one-time processing, improve production efficiency
With multi-step programming function, it can realize multi-automatic operation, complete one-time processing of multi-step parts,improve production efficiency according to user demand can choose stable performance, compact imported hydraulic system, rear stopper can choose ball screw, synchronous belt transmission
