ESP32 S2 WROVER 2 MB PSRAM 4 MB SPI Flash PCB Antenna Single core 32 bit Wi Fi MCU ESP32 S2 Module for Data Logger
- Category: IoT Solutions & Products >>>
- Supplier: Wireless-Tag Technology Co. Limited
Share on (1600185437783):
Product Overview
Description

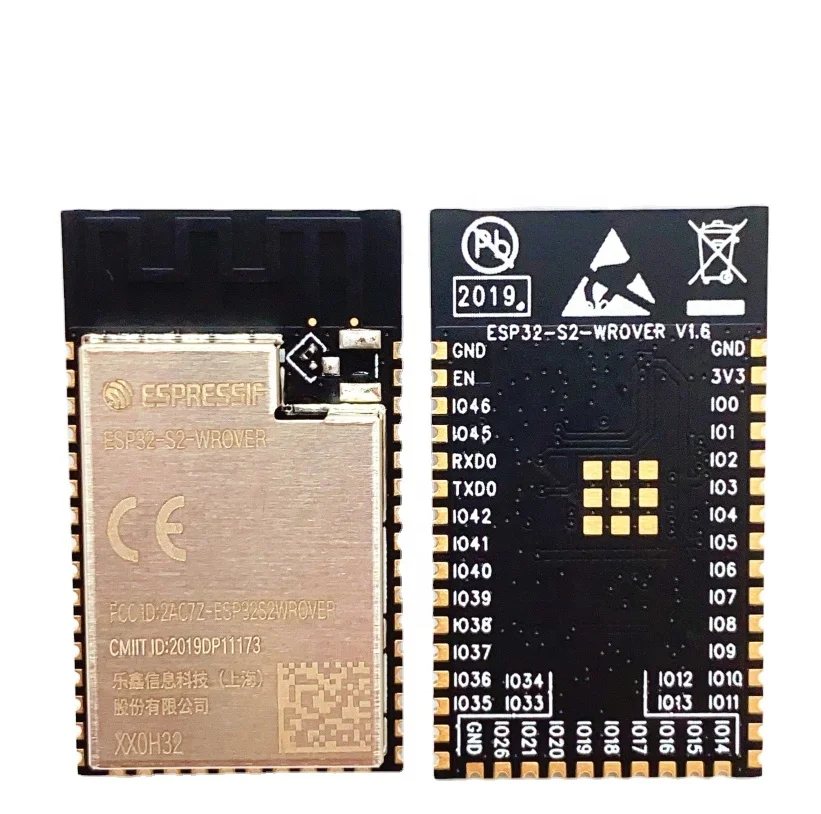

ESP32-S2-WROVER 2 MB PSRAM 4 MB SPI Flash PCB Antenna
Single-core 32-bit Wi-Fi MCU ESP32-S2 Module for Data Logger
Product Parameters
1. Specific Details
Product Type | Wi-Fi MCU module |
Product Model | ESP32-S2-WROVER |
Core | ESP32-S2 |
SPI flash | 32 Mbits, 4 MB |
Crystal oscillator | 40 MHz |
Antenna | PCB antenna |

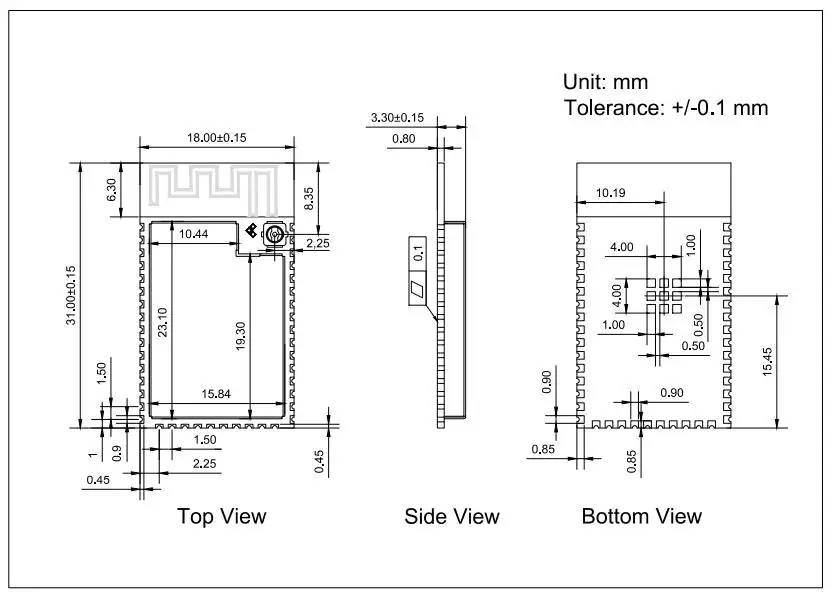

Dimensions (Unit: mm) | (18 × 31 × 3.3) mm |
Certification | RoHS/REACH, FCC/CE-RED/SRRC |
Test Reliablity | HTOL/HTSL/uHAST/TCT/ESD |
Wi-Fi Protocols | 802.11n up to 150 Mbps |
Wi-Fi Frequency Range | 2412 ~ 2484 MHz |
Module Interfaces | GPIO, SPI, LCD, UART, I2C, I2S, Camera interface, IR, pulse counter, LED PWM, USB |
MCU | ESP32-S2 embedded, Xtensa® single-core 32-bit LX7 microprocessor, up to 240 MHz, 128 KB ROM, 320 KB SRAM, 16 KB SRAM in RTC. |
Integrated Crystal | 40 MHz crystal |
Integrated SPI flash | 4 MB |
Operating Voltage | 3.0 ~ 3.6 V |
Operating Temperature | -40 ~ 85 °C |

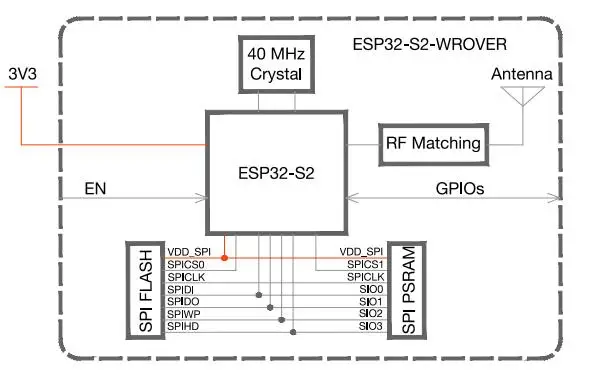

2. Block Diagram
Product Description
BREIF INTRODUCTION:
ESP32-S2-WROVER is a powerful, generic Wi-Fi MCU modules that has a rich set of peripherals. They are an ideal choice for a wide variety of application scenarios relating to Internet of Things (IoT), wearable electronics and smart home.
ESP32-S2-WROVER comes with a PCB antenna. It features a 4 MB external SPI flash and an additional 2 MB SPI Pseudo static RAM (PSRAM).
At the core of this module is ESP32-S2 *, an Xtensa® 32-bit LX7 CPU that operates at up to 240 MHz. The chip has a low-power co-processor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. ESP32-S2 integrates a rich set of peripherals, ranging from SPI, I²S, UART, I²C, LED PWM, LCD, Camera interface, ADC, DAC, touch sensor, temperature sensor, as well as up to 43 GPIOs. It also includes a full-speed USB 1.1. On-The-Go (OTG) interface to enable USB communication.

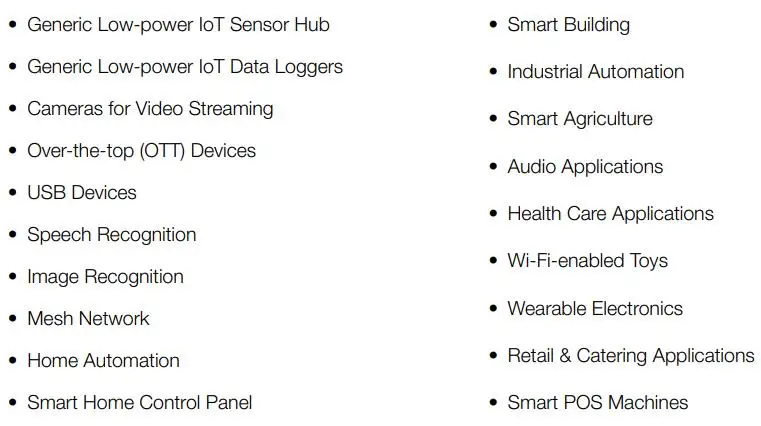

APPLICATION:
Packing & Shipping
Company Introduction
Wireless-Tag is authorized distributor of Espressif for 5 years and have factory for 13 years. Wireless-tag is committed to the development and Design of smart products in terms of embedded software, IoT communication modules, touch panel HMI, and AI devices. We derive to provide customers with higher performance, lower Development costs, and shorten mass production time
