China manufacturer inverter solar system 30000 watt solar pv system hybrid solar system

Product Overview

Description

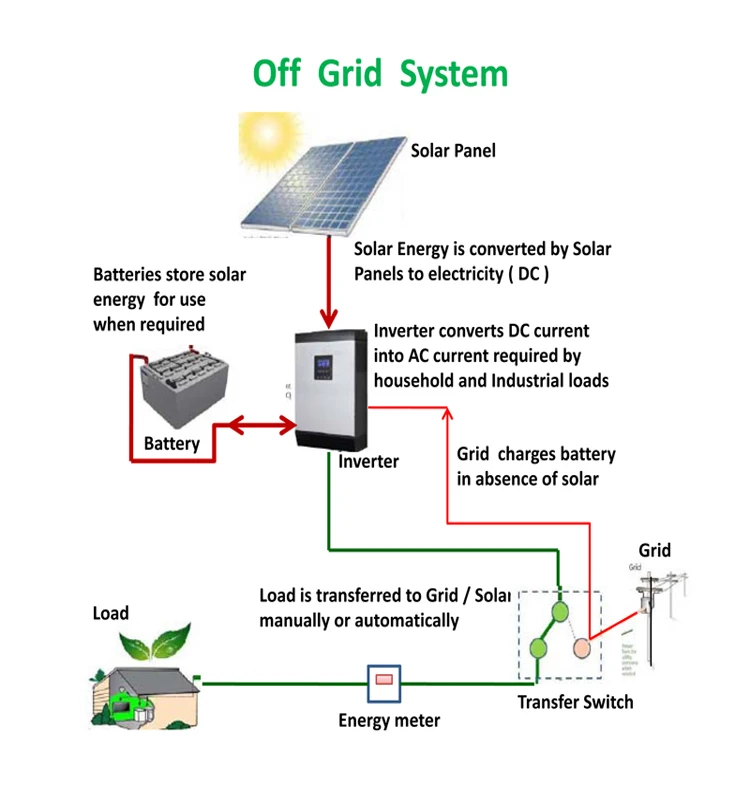

System Schematic

This system consists of a solar panel array that makes use of the sunlight (Solar Energy) to generate electric power.Off-Grid Systems are very simple systems that do not need generators, fuels, maintenance nor transportation and without any noise.

Solar radiation from the sun is captured by solar panels, which produce DC electricity. Then a charge controller receives this unregulated DC electricity and control the process of batteries charging.The batteries are connected to an inverter which converts the DC electricity into AC electricity which can be used directly to power AC loads and appliances.
Product Parameters

3KW Hybird grid solar power system
Number	Components	Description	Quantity
1	Solar Panel	Model :HDM-300 Weight:18.6Kg Dimension(L*W*T):1956*991*40mm	10 pieces

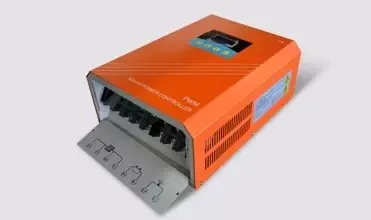

2	Controller	MPPT 96V 80A Dimension(L*W*T):530*470*280mm	1 set

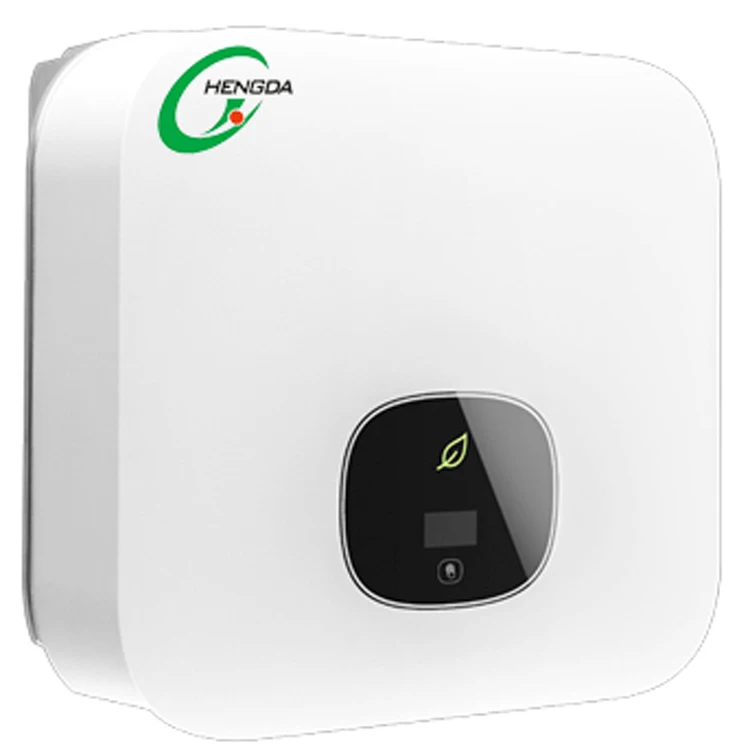

3	Inverter	Rated input frequency:50/60Hz Dimensions(W/H/D)750*520*310mm	1 set

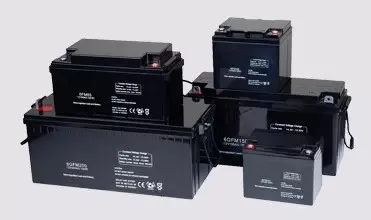

4	Solar Battery	12V 250Ah Dimension(L*W*T):522*240*219mm	2 pieces
5	Combiner Box	Material:Cold rolled steel plate material	1 set
7	Connector	MC4	4set

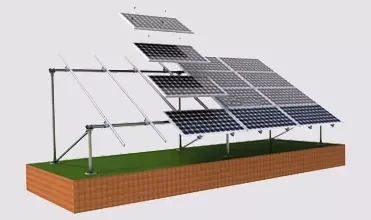

8	Panel rack	Support Pitched/flat roof	1 set

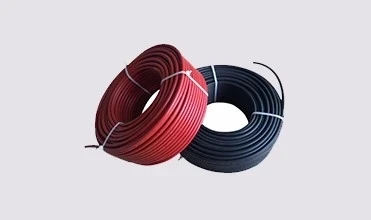

9	PV Cable	Single-core 4mm²	100 meters

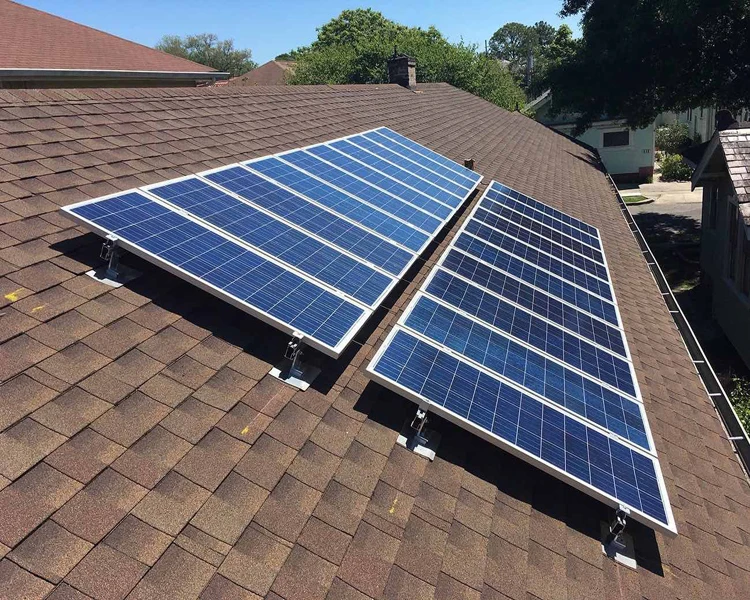

Product Display



Related Products

Company Information

Certificates

Exhibitons

Packaging&Shipping

FAQ

What's your main products?

Solar system, solar panel, inverter, controller, battery and mounting system and all the related power accessories.

Are you a factory or trading company?

We are a manufacturer with export license.

Could you print our company logo in nameplate and package?

Yes, we can do it according to your design.

Can you support OEM and on-site installation?

Yes,as a professional solar system manufacturer, we can offer our clients OEM and on-site installation, fully support and assistance in service, the most competitive price with absolutely high quality products.

How does your factory carry out quality control?

Quality is priority. Hengda people always attaching great importance to quality controlling from the very beginning to the end. We have professional QC team to carry out the Quality control.

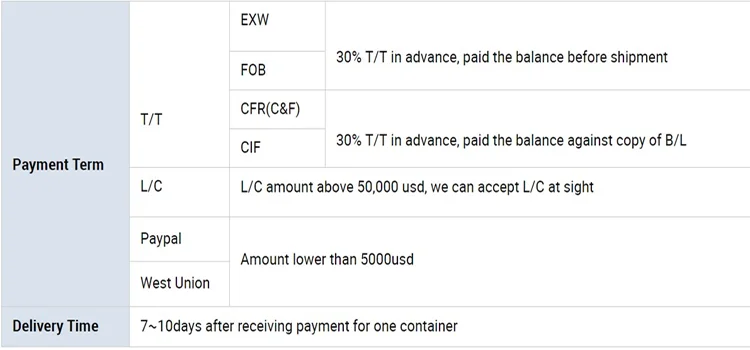

Payment
