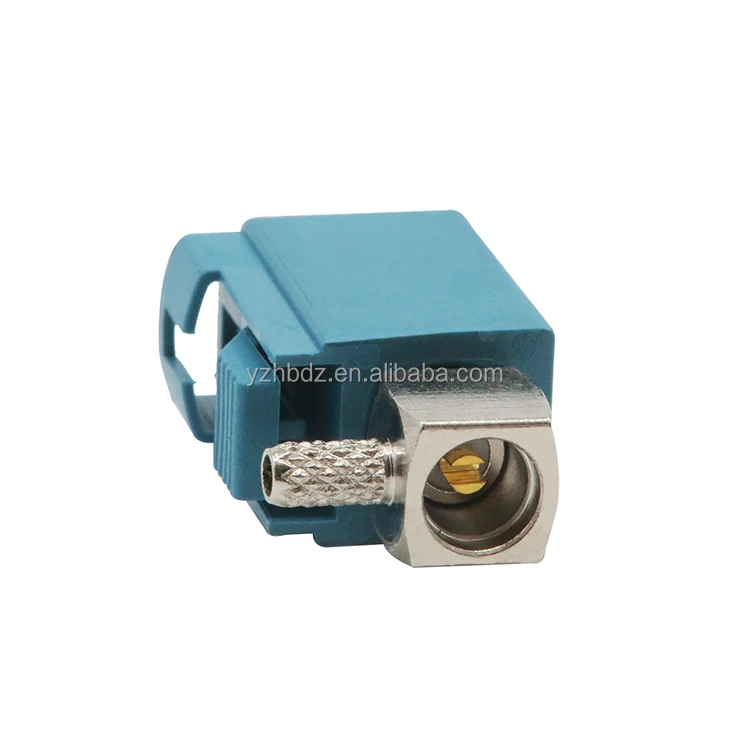

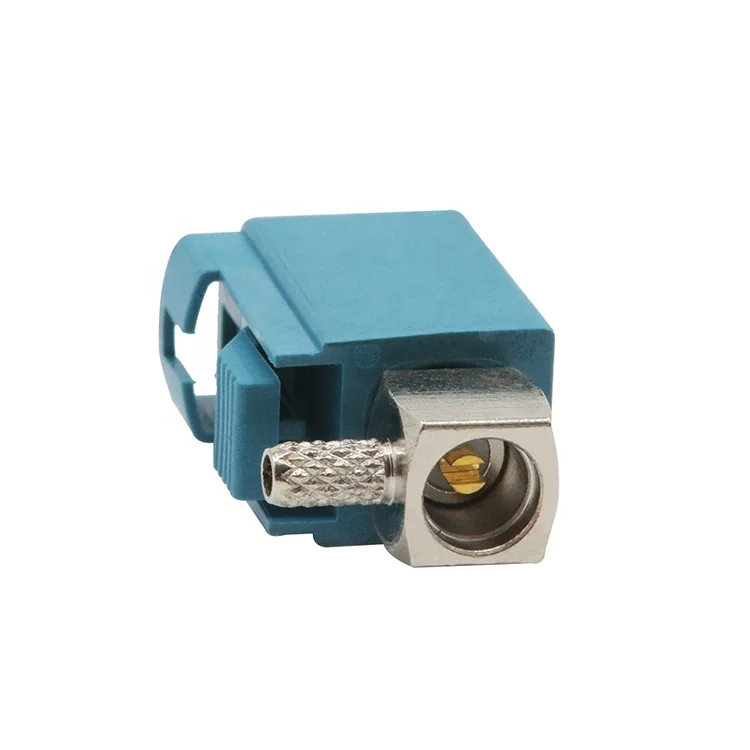

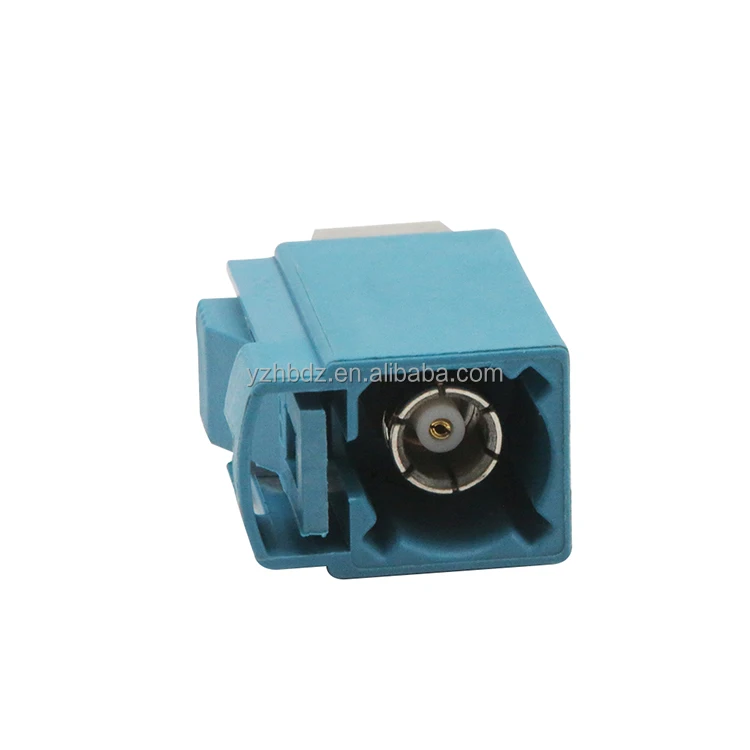

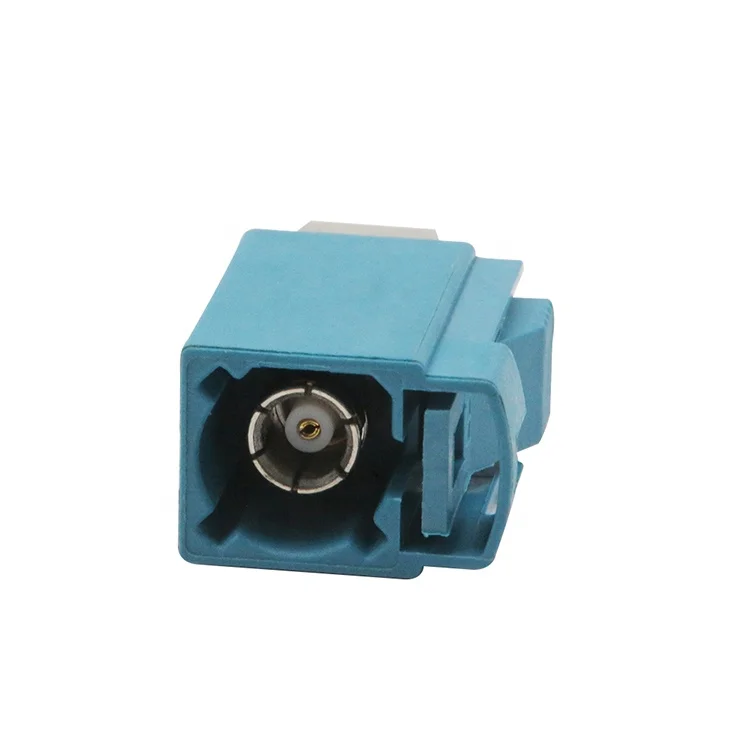

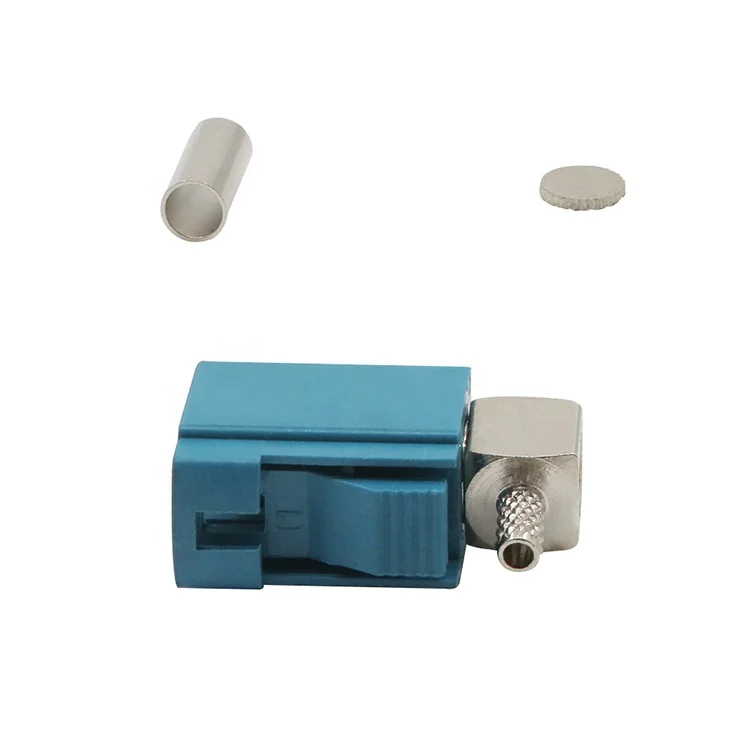

Fakra connector coding Z type SMB right angle female for Car Video, TV, Radio, Camera RG174, RG316 Coaxial cable
- Category: >>>
- Supplier: Yangzhou Hongbo Electronics Co. Ltd.
Share on (1600185461920):
Product Overview
Description

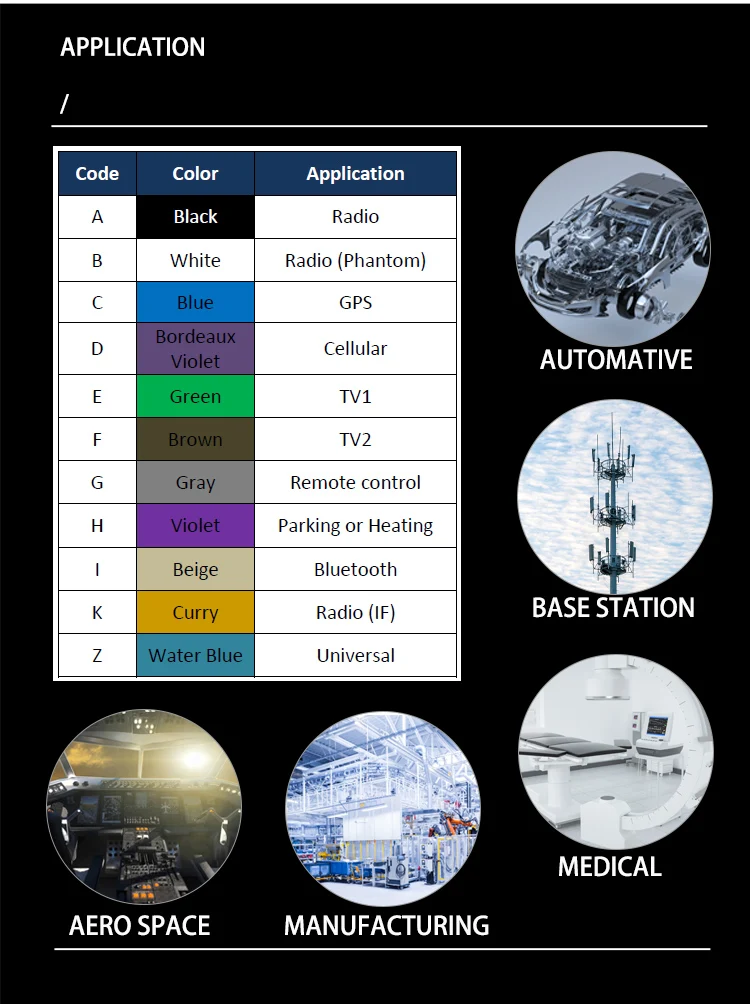

Application
Products Description

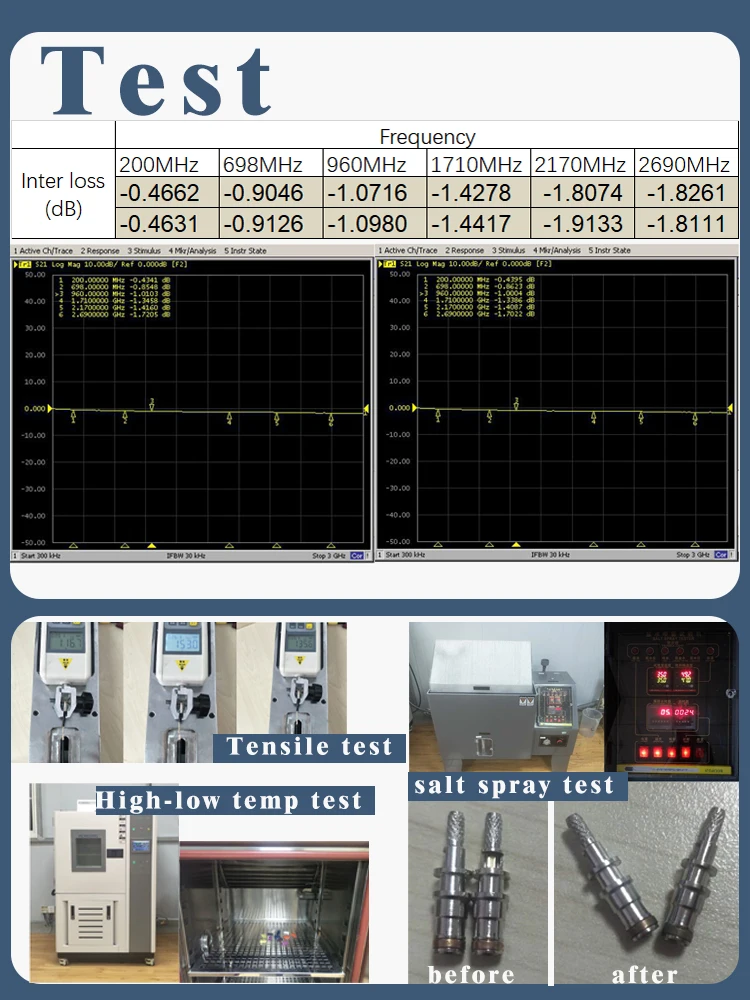

Test report
Specification
Product design level: universal connector (level 2) | ||||
1.Electrical Data: | 2.Mechanical Data: | 4.Material and plating | ||
1.1 Impedance: 50Ω | 2.1 Durability: ≥500 | Body: Brass/Nickle plating | ||
1.2 Frequency range: DC-2.5GHZ | 2.2 Engagement force:≤25N | Insulator:PTFE | ||
1.3 Working voltage: 335V RMS,50Hz, at sea level | 2.3 Tight lock force:≥100N | Center contact:Bronze/ Gold plating | ||
1.4 Dielectric Withstanding Voltage: 1000V RMS,50Hz, at sea level | 3.Environmental Data: | Ferrule:Annealed Copper/Nickle plating | ||
1.5 VSWR: <1.3 @DC-2.5GHz | 3.1 Temperature Range: -40 ° C ~ 105 ° C | Plastic housings:PA | ||

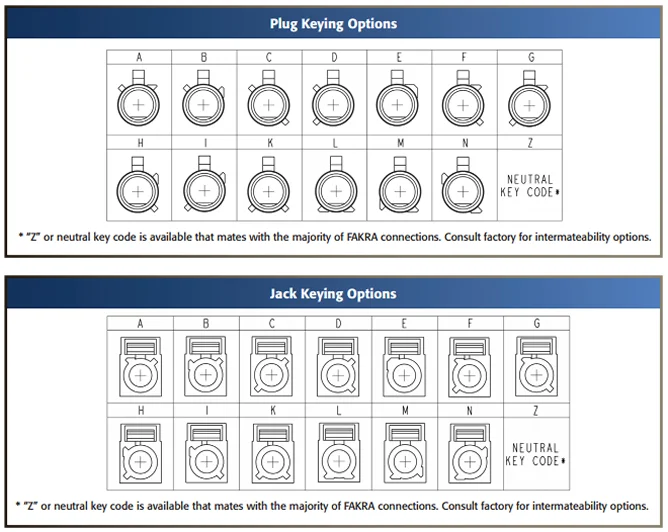

1.6 Contact resistance: inner conductor ≤6MΩ outer conductor ≤1MΩ | 3.2 Salt spray resistance: >48H | Available Colors: A(Black), B(White), C(Blue), D(Bordeaux), E(Green), F(Brown), G(Grey), H(Violet), I(Beige), K(Curry), L(Carmine red), M(Pastel orange), N(Pastel green), Z(Water blue) | ||
1.7 Insulation resistance:1000MΩ | 3.3 Operating humidity: 10% ~ 95%RH | |||
