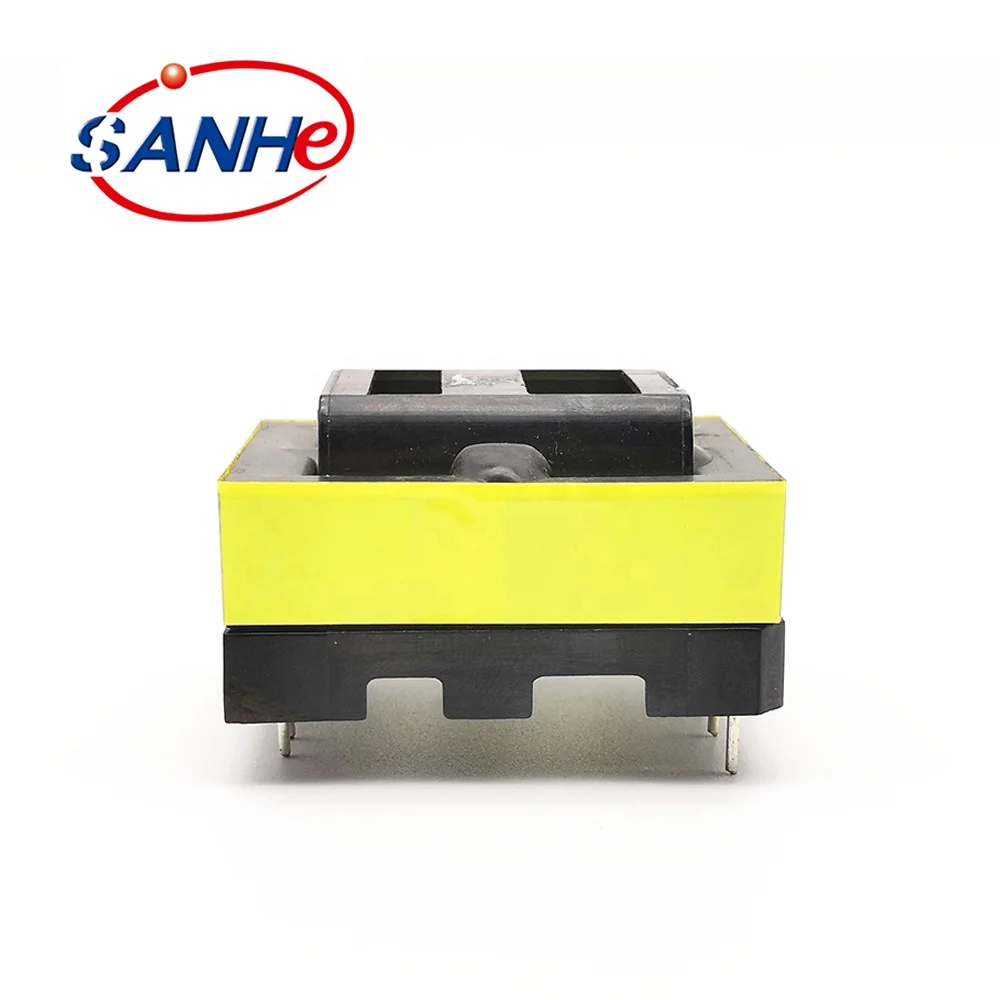

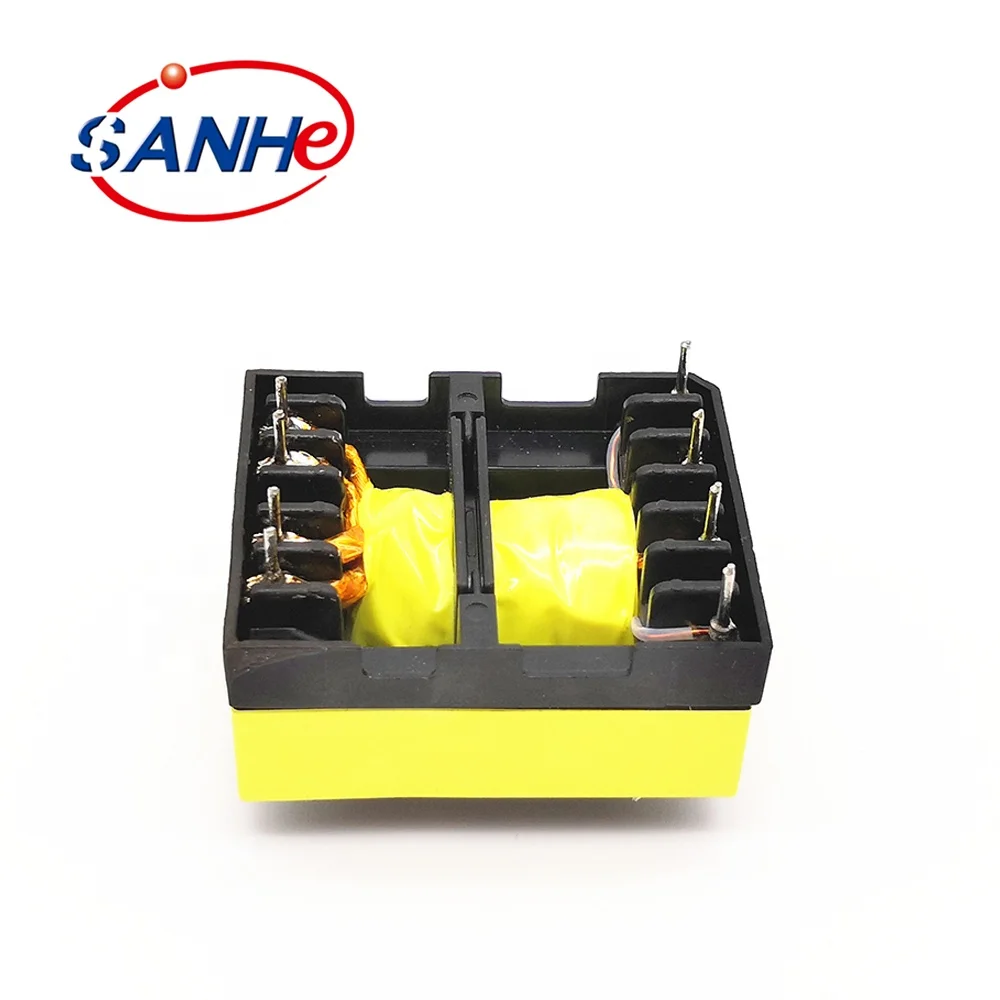

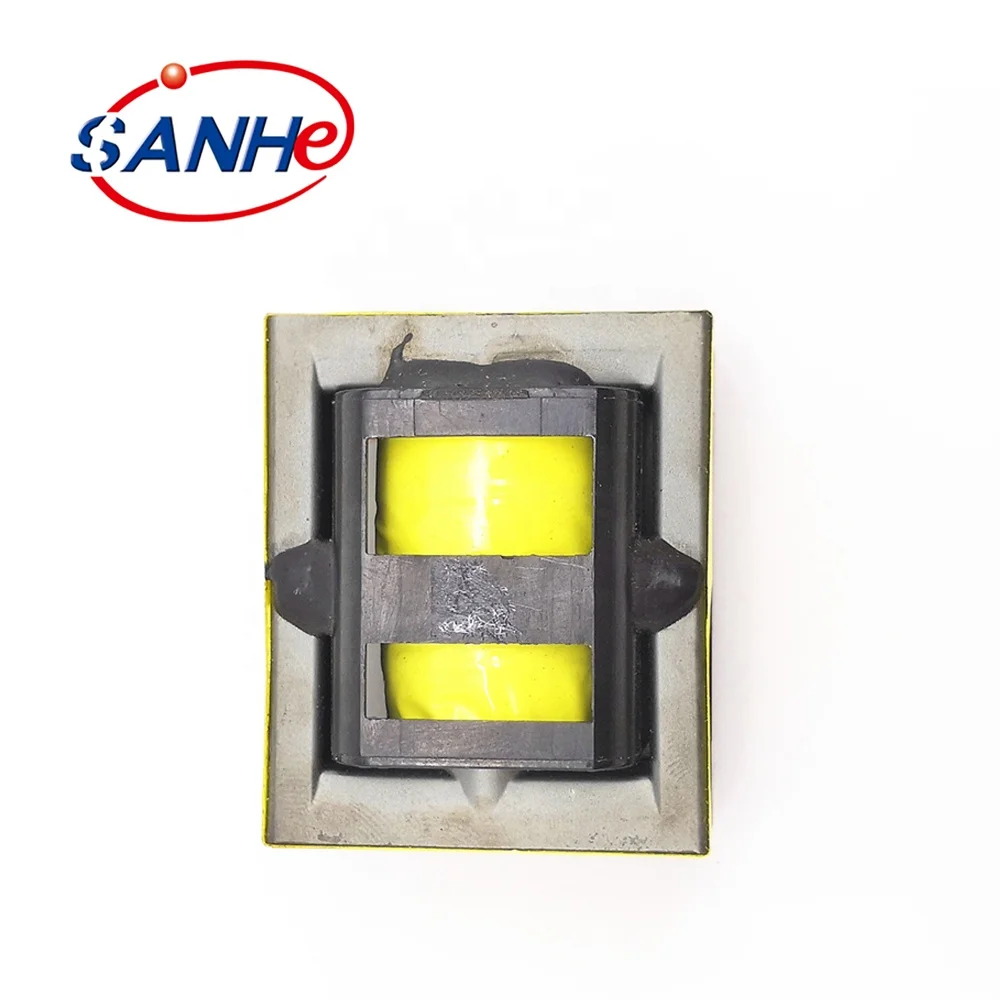

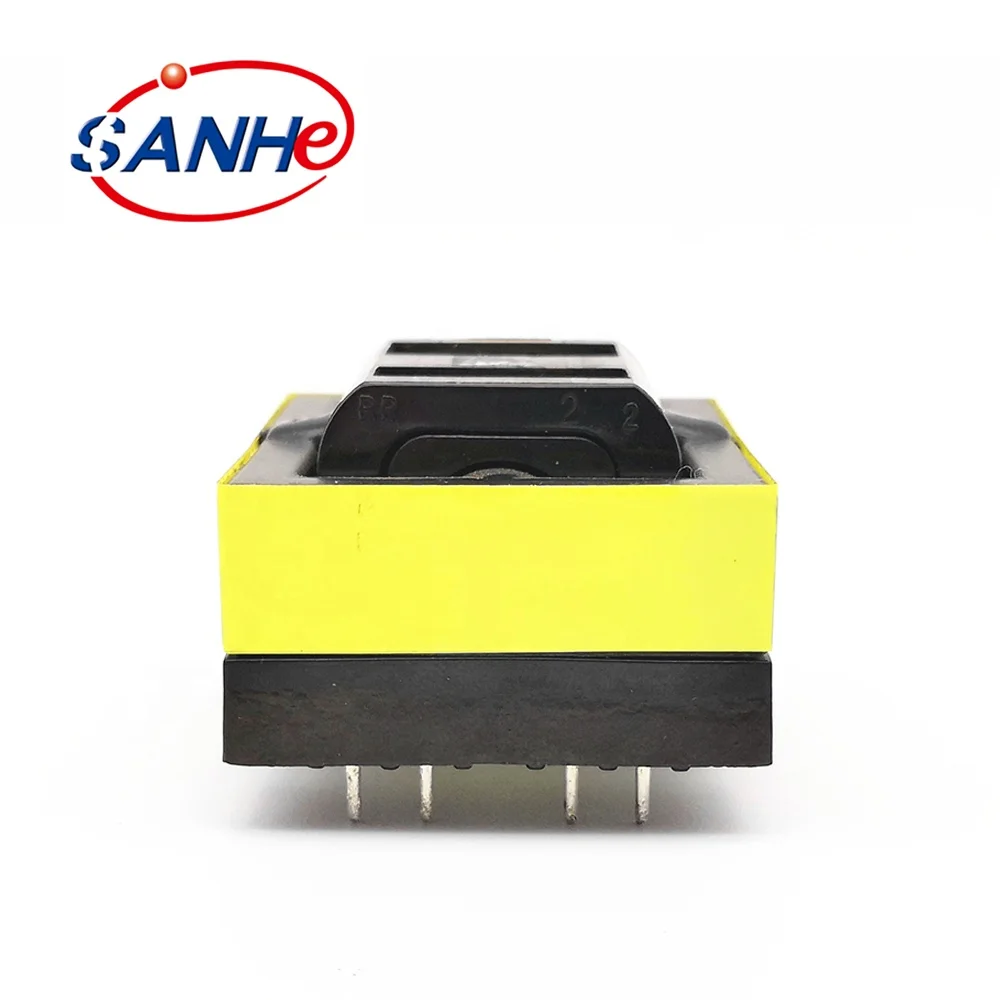

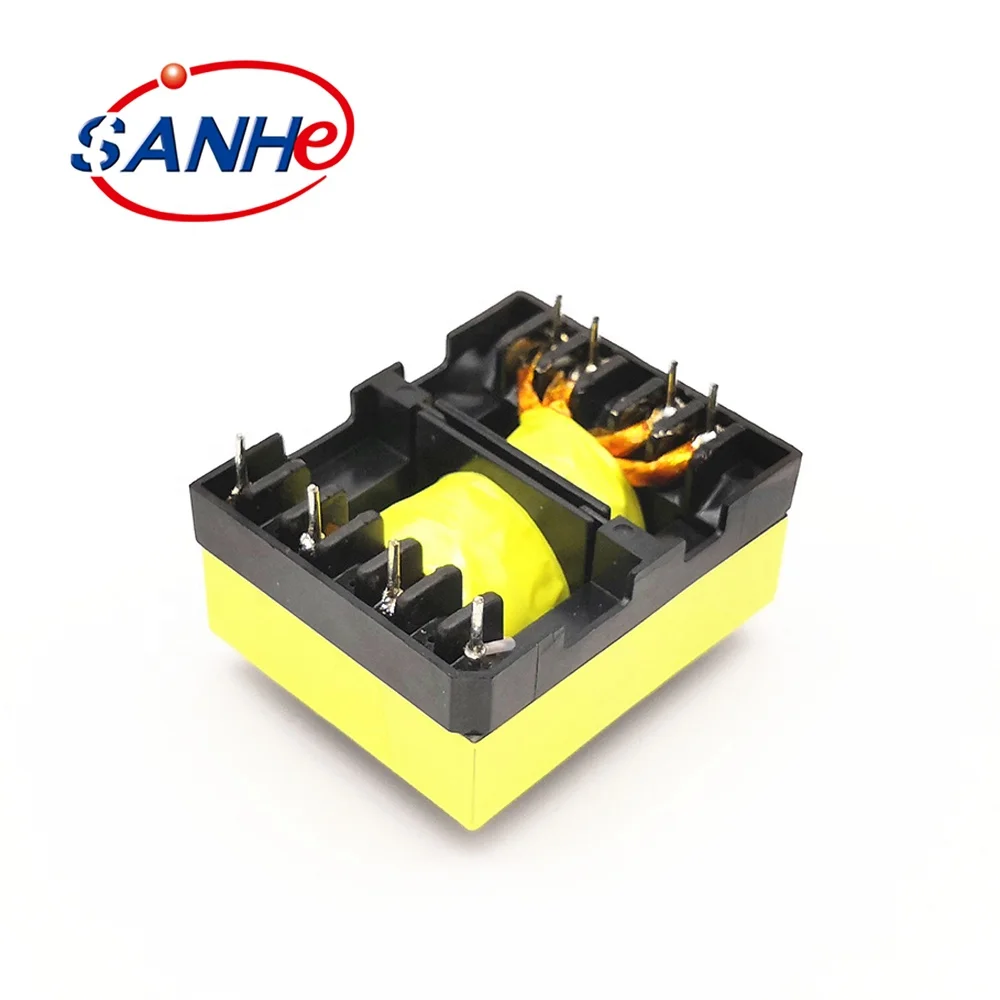

Customized ER Step Down 1000w Flyback High Frequency Power Electric SMPS Transformer
- Category: >>>
- Supplier: Dezhou Sanhe Electric Co. Ltd. [Shandong China]Dezhou
Share on (1600185478520):
Product Overview
Description

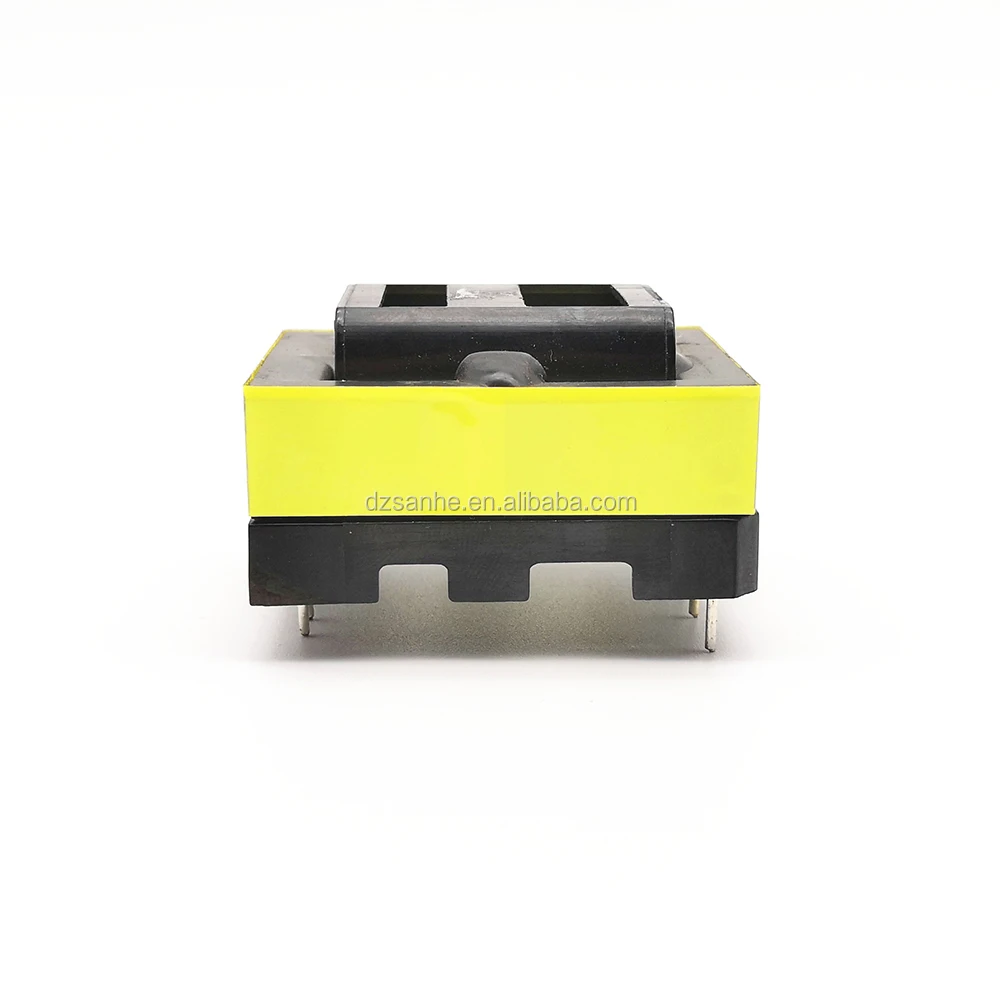

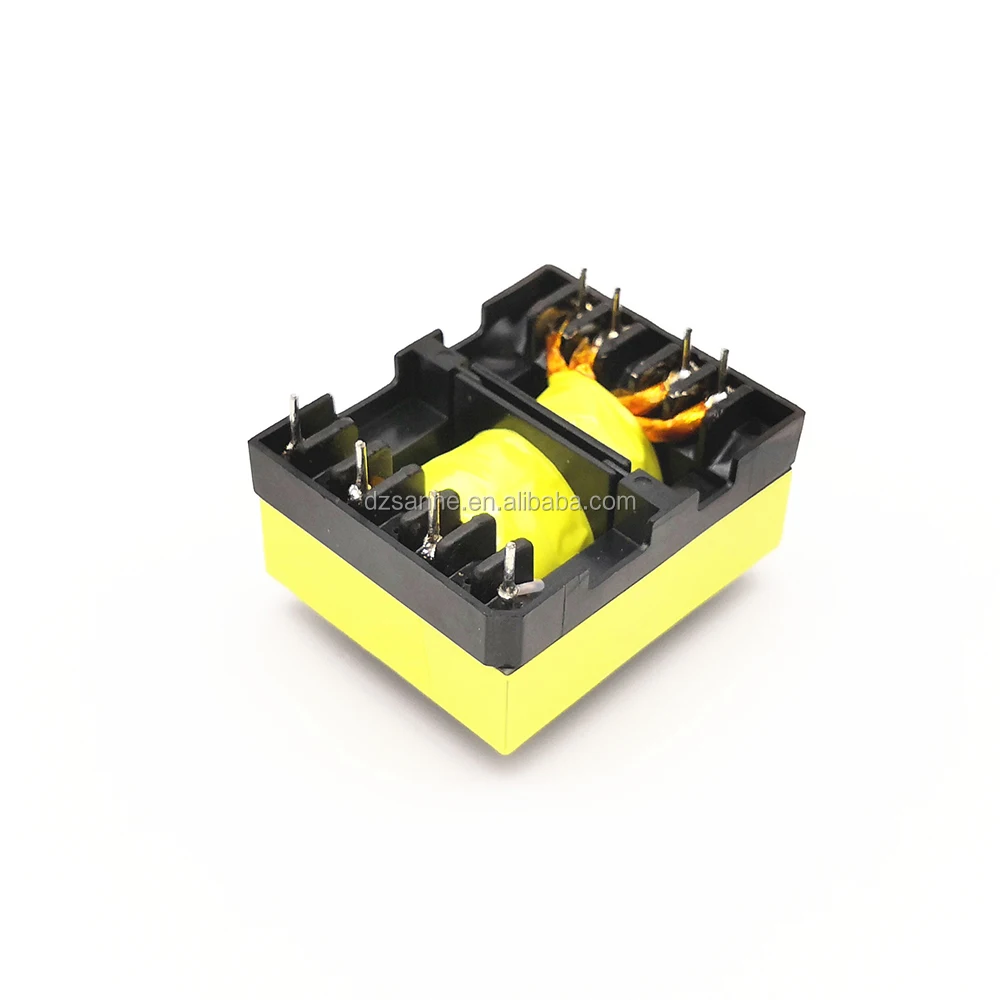

Product Display
ER35 | ||||||
Dimension(mm) | Pin Quantity(pcs) | Pin Array(mm) | Power | |||
46*38*27 | 7+7 | w5 | 100-110W | |||
Resistance(MAX) | Inductance | Leakage(MAX) | Working frequency | |||
3-5=175mΩ | 3-5=700uH±10% | 3-5=127uH±10% | 100KHz 1Vrms | |||
NO. | Application | L(max) | W(max) | H(max) | Pin | Pin pitch | Row pin |
ER25 | Flyback transformer | 28.00 | 20.50 | 22.00 | 7+7 | 3.75 | 15 |
ER28 | Flyback transformer | 41.00 | 24.50 | 36.50 | 15+15 | 2.54 | 17.5 |
ER28 | Flyback transformer | 32.00 | 28.50 | 37.50 | 6+6 | 5 | 20 |
ER28 | Flyback transformer | 31.50 | 37.50 | 26.00 | 6+6 | 5 | 30 |
ER2828 | Flyback transformer | 32.00 | 33.00 | 27.00 | 6+6 | 5 | 25 |
ER2834 | Flyback transformer | 31.00 | 38.00 | 28.00 | 6+6 | 5 | 30 |
ER3435 | Flyback transformer | 37.00 | 37.00 | 30.00 | 7+7 | 5 | 30 |
ER3542 | Flyback transformer | 42.00 | 45.50 | 30.00 | 8+8 | 5 | 35 |
ER35 | Flyback transformer | 46.00 | 30.50 | 39.50 | 9+9 | 5 | 22.5 |
ER3543 | Flyback transformer | 46.00 | 39.00 | 31.00 | 7+7 | 5 | 37 |
ER35 | Flyback transformer | 45.50 | 38.00 | 32.00 | 7+7 | 5.0 | 37.0 |
ER35 | Flyback transformer | 46.00 | 38.00 | 27.00 | 7+7 | 5 | 37 |
ER39 | Flyback transformer | 43.00 | 47.50 | 29.00 | 7+7 | 5.8 | 39.3 |
ER40 | Flyback transformer | 43.00 | 47.00 | 33.00 | 8+8 | 5 | 35 |
ER42 | Flyback transformer | 49.00 | 48.00 | 32.50 | 9+9 | 5 | 35 |
ER42 | Flyback transformer | 46.50 | 45.50 | 37.00 | 8+8 | 5 | 35 |
ER49 | Flyback transformer | 64.00 | 53.00 | 44.00 | 8+8 | 6.35 | 50.8 |
ER49 | Flyback transformer | 53.00 | 54.00 | 37.00 | 10+10 | 5 | 42.5 |
Winding
Trimming
Solder
Assembly
Oil immersion
Drying
Inspection
Packing
Packing & Delivery
Certifications
Our Customer
Company Profile
Recommend Product
FAQ
1. Can I get sample for testing before bulk order?
Of course.Samples can be offered to you by free, but express costs should be undertaken by buyer.
2.What is your lead time?
Small sample order 3-5 working days; Large order should be within 15 working days after order confirmed.
3. What's your Guarantee?
Within 2 years, if any quality problem, the defect products will be all replaced at once.
4. How to purchase from us?
Offer Requirement for Inquiry →Producing Sample →Sample Confirmation → Quotation →PI → Confirm PI → Arrange Payment→ Manufacture→Shipping
5.How to Pay with your visa&master card:
a. Please creat a personal buyer account before you buy from alibaba.
b.Write your email address, when place an order.
c. Go to your email and click the link, "send initial payment/pay balance" or "go to pay"
d. Then choose "+Add a new card to pay in USD($)"
e. Fill in the bank card information, "Confirm and Pay", that charge from your card derectely, place an order successful
6. What's your trade term?
EXW,CPT FOB CIF DDU DDP are all acceptable.
7. Can I order with my logo printing, size and shape?
Sure, but MOQ should be negotiated.
8.What's your payment term?
T/T, D/P, D/A, L/C, PayPal.
9. What's your express service?
Fedex, DHL,TNT,UPS with great discount up to 80%.
