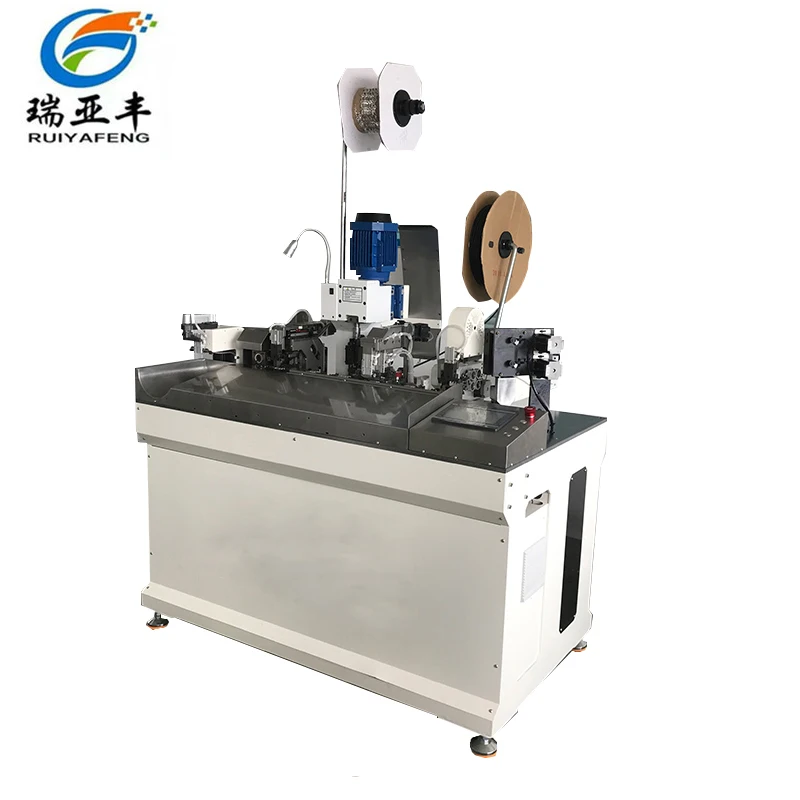

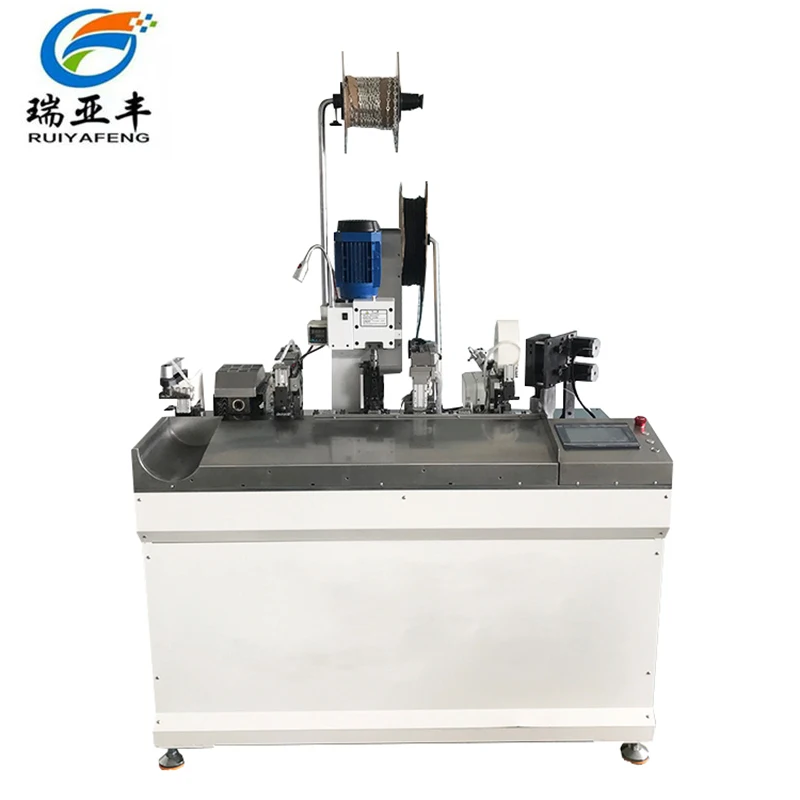

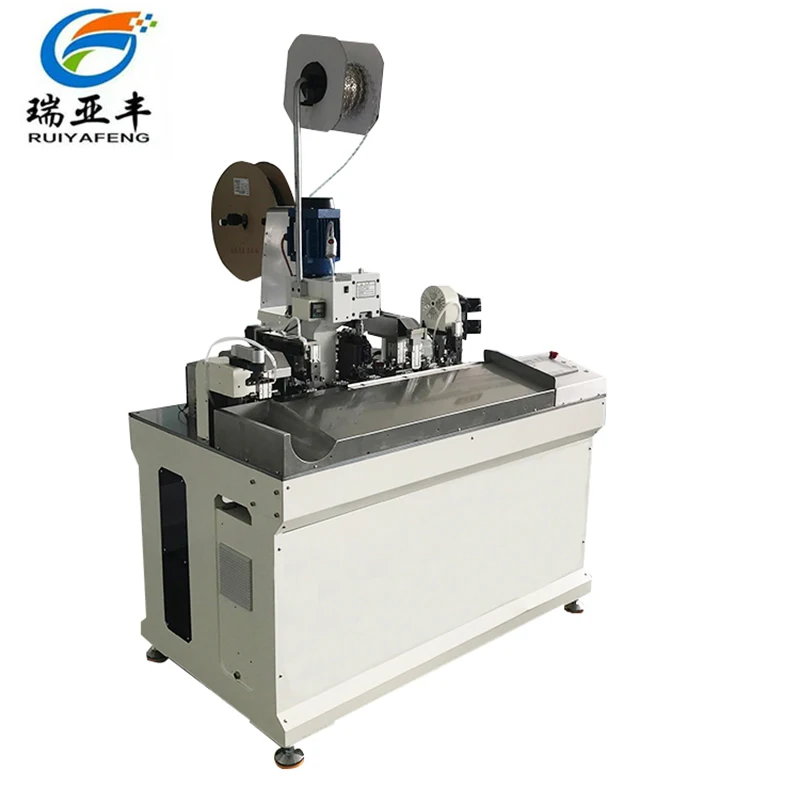

Automatic heat-shrinkable tubing inserting and heating machine
Application: Wire cutting, half stripping,full stripping,single or double end terminal crimping, single end heat-shrinkable tubing inserting and heating.
Model
RYF-DHT01
Wire range
AWG10-AWG20
Applicable terminal
Ordinary horizontal, straight winding terminal
Scope of application
Wire cutting,half stripping,full stripping, single or double ends terminal crimping, single end heat-shrinkable tubing inserting and heating
Sleeve diameter and length
D: 3.0-6.0mm L: 15-26mm
Processing wire length
65mm-9999mm
Capacity
1800-2000pcs/h
Cutting tolerance
<0.2%
Stipping length
End A 0-30mm; End B 0-10mm
Dimension
1800*800*1400mm
Weight
350kg
Power voltage
AC 220V 50Hz
Air pressure
0.4-0.6MPa
Power
2.8KW

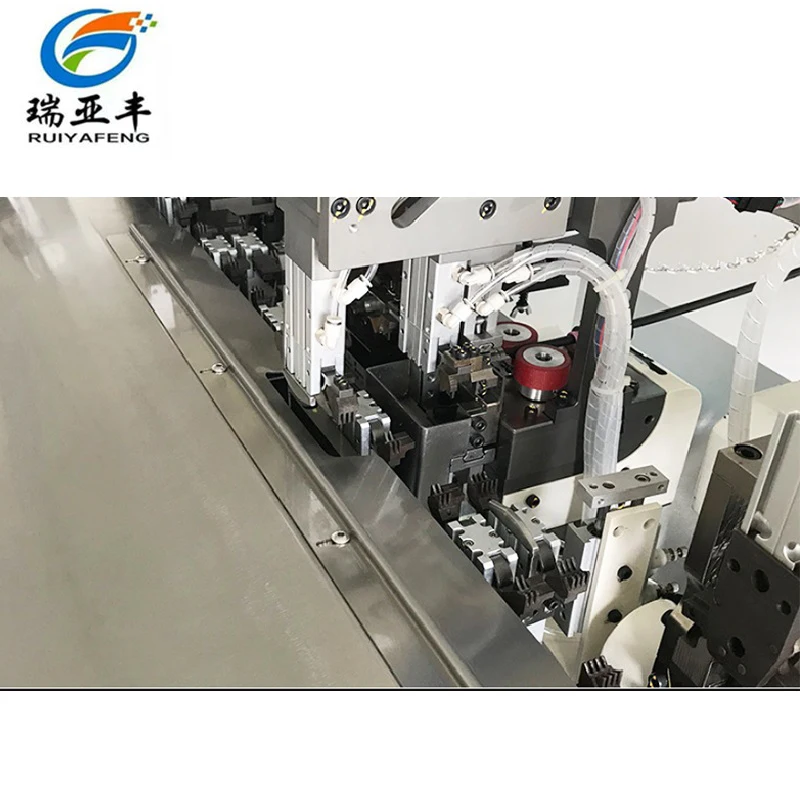

Details Images
Position parts through photoelectric sensor technology, and use fixed torque technology to control torque bolts. It can also automatically check functions and issue warnings when they encounter failures.
Controlled by PLC and encoder, it records production data and optionally sets product spots.
The machine has the advantages of high production efficiency, high product quality, stable performance and labor saving.
Company Profile
Wuxi Changsheng ruiyafeng precision machinery co., ltd is a high-tech enterprise specializing inresearch and development and production of fully automatic wire harness processing equipment. Themain series are: tape winding machine series, wire stripping machine series, full-automatic double-head pressing terminal machine series, full-automatic single-head pressing terminal machineseries, continuous stripping and beating terminal machine series, etc. lt is mainly used in the production of electric vehicles, automotive wire harness processing automation equipment, electricalconnector automation equipment, research and development of industrial automation technology andperipheral products, involving the automotive industry, electronic appliances, aerospace, wirelesscommunications and other fields. The company has a high-quality technology research and development team, a strong after-sales service network and a good customer reputation. We havebeen adhering to the core of customer demand, making complex work simple, saving labor andresources for enterprises, thus continuously improving the performance and quality of products.Looking forward to the future, the company will adhere to the corporate philosophy of " sincerelyserving mankind and diligently building the future" and carry forward the corporate spirit of "dedication, innovation, transcendence and dedication" to continuously create new competitiveadvantages and development momentum and wholeheartedly serve you!
Application& Transportation
Product packaging
Our Advantages
We are one of the most professional Chinese wire cable process machine manufacturers and leaders.
* Best products and factory price. * On-time delivery and the shortest delivery time. * 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service. * User manuals will go with relative machines.
Best products and factory price. On-time delivery and the shortest delivery time. OEM and customized service. User manuals will go with relative machines.
QC: All products will be checked before delivery. Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers. Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance. Operation Guidance: If you have any problem with operation, please feel free to contact us.
FAQ
1. Why choose us? We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality? Before delivery, we do test the machine working condition for you. Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product? You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine. Video for you to make samples
4. How to operate the equipment? My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do? The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
