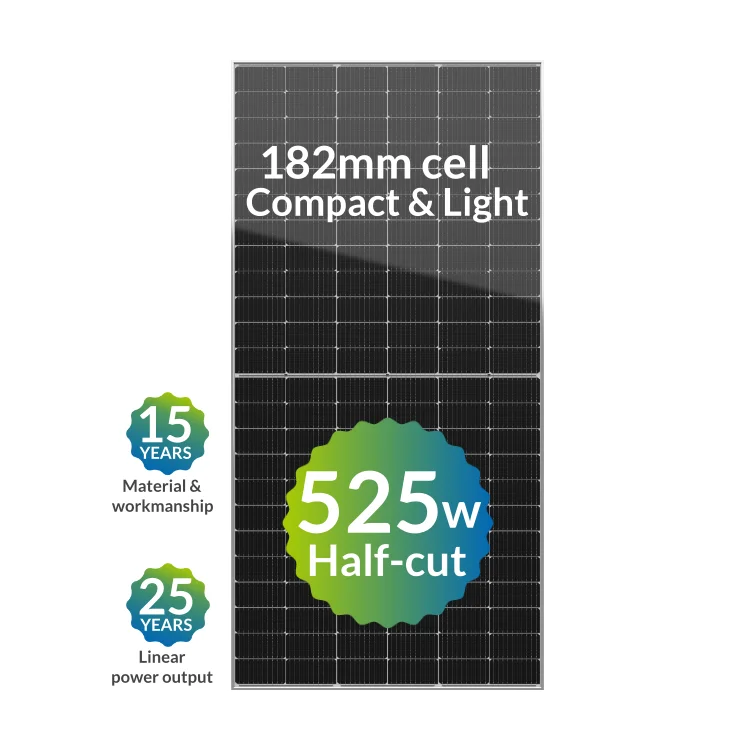

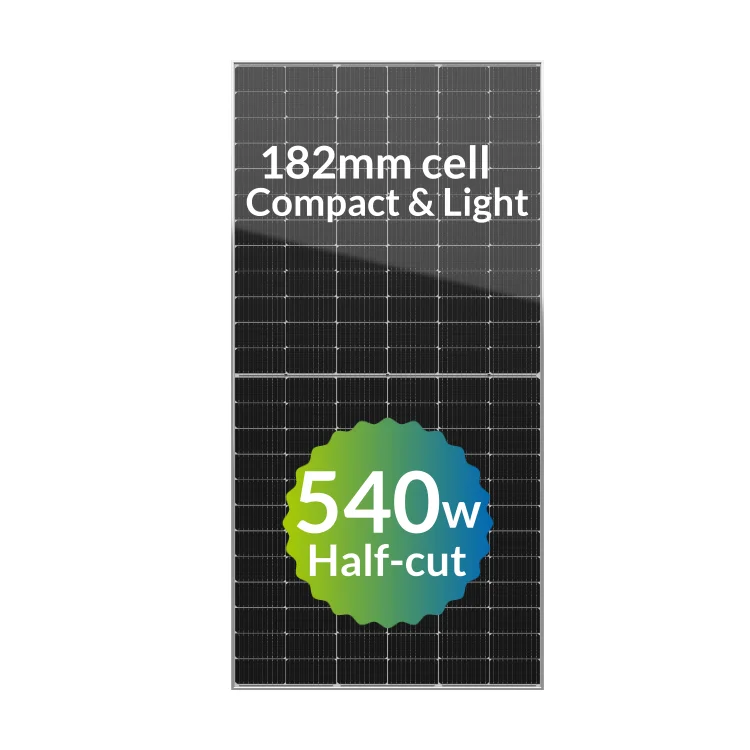

High Efficiency Monocrystalline Solar Cell 500W 520W 530W 540W Solar Panel
- Category: >>>
- Supplier: Suzhou Fortune Energy Technology Co. Ltd.
Share on (1600185492014):
Product Overview
Description
Product Description
Fortune Energy is proud to bring Seraphim's full series of premium solar panel line
Half-cut from 330W ~ 540W
MAKE INQUIRY NOW, AND ENJOY NEW CUSTOMER WELCOME DISCOUNT!
ELECTRICAL CHARACTERISTICS(STC*) | ||||||||
Module Type | SRP-525-BMA | SRP-530-BMA | SRP-535-BMA | SRP-540-BMA | ||||
Maximun Power at STC(pmp) | 525 | 530 | 535 | 540 | ||||
Open Circuit Voltage(Voc) | 49.20 | 49.33 | 49.40 | 49.50 | ||||
Short Circuit Current(Isc) | 13.50 | 13.60 | 13.70 | 13.81 | ||||
Maximum PowerVoltage(Vmp) | 40.78 | 41.03 | 41.29 | 41.55 | ||||
Maximum Power Current (Imp) | 12.88 | 12.92 | 12.96 | 13.00 | ||||
Module Efficiency at STC(nm) | 20.54 | 20.74 | 20.73 | 21.13 | ||||
Power Tolerance | (0,+3%) | |||||||
Maximum System Voltage | 1500 Vdc | |||||||
Maximum Series Fuse Rating | 25A | |||||||
Pmax Temperature Coefficient | -0.35%/°C | |||||||
Voc Temperature Coefficient | -0.27%/°C | |||||||
Isc Temperature Coefficient | +0.05%/°C | |||||||
Operating Temperature | -40~+85°C | |||||||
Nominal Operating Cell Temperature(NOCT) | 45±2°C | |||||||
MECHANICAL SPECIFICATIONS | ||||||||
External Dimensions | 2256*1133*35 mm | |||||||
Weight | 28 kg | |||||||

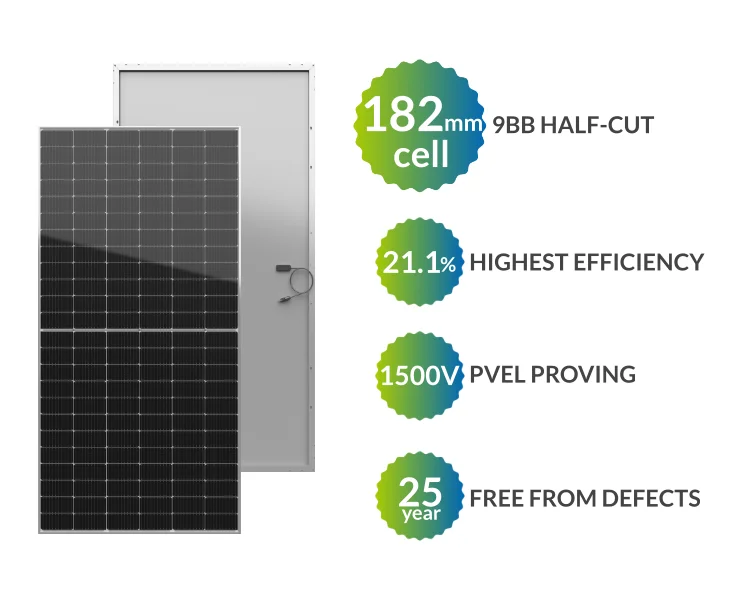

Solar Cells | PERC Mono crystalline 182*91 mm (144pcs) | |||||||
Front Glass | 3.2 mm AR coating tempered glass,low iron | |||||||
Frame | Anodized aluminium alloy | |||||||

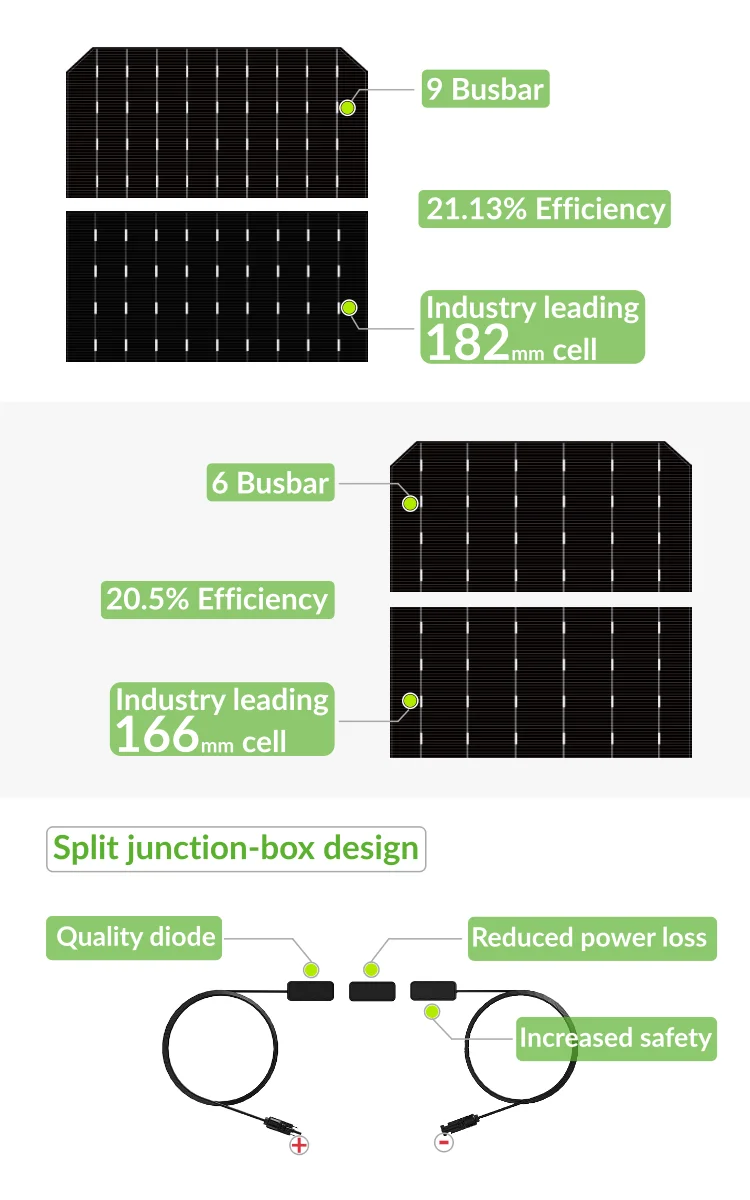

Junction Box | IP68, 3 diodes | |||||||
Output Cables | 4.0 m㎡,Portrait:255mm(+)/355mm(-); Landscape:1300mm | |||||||
Connector | Compatible connectors | |||||||
Mechanical Load | Front side 5400Pa/Rear side 2400Pa | |||||||
Production Process
We employ advanced equipment and skilled labour, dedicated to stringent quality control, from feeding, soldering, electroluminescence (EL) test, lamination, framing to final inspection, fully automated with the highest manufacturing standards.
Recommend Products
Welcome to contact us for more detail information!
Our Advantages
About Company
Types of Installation
Worldwide Projects
Here are some of our recent projects
Packaging & Shipping
USEFUL NOTES AND TIPS
Unlike other electric products, solar panels' rather larger size and weight require strong packaging and careful handling.
To save cost on whether air delivery or sea shipment, we suggest customers to start with minimum 1 pallet, not only will this save final cost per piece, but also ensure complete protection of the products.
PACKAGING QUANTITY
External Dimensions | 2256 x 1133 x 35 mm | ||
Container | 20'GP | 40'HQ | |
Pieces per pallet | 31+4* | 31 | |
Pallets per container | 5 | 20 | |
Pieces per container | 175 | 620 | |
ORDER FULFILLMENT | By Air Express (Sample only) | By Sea Shipment |
LEAD TIME | 5 ~ 20 days | 15 ~ 30 days |
TRANSIT TIME | 7~15 days | 10 ~ 45 days |
Why Choose Us
1. Are you a factory or trading company?
We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM?
Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel?
That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with
technical and design solutions.
4. What is your lead time?
For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition such as T/T and L/C.
7. What is your advantage?
· Key components are manufactured by our own;
· Combined 30+ years of experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8. What are your main products?
On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM?
Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel?
That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with
technical and design solutions.
4. What is your lead time?
For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition such as T/T and L/C.
7. What is your advantage?
· Key components are manufactured by our own;
· Combined 30+ years of experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8. What are your main products?
On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
