  • 1.44 inch TFT SPI Serial port LCD module color display ST7735 controller 128x128
1.44 inch TFT SPI Serial port LCD module color display ST7735 controller 128x128
1.44 inch TFT SPI Serial port LCD module color display ST7735 controller 128x128
1.44 inch TFT SPI Serial port LCD module color display ST7735 controller 128x128
1.44 inch TFT SPI Serial port LCD module color display ST7735 controller 128x128

1.44 inch TFT SPI Serial port LCD module color display ST7735 controller 128x128

Share on (1600185493273):


Price:$2.10 - $2.50

Quantity:


Product Overview

Description



Product Description

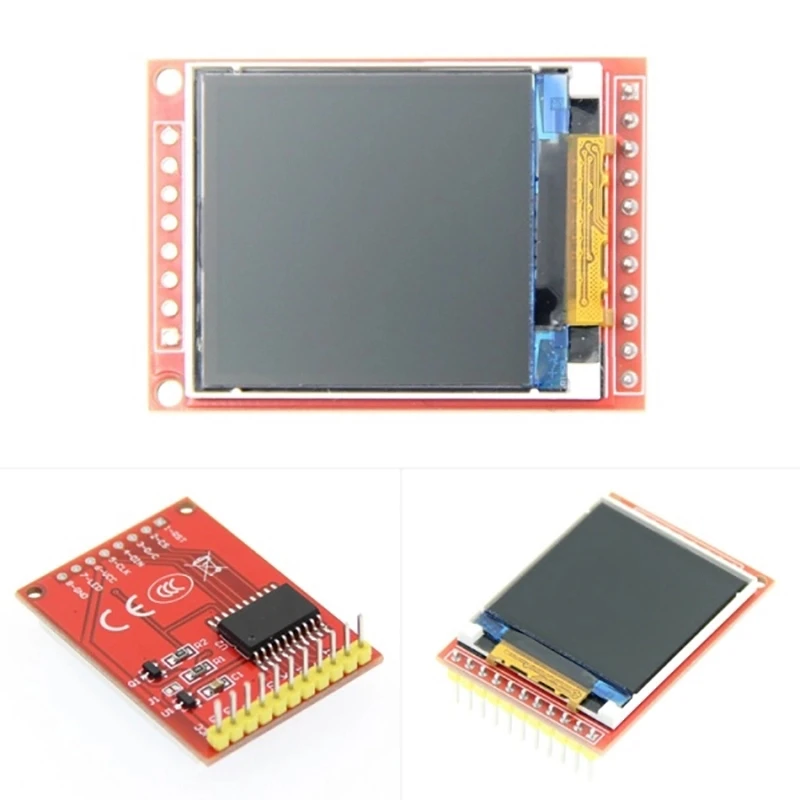

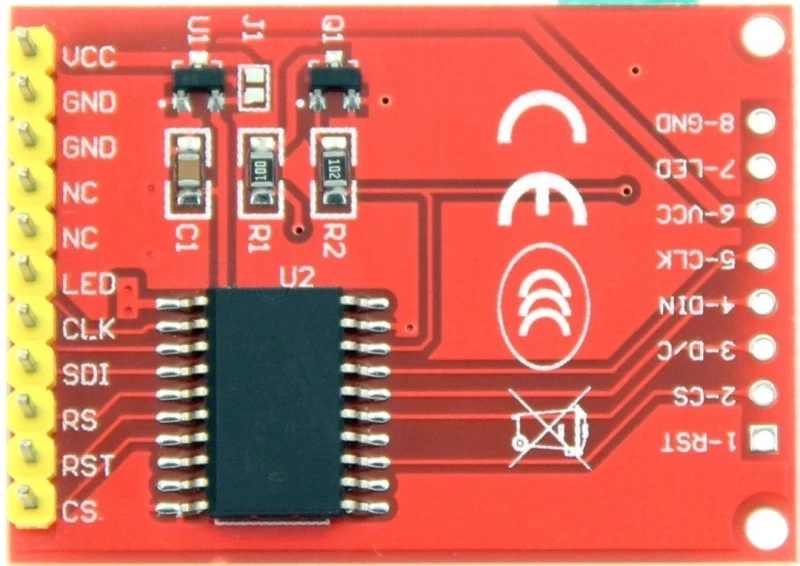

1.44 inch TFT SPI Serial port LCD module color display ST7735 controller 128x128






Feature:


1.44-inch color screen,support 16BIT RGB 65K color display,display rich colors
128X128 resolution, clear display
Using the SPI serial bus, it only takes a few IOs to illuminate the display
With SD card slot for convenient function expansion
Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms
Military-grade process standards, long-term stable work
Provide underlying driver technical support





Parameter:


Display Color:16BIT RGB 65K color
Screen Size :1.44(inch)
Type:TFT
Driver IC:ST7735S
Resolution:128*128 (Pixel)
Module Interface:4-wire SPI interface
Backlight:1 White Led
Active Area :26.2x27.2 (mm)
Module PCB Size 31.49x43.95 (mm)
Operating Temperature:-20℃~60℃
Storage Temperature:-30℃~70℃
Operating Voltage:5V/3.3V





1 (1).jpg1 (2).jpg1 (3).jpg
