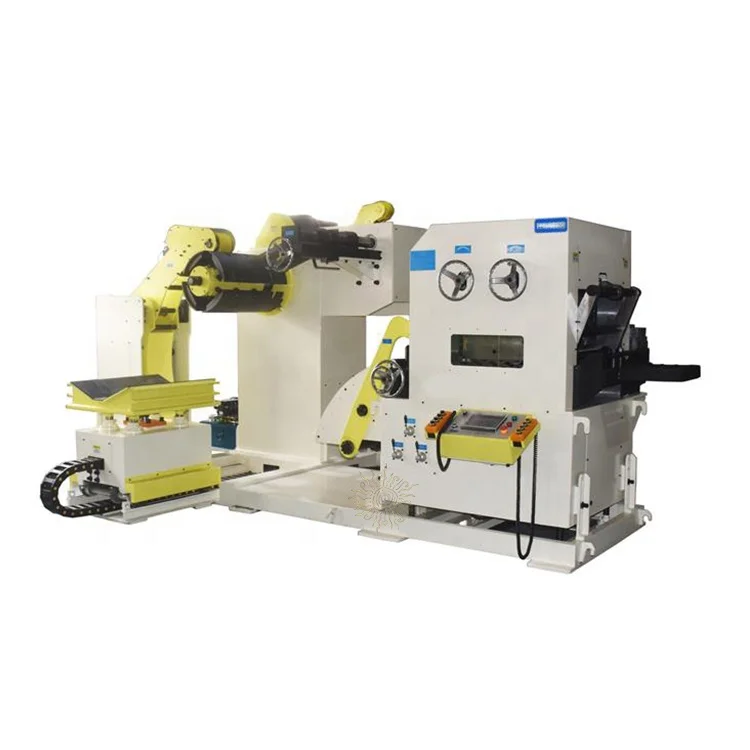

Fan making miniturized sheet metal punching machine auto feed,automatic feeding machine
- Category: Other Metal & Metallurgy Machinery >>>
- Supplier: Guangzhou Shangguan Machinery Co. Ltd.
Share on (1600185498827):
Product Overview
Description
Fan making miniturized sheet metal punching machine auto feed,automatic feeding machine
Product Description
Standard Configuration
1. Photoelectric arc control system; 2. Height electric adjustment device; 3. Arc control roller; 4.Oil pressure expansion equipment of material rack; 5. Frequency control of material rack; 6. Press arm device; 7. The material rack includes air pressure disc brake device; 8. Oil pressure automatic loading trolley.
Parameters
---------------
| Item | HGS4-400 |
| Stock width | 75-400mm
|
| Stock thickness | 0.6-6.0mm |
| Max coil weight | 3000kg |
| Max coil outer diameter | 1400mm |
| Max coil inner diameter | 508mm |
| Feed length | 9999.9mm |
| Max. line speed | 24m/min |
| Work roll number | upper4/ lower3 |
| Feed roll number | 1 set |
| Main motor | AC4.4kw |
| Reel motor | 1.5kw |
| Mandrel expansion | Hydraulic |
| Power supply | 3 phase 220V/380V/50Hz |
| Operating Air | 0.5Mpa |
Advantages
1. Easy maintenance: Semi-auto lubricate system
2. Easy operation: Unskilled ladies or freshman can operate the machine
3. Double-start-button safe-protection system
4. Feedback by clients that machine frame life over 10 years
5. Custom service is available
Rectifying Capabilities
---------------
| Model | HGS4-400 | HGS4-600 | HGS4-800 | HGS4-1000 | HGS4-1300 | |
| Stock thickness | 2MM | 400 | 600 | 800 | 1000 | 1300 |
| 2.5MM | 400 | 600 | 800 | 1000 | 1300 | |
| 3.2MM | 400 | 600 | 700 | 700 | 700 | |
| 4.0MM | 400 | 600 | 600 | 600 | 600 | |
| 4.5MM | 400 | 500 | 500 | 500 | 500 | |
| 5.0MM | 400 | 400 | 400 | 400 | 400 | |
| 6.0MM | 300 | 300 | 300 | 300 | 300 | |
The above figures are material having yield strenggth of 275N/mm2(Tensile strength of 400N/mm2)
End products
-----------------
Why us
About us
------------
Successful Projects
---------------------------
Our Services
Services
-----------
Pre-sale Service
1. Popular design, new trend information sharing.
2. Return of investment analysis.
3. A-Z solution flow chat design.
4. Production process design and feasibility study.
5. Machines line arrangement.
In-sale Service
1. Machines and molds quality control during manufacturing and after finish.
2. Independent verification for each process.
After-sale Service
1. Plant layout proof & production line positioning.
2. Production line installation & debugging.
3. Training after shipment in buyer's factory.
4. Annual visit on site.
Upgraded Service
1. Market trend & latest fashion broad casting.
2. Continuous & systematic training for management, maintenance team & operators.
3. Back up for the regular production.
4. Support in new R&D realization.
