Narrow web color plastic rotogravure printing machine gravure printing press

Product Overview

Description



Deguang -Printing In Life

Machine Running Vedio Link:htps://www.youtube.com/watch?v=xwbMSBuD-ds



1.

1.   Main parameter:

1. 1.Printing colors: 4 colors, 6 unit.

2. 2. Max. width of printing material: 1130mm

3. 3. Max. Printing width: 1100mm

4. 4. Max. Mechanical speed: 130 m/min

5. 5. Max. Printing speed: 120 m/min (varies according to the different printing material

                           ink and the familiarity of the operator, etc.).

6. 6. The Max diameter of unwind and rewind: 600mm.

7. 7. Diameter of printing cylinder: 100mm-350mm

8. 8. Unwinding traction tension: Max 50N/m (Powder brake control)

9. 9. Rewinding tension: Max 25N/m

1010. Rewinding traction tension: Max 10N/m (Torque motor control)

1  11. Register precision: Vertical ±0.2mm.

    12. Main motor: Frequency motor  7.5KW

    13. Heating type: Electric heating

    14. Heating power: Each color 12KW

    15. Machine power: Max 70kw(It’s the power when we start the machine, when it running  the power will be around 30-40kw)

1616. Overall dimension: 7800*2730*2670mm

1717. Net weight: 7000kg

1818. Printing material available:

² PET: 12-100μm

² PE: 35-100μm

² BOPP: 15-100 μm

² CPP: 20-100 μm

² PVC:20-100μm

Note:  And other film materials with the similar printing performance listed above.



1.

2

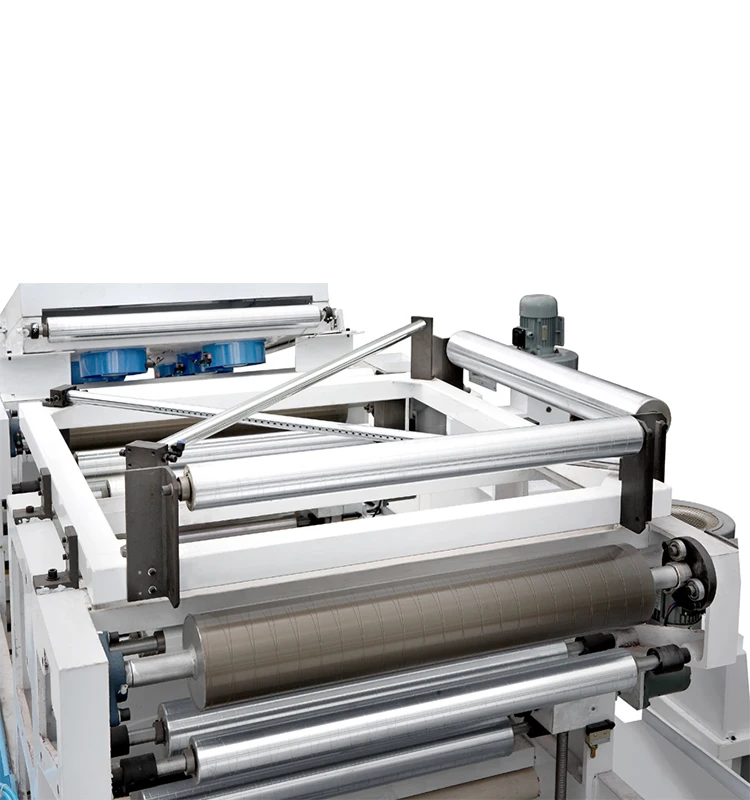

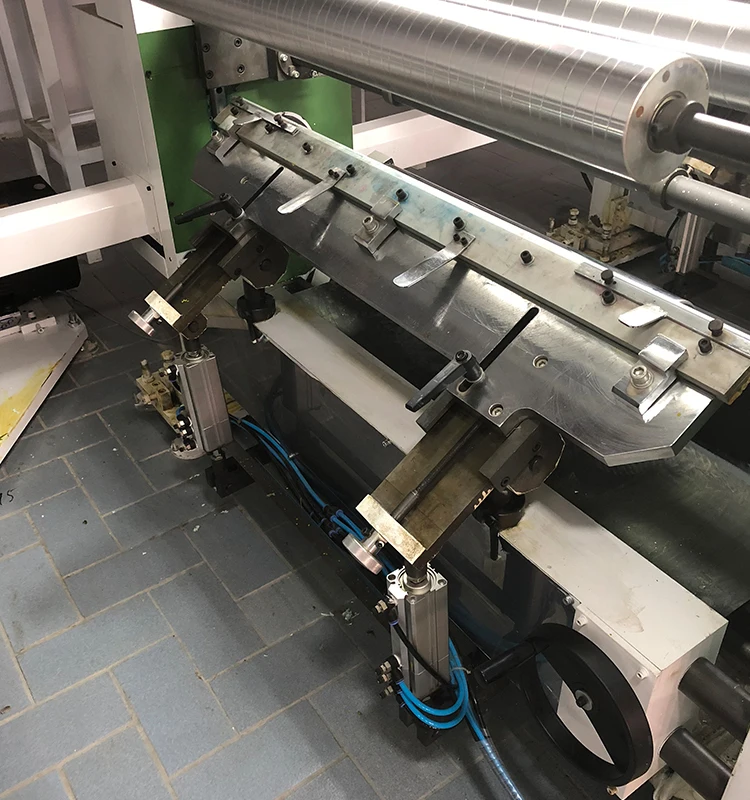

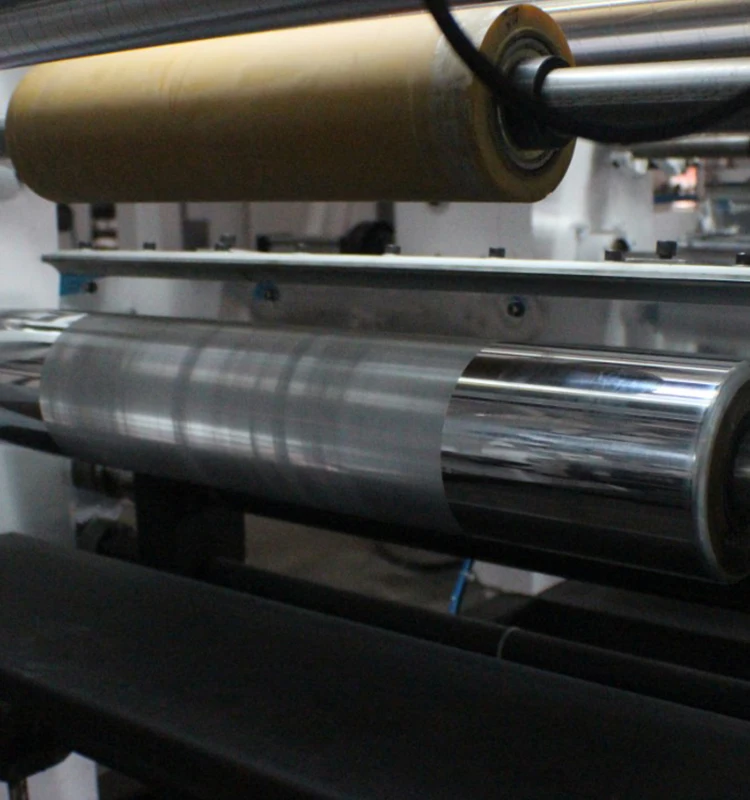

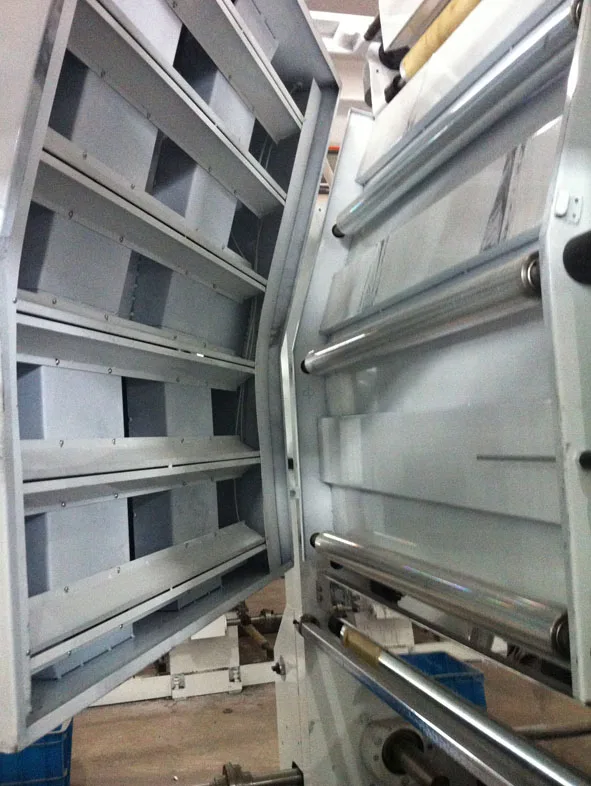

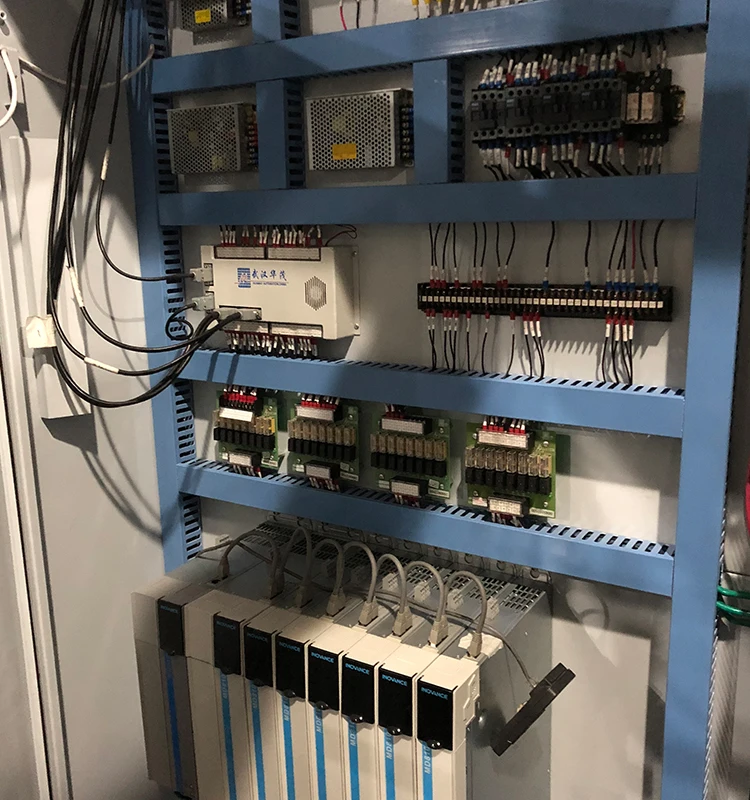

Details Picture of Rotogravure Printing Machine:









Our Printing Products sample :







Our Working Shop:





We are In Exhibition :



Certificate of Rotogravure Printing Machine:





ZheJiang Deguang Machinery Co.,Ltd:

30 Years History Consistent and Stable Quality,Your best Choice!!!
