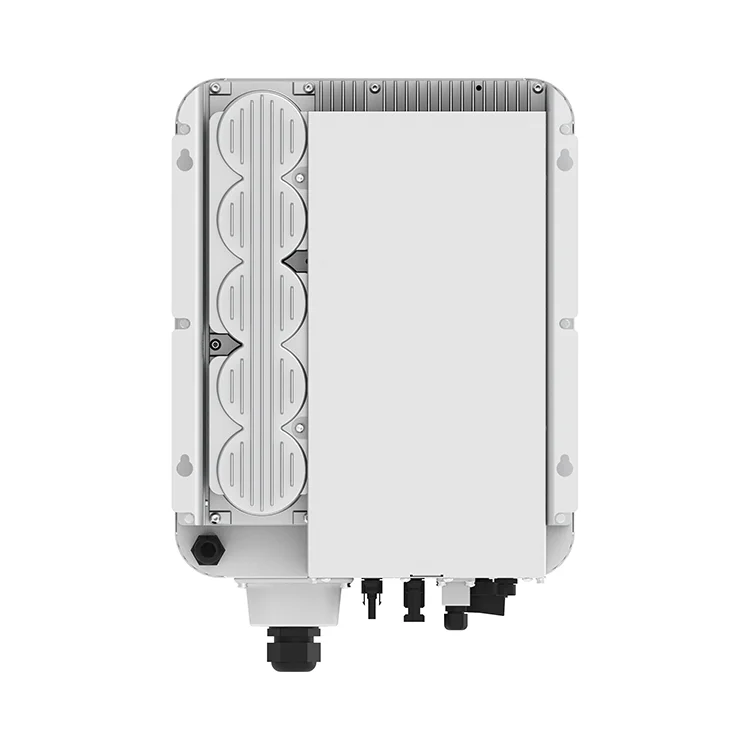

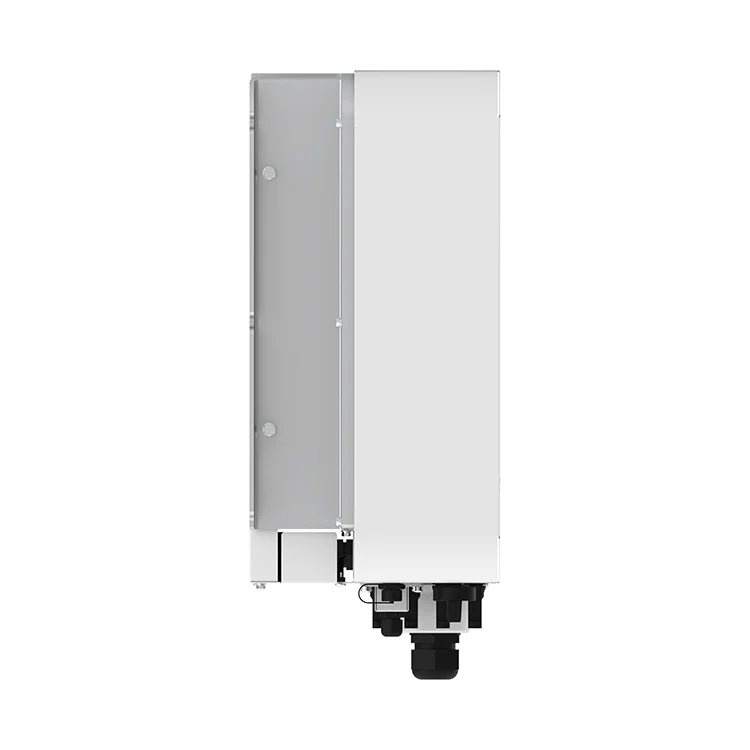

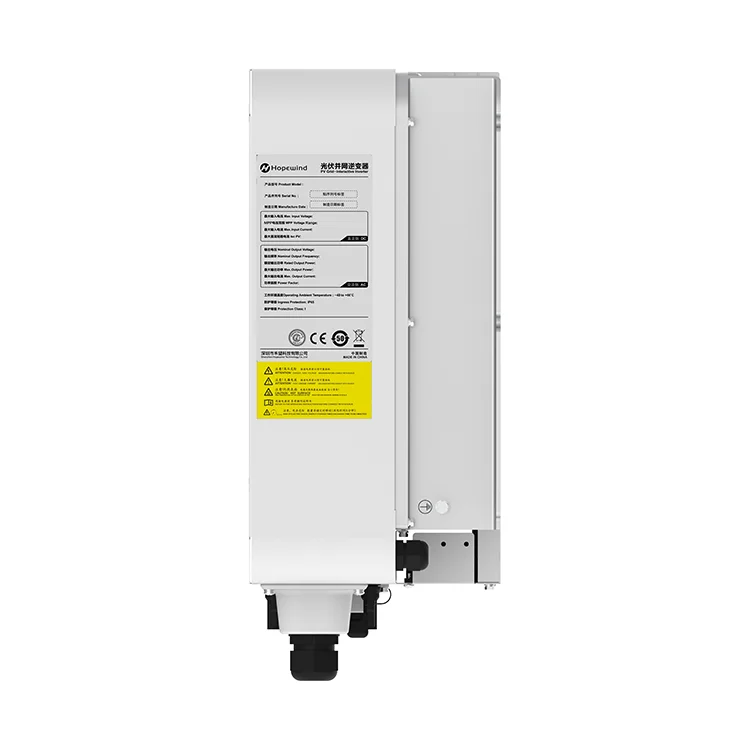

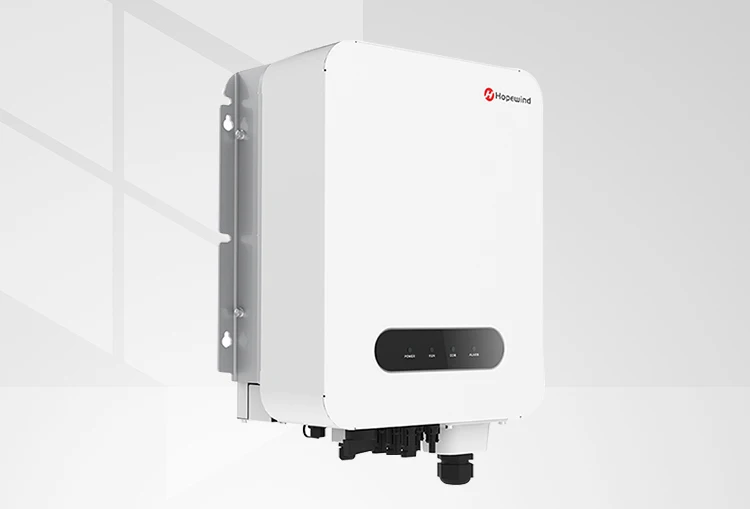

Hopewind Commercial On Grid Inverter 10kW 15kW 20kW 25kW 30KW Three Phase Solar PV String Inverters
- Category: >>>
- Supplier: Shenzhen Hopwinn Innovation Technology Co. Ltd.
Share on (1600185641686):
Product Overview
Description
Product Description
Model | hopeSun 10KTL | hopeSun 15KTL | hopeSun 20KTL | hopeSun 25KTL | hopeSun 30KTL | |||||
DC Input | Max. DC Voltage | 1100V | ||||||||
MPPT Voltage Range | 250V-1000V | |||||||||
Max. Input Current of Each MPPT | 12A | 26A/13A | 26A | 39A | ||||||
Number of DC Inputs | 2 | 3 | 4 | 6 | ||||||
MPPT Number | 2 | |||||||||
AC Output | Rated Output Power | 10kw | 15kw | 20kw | 25KW | 30KW | ||||
Max. Active Power(cosθ=1) | 11kw | 16.5kw | 22kw | 27.5KW | 33KW | |||||
Rated Output Voltage | 400V (Three Phase) | |||||||||
Operating Voltage Range | 400V±20% | |||||||||
Rated Output Current | 14A | 22A | 29A | 36A | 43.3A | |||||
Max. Output Current | 16A | 24A | 32A | 39.7A | 47.6A | |||||
Rated Grid Frequency | 50Hz/60Hz | |||||||||
Power Factor | 0.8(Leading)~0.8(Lagging) | |||||||||
THD | ＜3% | |||||||||
System Parameters | Max. Efficiency | 98.60% | 98.61% | 98.63% | 98.94% | 99.00% | ||||
European Efficiency | 98.30% | 98.26% | 98.50% | |||||||
AC/DC SPD | Support | |||||||||
Insulation Impedance Detection | Support | |||||||||
Residual Leakage Current Detection | Support | |||||||||
PV String Fault Detection | Support | |||||||||
Output Overcurrent Protection | Support | |||||||||
Protection Level | IP65 | |||||||||
Operating Temperature Range | —40℃ ~ 60℃ | |||||||||
Cooling System | Natural Cooling | Smart Air Cooling | ||||||||
Standby Power Consumption | ＜1W | |||||||||
Topology Structure | Transformerless | |||||||||
Operating Altitude | 5000m (Derating above 4000m) | |||||||||
Display | LED Indicator + APP | |||||||||
Communication | RS 485 /WiFi / GPRS | |||||||||
Certification | IEC62109 / IEC61000 / IEC62116 / IEC61727 / EN50549 / CQC / CGC | |||||||||
Mechanical Parameters | Dimensions(W*H*D) | 485*485*266mm | ||||||||
Weight | ＜30kg | ＜35kg | ||||||||
ABOUT US
CERTIFICATE
EXHIBITION

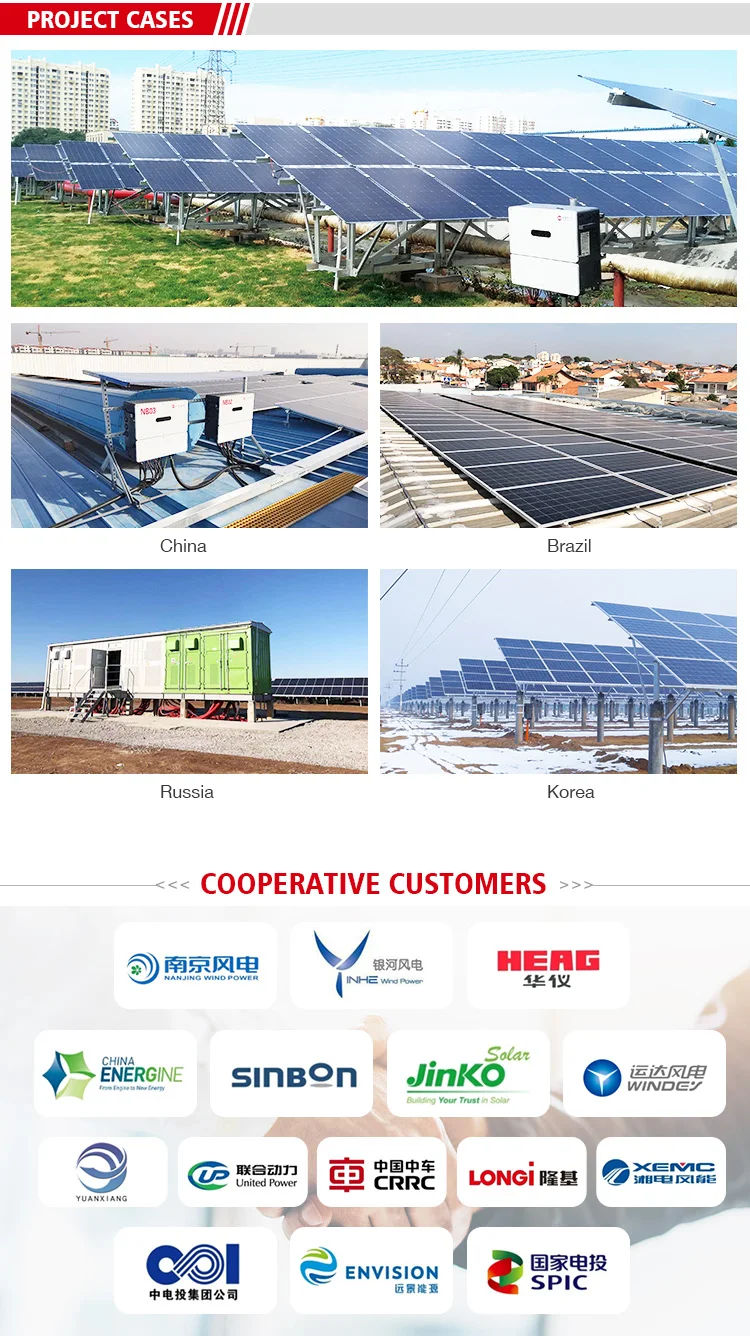

PROJECT CASES
