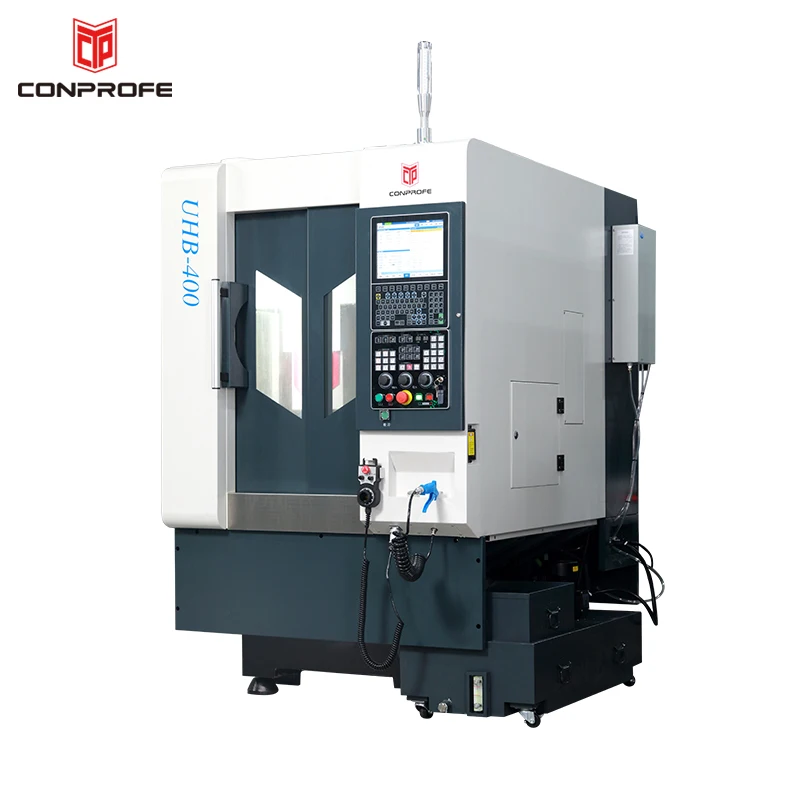

Product Overview
Description
Products Description
Description | Package Detail | |
System | Siemens 808D System | |
Worktable | ||
Dimension (mm) | 400x400 | |
Max. Load (kg) | 100 | |
Travel | ||
Max.X/Y/Z Travel (mm) | 400x400x150 | |
Feed Rate | ||
X/Y/Z Rapid Traverse (m/min) | 15/15/12 | |

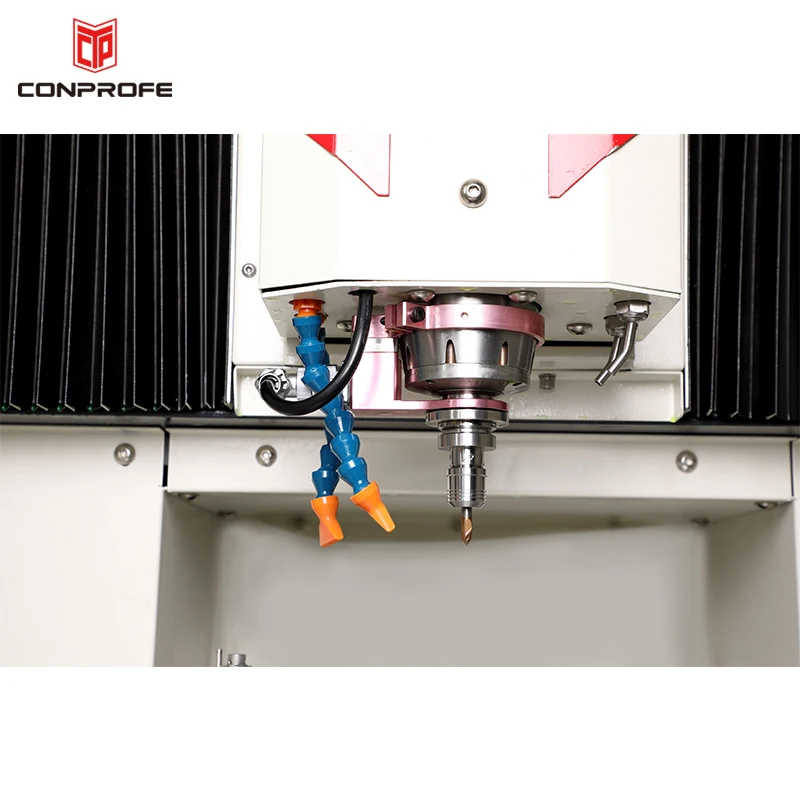

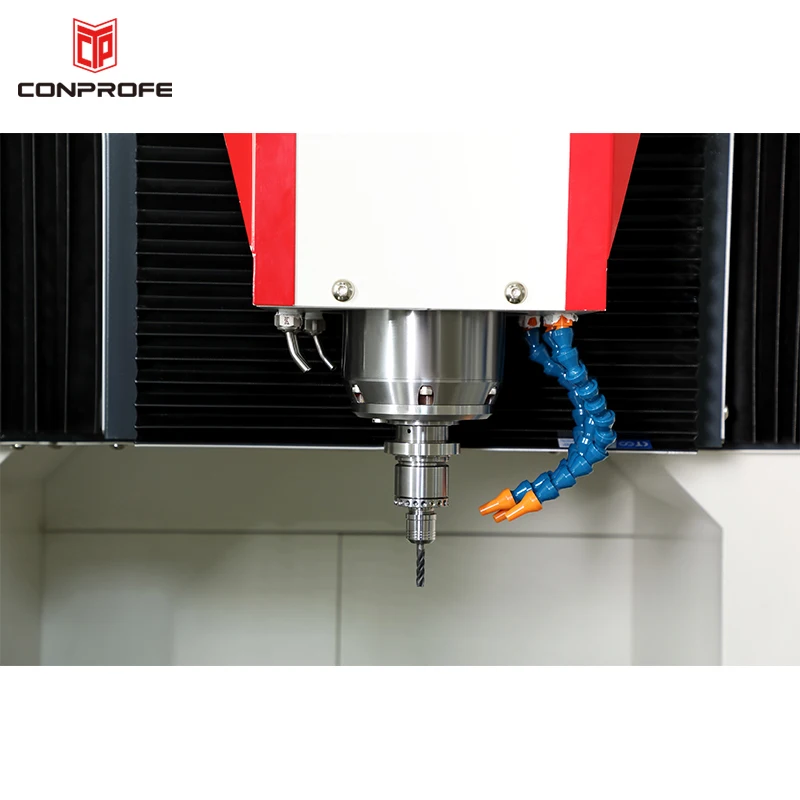

Spindle | ||
Diameter (mm) | 80 | |
Power Rating (kW) | 3.7 | |
Max. Speed (rpm) | 40,000 | |

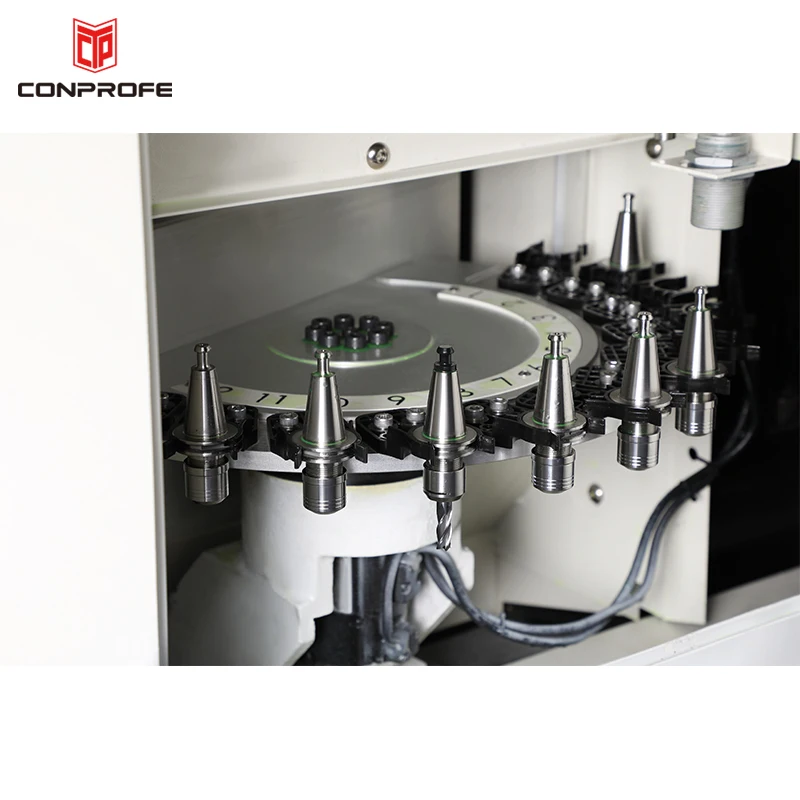

Magazine | ||
Tool Capacity (pockets) | 12 | |
Tool Holder Type | HSK-25E | |
Tool Overhang (mm) | 70 | |
Accuracy | ||
X/Y/Z Positioning Accuracy (mm) | 0.005 | |
X/Y/Z Repeatability (mm) | 0.003 | |
Power Supply and Dimensions | ||
Power Supply | 3-Phase AC, 380V/50Hz/18A | |
Weight (kg) | 2,100 | |
Required Compressed Air Connection (MPa) | ≥0.6 | |
X/Y/Z Dimensions (mm) | 1,450×1,750×1,960 | |
Warranty (Months) | 12 | |
Make the Impossible Possible
- 130% output with 30% CAPEX
- Sub-surface damage reduced by 40%
- Tool life improved by 3~10 times
- Cutting force down by 50%
- Cutting heat down by 30%
1. Most Economical 2-in-1 Ultrasonic Precision Machining Center for Hard-Brittle & Small Metal Parts Processing
2. Ultrasonic (spindle / tool holder) technologies for high precision and efficiency
3. The most subminiature 5th axis rotary table in the world available for multi-sided machining in one clamping
4. Optional Renishaw 3D Probe to realize innovative process and in-process control
5. Optional single or dual ATC:12/24 tools
6. Free workpiece testing
- 130% output with 30% CAPEX
- Sub-surface damage reduced by 40%
- Tool life improved by 3~10 times
- Cutting force down by 50%
- Cutting heat down by 30%
1. Most Economical 2-in-1 Ultrasonic Precision Machining Center for Hard-Brittle & Small Metal Parts Processing
2. Ultrasonic (spindle / tool holder) technologies for high precision and efficiency
3. The most subminiature 5th axis rotary table in the world available for multi-sided machining in one clamping
4. Optional Renishaw 3D Probe to realize innovative process and in-process control
5. Optional single or dual ATC:12/24 tools
6. Free workpiece testing

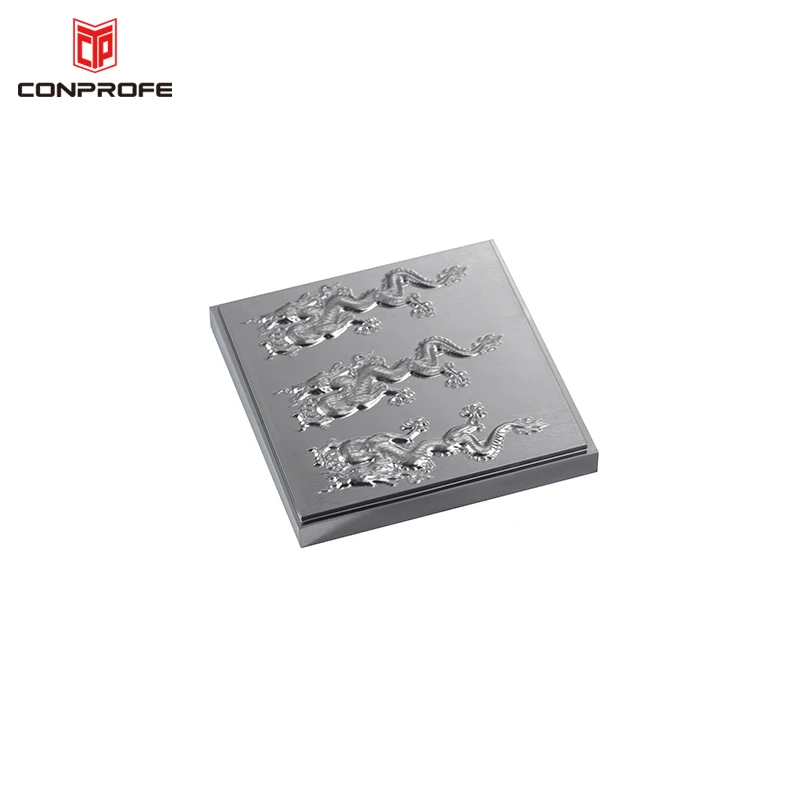

Details Images
