Guangzhou CNC Micro Milling Machine Product Price List
- Category: >>>
- Supplier: Conprofe Technology Group Co. Ltd.
Share on (1600185649760):
Product Overview
Description
Products Description
System | SIEMENS 828D-280 | ||
Product Name | Conprofe High Precision Ultrasonic Machining Center | ||

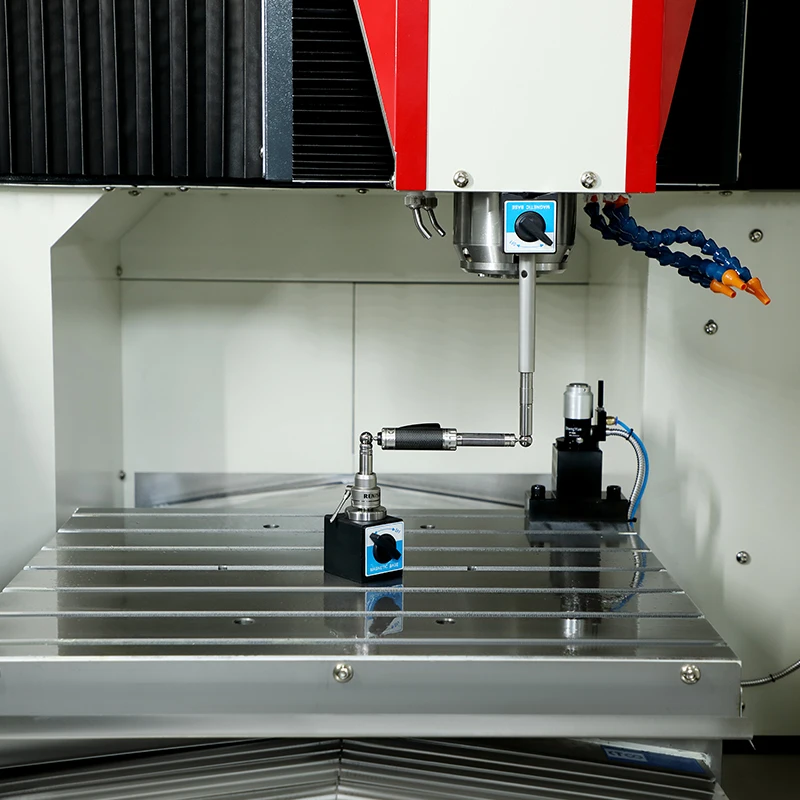

Work table | Dimension | 620x560 | |
Max.Load | 300 | ||
Travels | Max.Travel in X-/Y-/Z-axis | 600x500x300mm | |
FeedRate | Rapid Traverse in X-/Y-/Z-axis | 15/15/12m/min | |

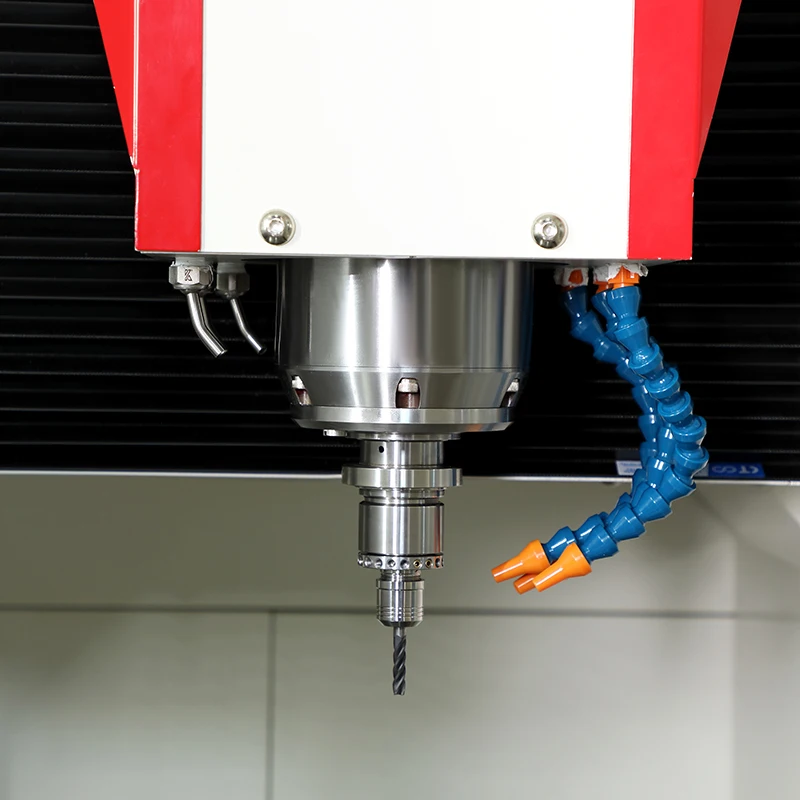

Spindle | Diameter | 120mm | |
Power Rating | 7.5kW | ||
Max.Speed | 30000rpm | ||

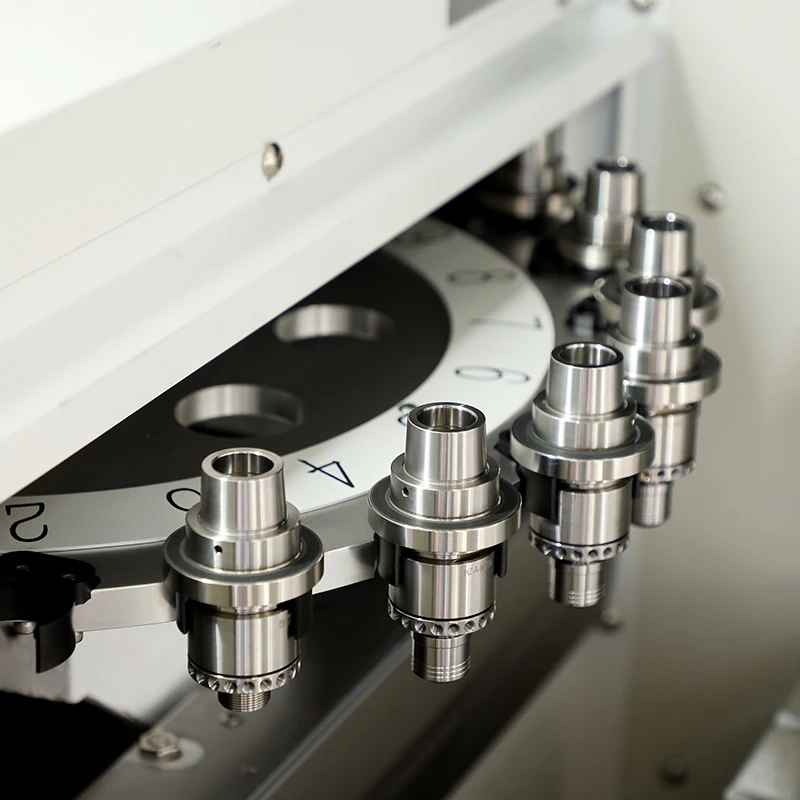

Magazine | Tool Capacity | 13Positions | |
Tool Holder Spindle | HSK-40E | ||
Tool Overhang | 90mm | ||
Accuracy | Positioning Accuracy in X-/Y-/Z-axis | 0.005mm | |
Repeatability Accuracy in X-/Y-IZ-axis | 0.003mm | ||
Power and Dimensions | PowerSupply | 3-phase AC, 380V/50Hz/25A | |
Weight | 5000kg | ||
Required Compressed Air Connection | ≥0.6MPa | ||
Dimensions(X/Y/Z) | 2160 × 2090 × 2390mm | ||

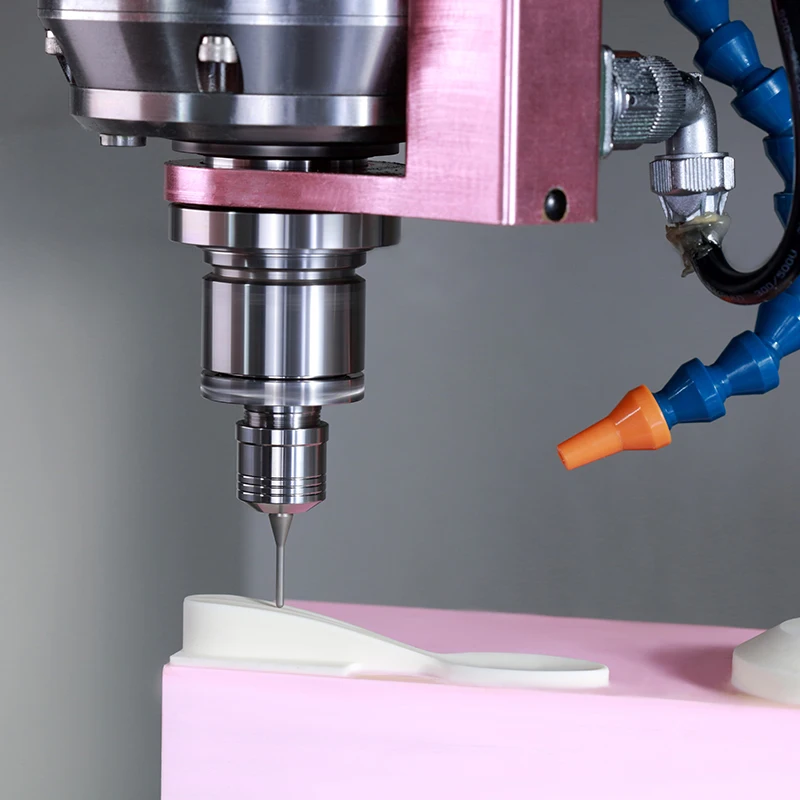

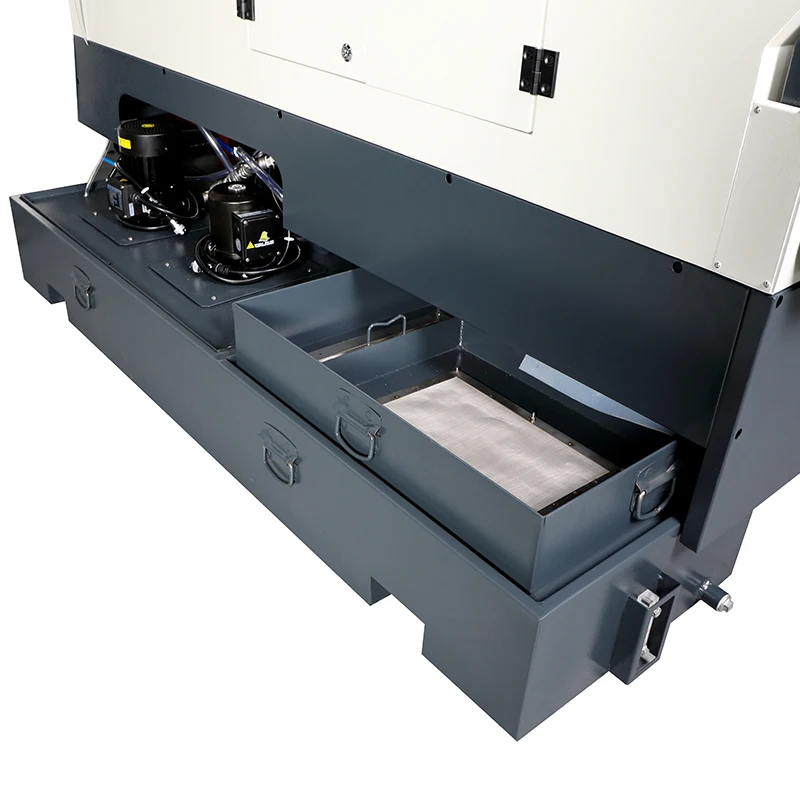

Details Images
