Rotary punching machine
US $55900

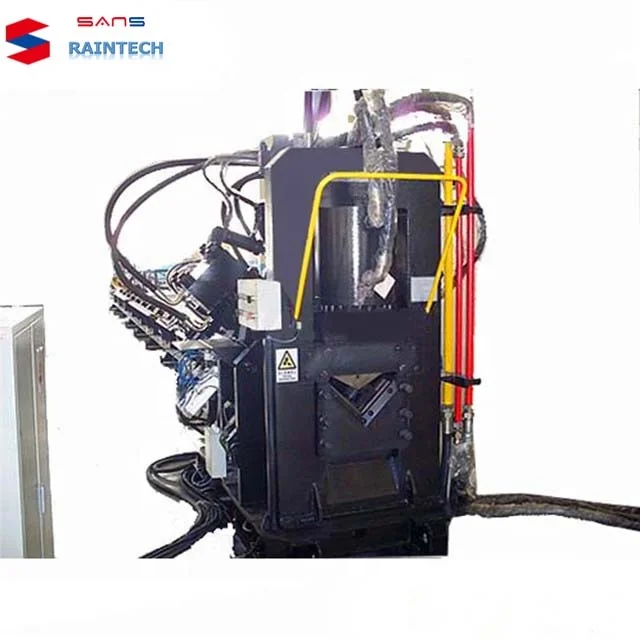

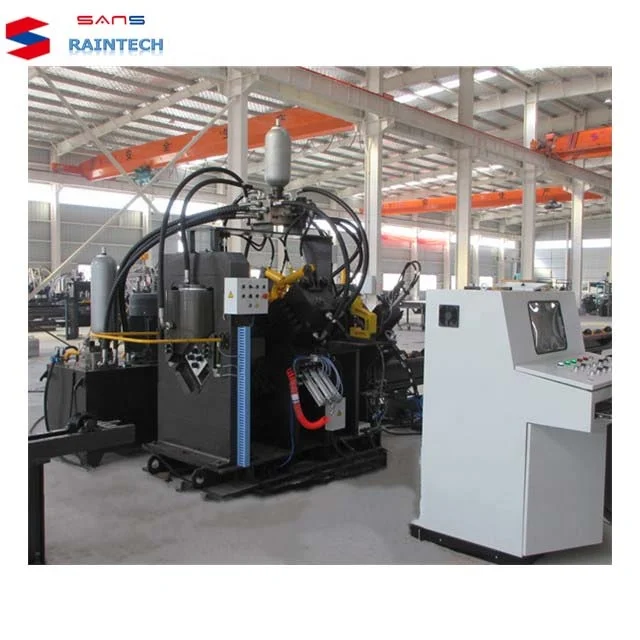

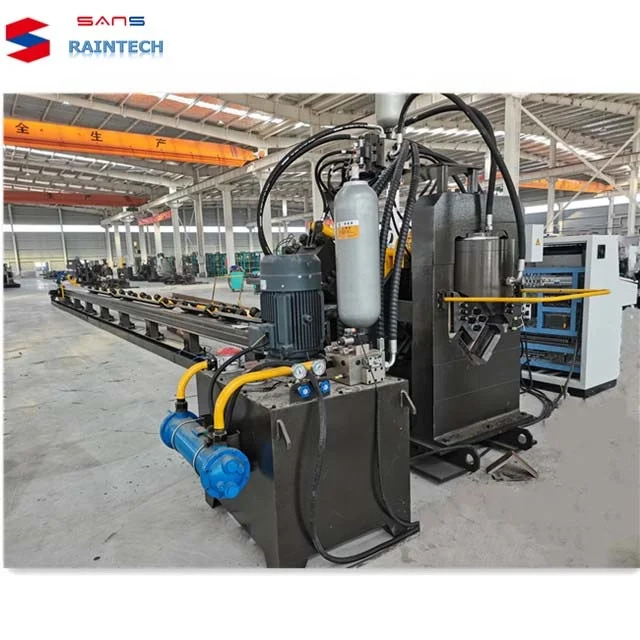

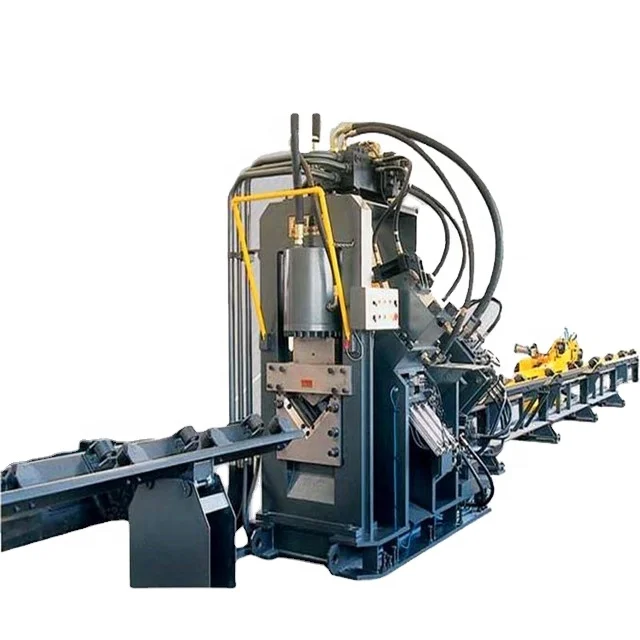

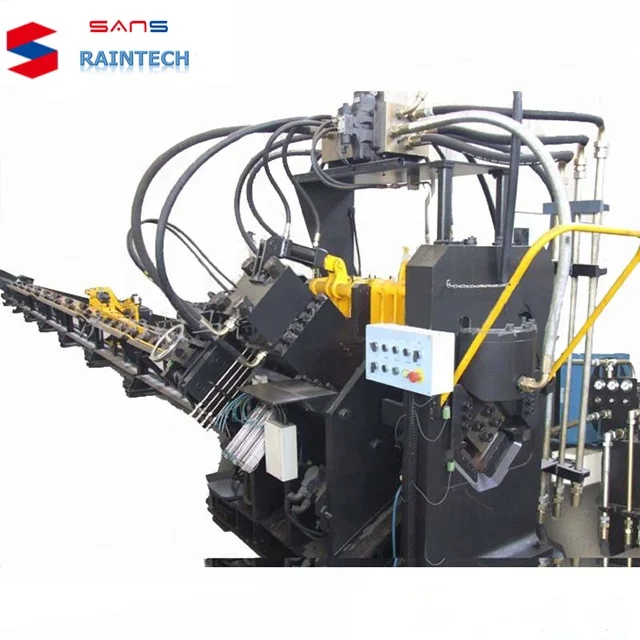

Steady High Precision Cnc Angle Steel Hole Punching Production Line
- Category: Punching Machines >>>
- Supplier: Shandong Raintech Sans Technology Co. Ltd.
Share on (1600185669378):
Product Overview
Description
Product Application
Model | JGX1010 | JGX4014 | JGX1516 | JGX2020 | |||||
Function | Punching, Marking, Shearing for Angle steel & Flat Steel | ||||||||
Angle Steel Size Range (mm) | 16Mn | 40*40*3--100*100*8 | 40*40*3--140*140*12 | 40*40*3--150*150*16 | 63*63*5-200*200*18 | ||||
Cold rolling steel | 40*40*3--100*100*12 | 40*40*3--140*140*12 | 40*40*3--150*150*16 | 63*63*5-200*200*20 | |||||
Max. Punching Diameter*Thickness(mm) | Round hole | Φ26*8 | Φ26*12 | Φ26*16 | Φ26*12 | ||||
Slot hole | Φ26*50*8 | Φ26*50*12 | Φ26*50*16 | Φ26*50*12 | |||||
Punching Force (KN) | 800 | 1000 | 1000 | 1000 | |||||
Marking Force(KN) | 630 | 630 | 800 | 630 | |||||
Shearing Force(KN) | 1250 | 1800 | 1800 | 1500 | |||||
Max. Length of Blank Angle Steel(m) | 9 | 9 | 9 | 9 | |||||
Max. Length of Blank Flat Steel(m) | 9 | 9 | 9 | 9 | |||||
Stadia Adjusting Range(mm) | 20-100 | 20-120 | 20-170 | 20-160 | |||||
Punching Dies Number on Each Side | 3 | 3 | 3 | 3 | |||||
Marking Stations | 4 | 4 | 4 | 4 | |||||
Marking Character Size | 14*10*19 | 14*10*19 | 14*10*19 | 14*10*19 | |||||
Character No. | 12 | 12 | 12 | 12 | |||||
CNC Axis number | 3 | 3 | 3 | 3 | |||||
Shearing Mode | Single blade | Single blade | Single Blade | Double Blade | |||||
Max. infeed speed(m/min.) | 40-80 | 40-80 | 40-80 | 40-80 | |||||
